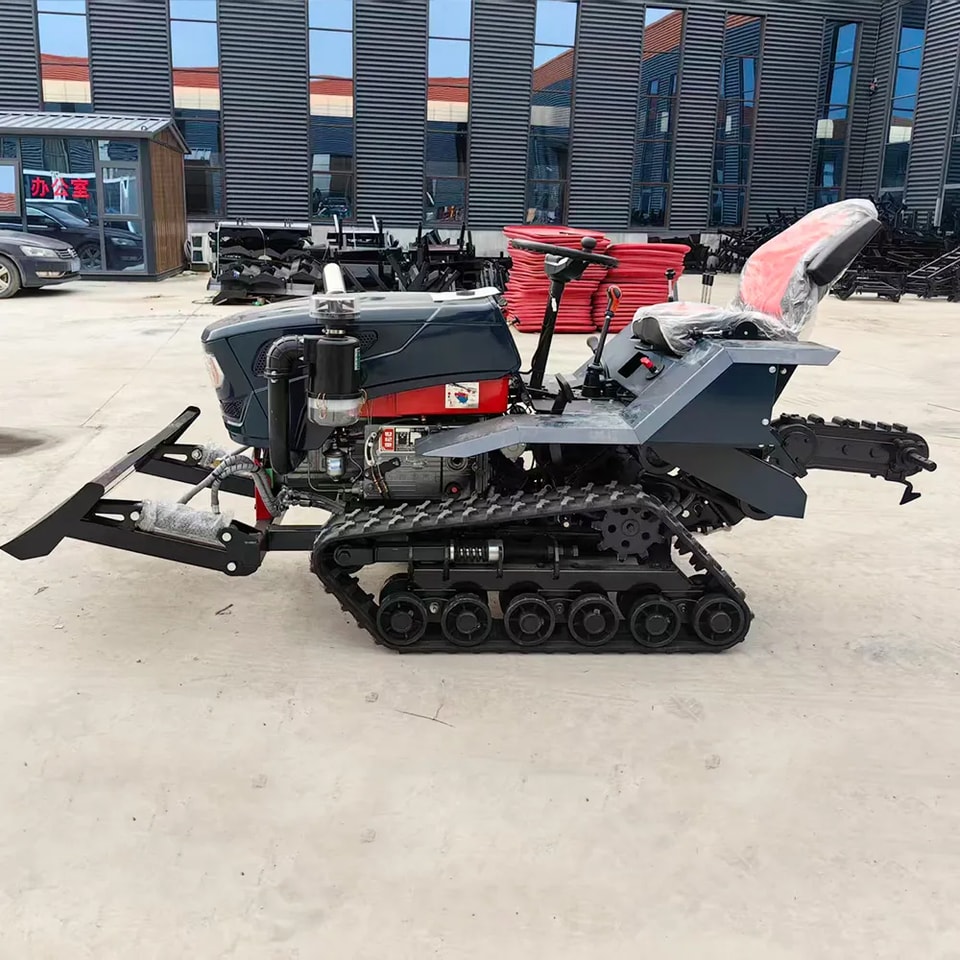

HTCT35H-Pro Crawler Tractor for Farm Contractors
When Wheeled Tractors Struggle With Uneven Ground
Farm contractors often move between fields, orchards and land-maintenance areas where ground conditions can change quickly. The HTCT35H-Pro uses a crawler undercarriage with an 820 mm track gauge, 180/200 mm track width and 220 mm ground clearance, giving operators a tracked platform for work where stable ground contact is important.
One Tracked Platform for Different Farm Tasks

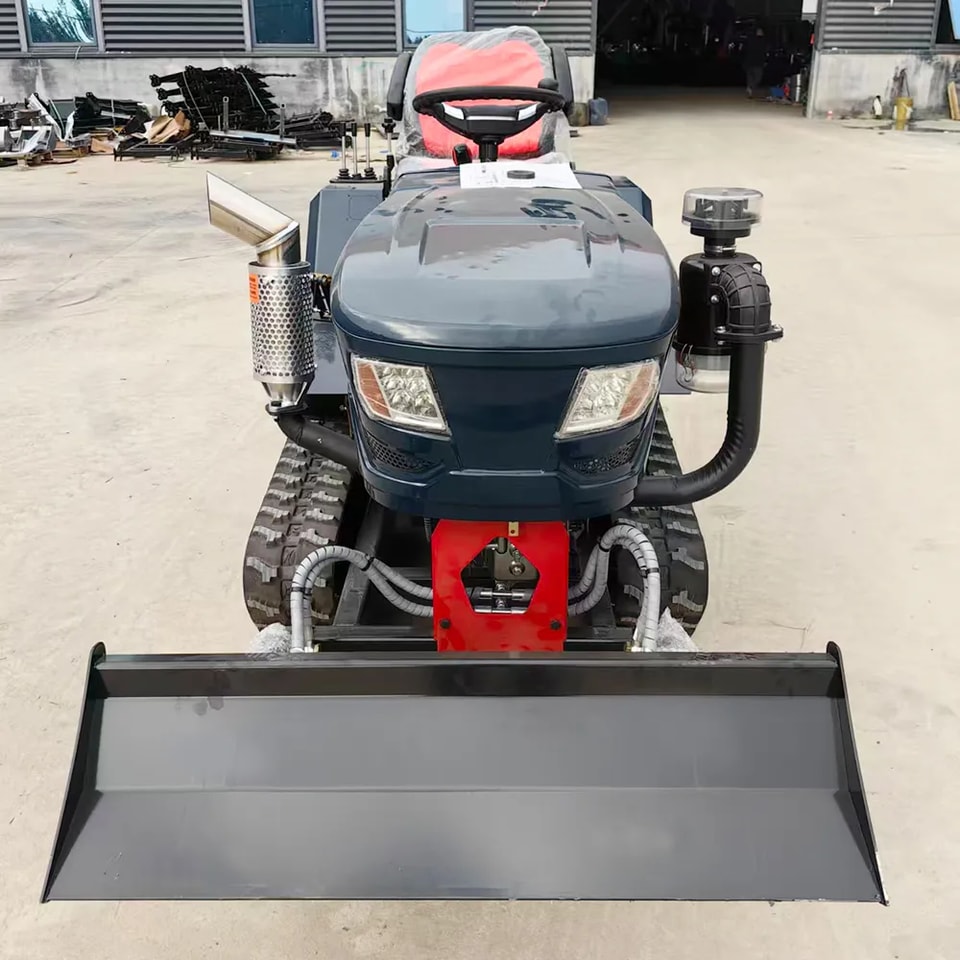

Seasonal agricultural work does not always require a dedicated machine for every operation. The HTCT35H-Pro can be configured with listed implements including a bulldozer blade, loading bucket, excavator arm, ditching machine, harvester and rotary tiller. This makes it relevant for contractors looking for a multi-purpose crawler tractor with attachments rather than a single-task machine.
Traction and PTO Capability for Field Operations
The KM35-YT engine delivers 26.4 kW at 2200 rpm, while the crawler drive provides a maximum tractive force of 6 kN and a maximum climbing angle of 30°. A rear PTO with a specified speed of 330 rpm supports compatible agricultural implements. These specifications are useful for buyers comparing a tracked tractor for orchard work or a crawler tractor for uneven farm land.
Practical Configuration for Contractors and Rental Fleets
For small agricultural contractors and equipment rental businesses, attachment compatibility can influence the return from one machine. The HTCT35H-Pro combines mechanical steering, single-side independent braking and an 18 MPa hydraulic system in a compact tracked package. Buyers can request the required attachment configuration, export quotation, spare parts support and shipping assistance before purchase.
| Parameter | Specification |
|---|---|
| Model | HTCT35H-Pro |
| Machine Type | Crawler Tractor |
| Overall Dimensions (L × W × H) | 2300 × 1120 × 1500 mm |
| Engine Model | KM35-YT |
| Engine Power | 26.4 kW / 2200 rpm |
| Starting Method | Electric Start |
| Unladen Weight | 900 kg |
| Ground Clearance | 220 mm |
| Track Gauge | 820 mm |
| Track Length | 1000 mm |
| Track Width | 180 / 200 mm |
| Maximum Travel Speed | 20 km/h |
| Maximum Climbing Angle | 30° |
| Gearbox Ratios | 6 Forward Gears / 2 Reverse Gears |
| Steering Control Method | Mechanical Steering |
| Steering System | Single-side Independent Braking |
| Hydraulic System Displacement | 10 ml/r |
| Hydraulic System Pressure | 18 MPa |
| Maximum Tractive Force | 6 kN |
| Rear Power Take-Off Configuration | Gearbox Type |
| Rear Power Take-Off Speed | 330 rpm |
| Rear Coupling Spacing | 110 × 170 mm |
| Compatible Attachments | Bulldozer Blade, Loading Bucket, Excavator Arm, Ditching Machine, Harvester, Rotary Tiller |
FAQ About HTCT35H-Pro Crawler Tractor
Is the HTCT35H-Pro suitable for agricultural contractors?
Yes. Its tracked chassis, 26.4 kW engine, 6 kN maximum tractive force and multi-attachment configuration make it suitable for contractors handling different agricultural and land-maintenance tasks.
What type of ground can the HTCT35H-Pro work on?
The crawler configuration is intended for agricultural applications where stable traction is important. It has 220 mm ground clearance and a maximum climbing angle of 30°. Actual suitability depends on soil, slope and working conditions.
What attachments can be used with this crawler tractor?
The listed compatible attachments include a bulldozer blade, loading bucket, excavator arm, ditching machine, harvester and rotary tiller. Buyers should confirm the required implement configuration before ordering.

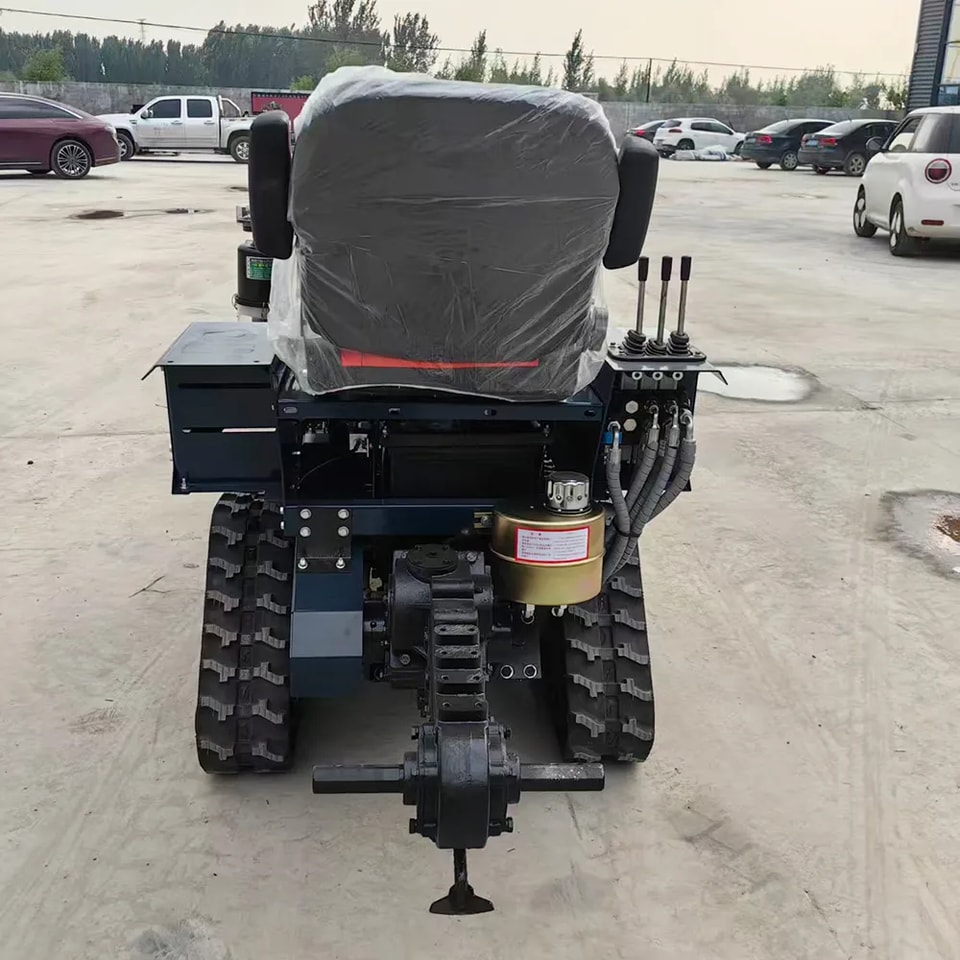

Does the HTCT35H-Pro have a rear PTO?
Yes. The tractor uses a gearbox-type rear PTO configuration with a specified PTO speed of 330 rpm.
What hydraulic specifications should buyers check?
The official specifications list hydraulic system displacement at 10 ml/r and hydraulic system pressure at 18 MPa. Attachment requirements should be checked against these specifications before purchase.
Is the HTCT35H-Pro practical for equipment rental businesses?
It can be considered for rental operations that need one tracked agricultural platform for different tasks. The available attachment combinations should be selected according to the local rental market and intended applications.
How is the tractor steered?
The HTCT35H-Pro uses mechanical steering with single-side independent braking. This configuration should be evaluated together with the operator's experience and intended working environment.
Can overseas buyers request spare parts and shipping assistance?
Yes. International buyers can request spare parts support and shipping assistance together with the quotation. Attachment requirements, export configuration and delivery destination should be provided when requesting pricing.
Can dealers request an export quotation for the HTCT35H-Pro?
Yes. Dealers and agricultural equipment distributors can request pricing based on quantity, destination, attachment requirements and export configuration. Dealer cooperation can also be discussed for specific markets.
