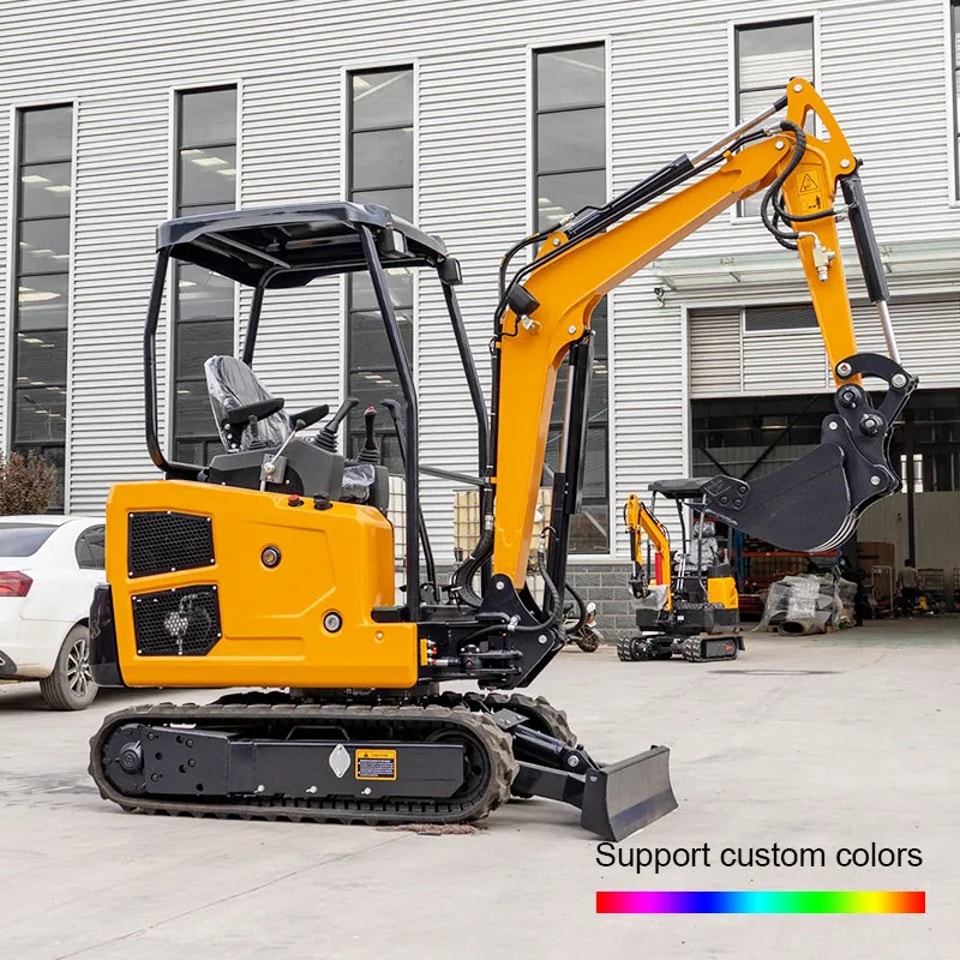

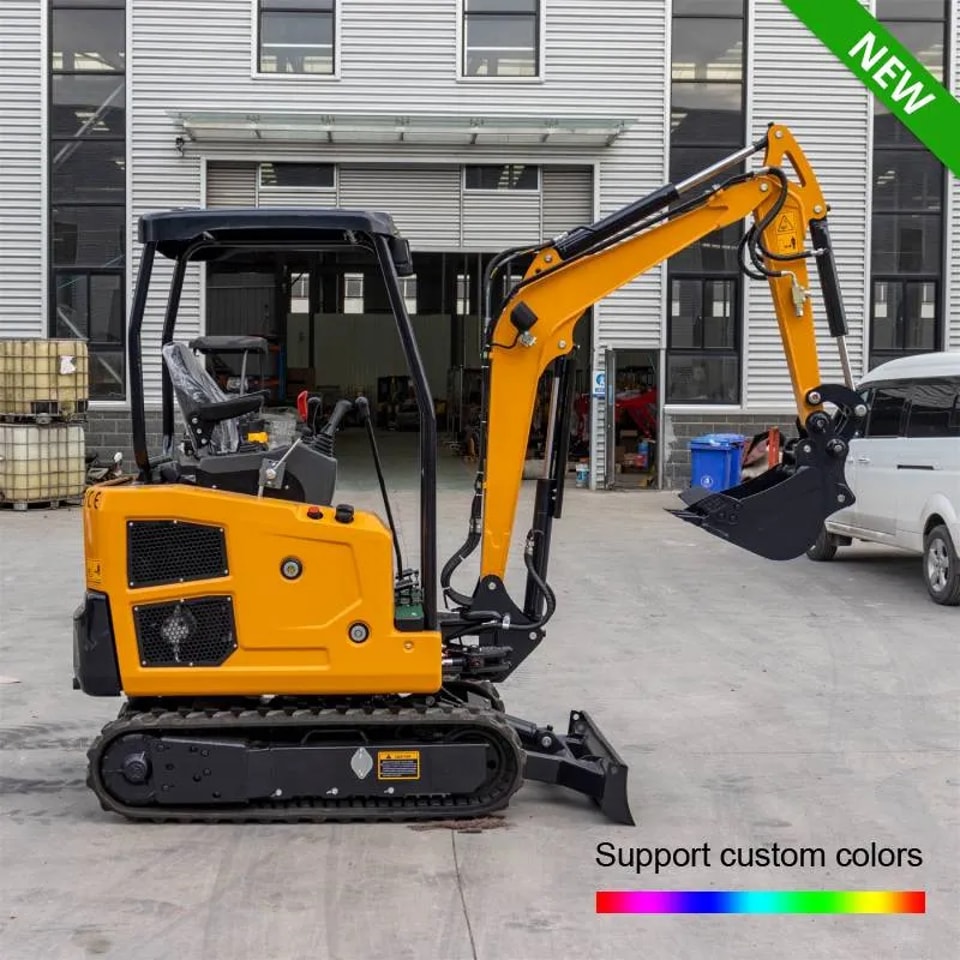

18-5 1800kg Mini Excavator
| HT18-5 Mini Excavator — Parameter Table | |
|---|---|
| Basic Parameters | |
| Model | HT18-5 |
| Machine weight | 1800kg |
| Standard bucket capacity | 0.06m³ |
| Machine Size (Unit: mm) | |
| Overall dimension (L*W*H) | 3865mm * 1050mm * 2270mm |
| Axle base (Track length on ground) | 1230mm |
| Track gauge | 820mm |
| Min. Ground clearance | 210mm |
| Swing radius at tail | 1125mm |
| Track System | |
| Maximum Travel speed | 3.5km/h |
| Width of track shoe (Rubber & steel track) | 230mm |
| Number of track shoe per side (Steel track only) | 38 pcs |
| Number of upper roller / bottom roller (per side) | 0 / 4 |
| Performance Parameters | |
| Swing speed | 10~12 rpm |
| Max. Grade ability | 35° |
| Max. Bucket digging force | 14KN |
| Max. Arm digging force | 10KN |
| Hydraulic system pressure | 18Mpa |
| Engine | |
| Emission Standard | Euro 5 / EPA |
| Engine Brand / Power | Kubota D1105 14.2kw, Perkins 14.7kw, Laidong 3TE25 18.4Kw |
| Number of cylinder | 3 |
| Working Range (Unit: mm) | |
| Max. Digging height | 3365mm |
| Max. Dumping height | 2385mm |
| Max. Digging depth | 2050mm |
| Max. Vertical digging depth | 1725mm |
| Max. Digging radius | 3860mm |
| Min. swing radius | 1720mm |
| Blade Parameters (Unit: mm) | |
| Max. Lifting height of blade | 230mm |
| Max. Cutting depth of blade | 275mm |
| Boom Swing Angle | |
| Boom swing angle (Left) | 75° |
| Boom swing angle (Right) | 45° |
Built for Sites Where Width Matters
Walk onto most residential job sites and the first question is always the same: "Can it fit through the gate?" The HT18-5 measures 1050mm across the tracks – not the narrowest in its class, but narrow enough to get through most equipment gates and work in confined backyards.
Once you're inside, the 75° left boom swing makes a real difference. Most 1.8-ton machines offer 50-60° of swing. That extra 15-25° means you can dig a trench parallel to a wall and still swing the arm to dump into a cart – without constantly repositioning the tracks. On a tight site, that saves you dozens of movements per day.
The machine is powered by a Kubota D1105 diesel engine, producing 14.2kW. Kubota engines are known for reliability, fuel efficiency, and cold-start performance. If you have specific regional requirements, we also offer Perkins (14.7kW) and Laidong (18.4kW) options.
Digging depth is 2.05 meters – deep enough for residential utility lines, drainage, foundation footings, and stump removal. The 0.06m³ bucket is sized for efficient earthmoving without overloading the machine. With 1800kg operating weight and 14KN bucket breakout force, it handles compacted soil and clay without struggling.
The HT18-5 is EPA and Euro 5 compliant. That means it's ready for import and operation in North America and Europe – no waiting for certification approvals or customs delays.
HT18-5 Mini Excavator – Technical Specifications
| Category | Parameter | Specification |
|---|---|---|
| Basic | Model | HT18-5 |
| Machine Weight | 1800 kg | |
| Standard Bucket Capacity | 0.06 m³ | |
| Machine Dimensions | Overall (L×W×H) | 3865 × 1050 × 2270 mm |
| Track Length (Ground Contact) | 1230 mm | |
| Track Gauge | 820 mm | |
| Min. Ground Clearance | 210 mm | |
| Tail Swing Radius | 1125 mm | |
| Track Shoe Width | 230 mm (Rubber / Steel) | |
| Performance | Max. Travel Speed | 3.5 km/h |
| Max. Gradeability | 35° | |
| Swing Speed | 10-12 rpm | |
| Engine | Emission Standard | Euro 5 / EPA |
| Engine Brand / Power | Kubota D1105 (14.2kW) / Perkins (14.7kW) / Laidong (18.4kW) | |
| Number of Cylinders | 3 | |
| Digging Force | Max. Bucket Digging Force | 14 KN |
| Max. Arm Digging Force | 10 KN | |
| Hydraulic System Pressure | 18 MPa | |
| Boom Swing Angle (L/R) | 75° / 45° | |
| Working Range | Max. Digging Height | 3365 mm |
| Max. Dumping Height | 2385 mm | |
| Max. Digging Depth | 2050 mm | |
| Max. Vertical Digging Depth | 1725 mm | |
| Max. Digging Radius | 3860 mm | |
| Min. Swing Radius | 1720 mm | |
| Blade | Max. Lifting Height | 230 mm |
| Max. Cutting Depth | 275 mm |
Frequently Asked Questions
How wide is the HT18-5? Will it fit through a gate?
The machine is 1050mm wide (1.05 meters). It will fit through most equipment gates and larger garden gates. Measure your access point – if you have a standard pedestrian gate (80-90cm wide), consider a smaller model like the HT10B (830mm retracted).
What's the advantage of the 75° left boom swing?
Most mini excavators in this class offer 50-60° of boom swing. The HT18-5 gives you 75° to the left – which means you can dig a trench parallel to a wall and still swing the arm to load a cart, without constantly turning the tracks. On a tight residential site, that saves you dozens of repositioning moves per day.
What engine options are available?
Standard is a Kubota D1105 (14.2kW). We also offer Perkins (14.7kW) and Laidong (18.4kW) options. The machine is EPA and Euro 5 compliant regardless of engine choice.
How deep can the HT18-5 dig?
Maximum digging depth is 2050mm (2.05 meters) – deep enough for residential utility lines, drainage, foundation footings, and stump removal.
What attachments can I use?
The HT18-5 accepts standard mini excavator attachments – digging buckets (various widths), hydraulic breakers, augers, grading blades, and grapples. Quick-hitch systems are available.
