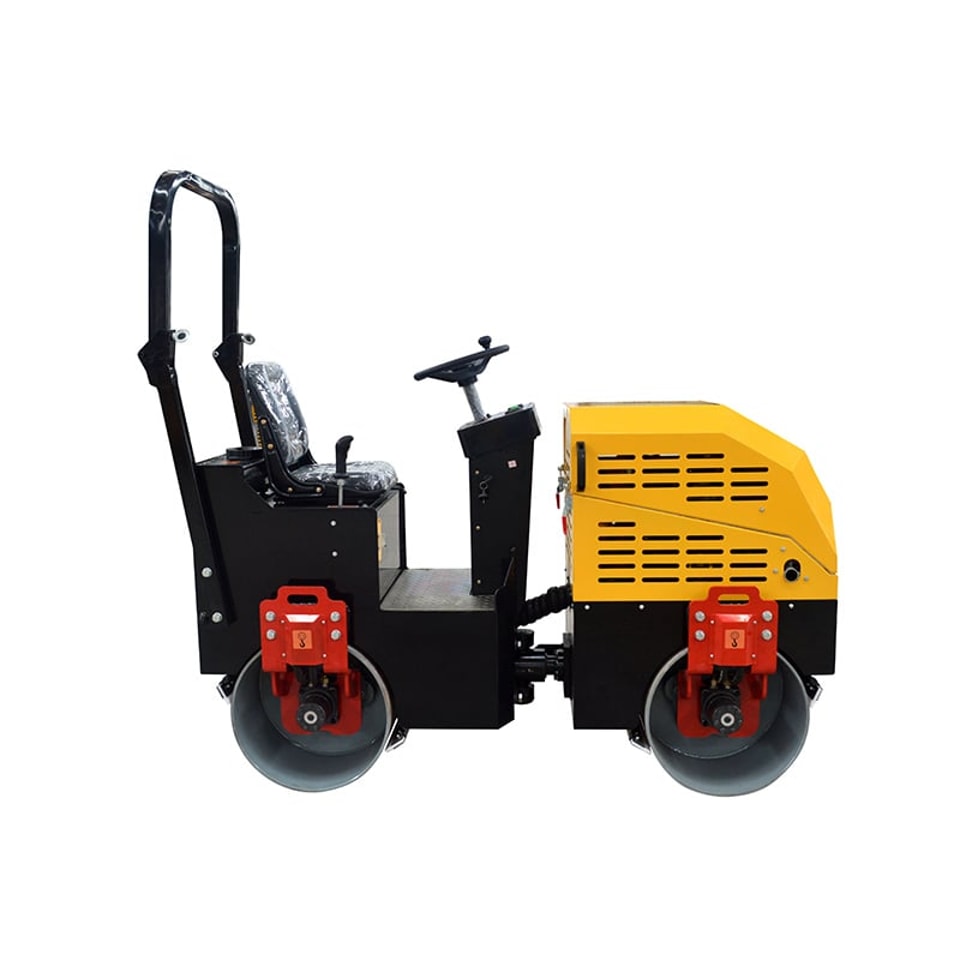

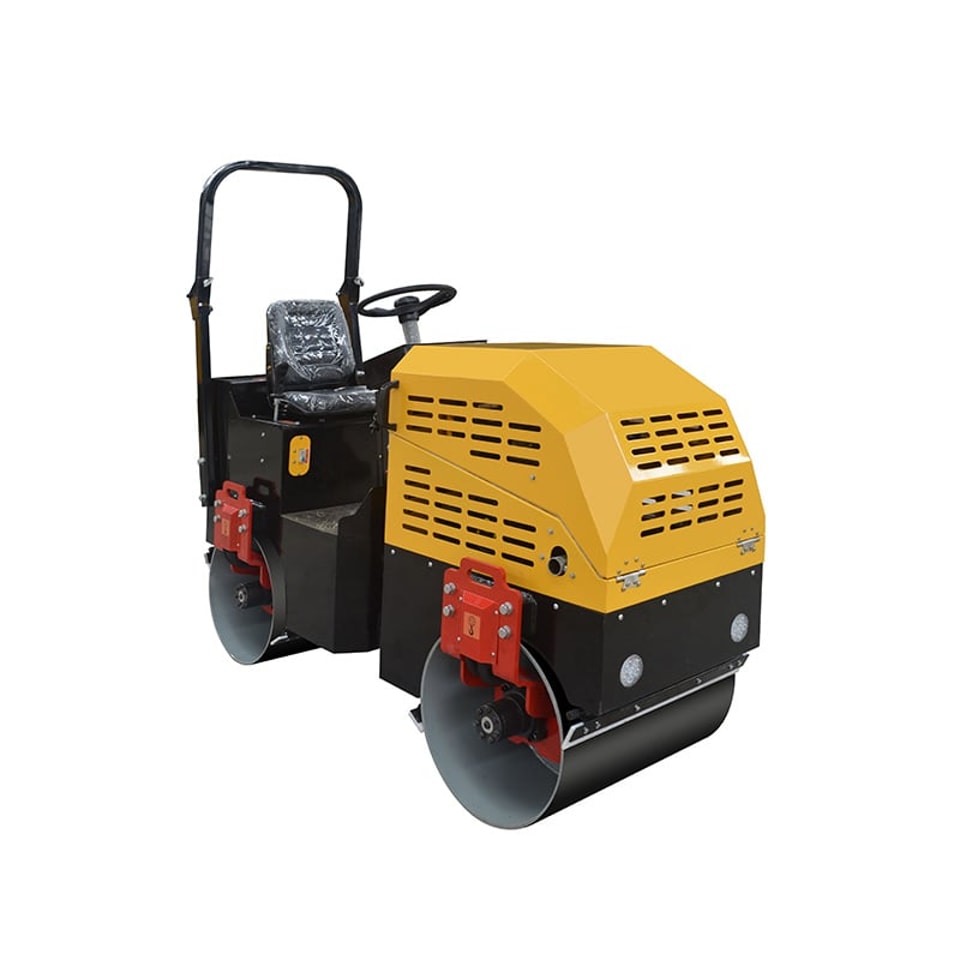

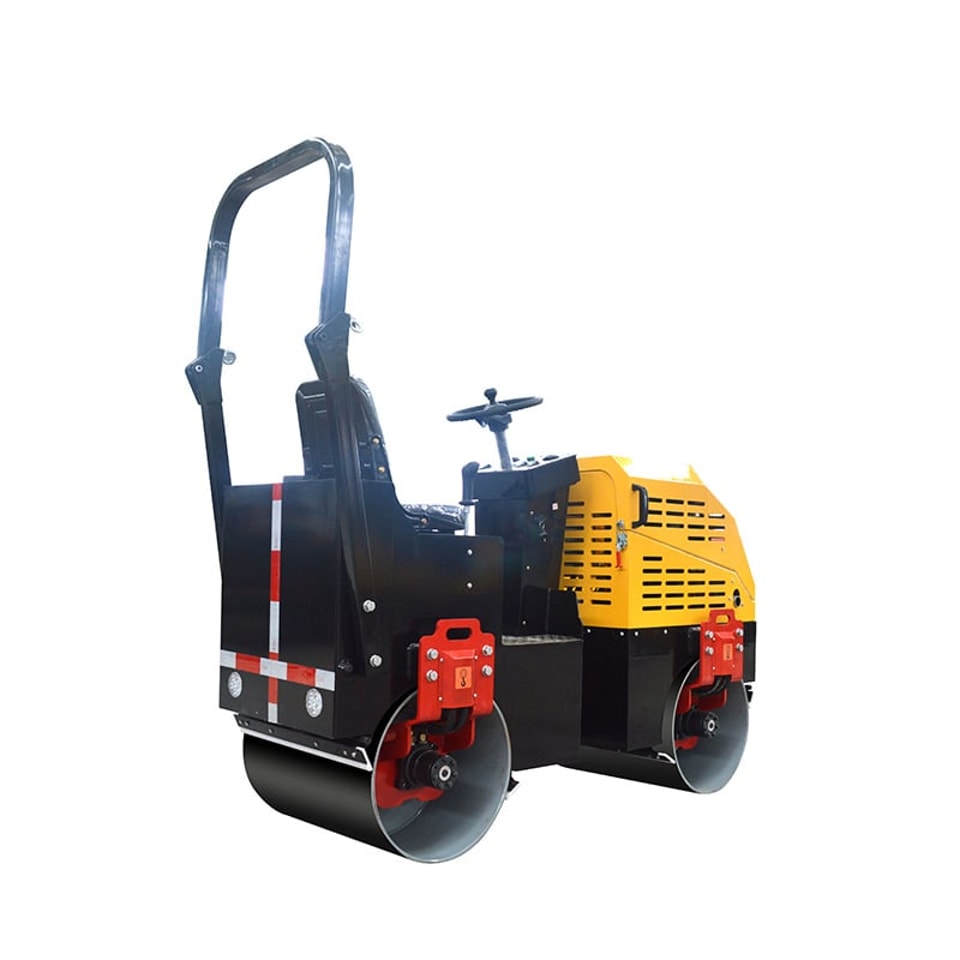

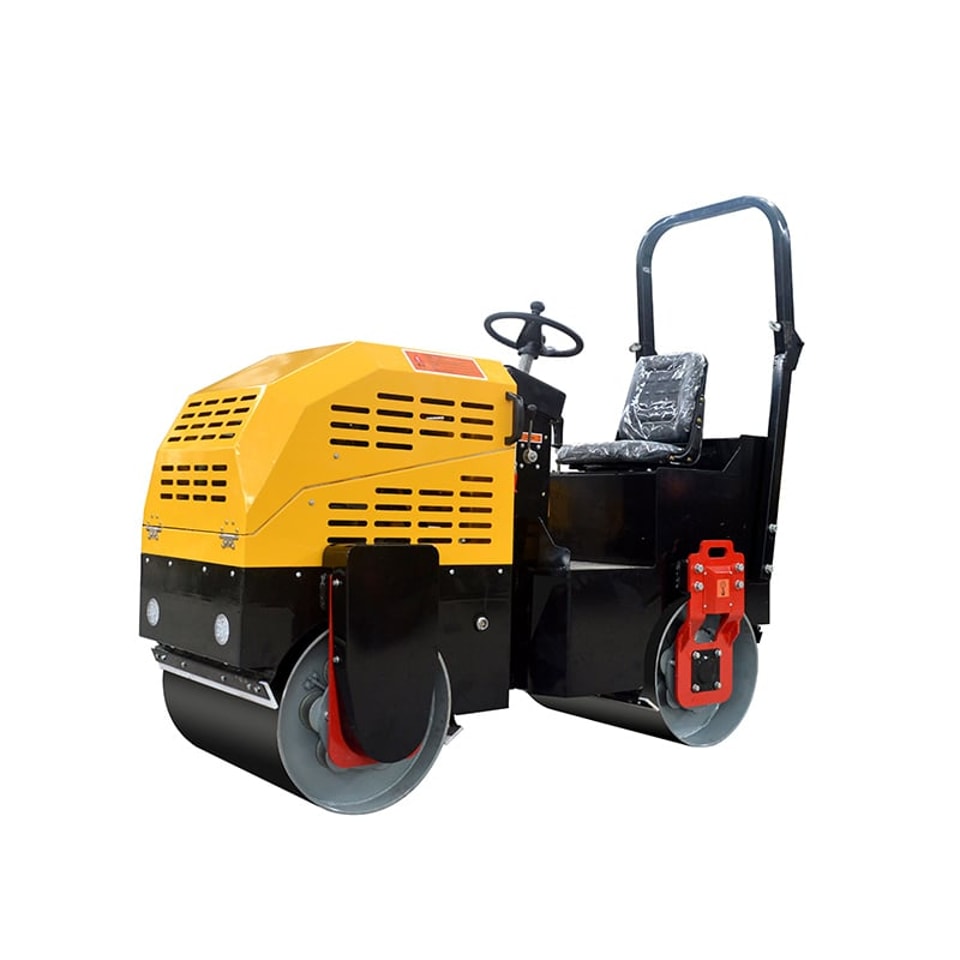

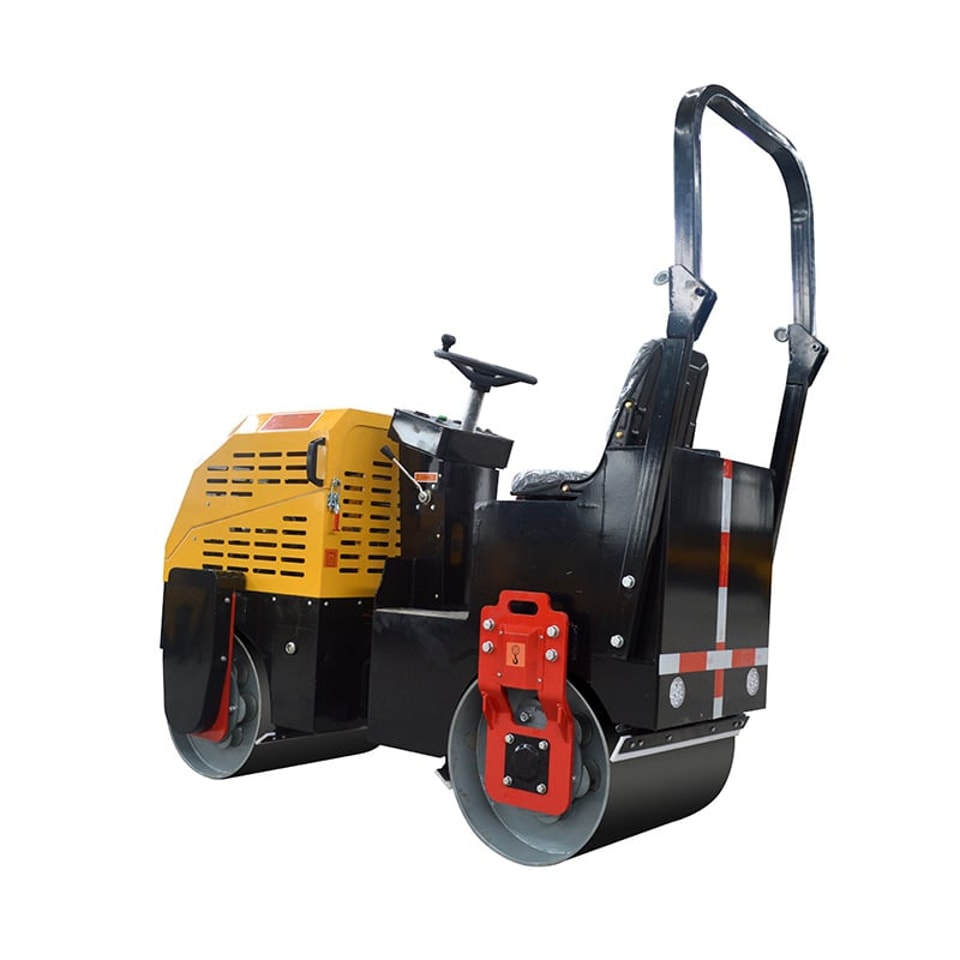

HT1000 1T Full Hydraulic Road Roller
2.Japan' s kawasaki / amer ican sauer var iable piston pump,hydraulic system and stable performance;
3.International brand cycloid hydraulic motor,double wheel drive wa lking, front wheel vibration;
4.Japan nsk precision ball ball bearings,to ensure that the overall performance of the machine;
5.Pressure water pump e lectronic control water injection system,one button switch,spray evenly;
6.Front and rear double LED high efticiency Iighting lap,nignt construction is more conventent.
Model:HT1000 | |
Walking | |
Walking Speed | 0-8km/h |
Turning radius | 2000mm |
Gradeability | 30% |
Compaction | |
Static line load (before /after) | 77/56N/cm |
Nominal amplitude | 0.5mm |
Vibration frequency | 75Hz |
Exciting force | 30KN |
Working Data | |
Drive |
Hydraulic drive-stepless speed change |
Vibration | One-button vibration-electromagnetic clutch |
Turning | Hydraulic steering |
Watering method | Electronically controlled pressure water spray |
Engine | |
Model | HONDA GX390/CHANGFA CF186FAE |
Type | Gasoline /Diesel,Air-cooled four-stroke |
Power | 13hp/9hp,3600rpm |
Fuel Tank | 5.5L |
Fuel consumption | 300g/kw·h |
Dimensions | |
Steel wheel width (front and rear) | 700mm |
Steel wheel diameter (front and rear) | 530mm |
Length | 2100mm |
Width | 860mm |
Total height (without frame) | 1600mm |
Package size | 2200 x950x1650mm |
Weight | 970 kg |
