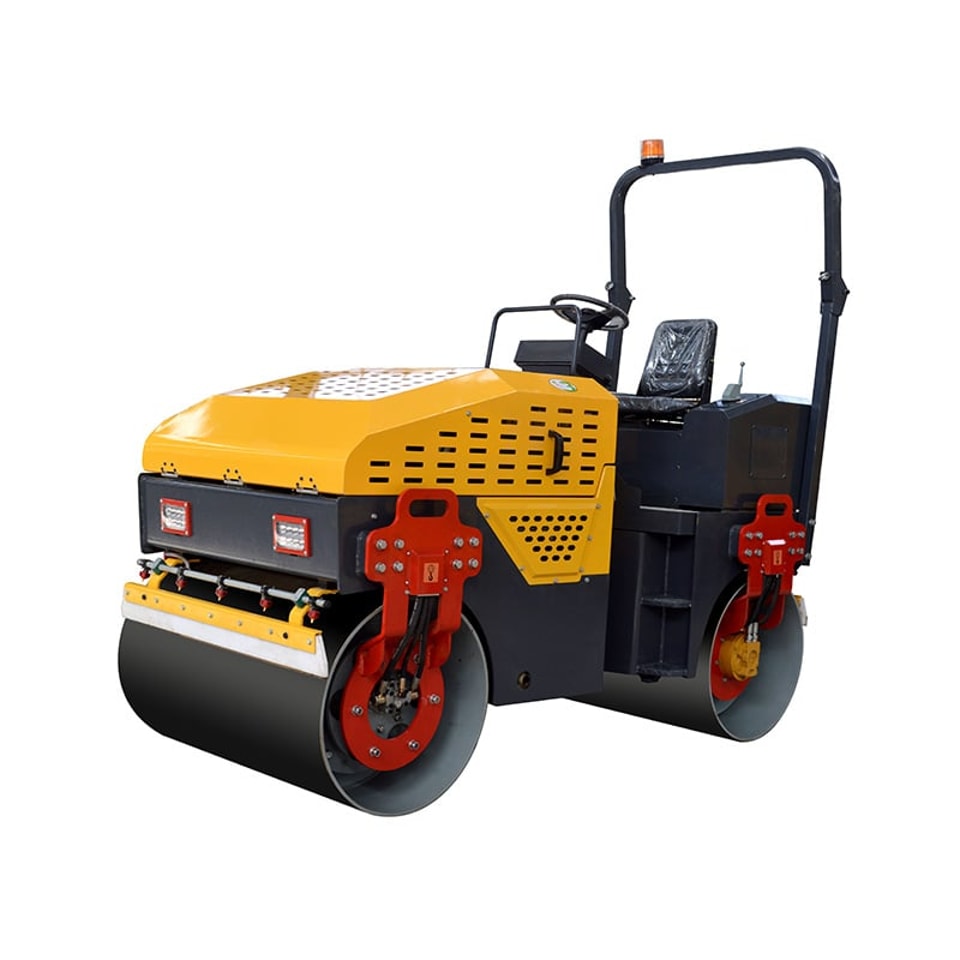

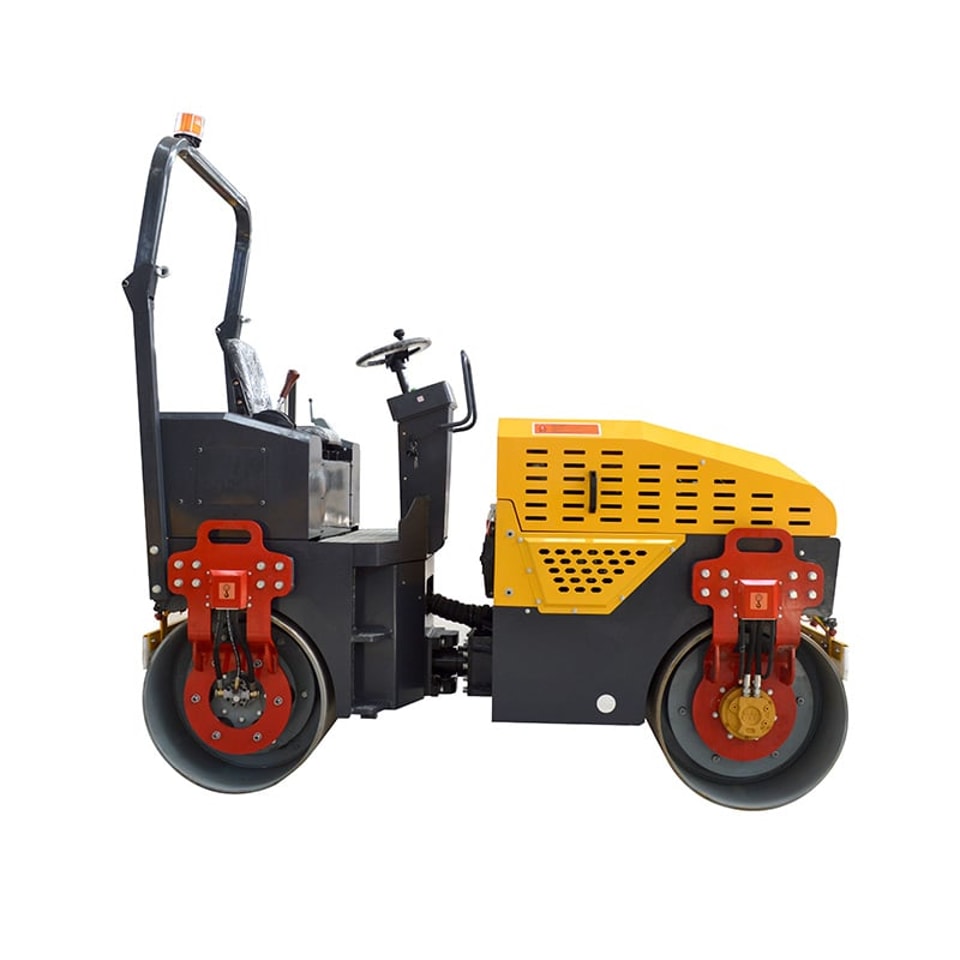

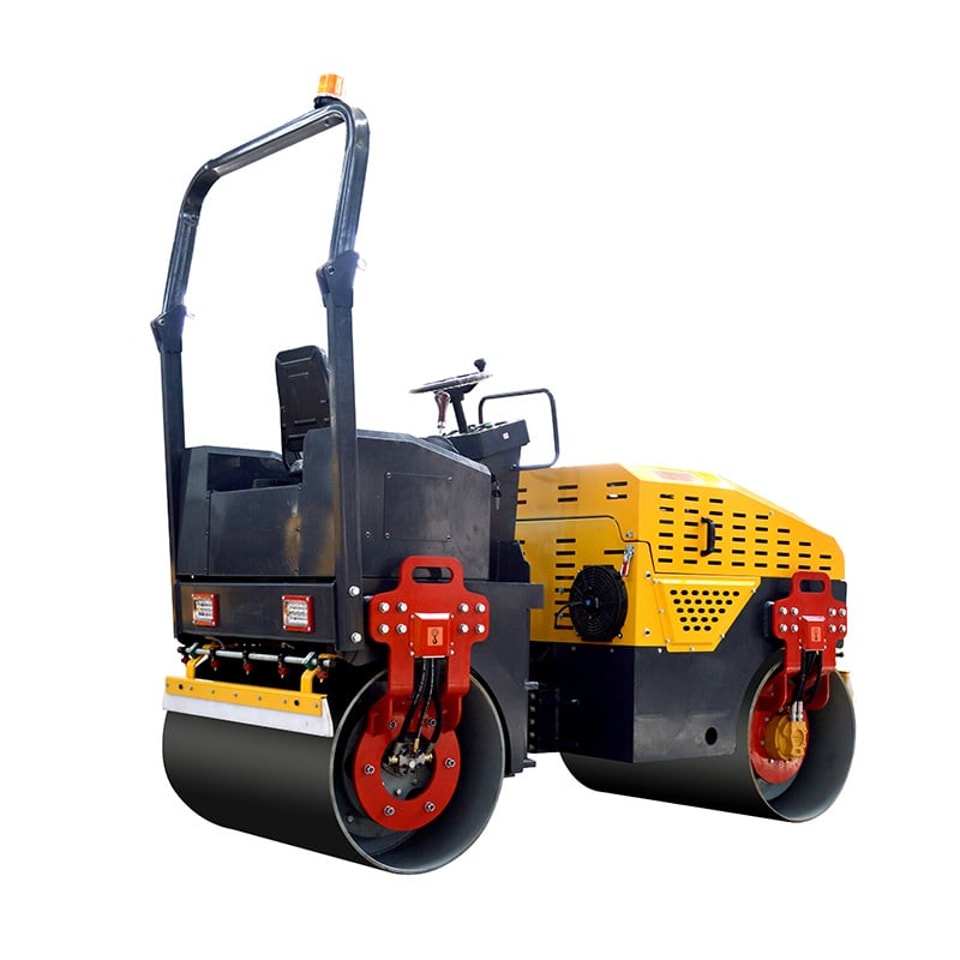

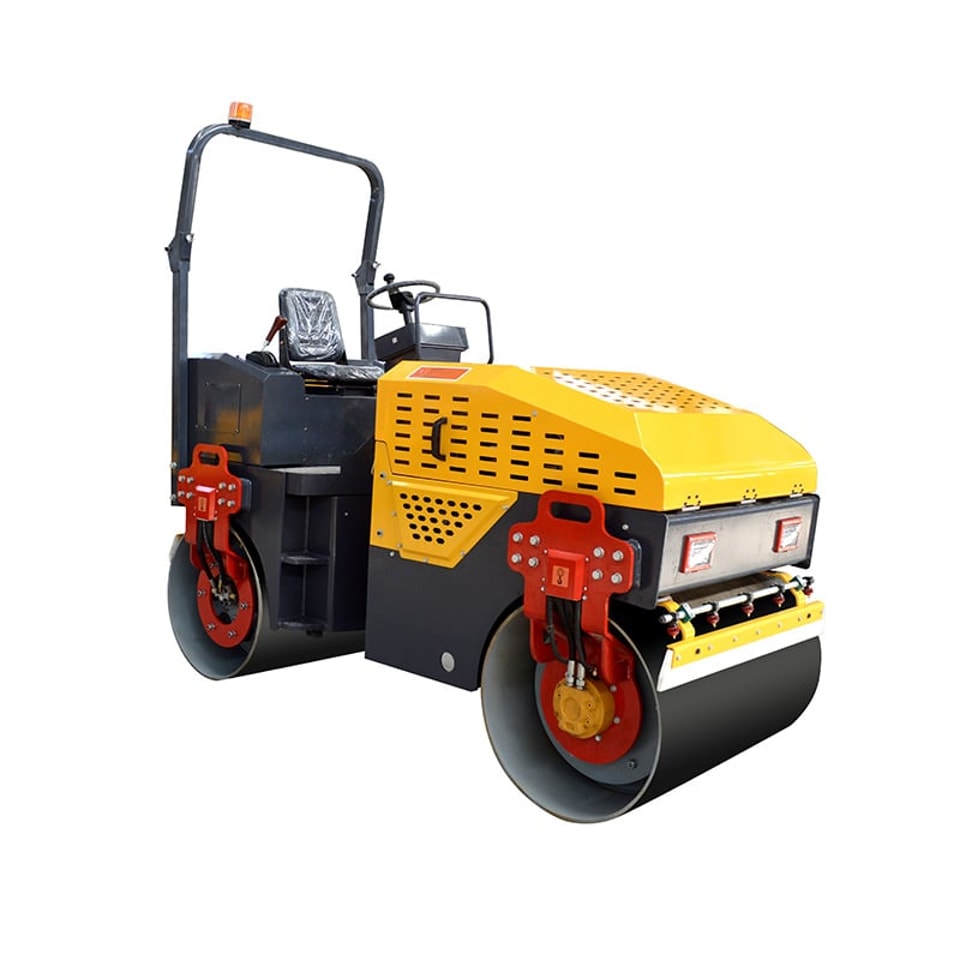

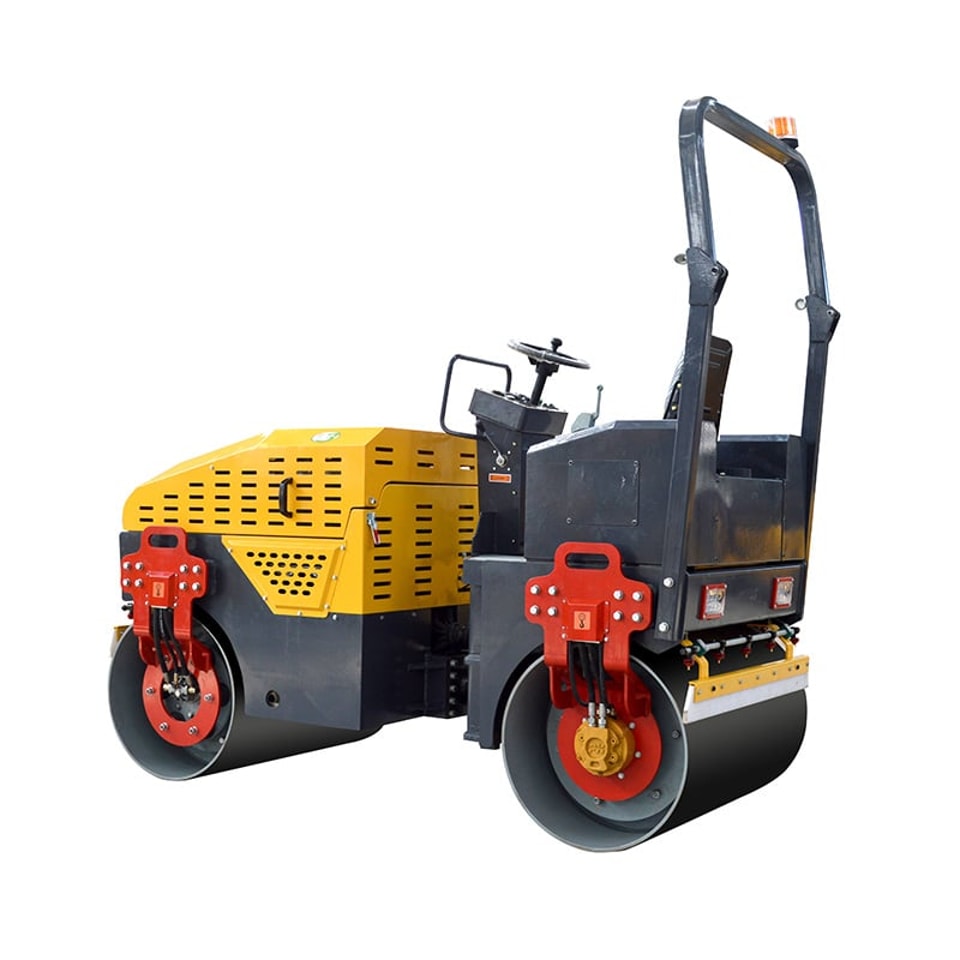

HT3000 3T Full Hydraulic Road Roller
2.The weight of 3140kg,up to 5tons of vibration;
3.Integration of advanced technology at home and abroad,strong vibration force, superior performance;
4.Original brand engine,imported hydraulic device,double drive,front and rear hydraulic vibration;
5.The machine adopts hydraulic steering, which is comfortable and simple to operate;
6.More luxurious operating handle impored, leather seats,comfortable and convenient operation.
Model:HT3000 | |
Walking | |
Walking Speed | 0-12km/h |
Turning radius | 3000mm |
Gradeability | 30% |
Compaction | |
Static line load (before /after) | 125/87N/cm |
Nominal amplitude | 0.5mm |
Vibration frequency | 75Hz |
Exciting force | 30KN |
Working Data | |
Drive | Hydraulic Double Wheel Drive |
Vibration | Hydraulic vibration |
Turning | Hydraulic steering |
Watering method | Electronically controlled pressure water spray |
Engine | |
Model | CHANGFA ZN390B |
Type |
Vertical three-cylinder water cooling, |
Power | 39hp,3600rpm |
Fuel Tank | 36L |
Fuel consumption | 240g/kw·h |
Dimensions | |
Steel wheel width (front and rear) | 1200mm |
Steel wheel diameter (front and rear) | 710mm |
Length | 2700mm |
Width | 1320mm |
Total height (without frame) | 1900mm |
Package size | 2800 x1300x2150mm |
Weight | 3140kg |
