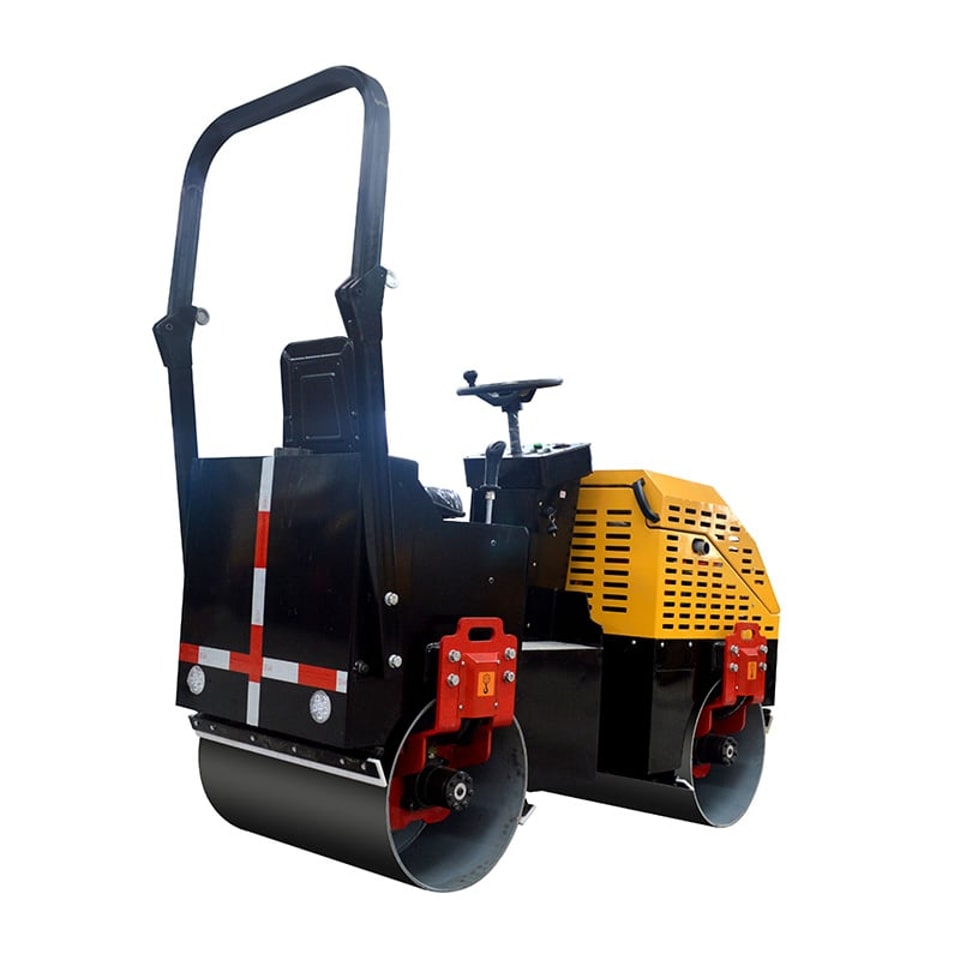

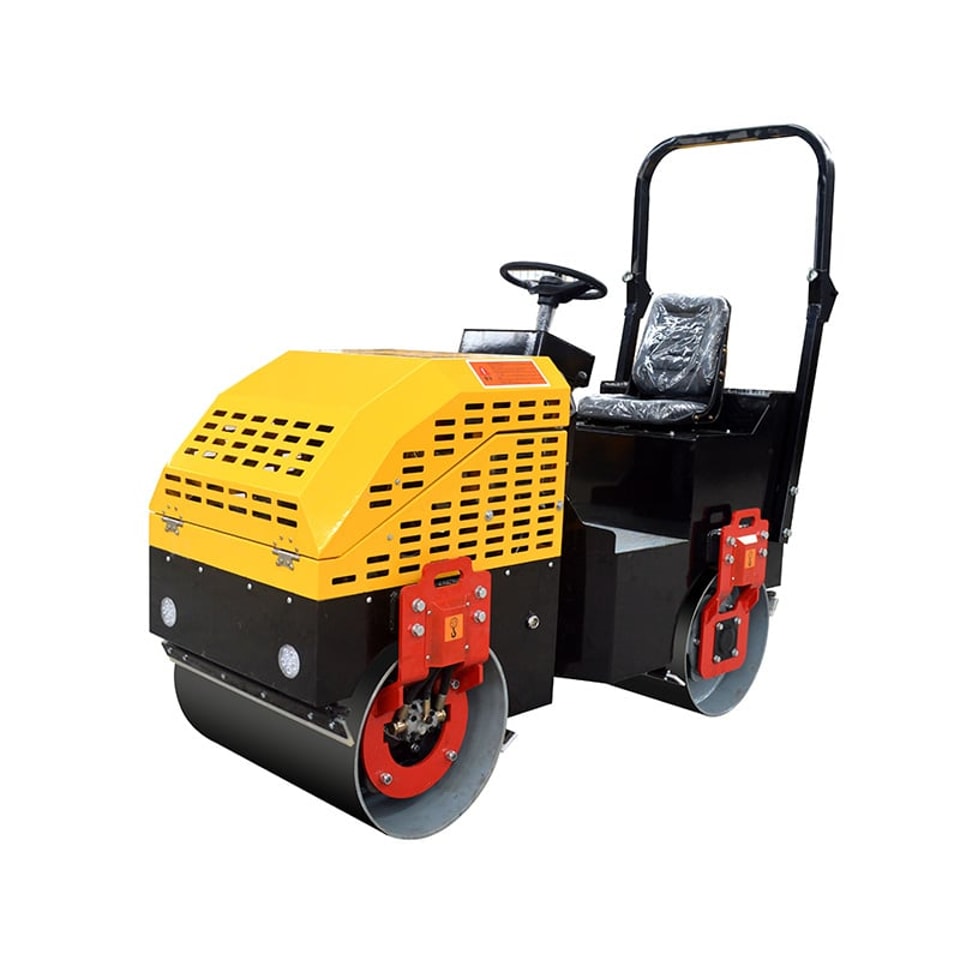

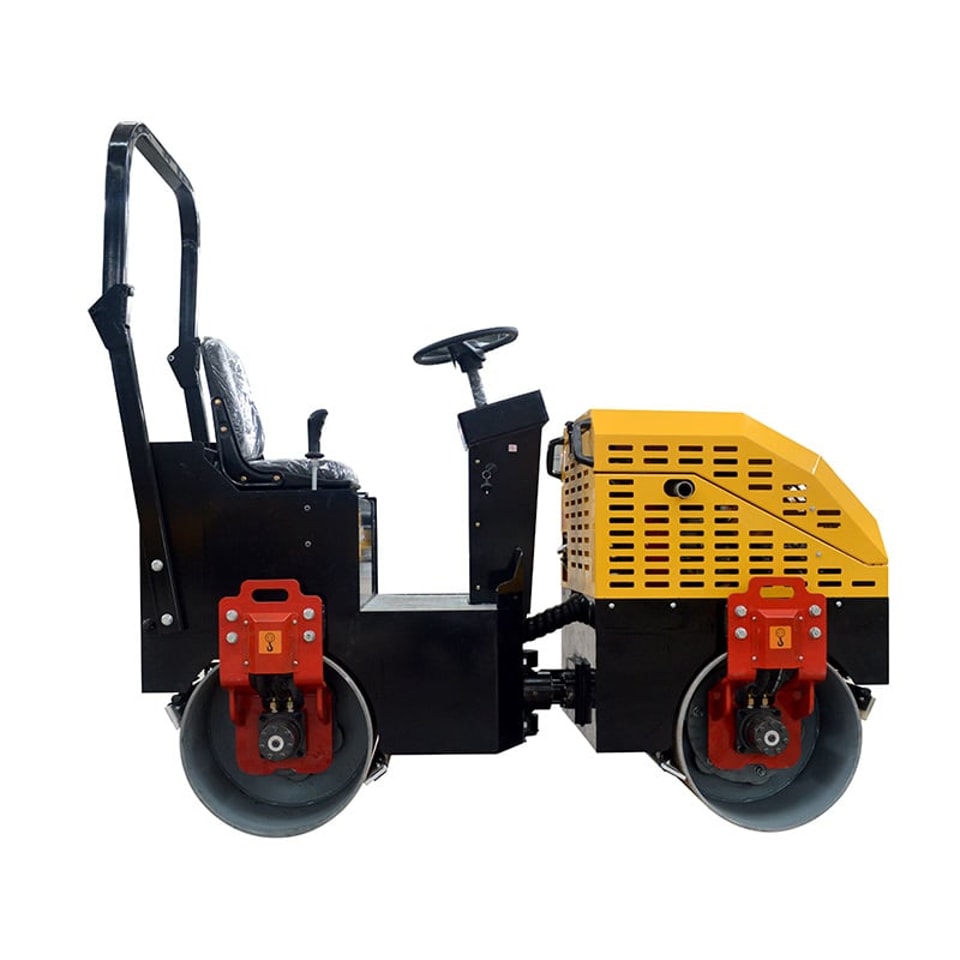

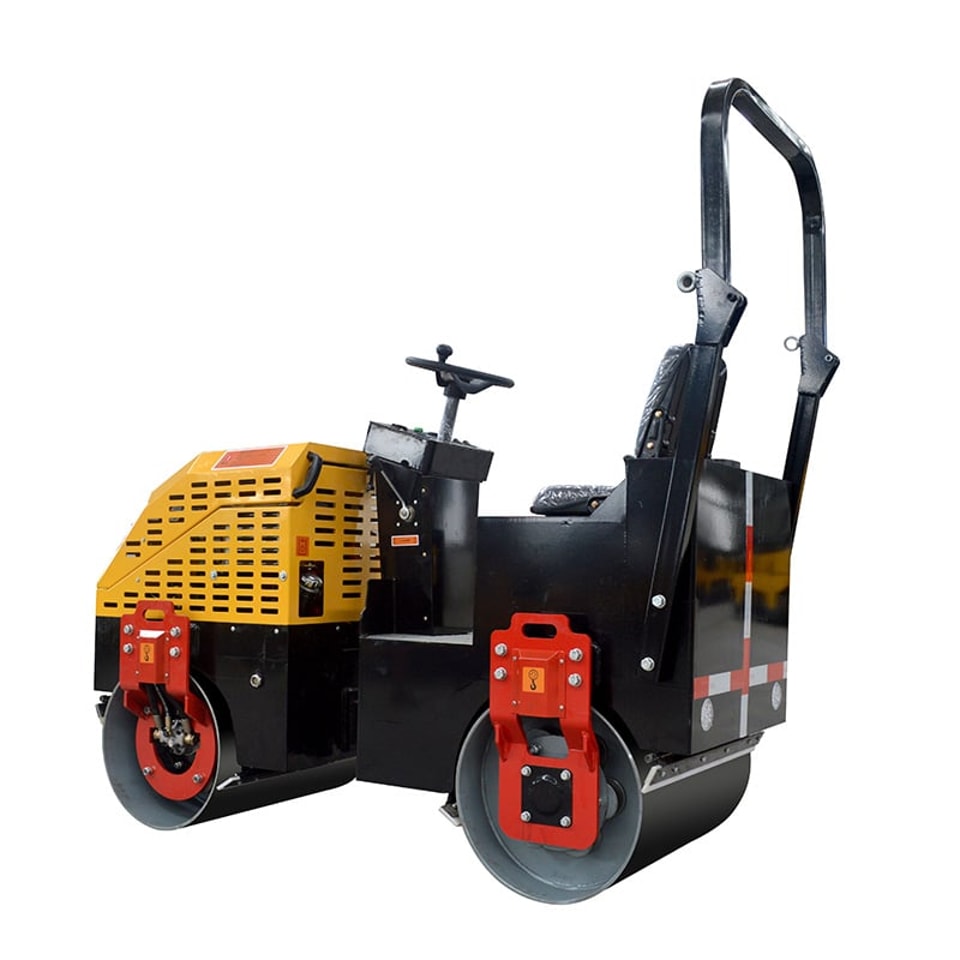

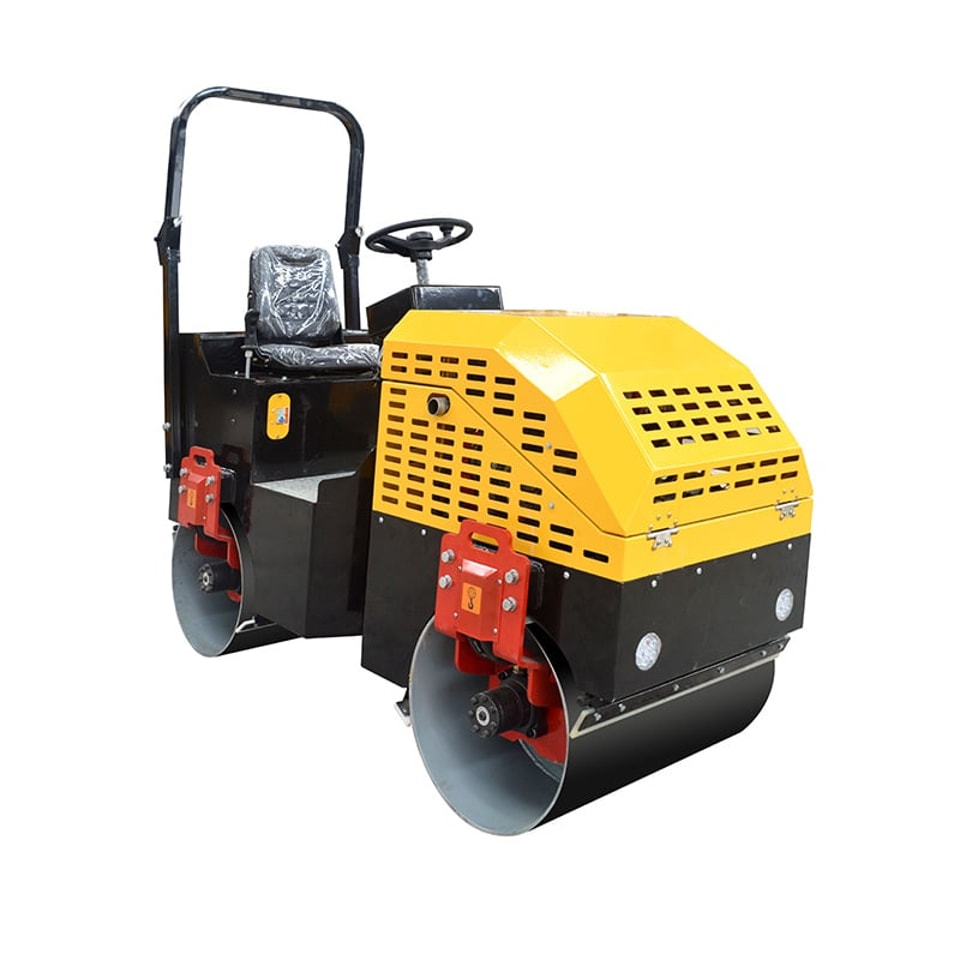

HT1500 1.5T Full Hydraulic Road Roller
2.Domestic famous brand Chang Chai diesel engine has superior performance and strong power.
3.Japan' s kawasaki / amer ican sauer var iable piston pump,hydraulic system and stable performance;
4.International brand cycloid hydraulic motor, double wheel drive,front wheel hydraulic vibration;
5.Japan nsk precision ball ball bearings,to ensure that the overall per formance of the machine;
6.Pressure water pump e lectronic control water injection system,one button switch, spray evenly;
7.Front and rear double LED high efticiency Iighting lap,nignt construction is more conventent.
Model:HT1500 | |
Walking | |
Walking Speed | 0-8km/h |
Turning radius | 2100mm |
Gradeability | 30% |
Compaction | |
Static line load (before /after) | 88/72N/cm |
Nominal amplitude | 0.5mm |
Vibration frequency | 75Hz |
Exciting force | 30KN |
Working Data | |
Drive | Hydraulic Double Wheel Drive |
Vibration | Hydraulic vibration |
Turning | Hydraulic steering |
Watering method | Electronically controlled pressure water spray |
Engine | |
Model | CHANGFA 192FA |
Type | Diesel engine,Air-cooled four-stroke |
Power | 11hp,3600rpm |
Fuel Tank | 5.5L |
Fuel consumption | 300g/kw·h |
Dimensions | |
Steel wheel width (front and rear) | 800mm |
Steel wheel diameter (front and rear) | 530mm |
Length | 2200mm |
Width | 920mm |
Total height (without frame) | 1620mm |
Package size | 2300 x1000x1650mm |
Weight | 1380 kg |
