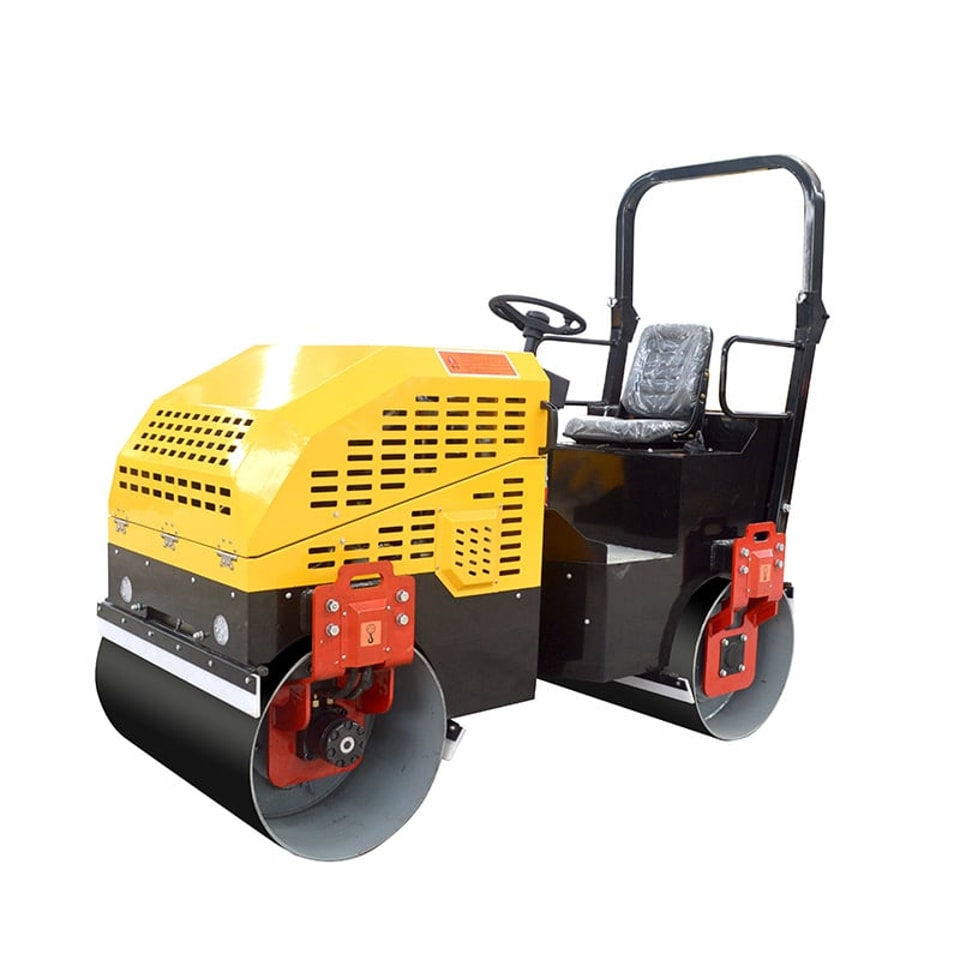

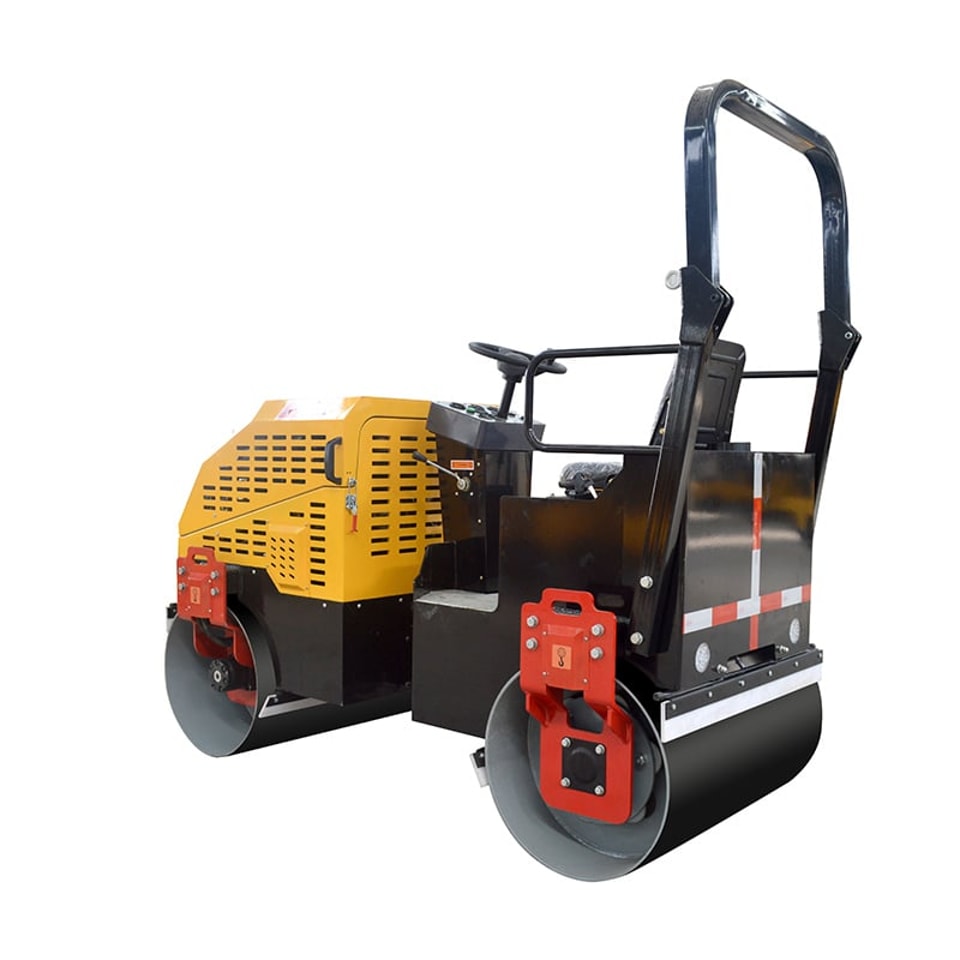

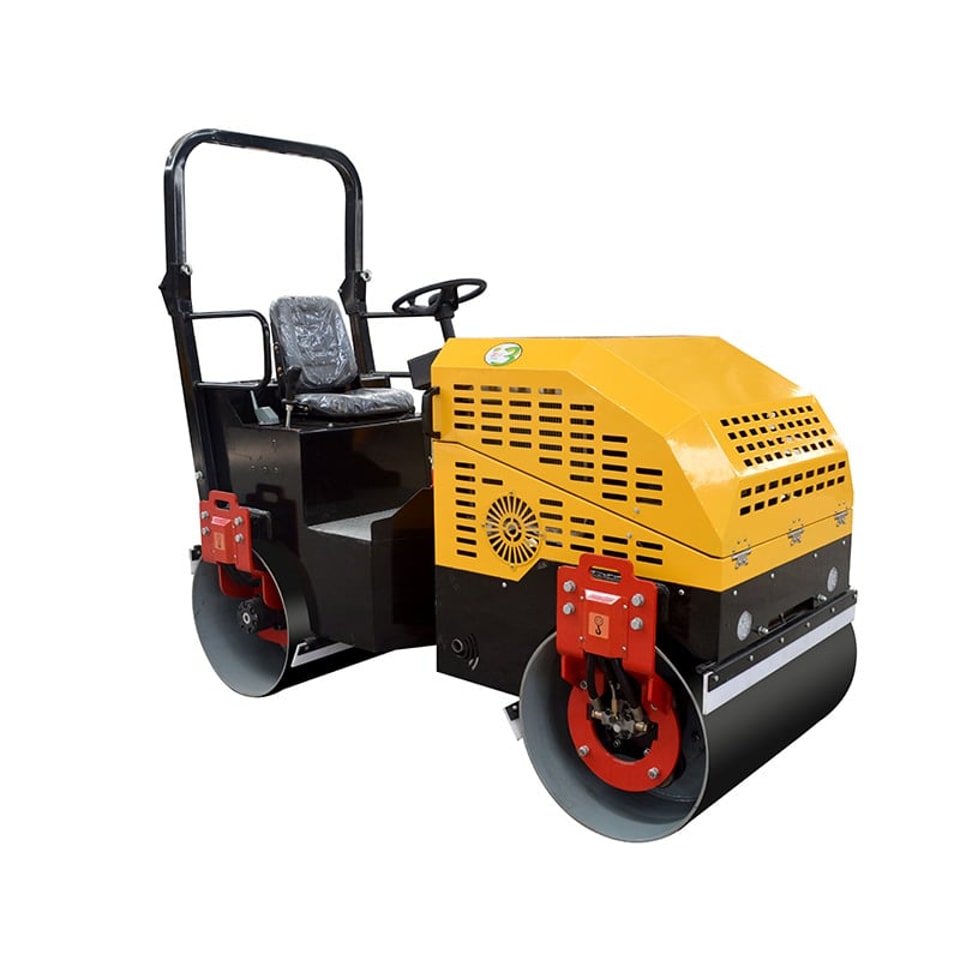

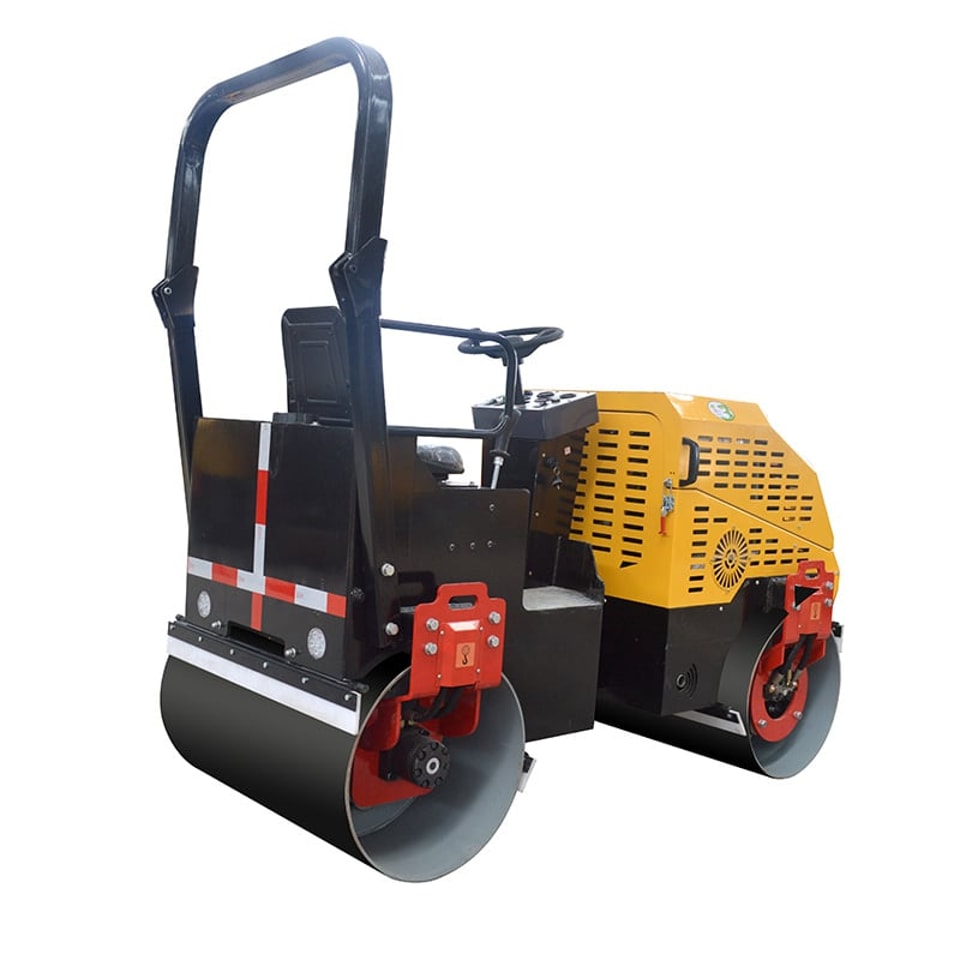

HT2000 2T Full Hydraulic Road Roller
2.Original brand engine,imported hydraulic pressstepless speed change,double drive,front wheel hydraulic vibration;
3.The weight of 1980kg,up to 4tons of vibration;
4.The machine adopts hydraulic steering,which is comfortable and simple to operate;
5.More luxurious operating handle imported, leather seats,comfortable and convenient operation.
6.This machine comes with front wheel vibrtion,and can be customized with front and rear wheel vibration.
7.Integration of domestic and foreign advanced technology,powerful driving force,superior performance;
Model:HT2000 | |
Walking | |
Walking Speed | 0-12km/h |
Turning radius | 2300mm |
Gradeability | 30% |
Compaction | |
Static line load (before /after) | 100/83N/cm |
Nominal amplitude | 0.5mm |
Vibration frequency | 75Hz |
Exciting force | 30KN |
Working Data | |
Drive | Hydraulic Double Wheel Drive |
Vibration | Hydraulic vibration |
Turning | Hydraulic steering |
Watering method | Electronically controlled pressure water spray |
Engine | |
Model | CHANGFA ZN390B |
Type |
Diesel engine, vertical three-cylinder |
Power | 39hp,3600rpm |
Fuel Tank | 36L |
Fuel consumption | 240g/kw·h |
Dimensions | |
Steel wheel width (front and rear) | 1000mm |
Steel wheel diameter (front and rear) | 610mm |
Length | 2300mm |
Width | 1120mm |
Total height (without frame) | 1700mm |
Package size | 2500 x1200x1750mm |
Weight | 1980kg |
