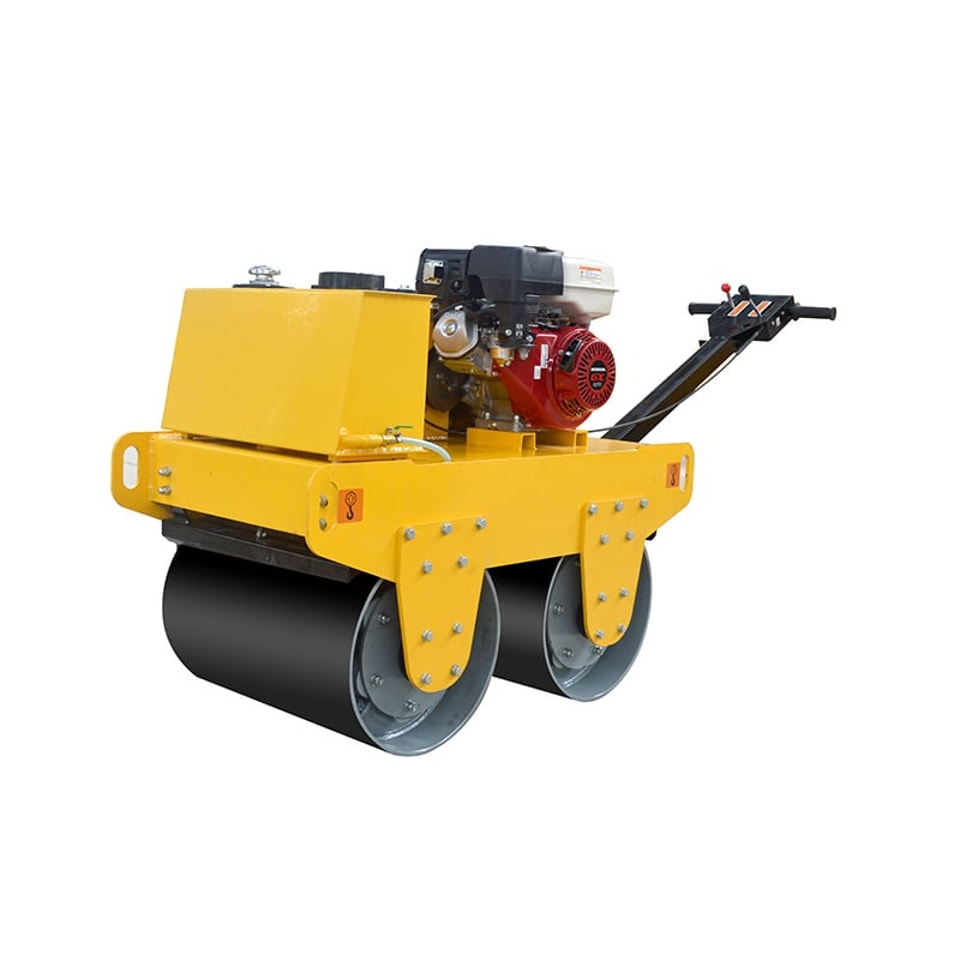

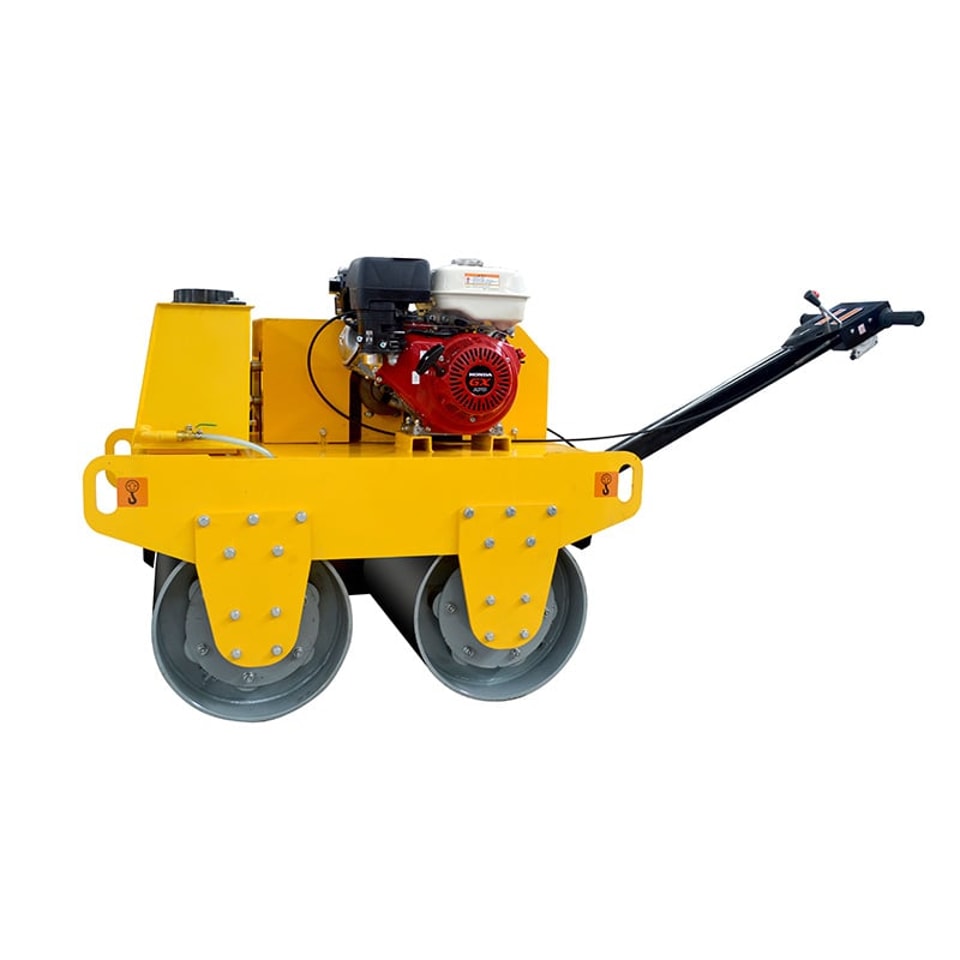

Walking Behind Double Wheel Road Roller (Diesel/Gasoline)
Quality Walking Behind Double Wheel Road Roller (Diesel/Gasoline) manufacturers & exporter - buy Walking Behind Double Wheel Road Roller (Diesel/Gasoline) from China manufacturer.
Email:info009@hightopgroup.com
Phone:+86 181 6205 2962
Description
Specification
Description
Introduction of Walking Behind Double Wheel Road Roller (Diesel/Gasoline)
1.Original honda gasoline engine,superior performance,powerful driving force;
2.Adopt international brand NSK high-precision ball bearing with seat to ensure the overall performance of the machine intact;
3.Two-way hydraulic walking, small working radius, easy operation, flexible rotation;
2.Adopt international brand NSK high-precision ball bearing with seat to ensure the overall performance of the machine intact;
3.Two-way hydraulic walking, small working radius, easy operation, flexible rotation;
Specification
Parameters of Walking Behind Double Wheel Road Roller (Diesel/Gasoline)
Model:HTS600 | |
Walking | |
Walking Speed | 0-4km/h |
Gradeability | 30% |
Compaction | |
Nominal amplitude | 0.5mm |
Vibration frequency | 75Hz |
Exciting force | 20KN |
Tank volume | 20L |
Working Data | |
Drive | Hydraulic pumps and motors - two-wheel drive |
Vibration | Automatic Vibration - Double Wheel Vibration |
Engine | |
Model | Diesel CF178FE / HONDA GX270 |
Type | four-stroke |
Power | 9hp,3600rpm |
Fuel Tank | 3.5L |
Fuel consumption | 395g/kw·h |
Dimensions | |
Steel wheel width (front and rear) | 600mm |
Steel wheel diameter (front and rear) | 426mm |
Length | 2450mm |
Width | 780mm |
Total height (without frame) | 1800mm |
Package size | 1350 x850x1200mm |
Weight | 530kg |
