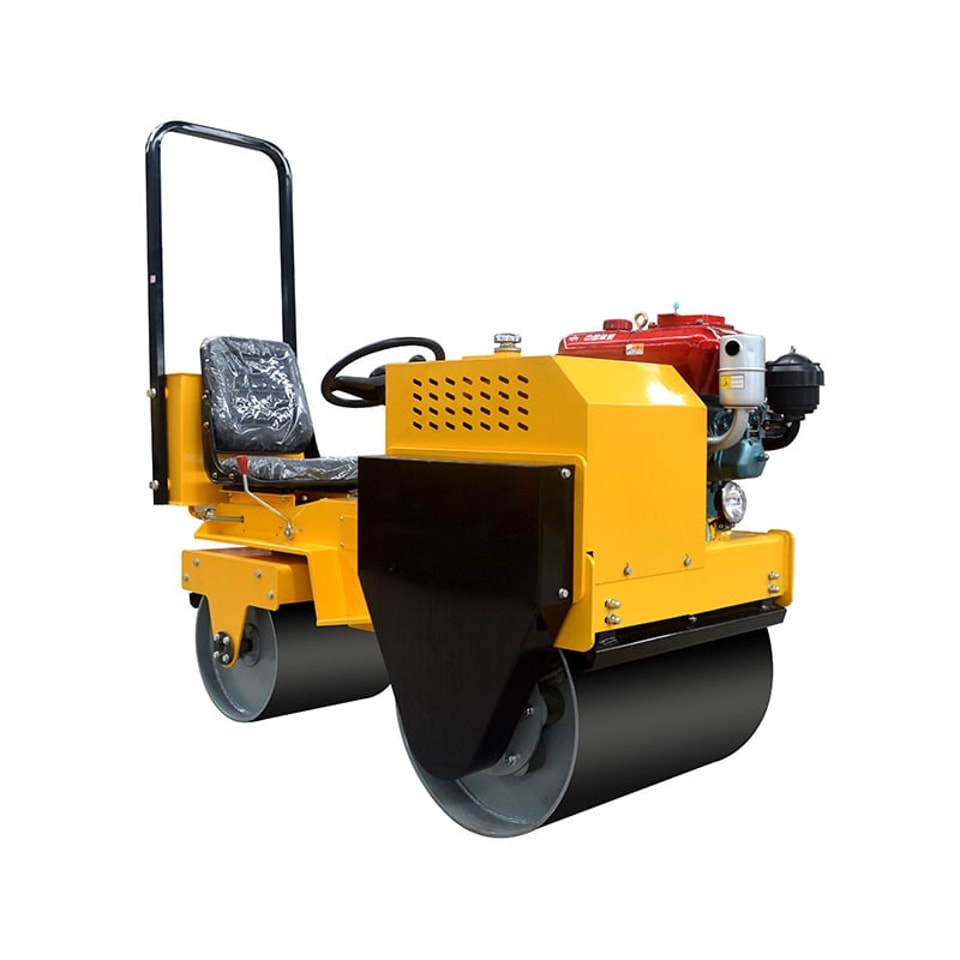

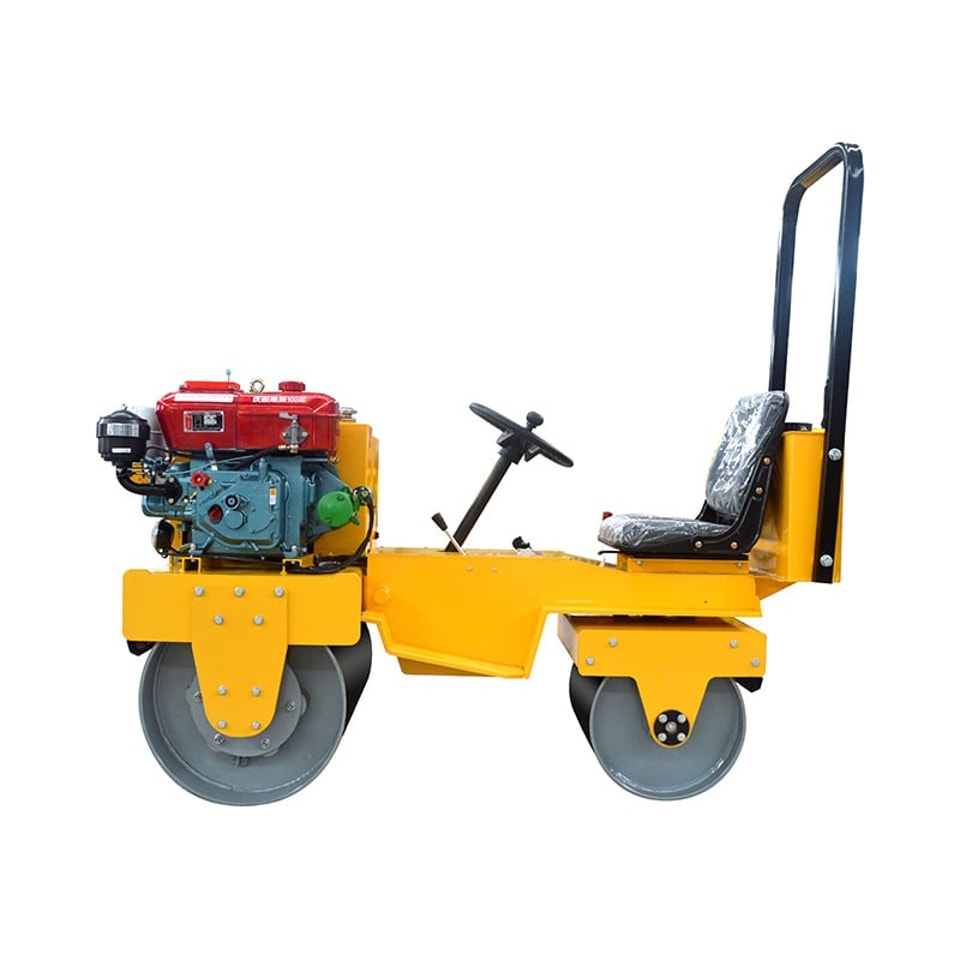

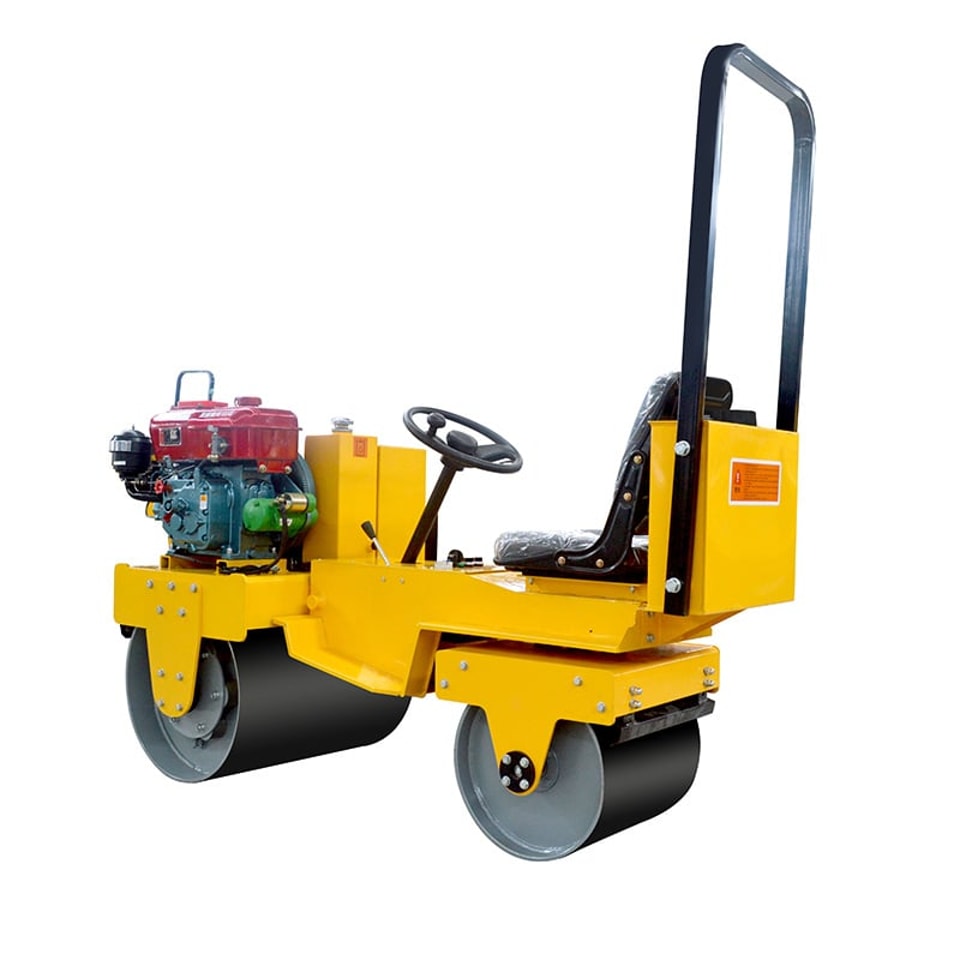

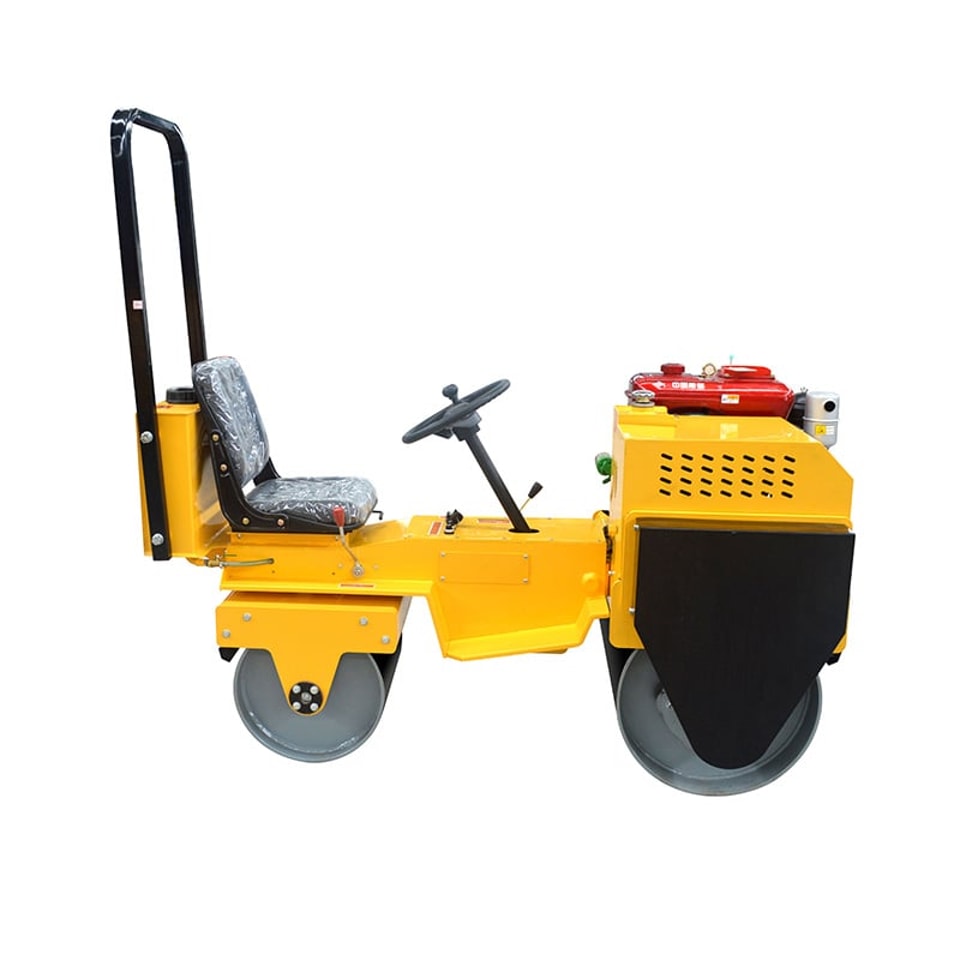

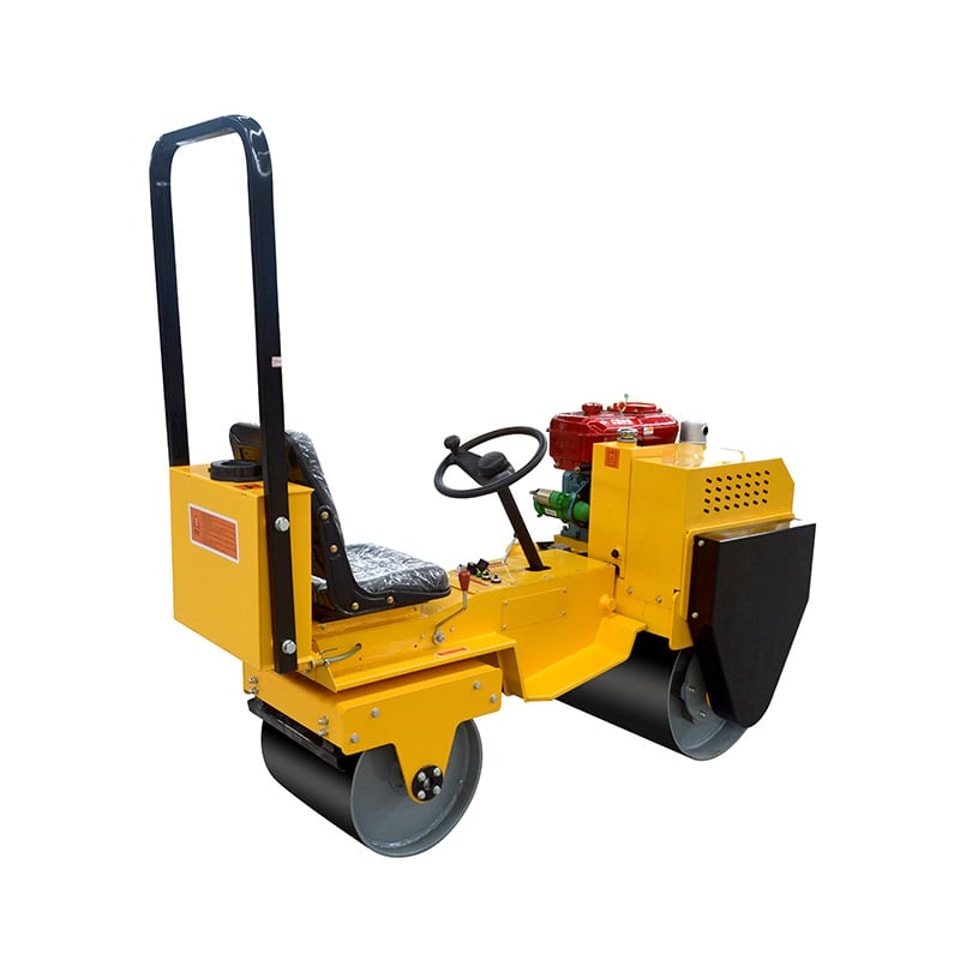

Small Ride On Road Roller (Water cooled diesel engine)
Shandong Hightop Machinery Co., LTD. is the best Small Ride On Road Roller (Water cooled diesel engine) manufacturer in China. Offering quality product to global customers
Email:info009@hightopgroup.com
Phone:+86 181 6205 2962
Description
Specification
Description
Introduction of Small Ride On Road Roller (Water cooled diesel engine)
1.Small driving roller is widely used in compaction of asphalt surface,compaction gravel，sand,lime and otherengineering foundation,rolling lawn playground ;
2.Domestic brand Chang Chai water-cooled diesel engine has superior performance and strong power.
3.The main bearing uses the international brand NSK with high precision balT bearings， to ensure that the overallPerformance of the machine;
4.The bidirectional hydraulic walking has the advantages of small operating radius, convenient operation and flexible rotation;
5.Surface spray treatment, handsome,rust proof, corrosion resistant.
2.Domestic brand Chang Chai water-cooled diesel engine has superior performance and strong power.
3.The main bearing uses the international brand NSK with high precision balT bearings， to ensure that the overallPerformance of the machine;
4.The bidirectional hydraulic walking has the advantages of small operating radius, convenient operation and flexible rotation;
5.Surface spray treatment, handsome,rust proof, corrosion resistant.
Specification
Parameters of Small Ride On Road Roller (Water cooled diesel engine)
Model:HT700C | |
Walking | |
Walking Speed | 0-6km/h |
Turning radius | 1800mm |
Gradeability | 30% |
Compaction | |
Static line load (before /after) | 32/22N/cm |
Nominal amplitude | 0.5mm |
Vibration frequency | 70Hz |
Exciting force | 20KN |
Working Data | |
Drive | Hydraulic drive-stepless speed change |
Vibration |
One-button vibration-electromagnetic clutch |
Turning | Rear wheel steering |
Engine | |
Model | CHANGCHAI R180 |
Type | Diesel,Air-cooled four-stroke |
Power | 8hp,2300rpm |
Fuel Tank | 4.5L |
Fuel consumption | 280g/kw·h |
Dimensions | |
Steel wheel width (front and rear) | 700mm |
Steel wheel diameter (front and rear) | 530mm |
Length | 1750mm |
Width | 860mm |
Total height (without frame) | 1250mm |
Package size | 1900 x850x1300mm |
Weight | 720kg |
