HT25 2.5T Mini Excavator with Kubota Engine for Versatile Construction Work
HT25 2.5T Mini Excavator Overview

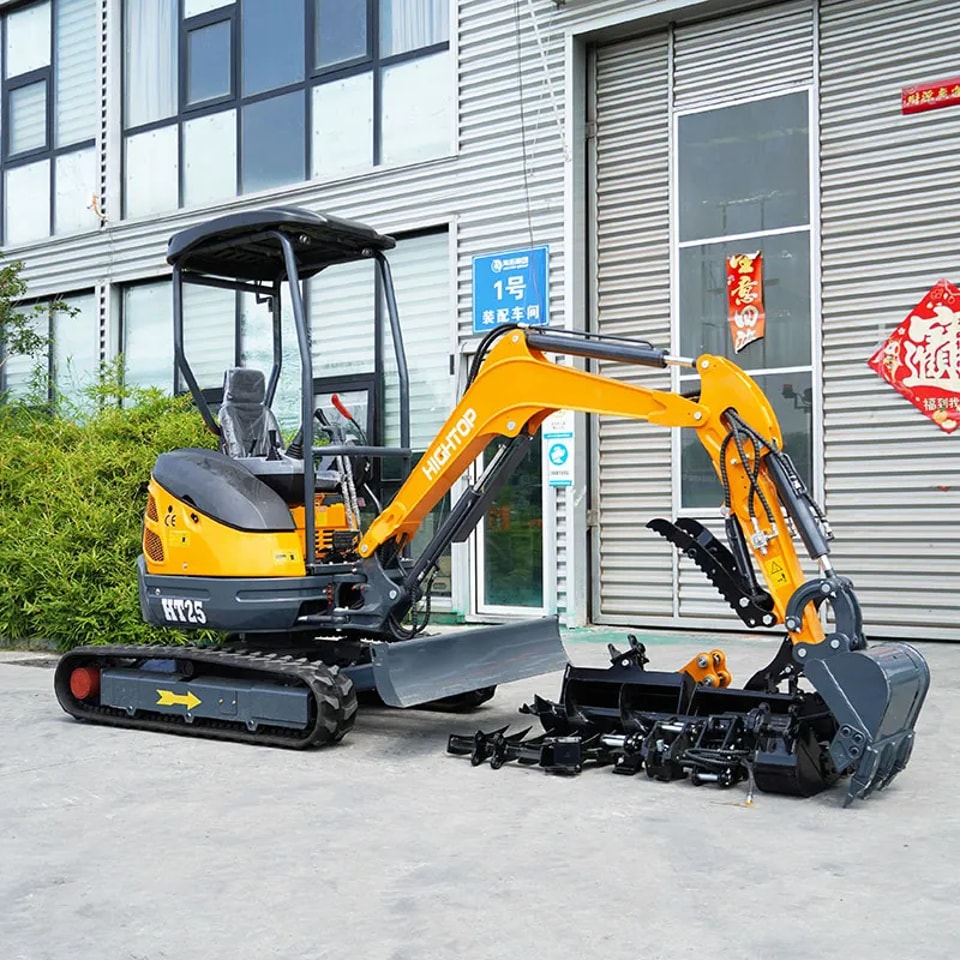

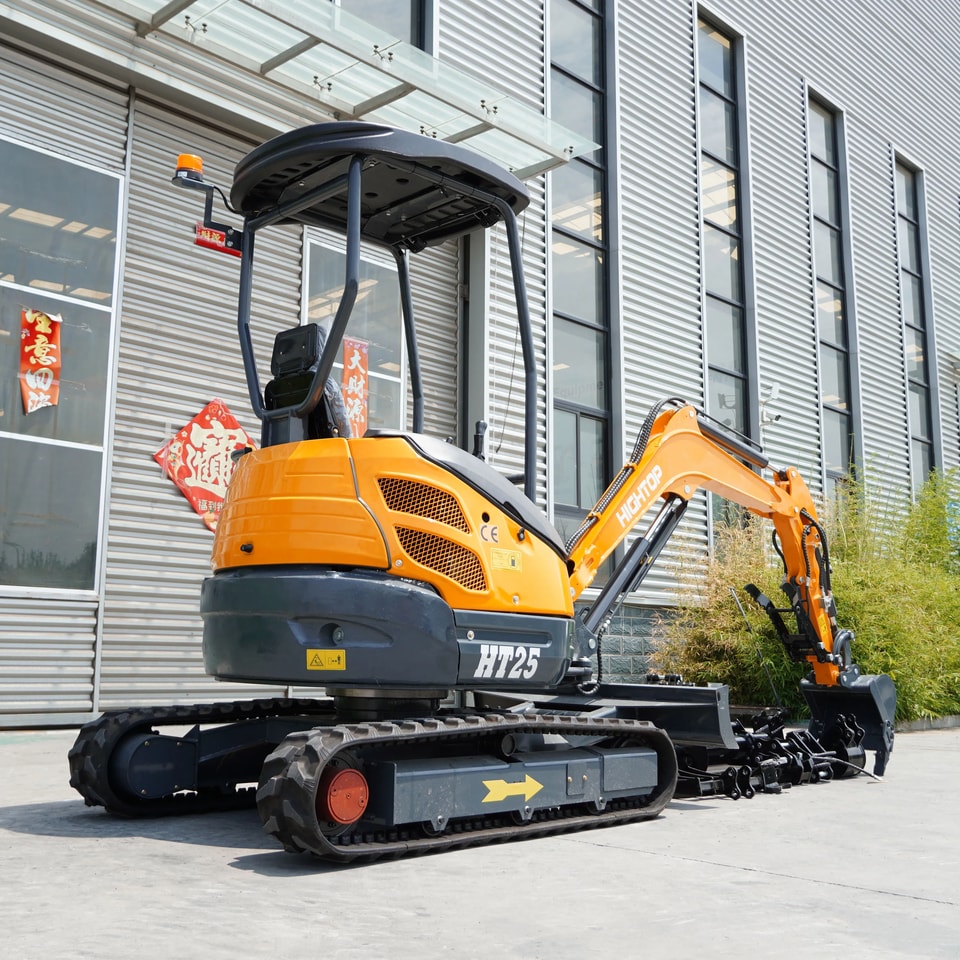

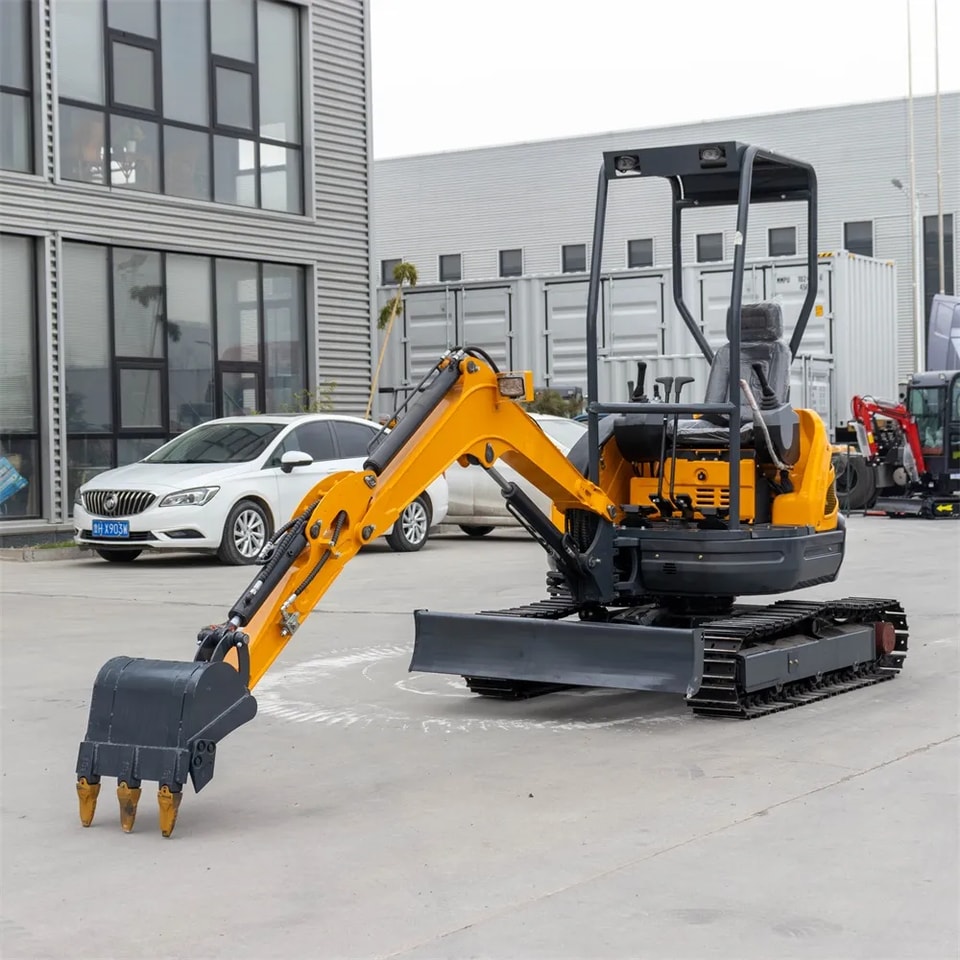

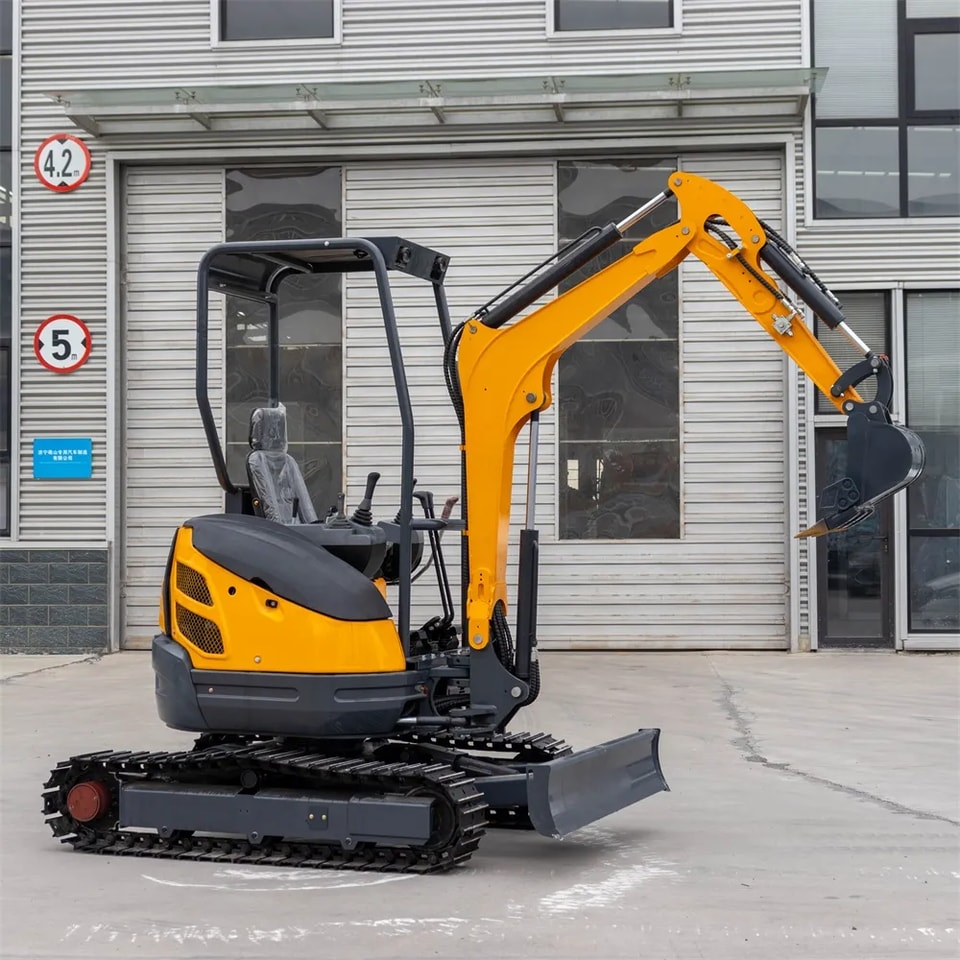

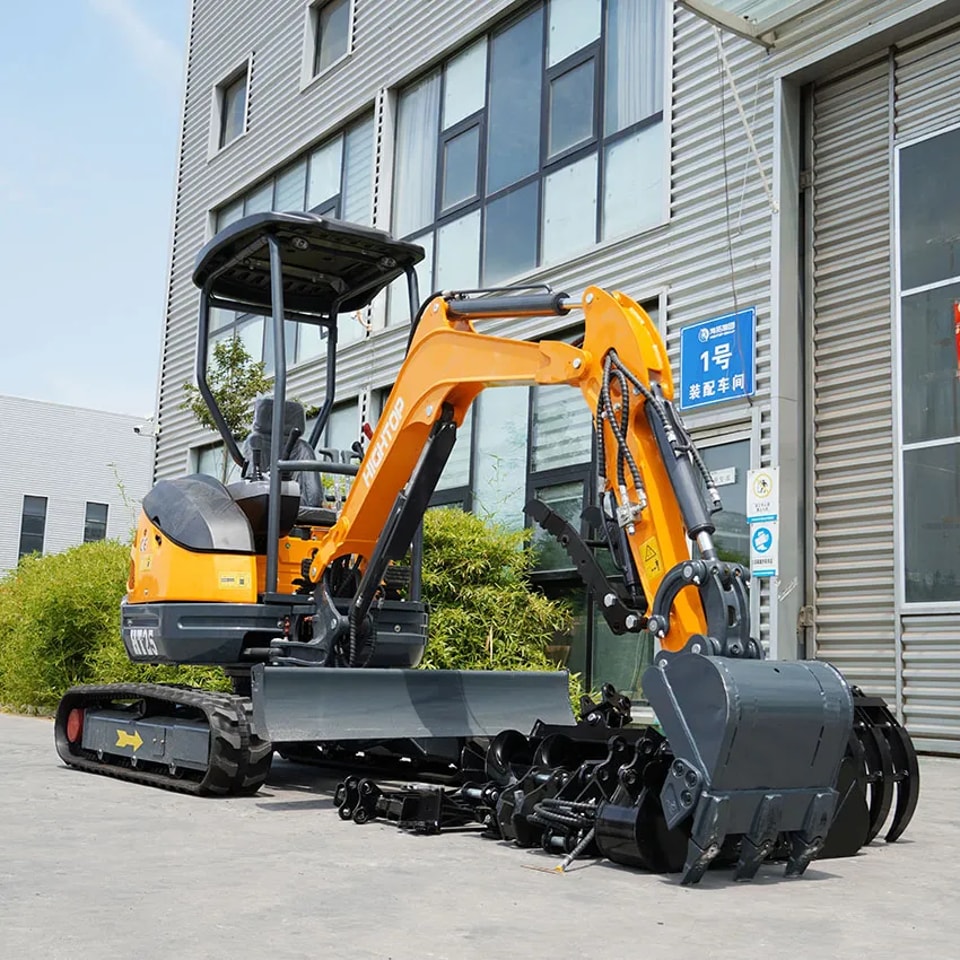

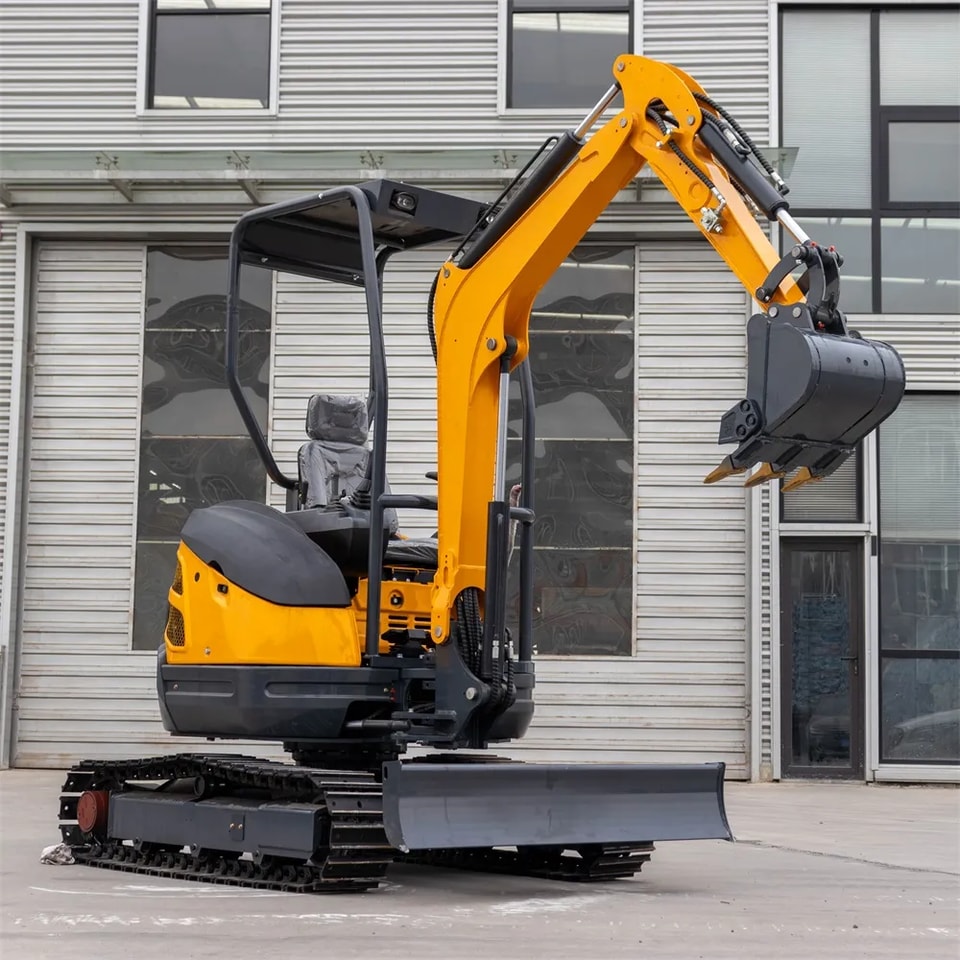

The Hightop HT25 2.5T mini excavator is a compact crawler excavator designed for construction, landscaping, utility work and other applications requiring flexibility and reliable digging performance.
Powered by a Kubota D1105 three-cylinder direct injection engine with 14.2kW power, the HT25 combines efficient operation with durable components. Its compact structure makes it suitable for working in limited spaces while maintaining excellent stability and control.
Key Features of HT25 Mini Excavator
Kubota D1105 Engine for Reliable Performance
The HT25 mini excavator is equipped with a Japanese Kubota D1105 engine. The three-cylinder direct injection engine provides reliable power output and efficient operation for different job site conditions.

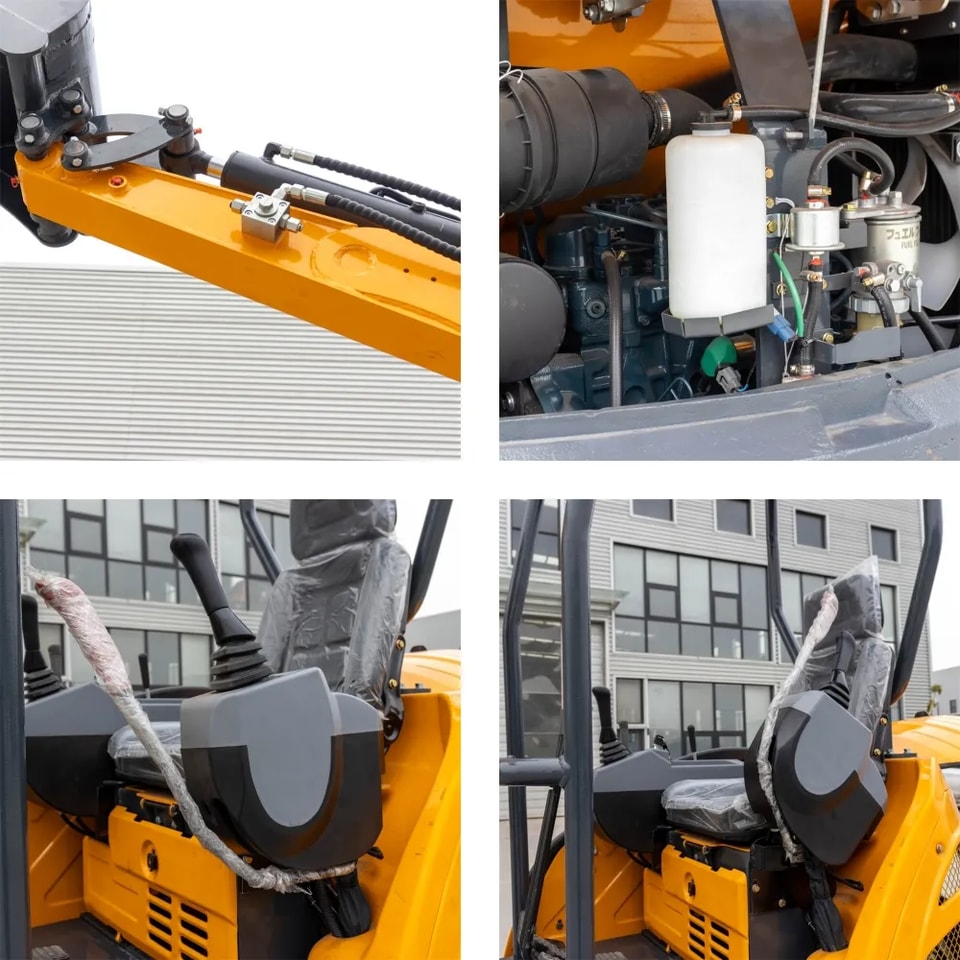

Fully Hydraulic Pilot Operation
The fully hydraulic pilot control system provides smooth and precise operation. The machine includes pilot handles, bulldozer blade control, travel operation, hydraulic hammer operation and side swing functions.
The safety lock system helps prevent unintended machine movement and improves operator safety during operation.
Durable Steel Track Design
The HT25 crawler excavator uses steel tracks to provide better durability and stability for demanding working environments.

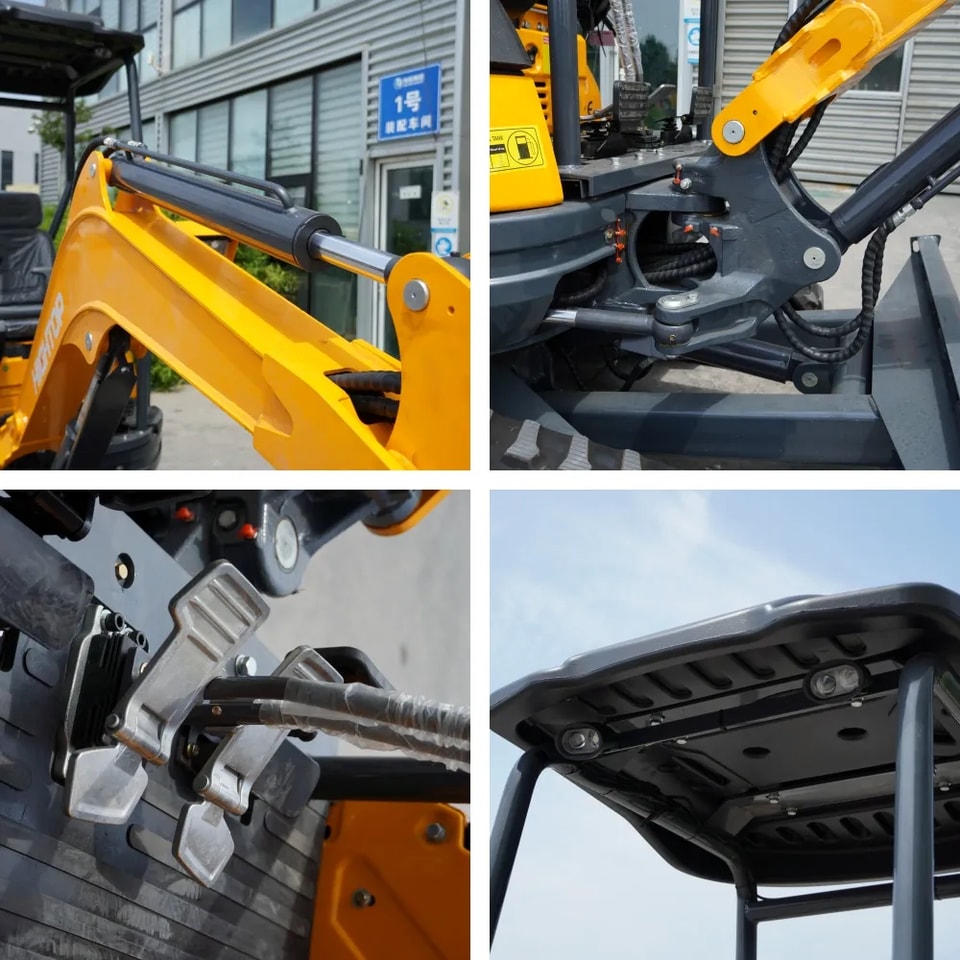

Hidden Hydraulic Pipe Structure
The boom hydraulic pipes are designed with a hidden structure to reduce exposure to sunlight and external impact. This design helps protect hydraulic hoses and improve service life in harsh working conditions.
Flexible Optional Configurations
The HT25 2.5T mini excavator supports multiple optional configurations including:
- Cab
- Air conditioning
- Boom swing
- Retractable tracks
- Customized colors and branding
Applications of HT25 2.5T Mini Excavator
- Small construction projects
- Landscaping and gardening
- Utility trenching
- Agricultural work
- Municipal maintenance
- Rental fleet applications
Why Choose HT25 Mini Excavator
- Kubota D1105 engine with 14.2kW power
- Compact crawler design for flexible operation
- Fully hydraulic pilot control system
- Durable steel track configuration
- Optional cab and attachment configurations
- Suitable for various construction applications
| HT20Z Mini Excavator — Parameter Table | |
|---|---|
| Overall Dimensions (Unit: mm) | |
| Total Length / Transportation Length | 2870mm |
| Total Width | 1400mm |
| Upper Width | 1320mm |
| Overall Height (Cab Roof) | 2440mm |
| Standard Track Plate Width | 250mm |
| Track Gauge | 1150mm |
| Minimum Ground Clearance | 145mm |
| Tail Turning Radius | 700mm |
| Track Ground Length | 1480mm |
| Track Length | 1858mm |
| Performance Parameters | |
| Working Mass | 2150kg |
| Bucket Capacity | 0.036m³ |
| Rated Power | 14KW/2200RPM |
| Slewing Speed | 12RMP |
| Climbing Capacity | 40° |
| Working Range (Unit: mm) | |
| Maximum Digging Height | — |
| Maximum Digging Depth | 2045mm |
| Maximum Digging Distance | 3430mm |
| Minimum Turning Radius | 1955mm |
| Maximum Height at Minimum Turning Radius | 2740mm |
| Main Components | |
| Engine | Kubota D1105 (3-cylinder direct injection) |
| Engine Rated Power | 14.2KW/2200 |
| Engine Oil Capacity | 5.1L |
| System Flow | 61.6L/min |
| Flow Sharing Main Valve | TRM10-BX-09-JNJT20-01 |
| Main Valve Pressure | 22MP |
| Hydraulic Pump | Swash plate type axial piston variable pump (TFA10VO28/53R) |
| Pump Displacement | 28ml |
| Pump Max Speed | 3000r/min |
| Traveling Motor | Axial variable piston motor |
| Motor Displacement | 6/12.5ml |
| Traveling Speed | 2.85/6.45km/h |
| Traction | 32KN |
| Fuel Tank Capacity | 30L |
| Cooling System Capacity | 5.05L |
| Hydraulic Oil Tank Capacity | 29L |
Frequently Asked Questions About HT25 Mini Excavator
What engine does the HT25 2.5T mini excavator use?
The HT25 mini excavator is equipped with a Kubota D1105 three-cylinder direct injection engine with 14.2kW power.
What jobs can a 2.5 ton mini excavator handle?
A 2.5 ton mini excavator is suitable for landscaping, utility trenching, small construction projects, agriculture and municipal work.
Does HT25 mini excavator have optional cab configurations?
Yes. The HT25 supports optional cab, air conditioning, boom swing and retractable track configurations.
What are the advantages of hydraulic pilot operation?
Hydraulic pilot operation provides smoother control and better operating precision for different excavation tasks.
