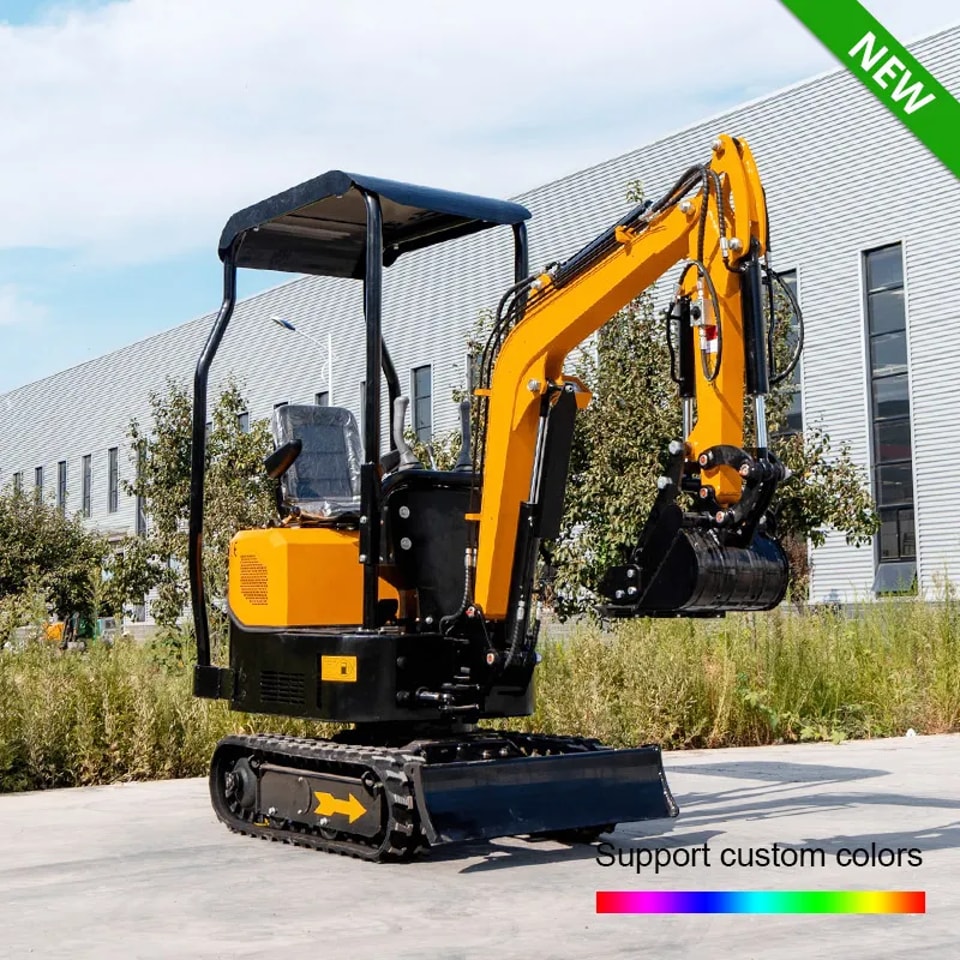

HT-10CZ Mini Excavator
The HT-10CZ 1-ton mini excavator for sale is an agile compact digger featuring an advanced side swing boom for superior flexibility in narrow trenching and indoor renovation. Engineered with a reliable Koop/Briggs & Stratton engine, this small hydraulic excavator ensures precision in confined spaces and a superior ROI for rental fleets. Inquire today for factory-direct wholesale pricing and professional B2B support on this versatile and durable mini crawler excavator.
Email:info009@hightopgroup.com
Phone:+86 181 6205 2962
HT-10CZ Mini Excavator Parmeter
Details images
HT-10CZ Mini Excavator Parmeter
| HT-10CZ Mini Excavator — Parameter Table | |
|---|---|
| Basic Parameters | |
| Model | HT10CZ |
| Weight | 1000kg |
| Digging bucket capacity | 0.025cbm / 120kg |
| Bucket width | 380mm |
| Engine | |
| Engine | KOOP (192F) |
| Optional Engine | BRIGGS & STRATTON YANMAR |
| Bore stroke | Single cylinder, fan cool |
| Rated power | 7kw / 3000r/min |
| Hydraulic System | |
| Main pump | G5-6 |
| Displacement | 6.8ml/r |
| Swing motor | SANYANG (BMRS-250) |
| Traveling motor | SANYANG (BMT-245) |
| Travel speed | 1.5km/h |
| Main Dimensions (Unit: mm) | |
| Overall dimension (L × W × H) | 2775 × 930 × 2219 mm |
| Wheelbase | 910 mm |
| Total length of track | 1230mm |
| Platform ground clearance | 380 mm |
| Platform back turning radius | 784 mm |
| Chassis width | 896 mm |
| Track width | 180 mm |
| Chassis ground clearance | 132 mm |
| Track height | 320 mm |
| Working Range (Unit: mm) | |
| Max. Digging depth | 1750 mm |
| Max. Vertical digging depth | 1375 mm |
| Max. Digging height | 2610 mm |
| Max. Dumping height | 1850 mm |
| Max. Digging radius on ground | 2850 mm |
| Min. Rotation radius | 1330 mm |
| Bulldozer Blade (Unit: mm) | |
| Max. Upgrade height of bulldozer blade | 345 mm |
| Max. Digging depth of bulldozer blade | 255 mm |

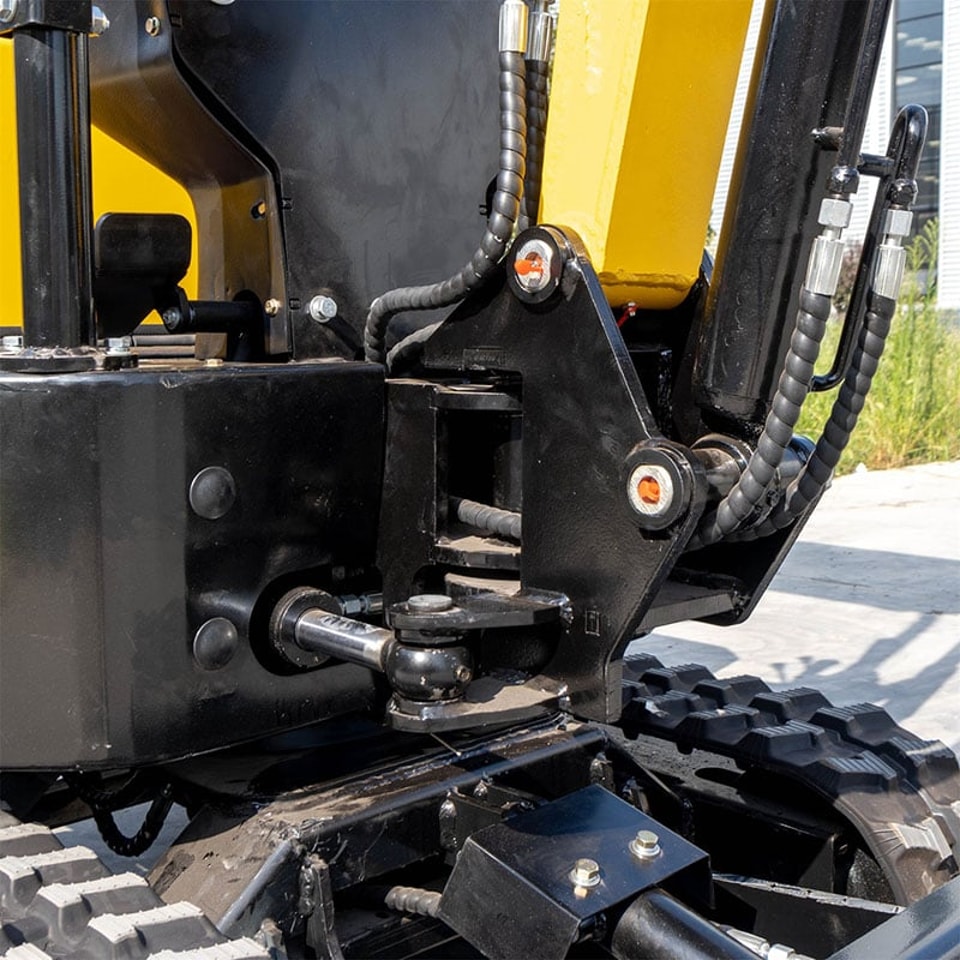

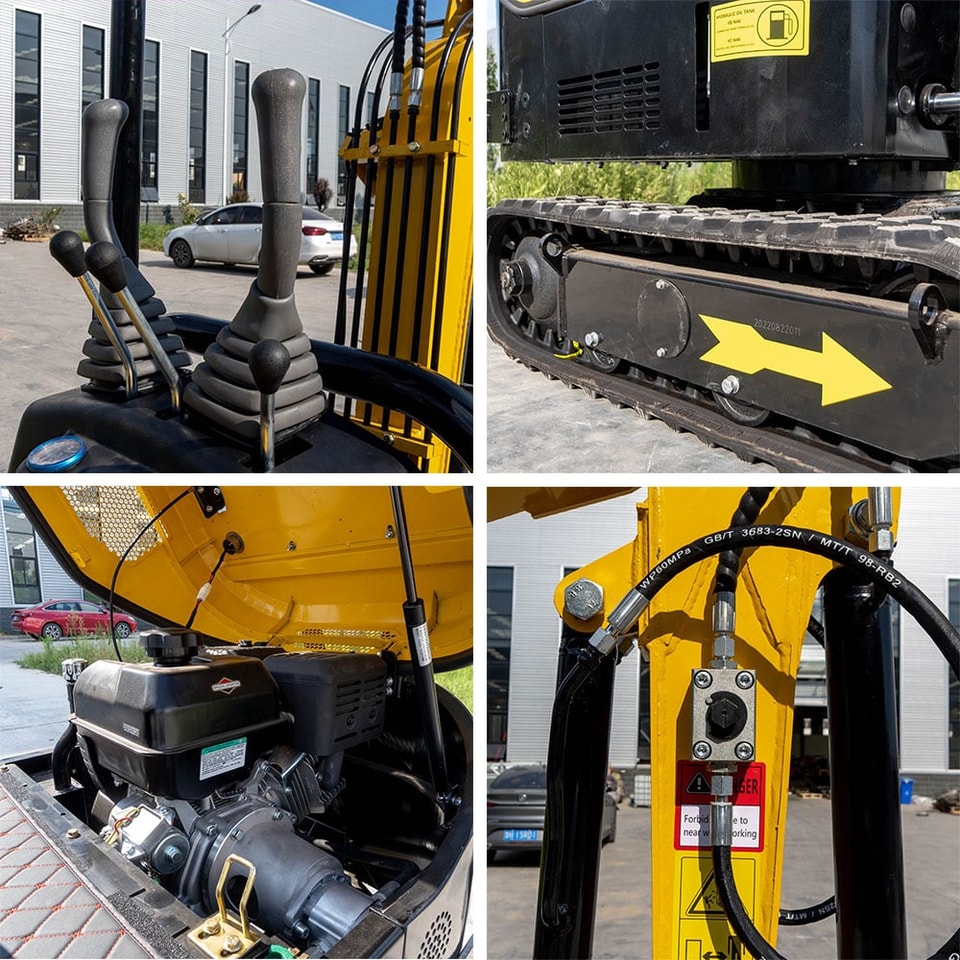

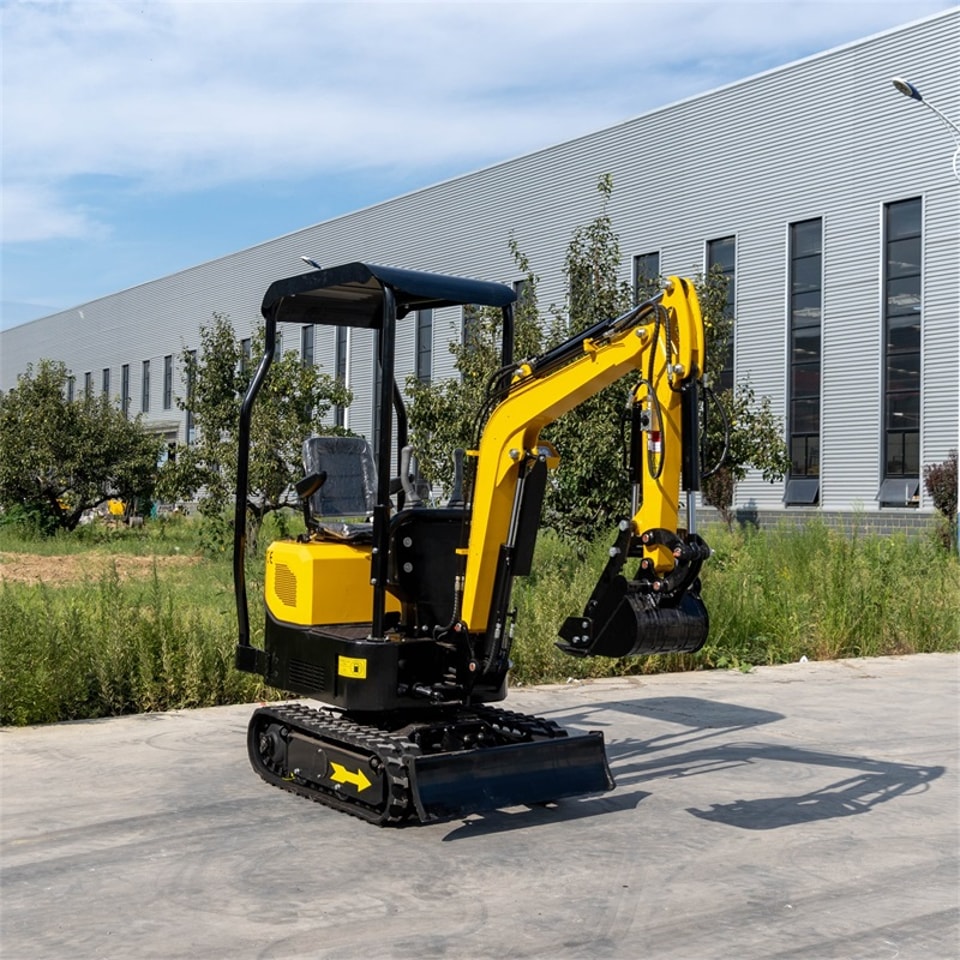

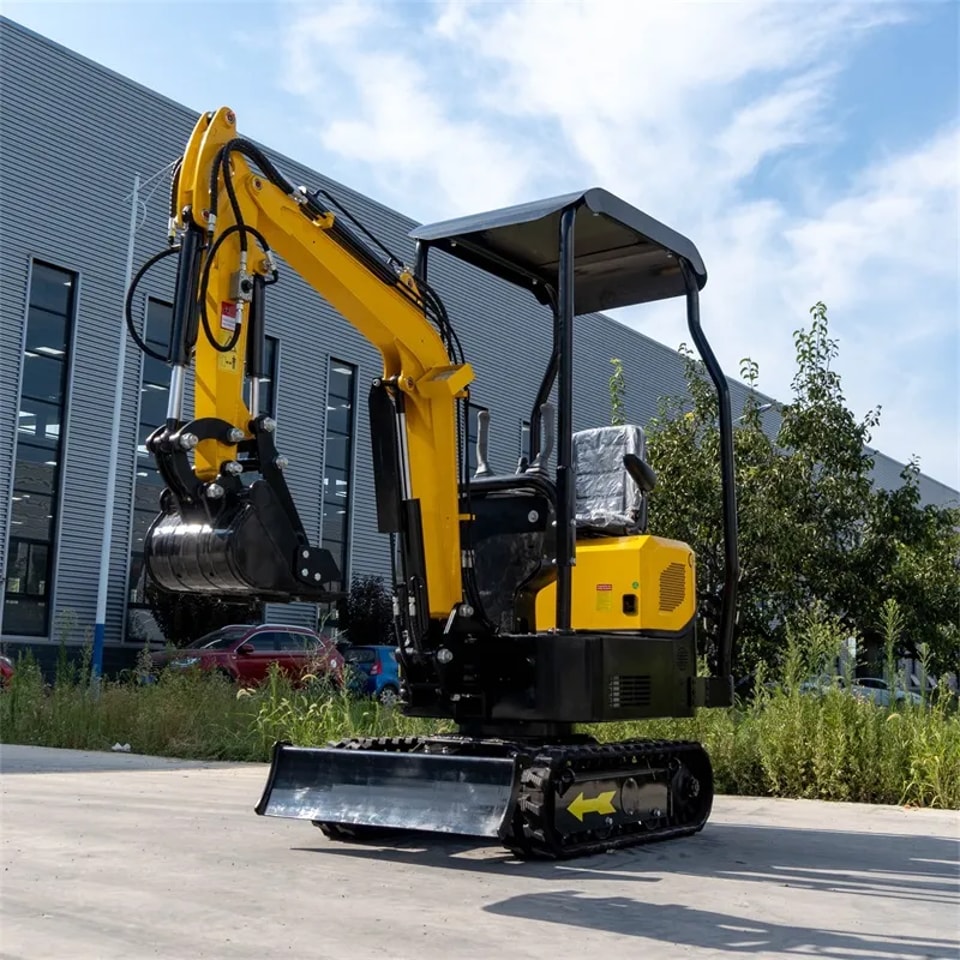

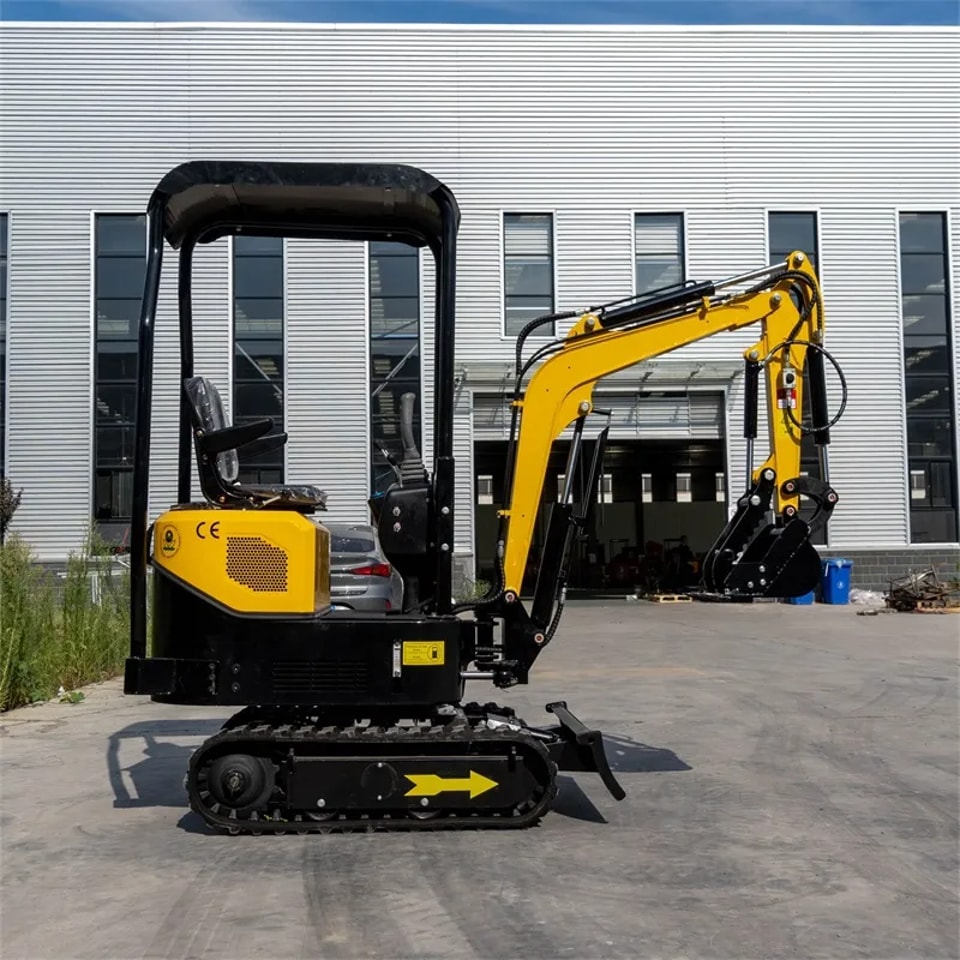

Details images
