HT15 1500kg Mini Excavator
The HT15-2 1.5-ton mini excavator for sale is a powerful compact digger engineered for high-efficiency landscaping and precision trenching in narrow residential spaces. Featuring a reliable diesel engine and a durable reinforced chassis, this small hydraulic excavator ensures exceptional stability and a superior ROI for rental fleets. Inquire today for factory-direct wholesale pricing and professional B2B support on this low-maintenance mini crawler excavator solution.
Email:info009@hightopgroup.com
Phone:+86 181 6205 2962
HT15-2 Mini Excavator Parameter

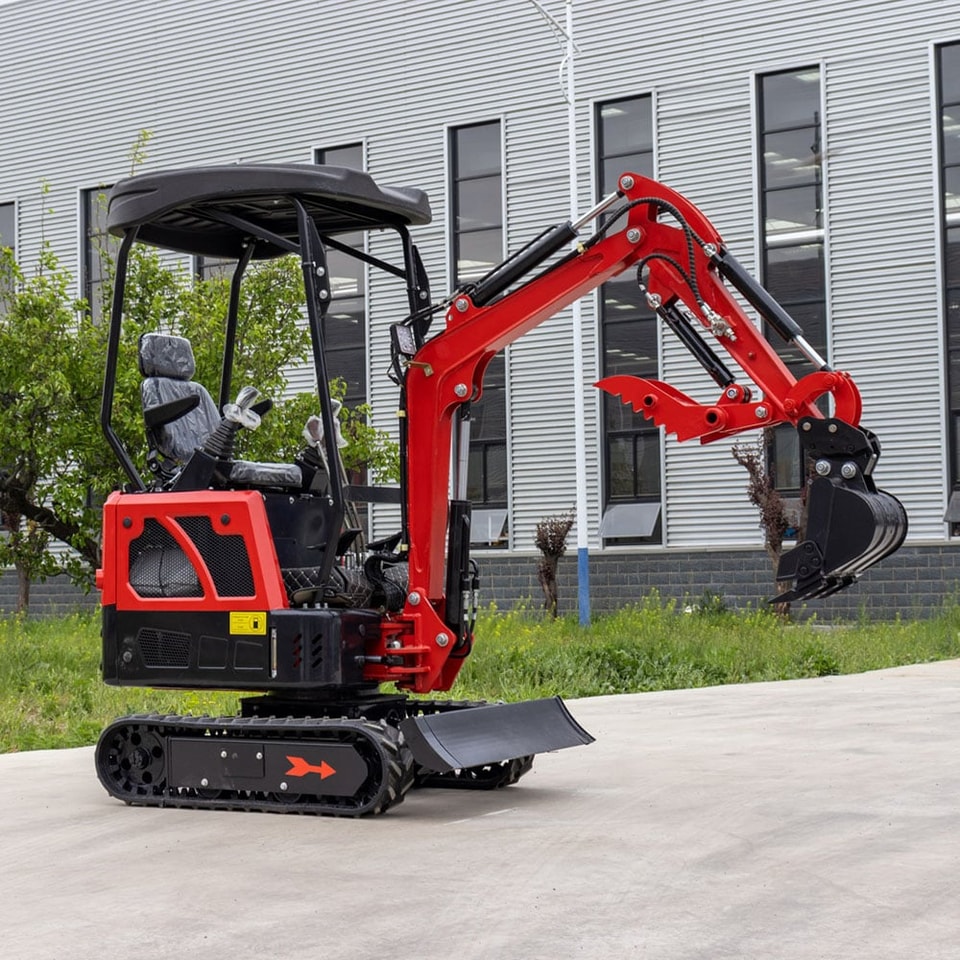

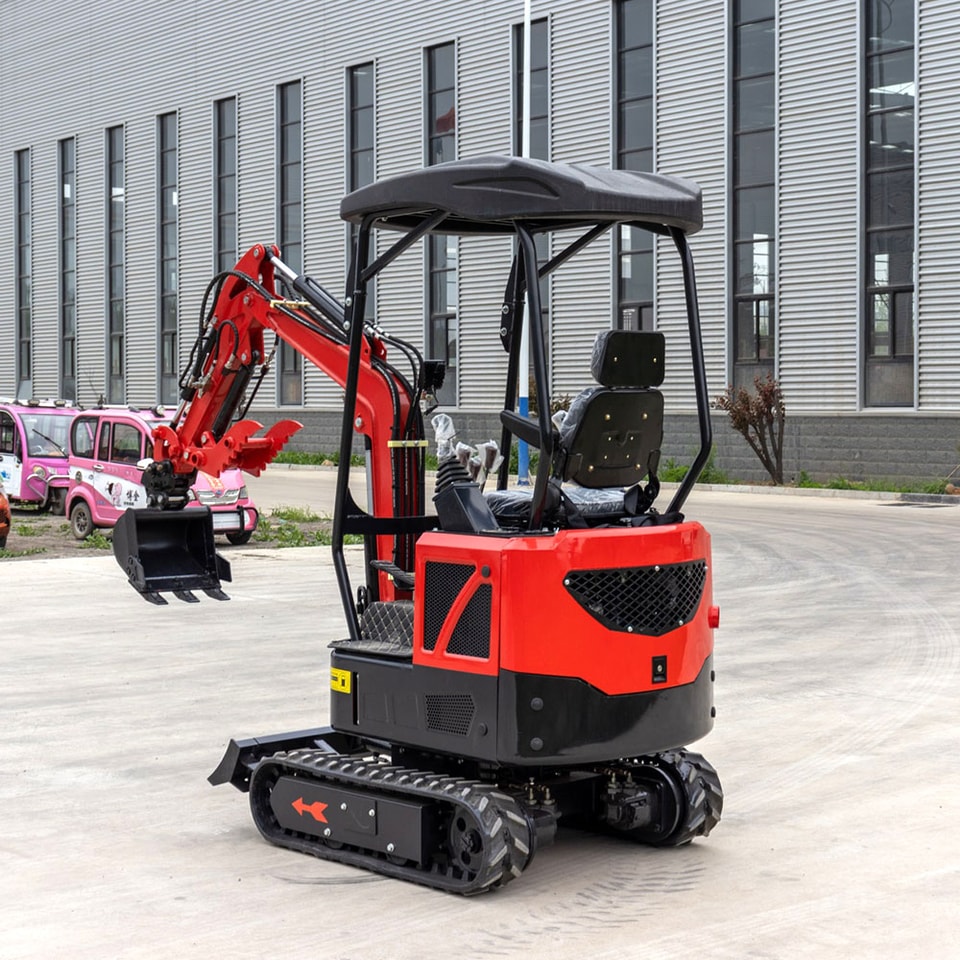

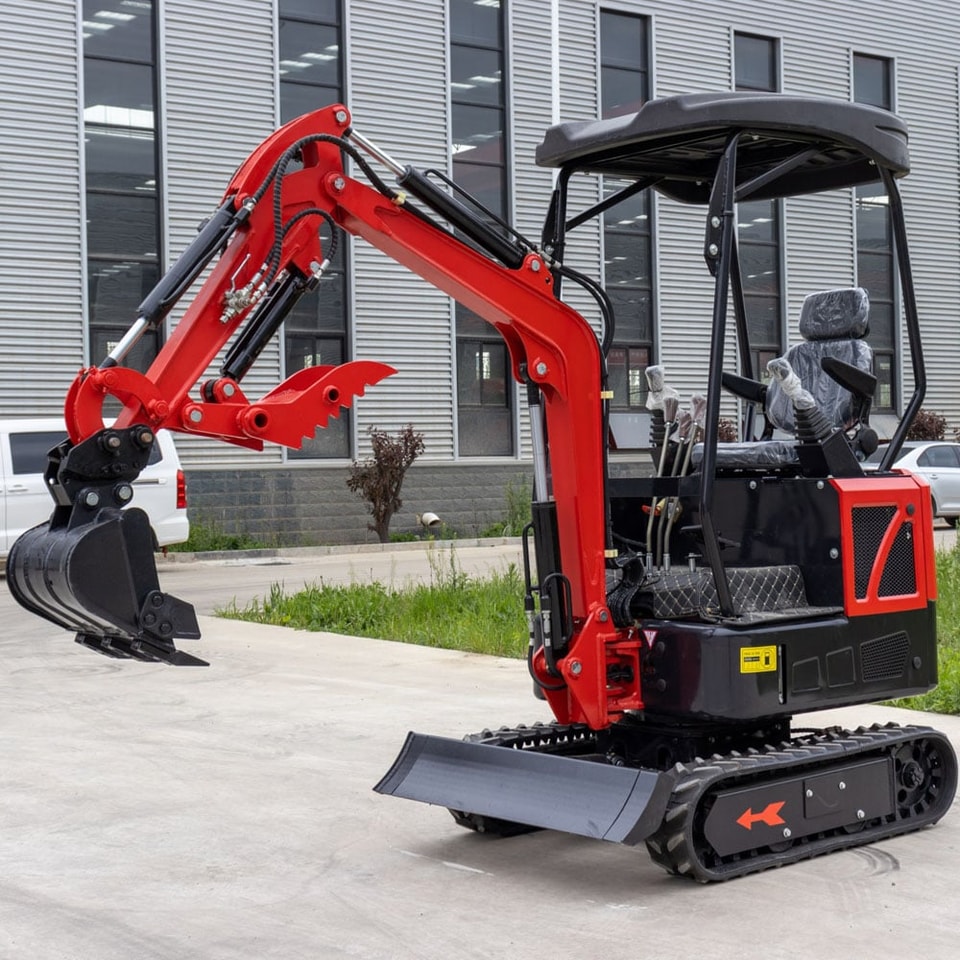

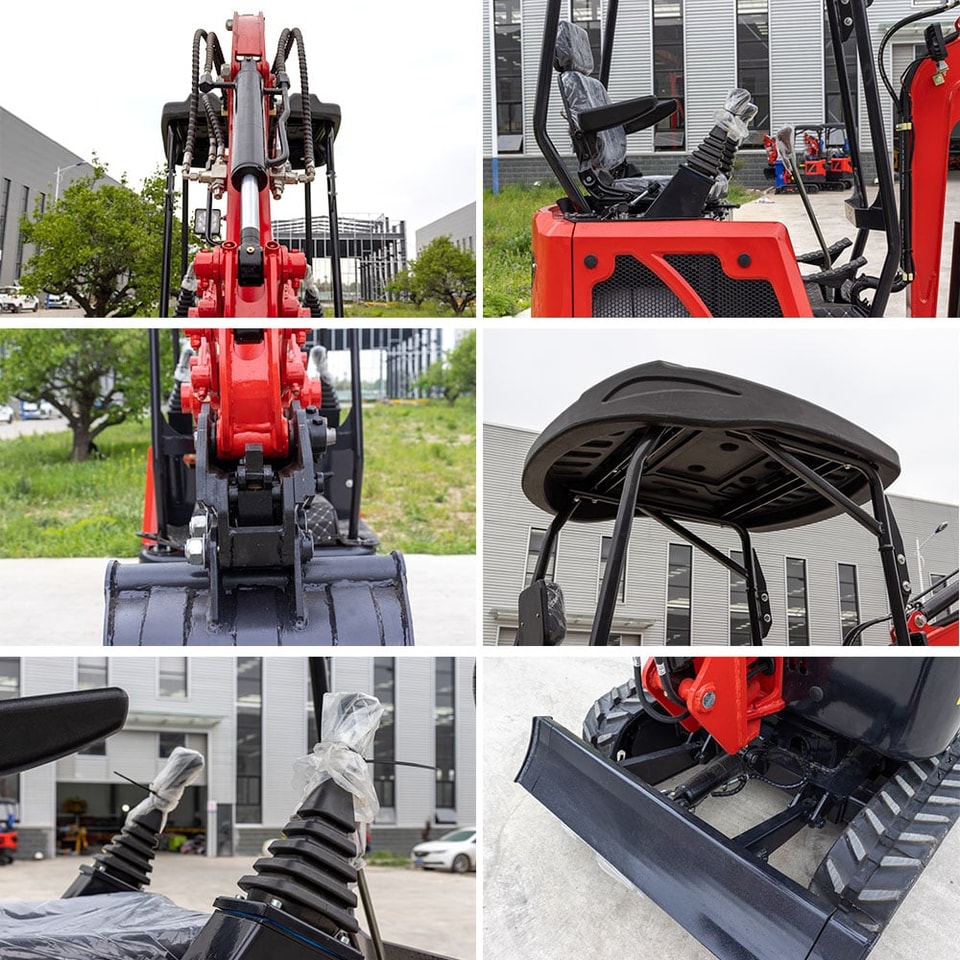

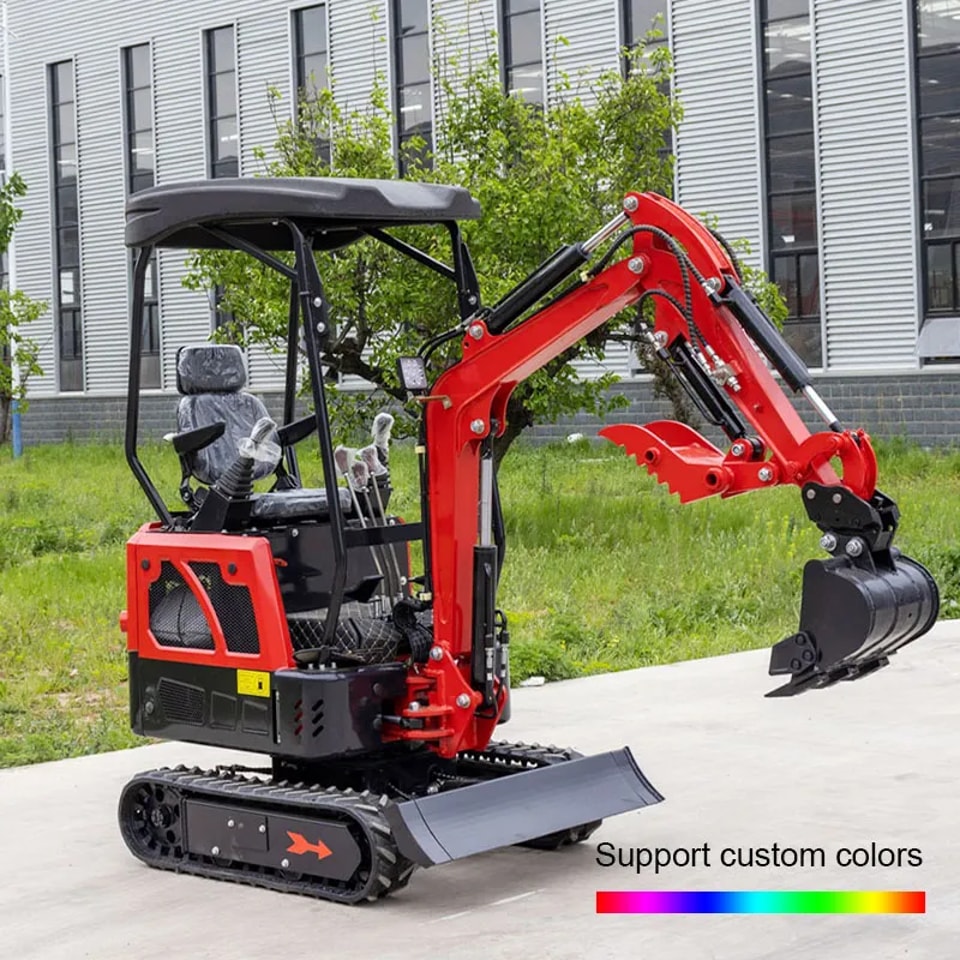

Details images
HT15-2 Mini Excavator Parameter
| HT15-2 Mini Excavator — Parameter Table | |
|---|---|
| Basic Parameters | |
| Model | HT15-2 |
| Machine weight | 1350kg |
| Standard Bucket capacity | 0.025m³ |
| Engine | |
| Emission Standard | Tier 5 / Stage V |
| Engine | Kubota |
| Model | D722 |
| Power / Rotation speed | 10.2kw(15HP)2500rpm |
| Number of cylinder | 3 |
| Performance Parameters | |
| Swing speed | 9 rpm |
| Max. Grade ability | 35° |
| Maximum Bucket digging force | 18KN |
| Maximum Arm digging force | 11KN |
| Hydraulic system pressure | 18.2Mpa |
| Maximum Travel speed | 4km/h |
| Machine Size (Unit: mm) | |
| Overall dimension (L × W × H) | 2450mm × 940mm × 2150mm |
| Chassis width | 1000mm |
| Axle base (Track length on ground) | 1300mm |
| Track width | 200mm |
| Min. Ground clearance | 380mm |
| Working Range (Unit: mm) | |
| Maximum Digging height | 2640mm |
| Maximum Dumping height | 2100mm |
| Maximum Digging depth | 1800mm |
| Maximum Vertical digging depth | 2230mm |
| Maximum Digging radius | 2350mm |
| Minimum swing radius | 1190mm |
Details images
