HT15 1.5T Mini Excavator

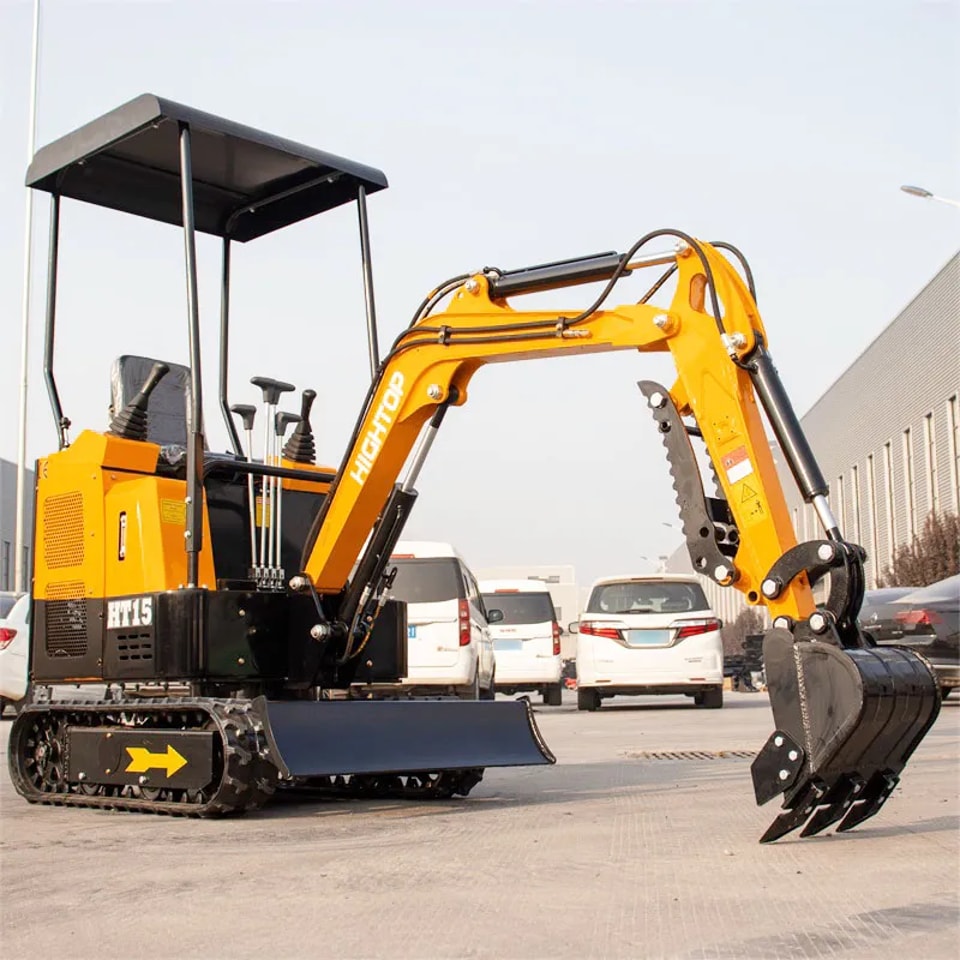

HT15 1.5 Ton Mini Excavator Overview

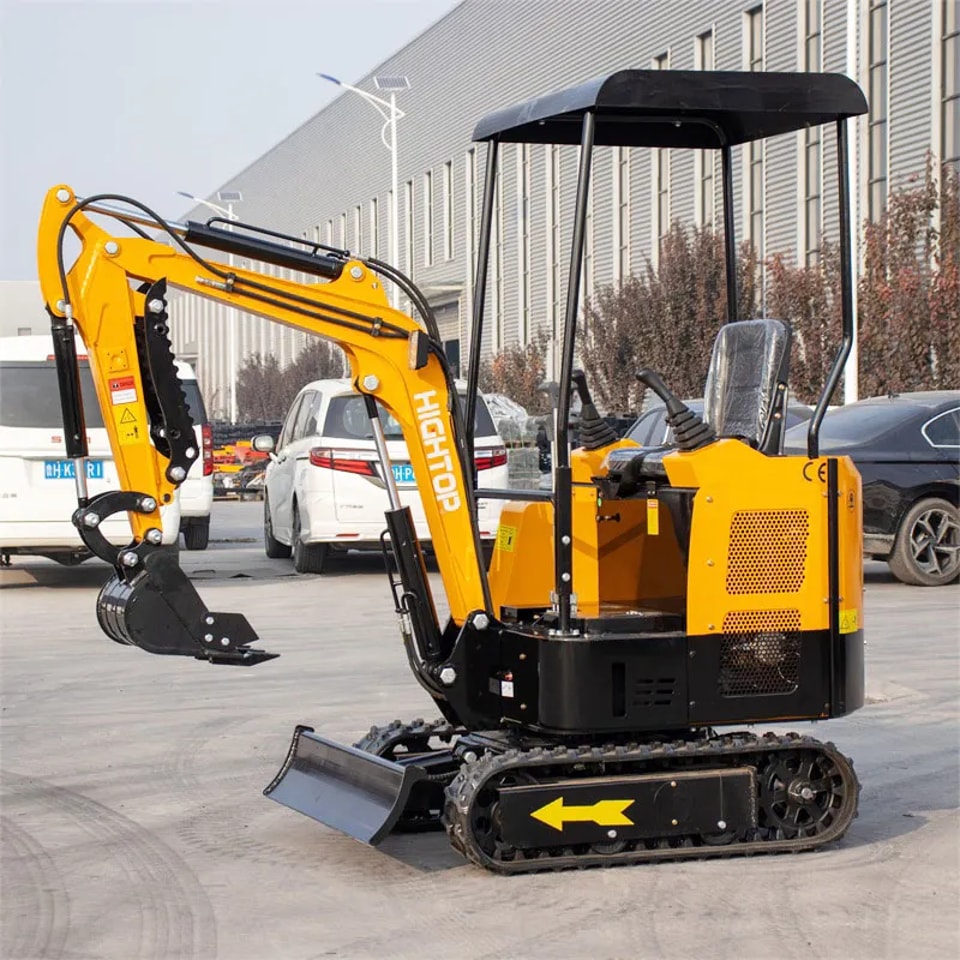

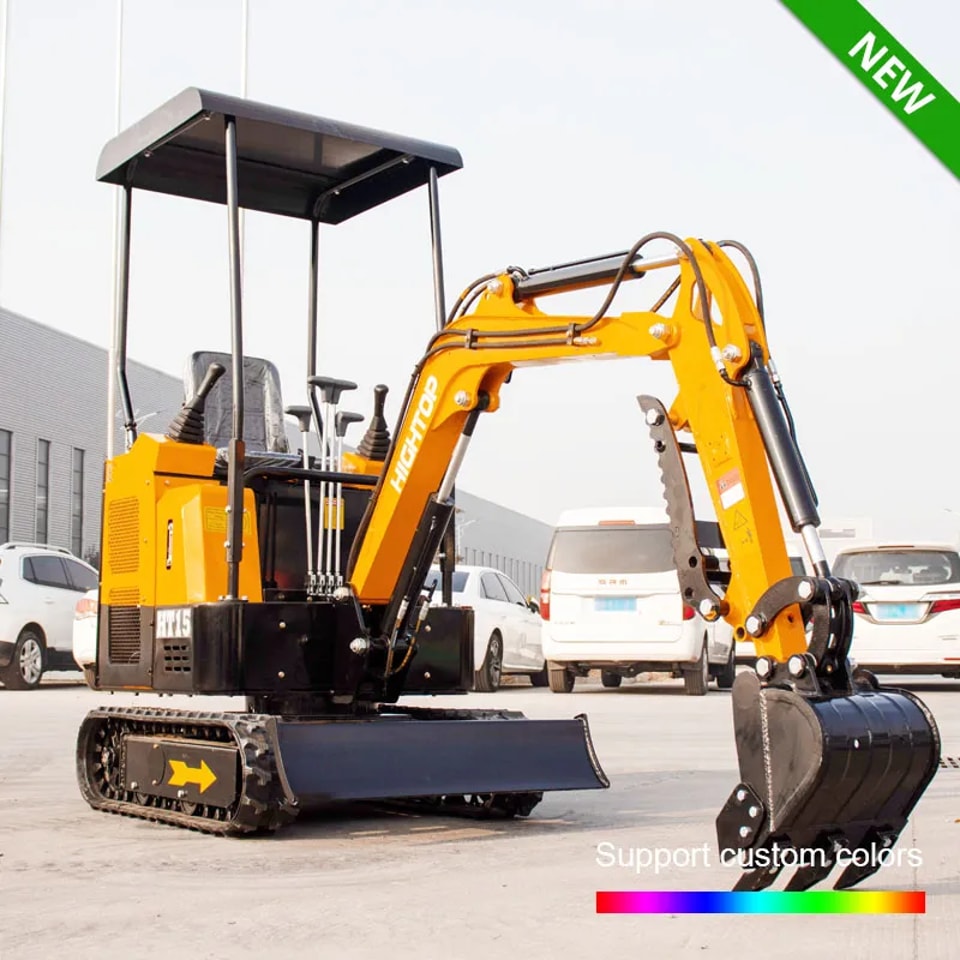

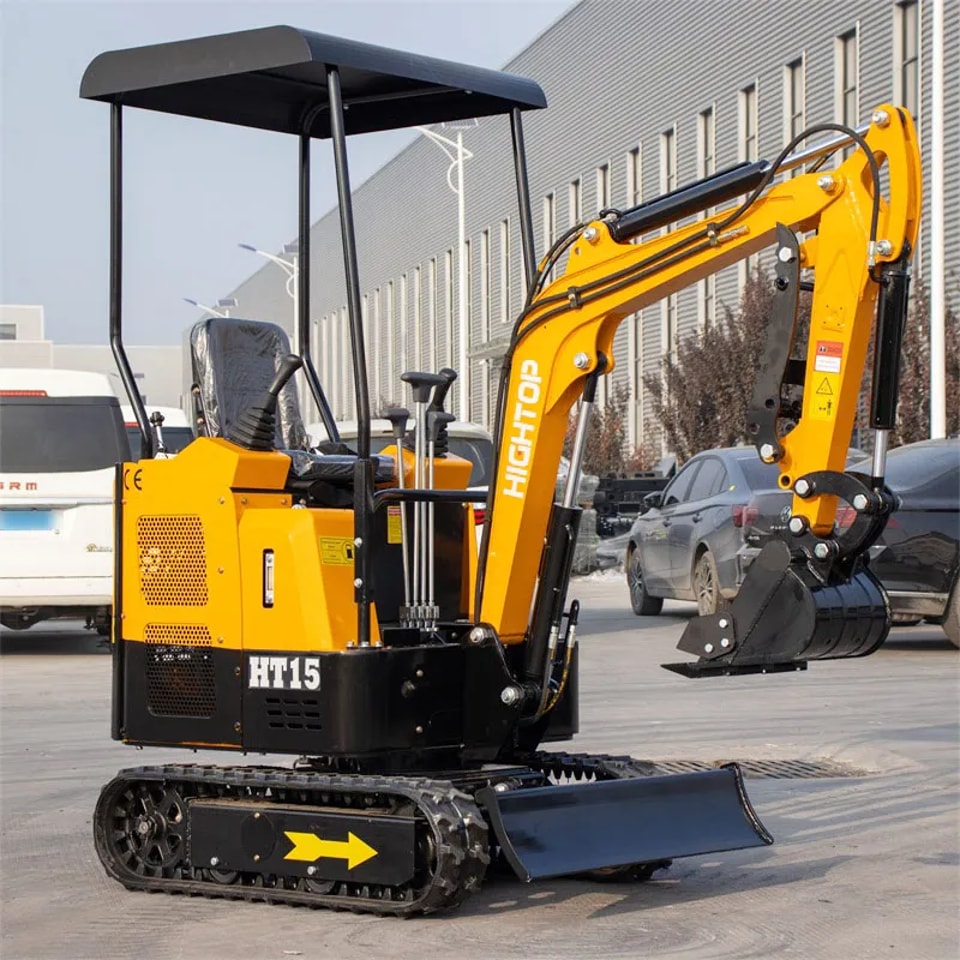

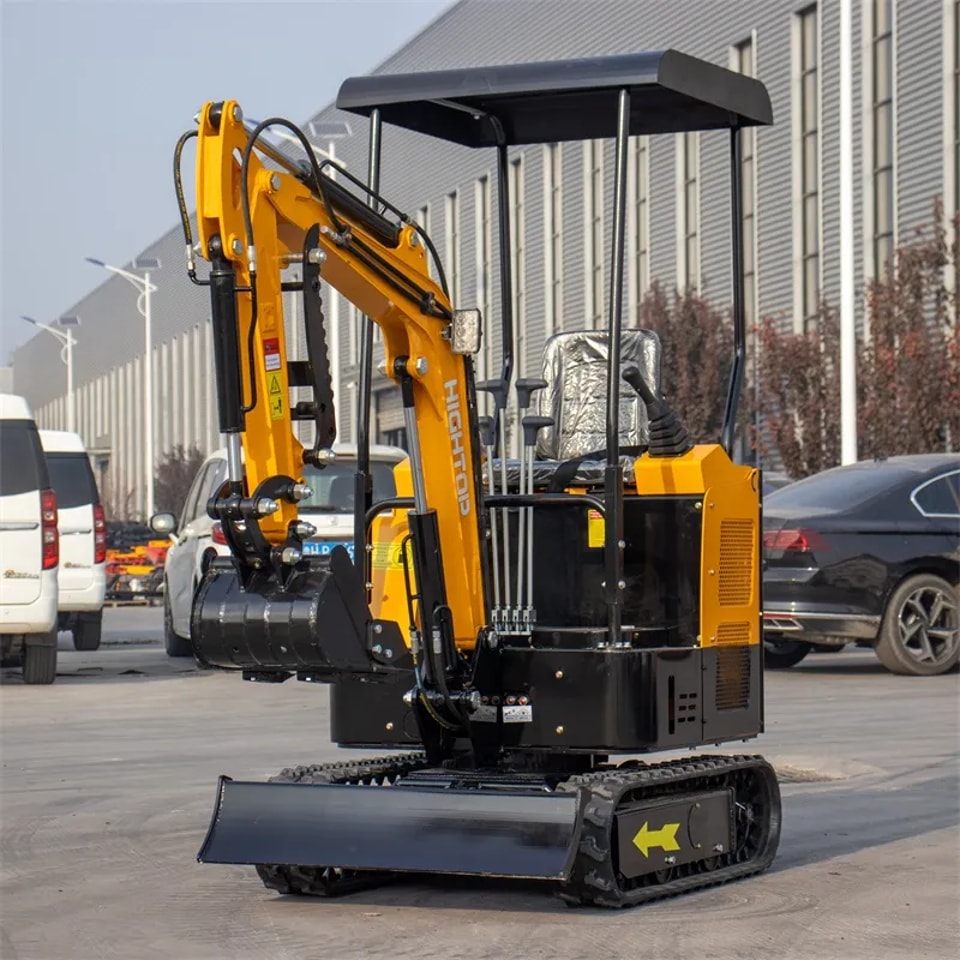

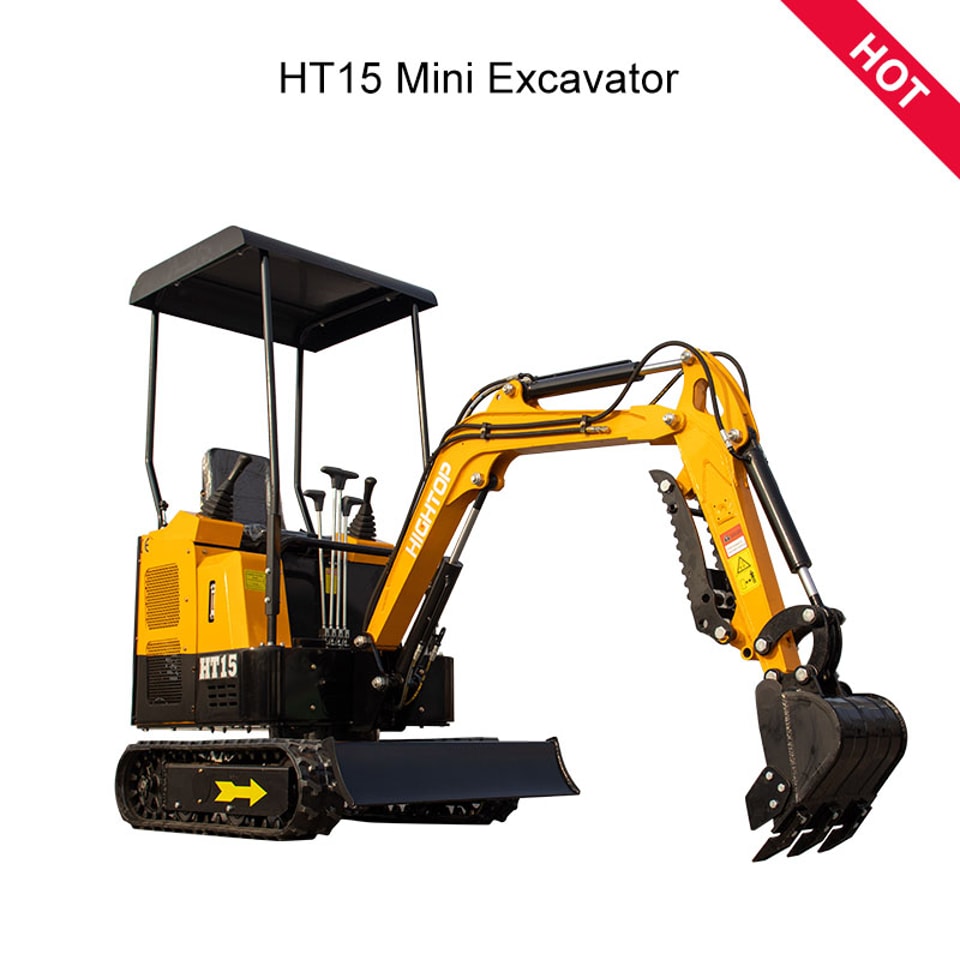

The HT15 1.5 ton mini excavator is a compact hydraulic crawler excavator designed for small-scale construction and maintenance applications. With a narrow body design, efficient hydraulic system and simple operation, it is suitable for working in areas where larger excavators cannot easily access.
This mini excavator is widely used for landscaping, farmland maintenance, municipal construction, greenhouse projects and trench excavation. Its compact structure, low fuel consumption and easy maintenance make it a practical choice for contractors, rental companies and small construction teams.
Key Advantages of HT15 Mini Excavator
1. Compact Design for Narrow Working Areas
The HT15 mini excavator features a compact structure that allows flexible operation in confined spaces. It is suitable for landscaping projects, residential construction, utility installation and other jobs requiring precise digging performance.
2. Easy Operation and Maintenance
Designed with a simple structure and hydraulic joystick control, the HT15 provides convenient operation and easier maintenance. The practical design helps reduce maintenance requirements and improve daily working efficiency.
3. Low Fuel Consumption and Efficient Performance
The HT15 1.5 ton excavator is designed to reduce fuel consumption while maintaining reliable digging performance. It helps operators achieve better efficiency during long working hours on different job sites.
4. Multiple Attachment Compatibility
The HT15 mini excavator supports different attachments to expand its working capabilities. Available attachments include:
- Auger
- Hydraulic hammer
- Grab
- Narrow bucket
These attachments allow the machine to handle a wider range of applications including digging, drilling, breaking and material handling.
Applications of HT15 1.5 Ton Mini Excavator
The HT15 compact excavator is suitable for various applications, including:
- Landscaping and garden construction
- Farmland and agricultural maintenance
- Municipal construction projects
- Vegetable greenhouse construction
- Trenching and pipeline installation
- Small-scale earthmoving projects
Why Choose HT15 Mini Excavator
The HT15 1.5 ton mini excavator combines compact size, flexible operation and practical maintenance features. It is designed for customers who need an efficient machine for small construction projects, narrow spaces and daily earthmoving tasks.
- Compact crawler design for limited working areas
- Simple structure for easier maintenance
- Low fuel consumption for cost-effective operation
- Compatible with multiple attachments
- Suitable for contractors, farms and rental applications
HT15 Mini Excavator for Contractors and Rental Businesses
For contractors and rental companies, the HT15 provides a versatile solution for projects requiring mobility and flexibility. Its compact size makes transportation easier, while its wide application range allows users to serve different customer requirements.

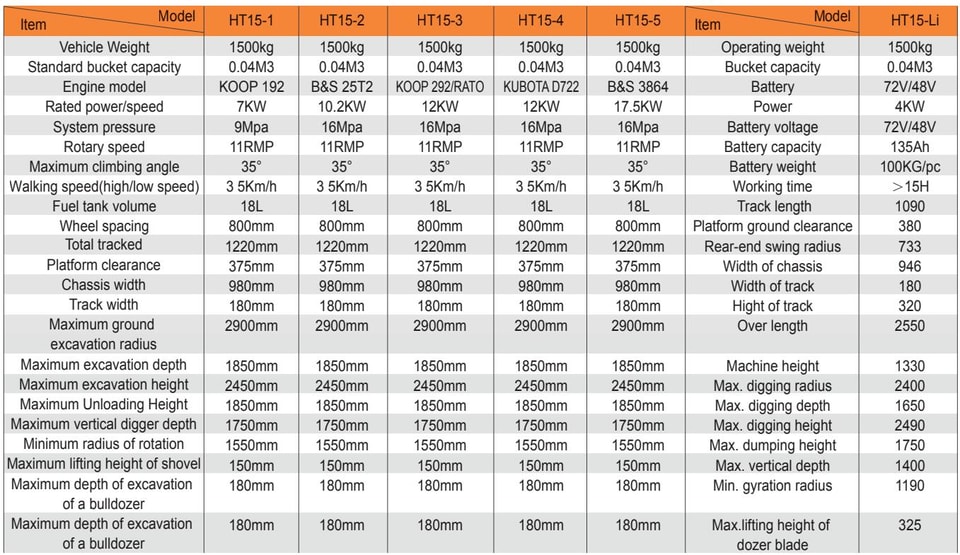

| Parameter | HT15-1 | HT15-2 | HT15-3 | HT15-4 | HT15-5 | Parameter | HT15-Li |
|---|---|---|---|---|---|---|---|
| Basic Parameters | |||||||
| Model | HT15-1 | HT15-2 | HT15-3 | HT15-4 | HT15-5 | Model | HT15-Li |
| Vehicle Weight | 1500KG | 1500KG | 1500KG | 1500KG | 1500KG | Operating weight | 1500KG |
| Standard bucket capacity | 0.04m³ | 0.04m³ | 0.04m³ | 0.04m³ | 0.04m³ | Bucket capacity | 0.04m³ |
| Engine & Power System | |||||||
| Engine model | KOOP 192 | B&S 25T2 | KOOP 292 / RATO | KUBOTA D722 | B&S 3864 | Battery | 72V / 48V |
| Rated power/speed | 7KW | 10.2KW | 12KW | 12KW | 17.5KW | Power | 4KW |
| System pressure | 9Mpa | 16Mpa | 16Mpa | 16Mpa | 16Mpa | Battery voltage | 72V / 48V |
| Performance Parameters | |||||||
| Rotary speed | 11 rpm | 11 rpm | 11 rpm | 11 rpm | 11 rpm | Battery capacity | 135Ah |
| Maximum climbing angle | 35° | 35° | 35° | 35° | 35° | Battery weight | 100KG/pc |
| Walking speed (high/low) | 3.5 km/h | 3.5 km/h | 3.5 km/h | 3.5 km/h | 3.5 km/h | Working time | >15H |
| Dimensions (Unit: mm) | |||||||
| Fuel tank volume | 18L | 18L | 18L | 18L | 18L | Track length | 1090 |
| Wheel spacing | 800mm | 800mm | 800mm | 800mm | 800mm | Platform ground clearance | 380 |
| Total tracked length | 1220mm | 1220mm | 1220mm | 1220mm | 1220mm | Rear-end swing radius | 733 |
| Platform clearance | 375mm | 375mm | 375mm | 375mm | 375mm | Width of chassis | 946 |
| Chassis width | 980mm | 980mm | 980mm | 980mm | 980mm | Width of track | 180 |
| Track width | 180mm | 180mm | 180mm | 180mm | 180mm | Height of track | 320 |
| Working Range (Unit: mm) | |||||||
| Over length | - | - | - | - | - | Over length | 2550 |
| Machine height | - | - | - | - | - | Machine height | 1330 |
| Maximum ground excavation radius | 2900mm | 2900mm | 2900mm | 2900mm | 2900mm | Max. digging radius | 2400 |
| Maximum excavation depth | 1850mm | 1850mm | 1850mm | 1850mm | 1850mm | Max. digging depth | 1650 |
| Maximum excavation height | 2450mm | 2450mm | 2450mm | 2450mm | 2450mm | Max. digging height | 2490 |
| Maximum Unloading Height | 1850mm | 1850mm | 1850mm | 1850mm | 1850mm | Max. dumping height | 1750 |
| Maximum vertical digger depth | 1750mm | 1750mm | 1750mm | 1750mm | 1750mm | Max. vertical depth | 1400 |
| Minimum radius of rotation | 1550mm | 1550mm | 1550mm | 1550mm | 1550mm | Min. gyration radius | 1190 |
| Bulldozer Blade (Unit: mm) | |||||||
| Maximum lifting height of shovel | 150mm | 150mm | 150mm | 150mm | 150mm | Max. lifting height of dozer blade | 325 |
| Maximum depth of excavation of bulldozer | 180mm | 180mm | 180mm | 180mm | 180mm | - | - |
Frequently Asked Questions About HT15 Mini Excavator
What is a 1.5 ton mini excavator used for?
A 1.5 ton mini excavator is commonly used for landscaping, farmland maintenance, trench digging, greenhouse construction and small construction projects where compact equipment is required.
Can the HT15 mini excavator work in narrow areas?
Yes. The HT15 features a compact crawler design, making it suitable for operation in narrow working environments and areas with limited access.
What attachments can be installed on the HT15 excavator?
The HT15 mini excavator can be equipped with attachments such as augers, grabs, hydraulic hammers and narrow buckets to support different working applications.
Is the HT15 mini excavator suitable for landscaping projects?
Yes. The compact size and flexible operation of the HT15 make it suitable for landscaping, garden construction and other precision digging tasks.
Why choose a 1.5 ton mini excavator instead of a larger excavator?
A 1.5 ton mini excavator provides better flexibility in small spaces, easier transportation and lower operating costs, making it suitable for small contractors and maintenance projects.
