HT20-1 Mini Excavator
The HT20-1 2-ton small excavator for sale is a robust hydraulic powerhouse engineered for high-efficiency landscaping and narrow space operations in urban construction. Featuring a powerful 19KW engine and a versatile compact chassis, this mini crawler excavator ensures reliable performance and a superior ROI for rental fleets and professional contractors. Inquire today for factory-direct wholesale pricing and professional B2B support on this durable compact hydraulic digger.
Email:info009@hightopgroup.com
Phone:+86 181 6205 2962
HT20-1 Mini Excavator Parameter
HT20-1 Mini Excavator Images
HT20-1 Mini Excavator Parameter
| HT20-1 Mini Excavator — Parameter Table | |
|---|---|
| Basic Parameters & Engine | |
| Engine | Laidong385 3TN25 |
| Valve | Beifang |
| Working weight | 2000kg |
| Bucket capacity | 0.04m³ |
| Rated power | 19KW / 2200RPM |
| Revolution speed | 12 RMP |
| Gradeability | 30° |
| Dimensions (Unit: mm) | |
| Total length / transportation length | 3337 / 2597mm |
| Total width | 1100mm |
| Upper width | 1053mm |
| Total Height | 2325mm |
| Track width | 180mm |
| Track Gauge | 920mm |
| Min. ground clearance | 119mm |
| Tail swing radius | 1013mm |
| Track ground length | 1050mm |
| Track length | 1545mm |
| Working Range (Unit: mm) | |
| Max. Digging Height | 2580mm |
| Max. Dumping Height | 1637mm |
| Max. digging depth | 2060mm |
| Max. digging distance | 3130mm |
| Min. swing radius | 1575mm |
| Height when min. swing radius | 2075mm |

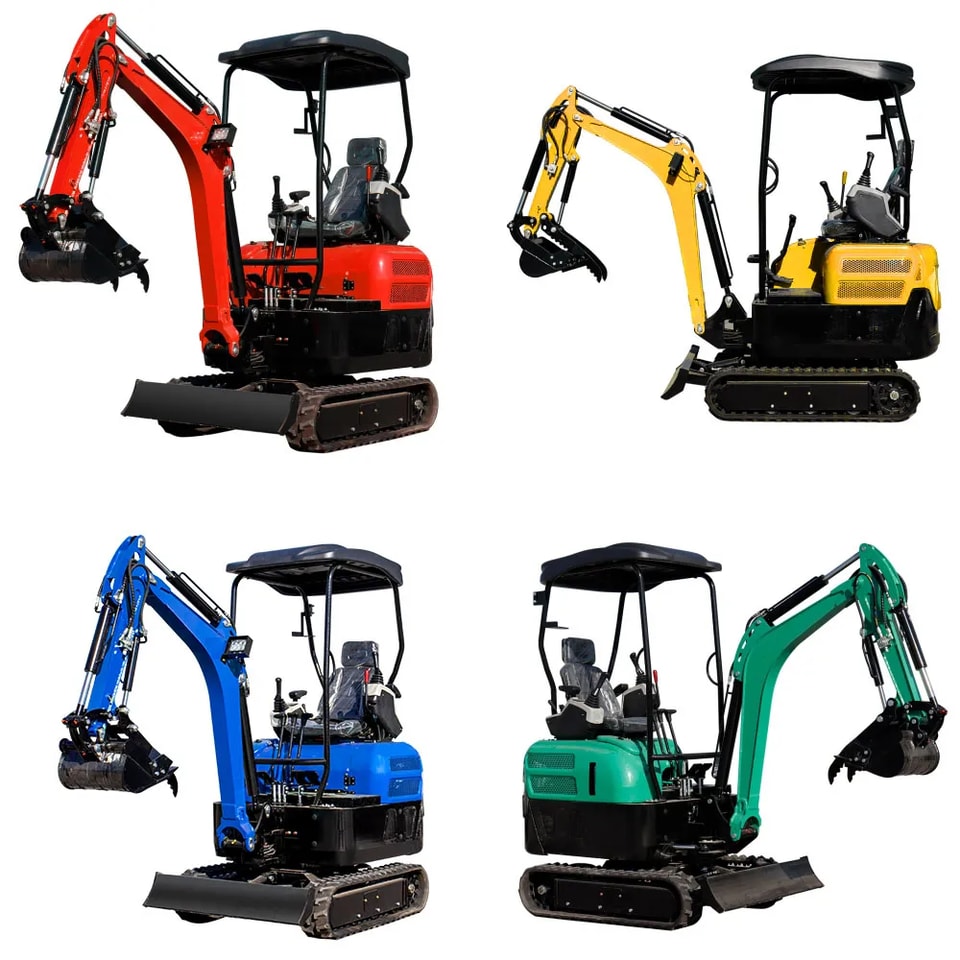

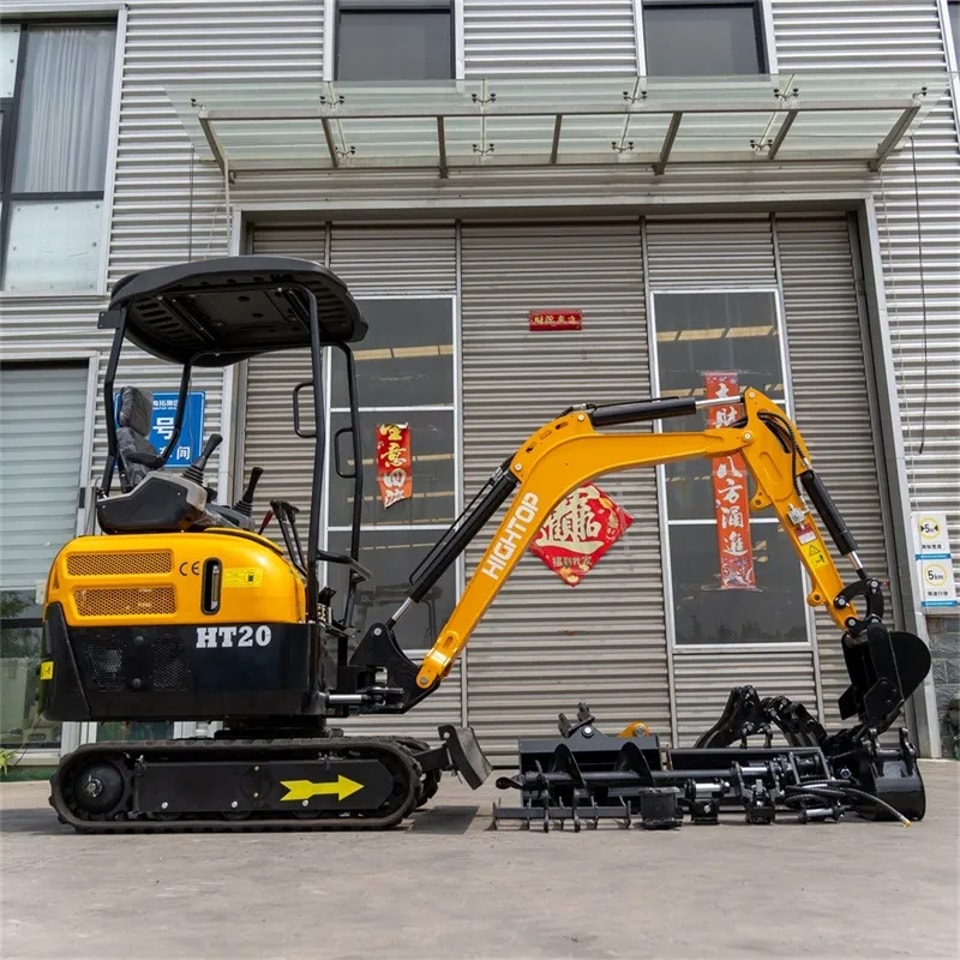

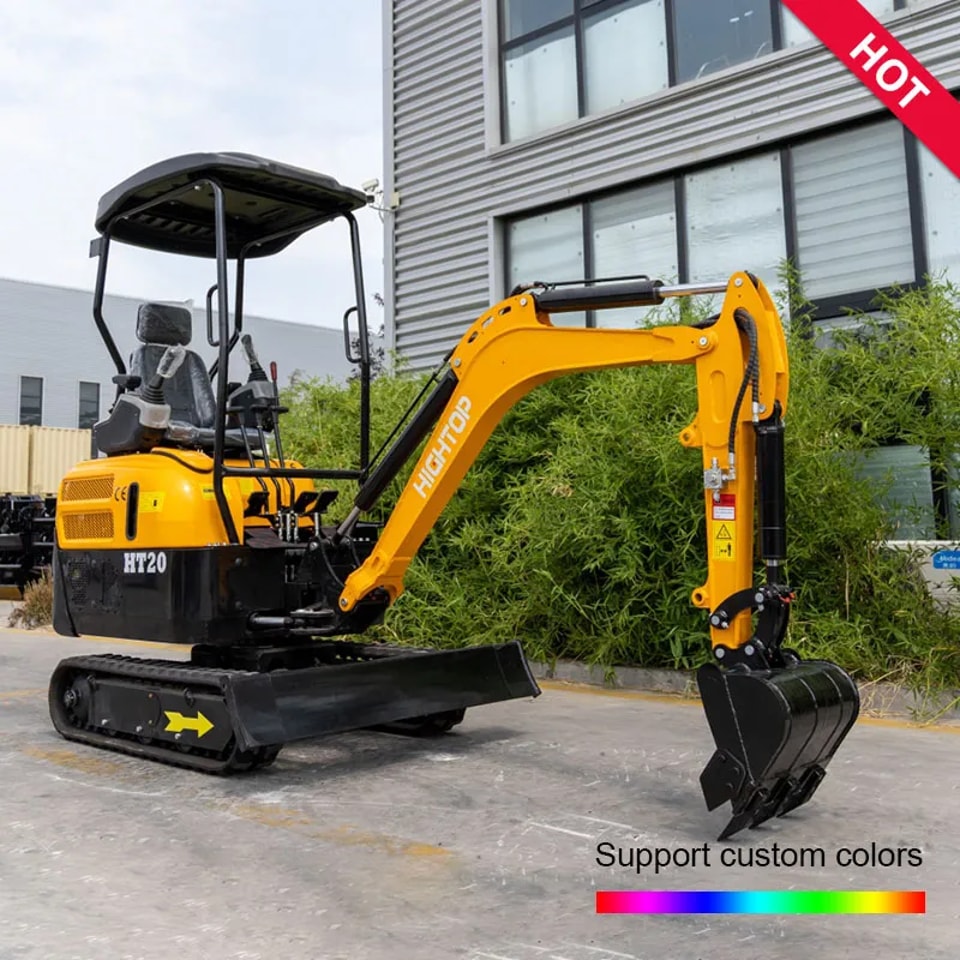

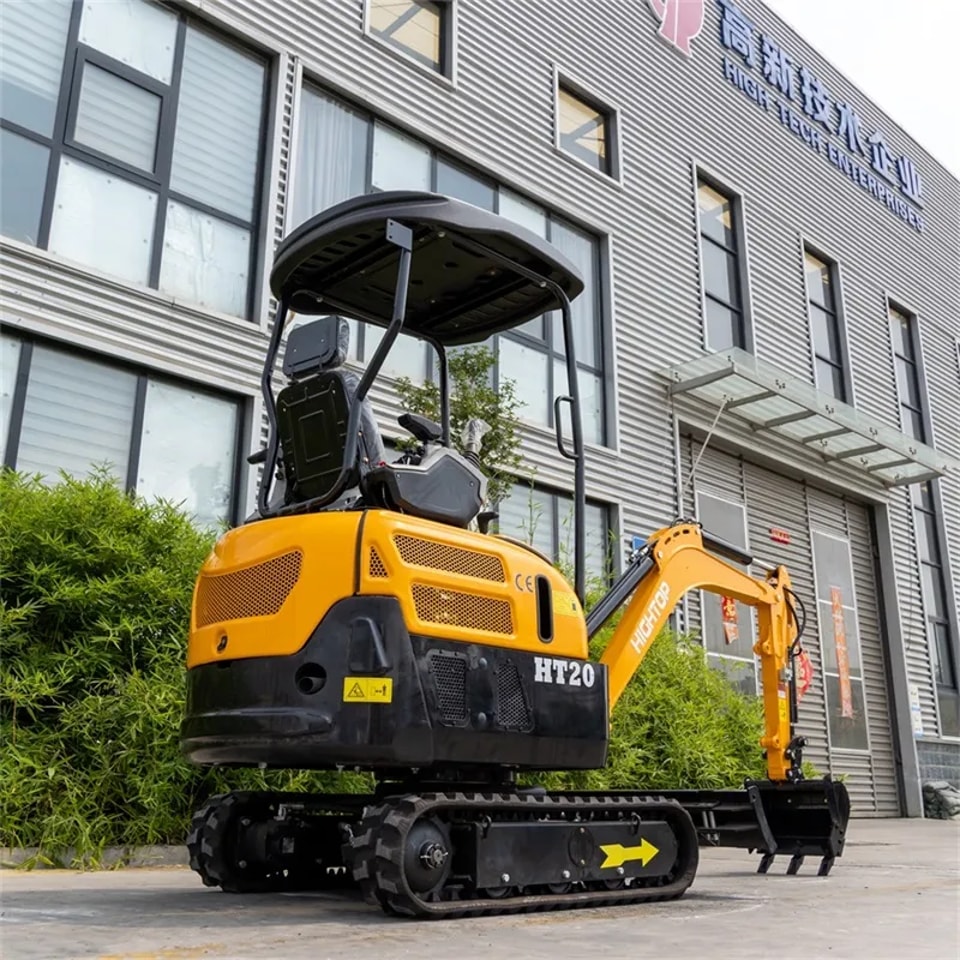

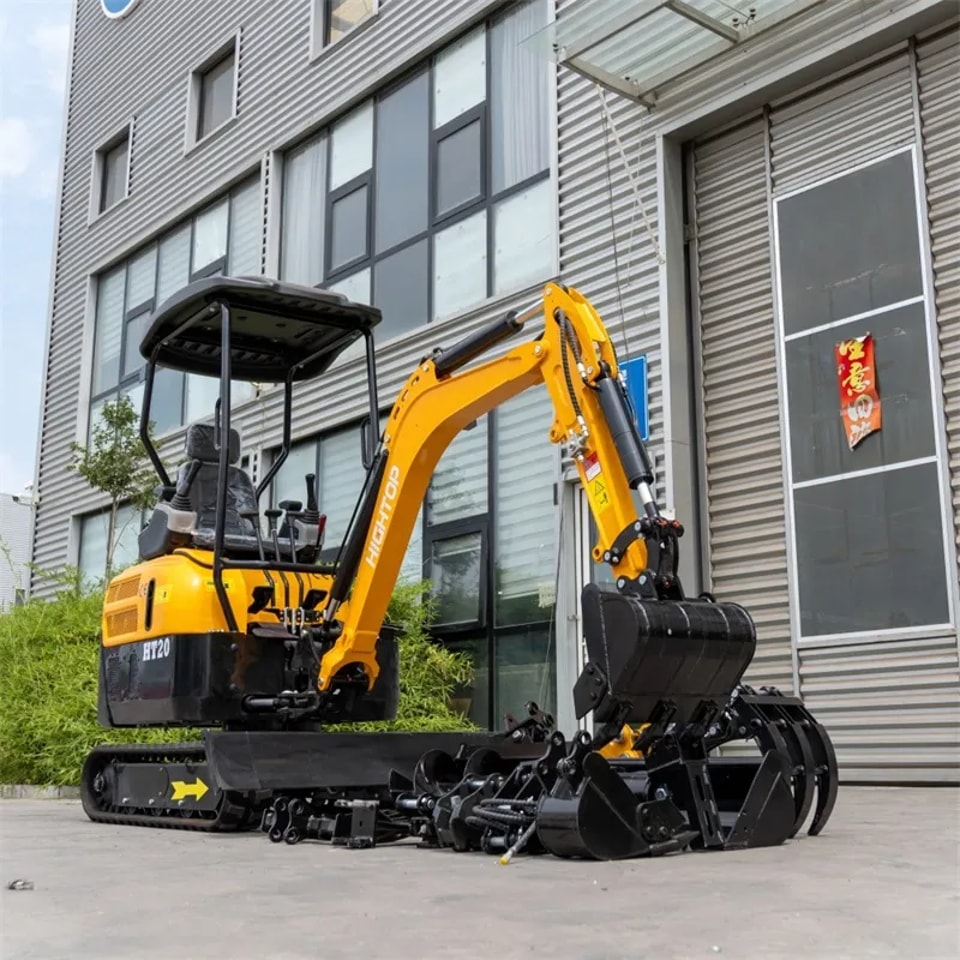

HT20-1 Mini Excavator Images
