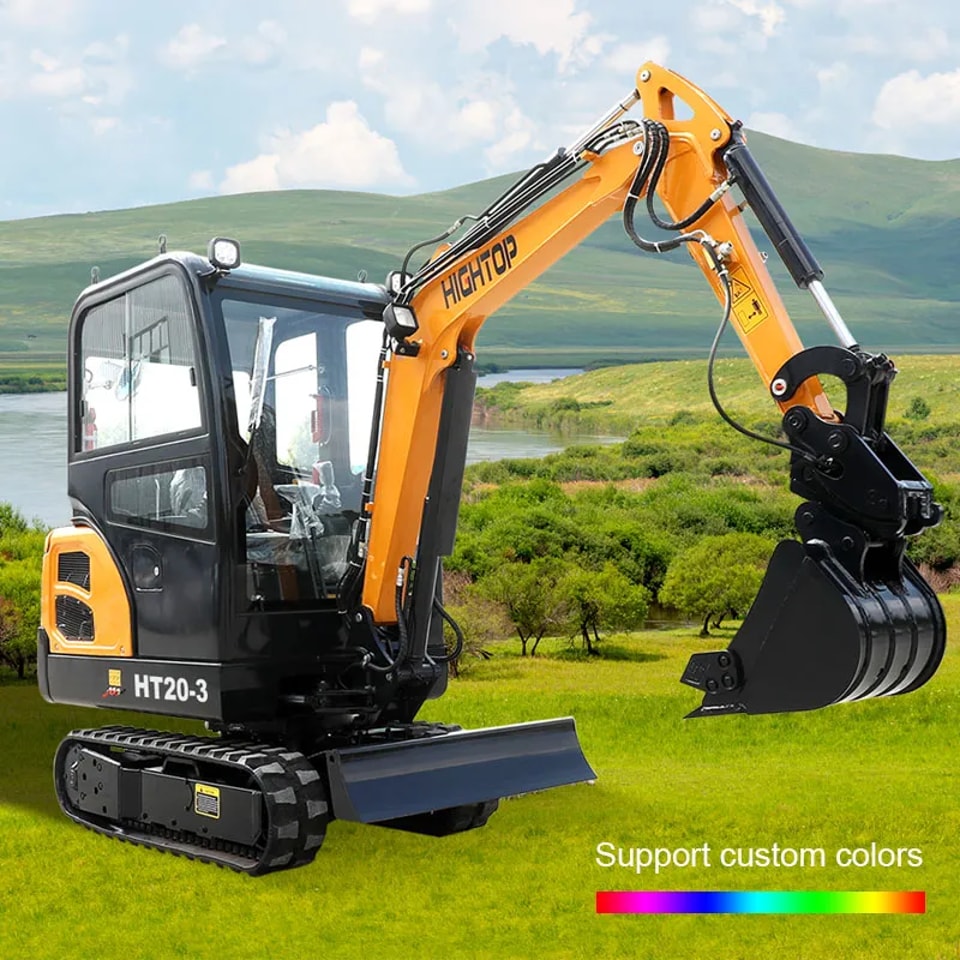

HT20-3 Mini Excavator
The HT20-3 mini excavator for sale is a high-performance 2-ton compact digger powered by a Kubota engine, ideal for precision trenching and urban construction projects. Featuring a 75° boom swing and a durable hydraulic system, this small hydraulic excavator ensures exceptional maneuverability and a high ROI for rental fleets. Inquire today for factory-direct wholesale pricing and professional B2B support on our reliable crawler excavator range.
Email:info009@hightopgroup.com
Phone:+86 181 6205 2962
HT20-3 Mini Excavator Parameter
HT20-3 Mini Excavator Images
HT20-3 Mini Excavator Parameter
| HT20-3 Mini Excavator — Parameter Table | |
|---|---|
| Machine Size (Unit: mm) | |
| Overall dimension (L × W × H) | 4170mm × 1300mm × 2280mm |
| Axle base (Track length on ground) | 1230mm |
| Track gauge | 1070mm |
| Min. Ground clearance | 230mm |
| Swing radius at tail | 1180mm |
| Track System | |
| Maximum Travel speed | 3.5km/h |
| Width of track shoe | 230mm |
| Number of track shoe per side | 38 pcs |
| Number of upper roller per side | 0 |
| Number of bottom roller per side | 4 |
| Performance Parameters | |
| Standard bucket capacity | 0.1m³ |
| Swing speed | 12 rpm |
| Max. Grade ability | 30° |
| Max. Bucket digging force | 15.3KN |
| Max. Arm digging force | 10.5KN |
| Hydraulic system pressure | 18Mpa |
| Machine weight | 2000kg |
| Arm length | 1000mm |
| Engine | |
| Emission Standard | Euro5 / EPA |
| Engine Model | KUBOTA |
| Power / Rotation speed | 14.1kw (20HP) @ 2000rpm |
| Optional Engine | China Laidong 22.1kw, 2300rpm |
| Number of cylinder | 3 |
| Working Range (Unit: mm) | |
| Max. Digging height | 3700mm |
| Max. Dumping height | 2290mm |
| Max. Digging depth | 2450mm |
| Max. Vertical digging depth | 2160mm |
| Max. Digging radius | 4370mm |
| Min. swing radius | 2020mm |
| Max. Lifting height of blade | 240mm |
| Max. Cutting depth of blade | 310mm |
| Boom swing angle (Left) | 75° |
| Boom swing angle (Right) | 45° |

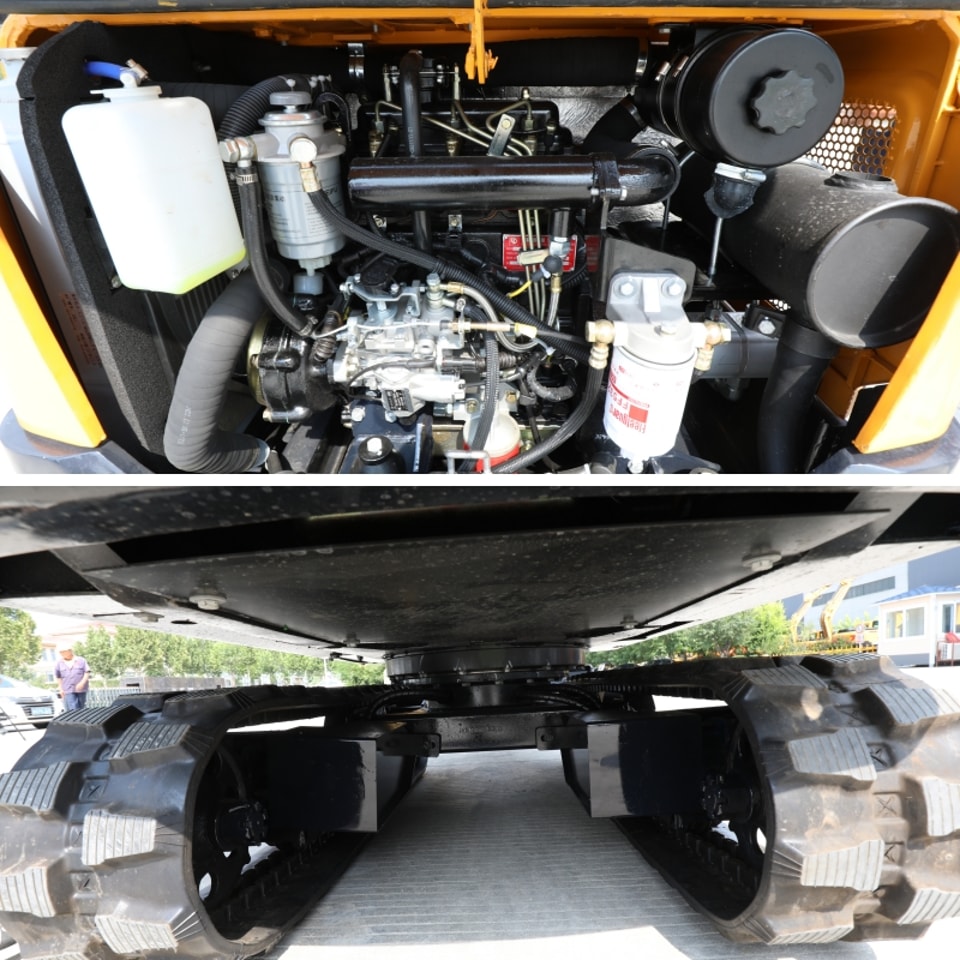

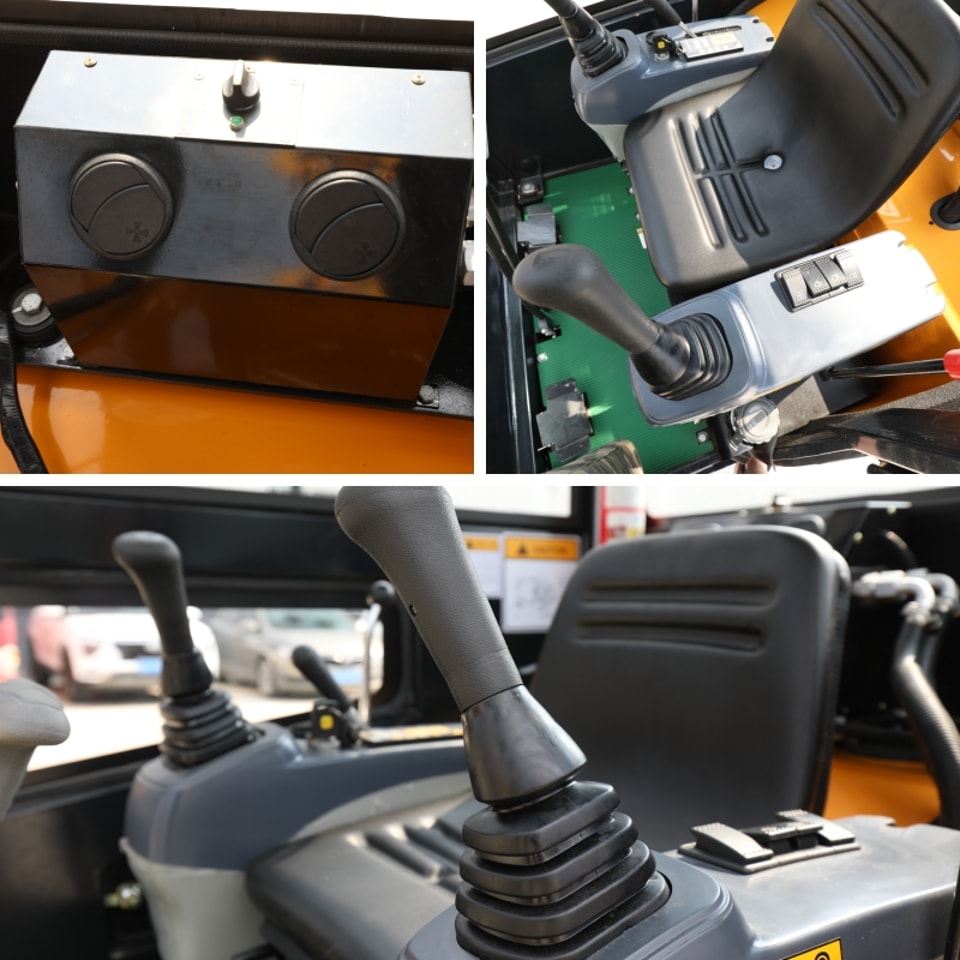

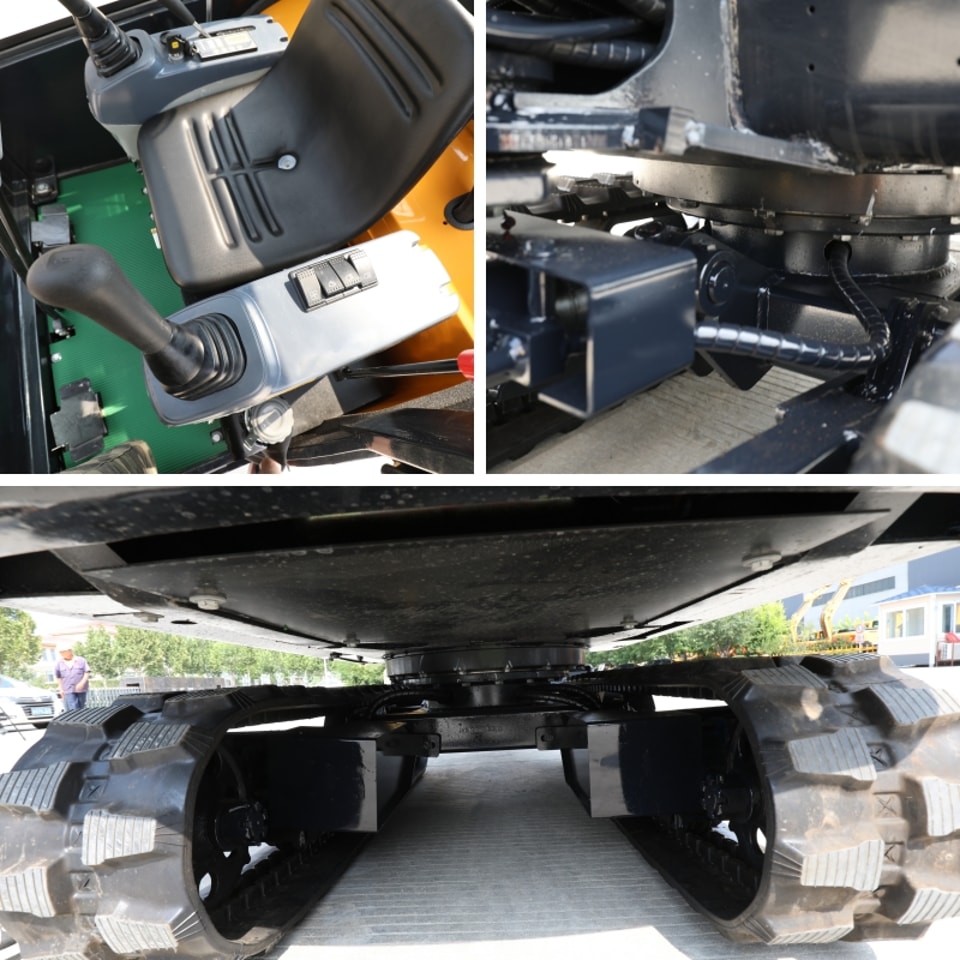

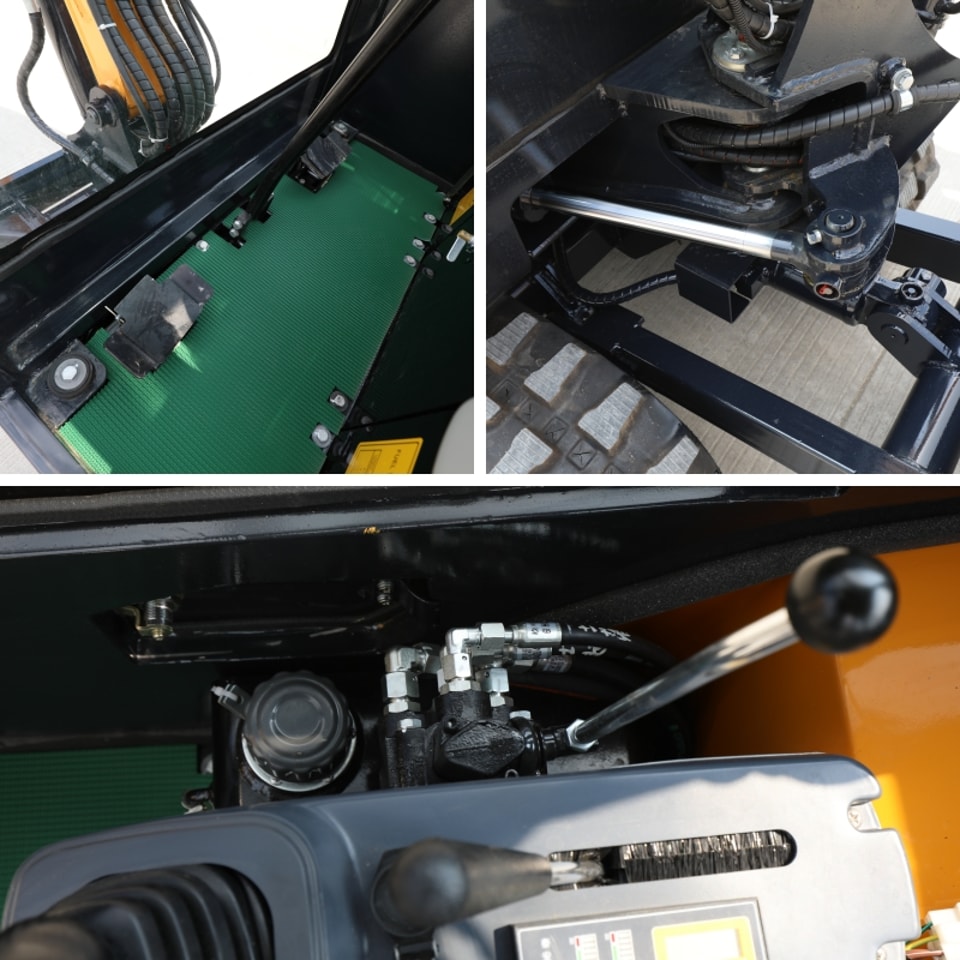

HT20-3 Mini Excavator Images
