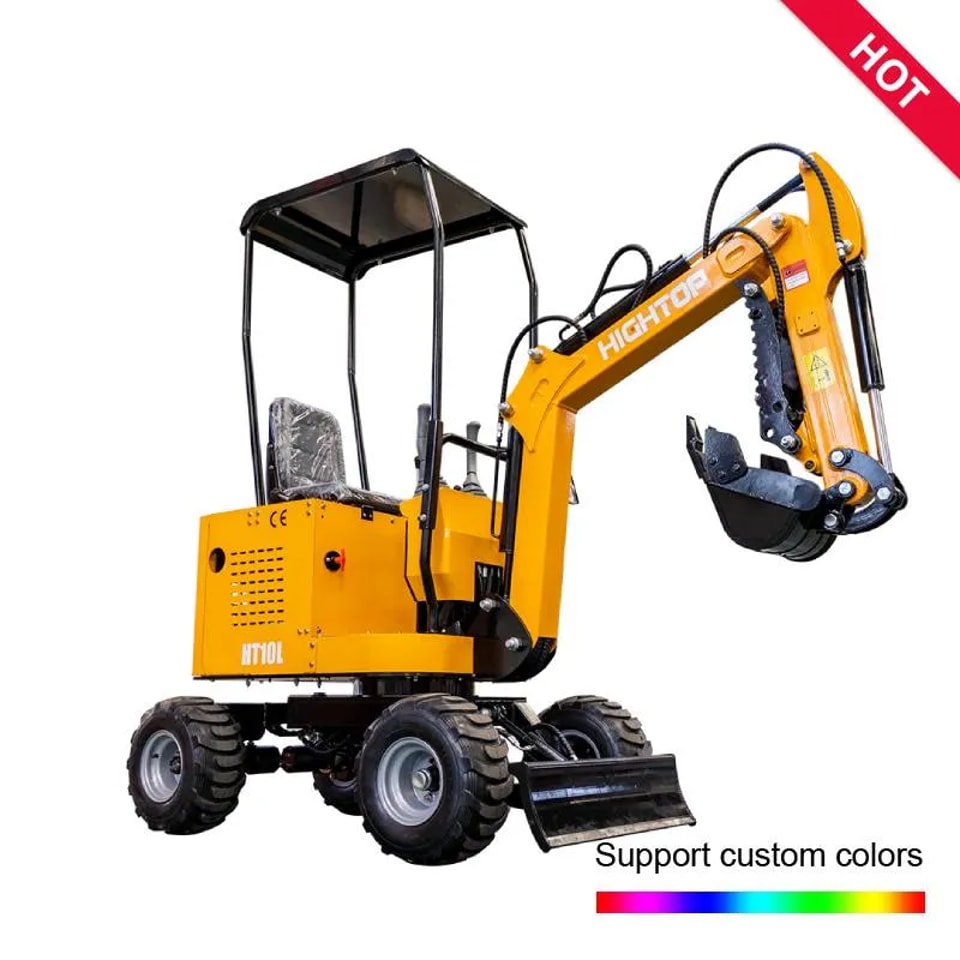

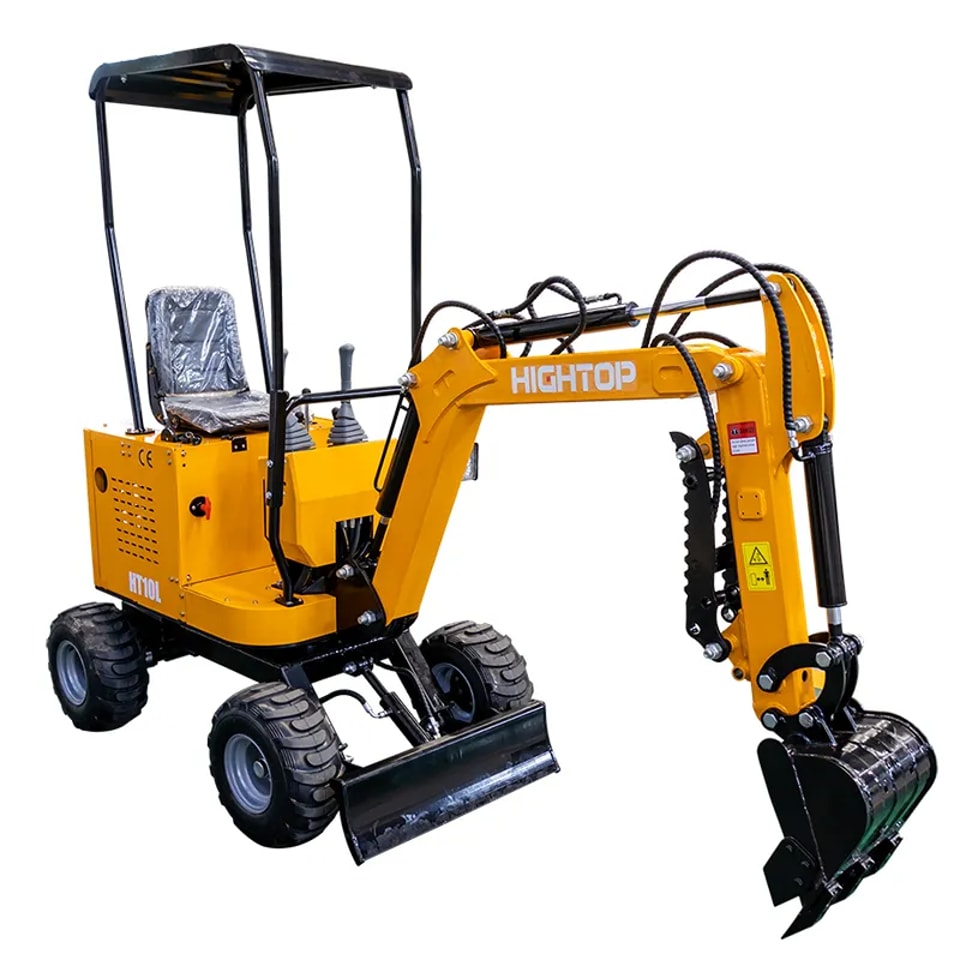

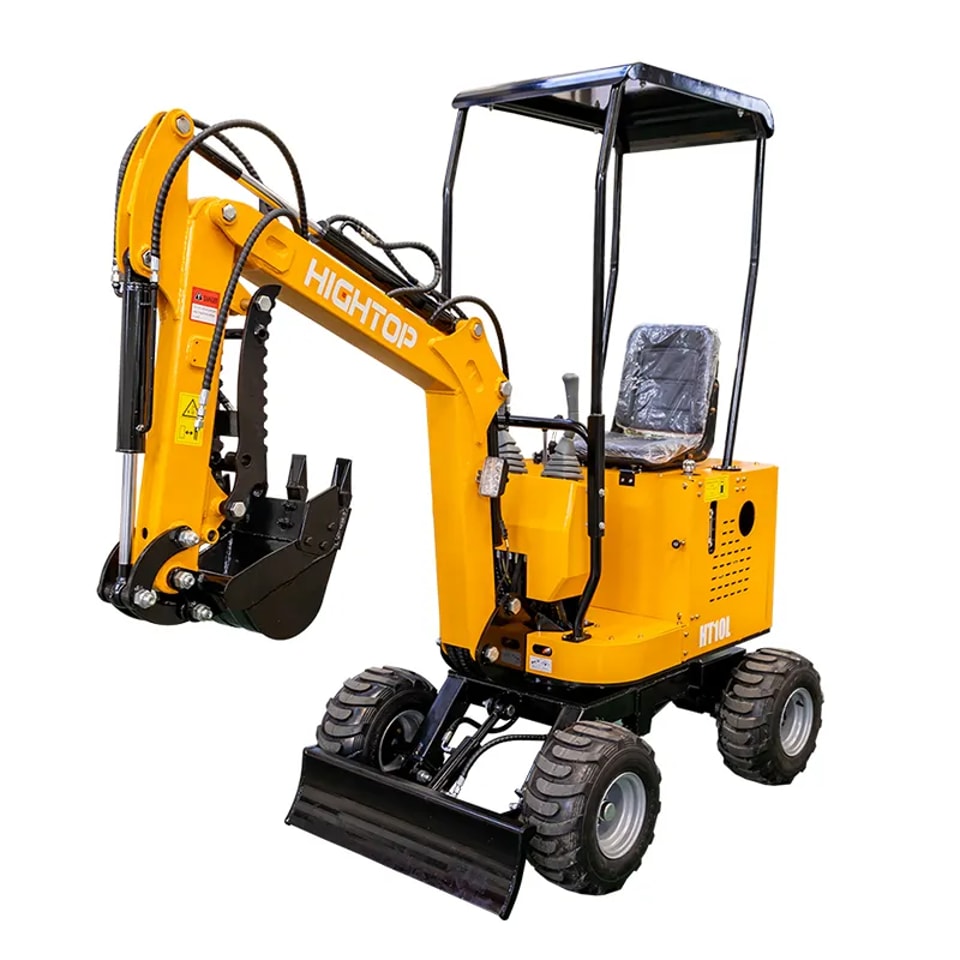

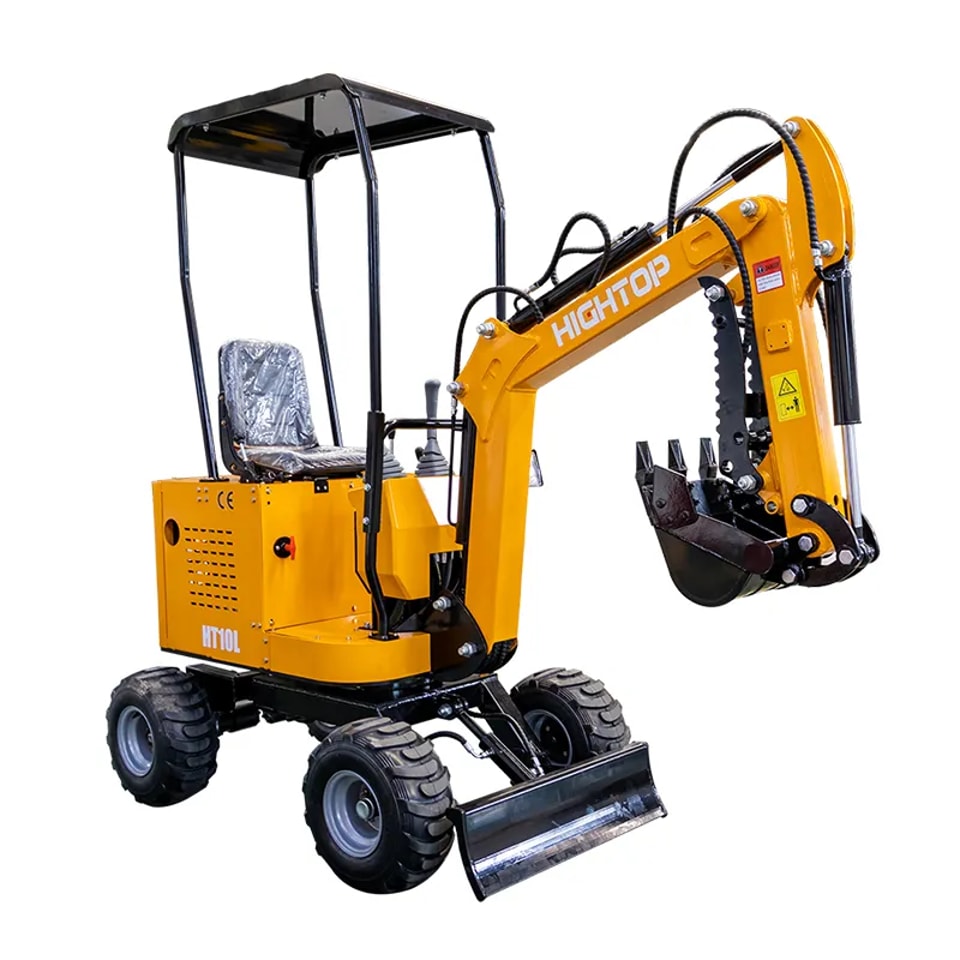

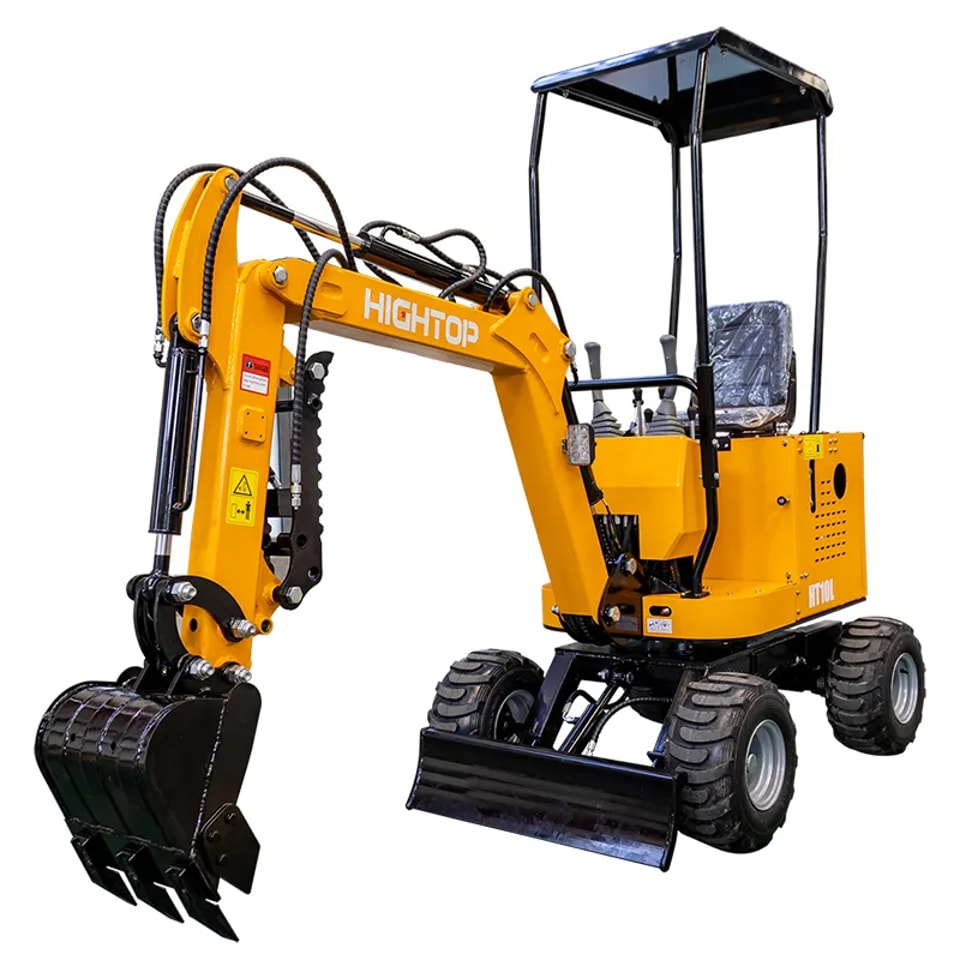

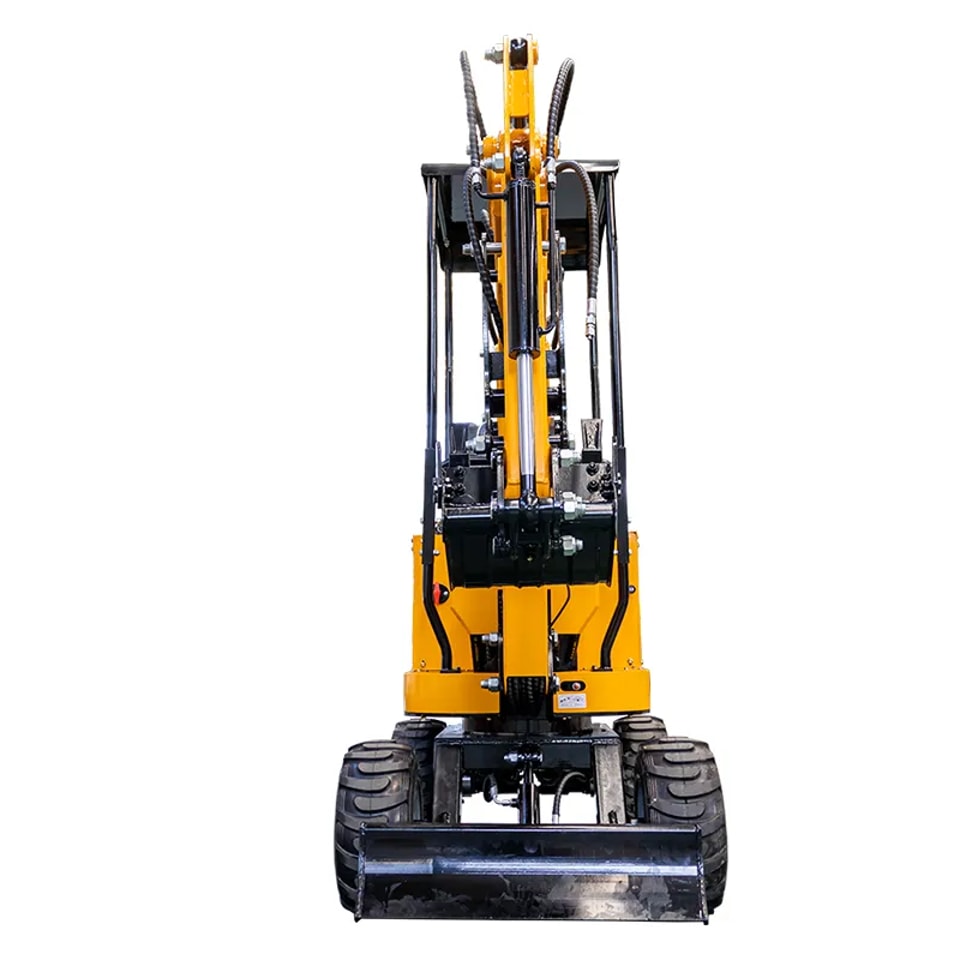

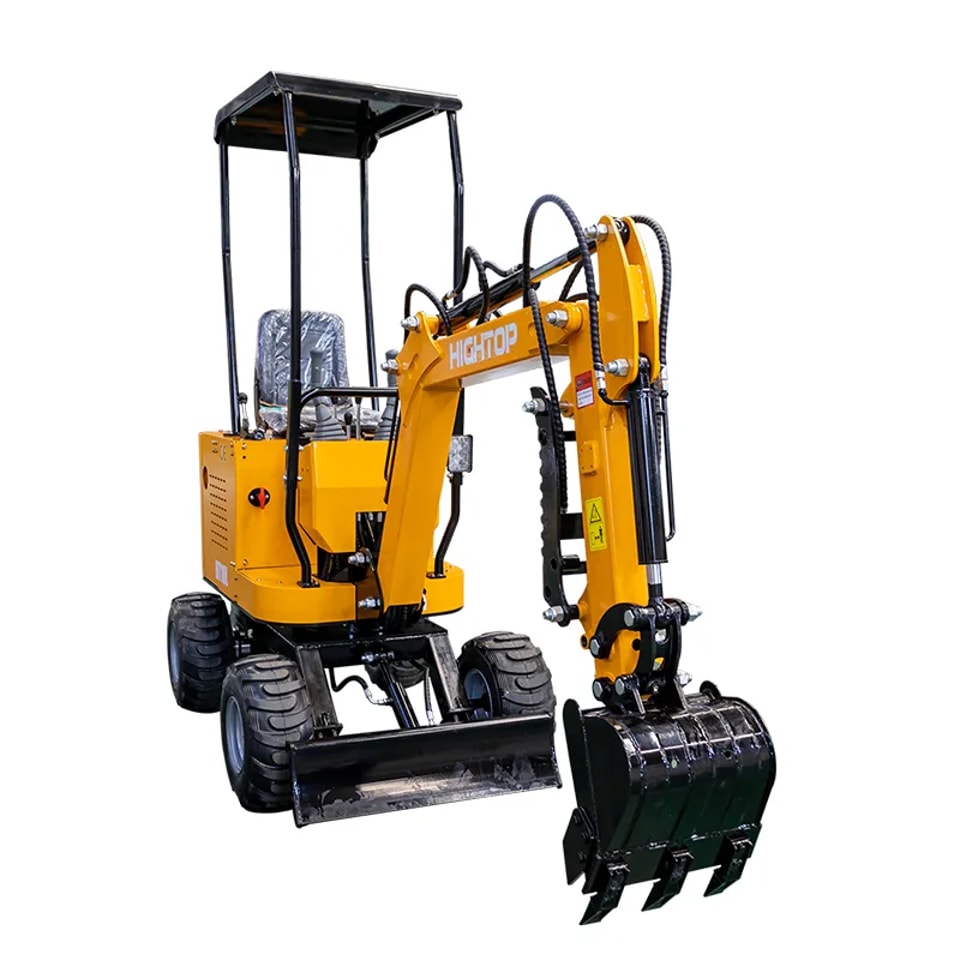

HT-10W Wheel Excavator
HT-10W Wheeled Excavator Instruction
HT-10W wheeled excavator is an earthmoving machinery with tires as walking parts, using hydraulic excavation, hydraulic walking principle, mainly used for municipal maintenance, small pavement construction and other small engineering construction. It has the characteristics of fast self-rotation and quick replacement of the operating device, the hydraulic system drives the multi-way valve control actuator through the main pump, and the hydraulic motor is directly connected to the transmission.
10W wheel digging rear wheel steering plus rear-wheel drive, high chassis, easy to pass through uneven roads, not easy to support the bottom, front bulldozer shovel, support the ground during bulldozer operation and excavator work, improve the stability of the vehicle during excavation.
| HT10 Mini Excavator — Parameter Table | |
|---|---|
| Overall Dimensions (Unit: mm) | |
| Total Length | 2450 |
| Total Width | 1030 |
| Upper Width | 750 |
| Total Height (Canopy / Cab Roof) | 2260 |
| Standard Tire Width | 215 |
| Minimum Ground Clearance | 165 |
| Tail Swing Radius | 765 |
| Distance Between Front and Rear Tires | 1095 |
| Bulldozer Blade Height Above Ground | 167 |
| Bulldozer Excavation Depth | 88 |
| Working Range (Unit: mm) | |
| Maximum Excavation Height | 2200 |
| Maximum Unloading Height | 1610 |
| Maximum Excavation Depth | 1630 |
| Max Height at Min Turning Radius | 2015 |
| Maximum Excavation Distance | 2620 |
| Minimum Turning Radius | 1065 |
| Performance Parameters | |
| Bucket Capacity (m³) | 0.02 |
| Rated Power (kW/rpm) | 10 / 3600 |
| Swing Speed (r/min) | 14 |
| Gradeability | 30° |
| Bucket Digging Force (KN) | 10.2 |
| Walking Speed (km/h) | 5.2 |
| Oil Capacity | |
| Fuel Tank Capacity (L) | 6.6 |
| Hydraulic Oil Tank Capacity (L) | 12.5 |
| Engine Oil Capacity (L) | 1.1 |
| Main Components | |
| Engine | Ducar420 |
| Valve Block | JX10-01 |
| Gear Pump | PGP5108G3LP |
| Travel Motor | BM2315 |
| Hydraulic System | |
| Rated Power (kW/rpm) | 10 / 3600 |
| Pressure (MPa) | 16 |
| Displacement (cc) | 8 |
| System Flow Rate (L/min) | 28.8 |
| Maximum Speed (r/min) | 3600 |
