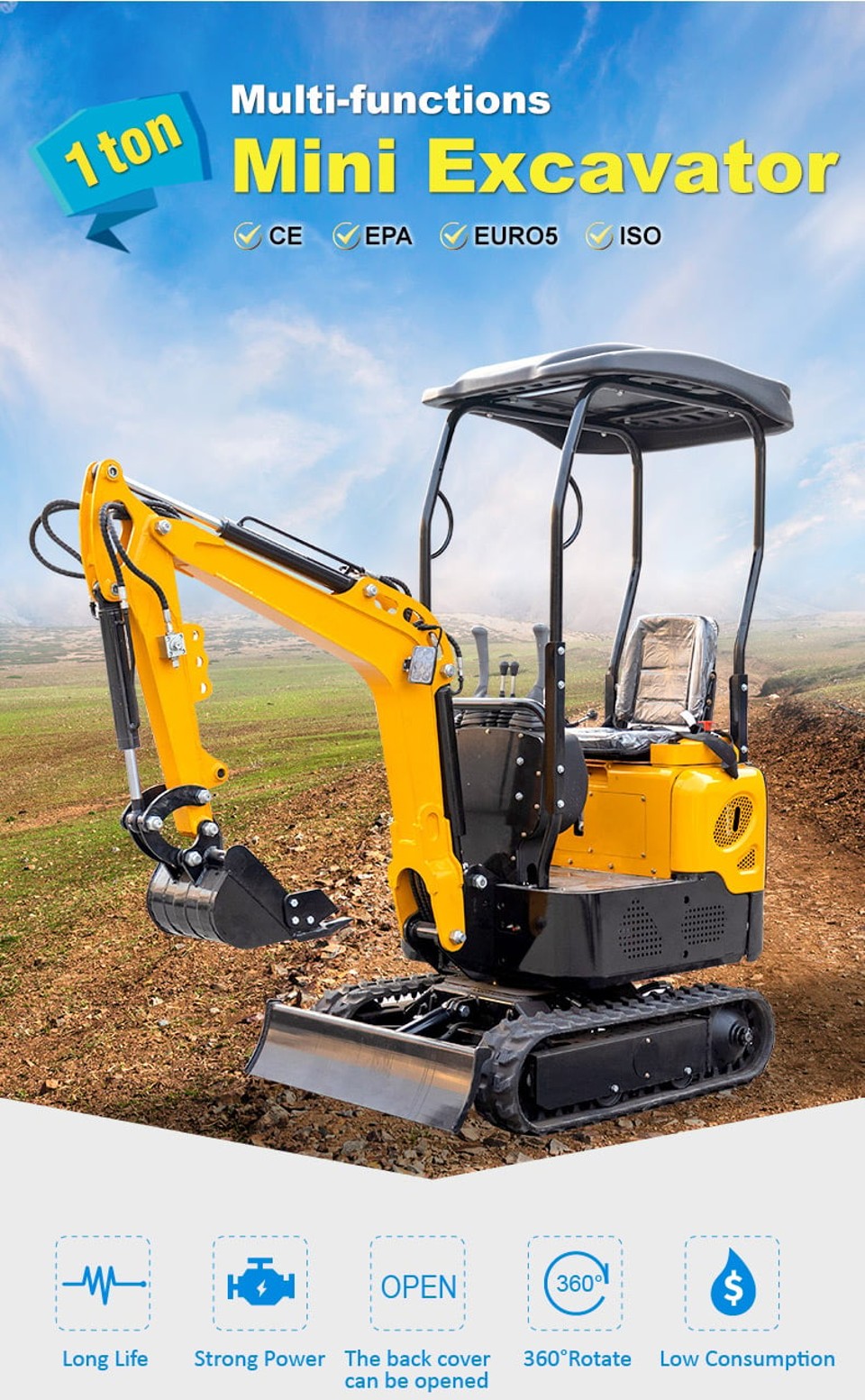

HT10G Mini Excavator
HT10G Mini Excavator Parameter
Weight : 1000kg
Digging bucket capacity : 0.025cbm/120kg
Rotation speed: 12RMP
Climbing capacity: 30°
Engine : KOOP 192
Main Valve : Beifang
Rated power : 10.2KW/2500RPM
Overall length / transport length A/M :4000/2380mm
Overall width B : 940mm
Overall height (cab roof) C : 2268mm
Total track width D : 930mm
Standard track plate width E :180mm
Track gauge F : 750mm
Wheelbase H : 884mm
Track ground length I : 962mm
Track length J : 1204mm
Minimum ground clearance K : 100mm
Tail swing radius L : 810mm
Max. Digging height : 2455mm
Max. Dumping height : 1605mm
Max. Digging depth : 1855 mm
Max. Digging radius on ground : 3050mm
Max. digging radius : 3130mm
HT10G Hightop mini excavator Description:

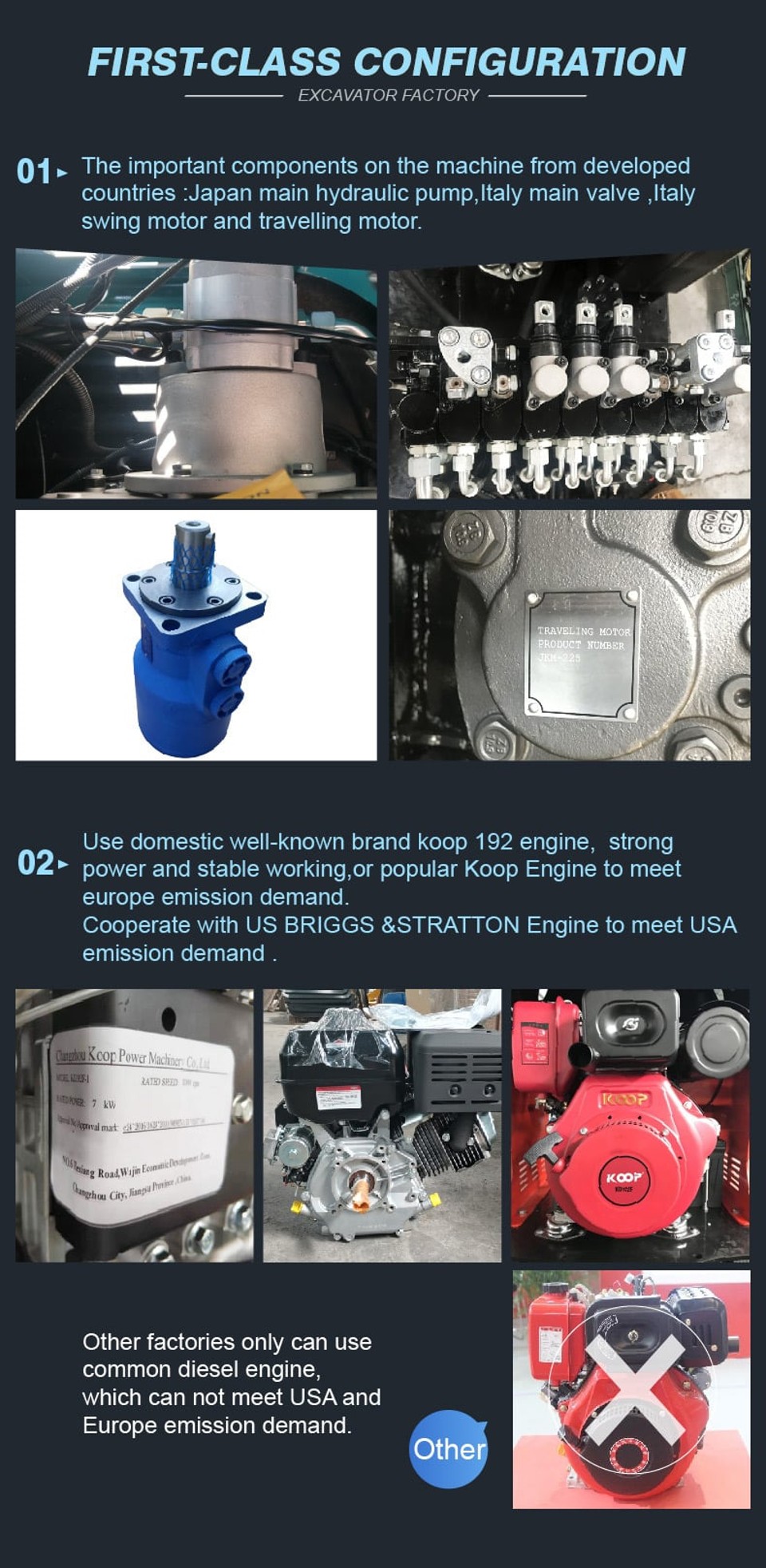

The important components on the machine from developed countries :Japan main hydraulic pump,Italy main valve ,Italy swing motor and travelling motor.
Use domestic well-known brand koop 192 engine, strong power and stable working,or popular Koop Engine to meet europe emission demand. Cooperate with US BRIGGS &STRATTON Engine to meet USA emission demand .
HT10G Hightop mini excavator Features:

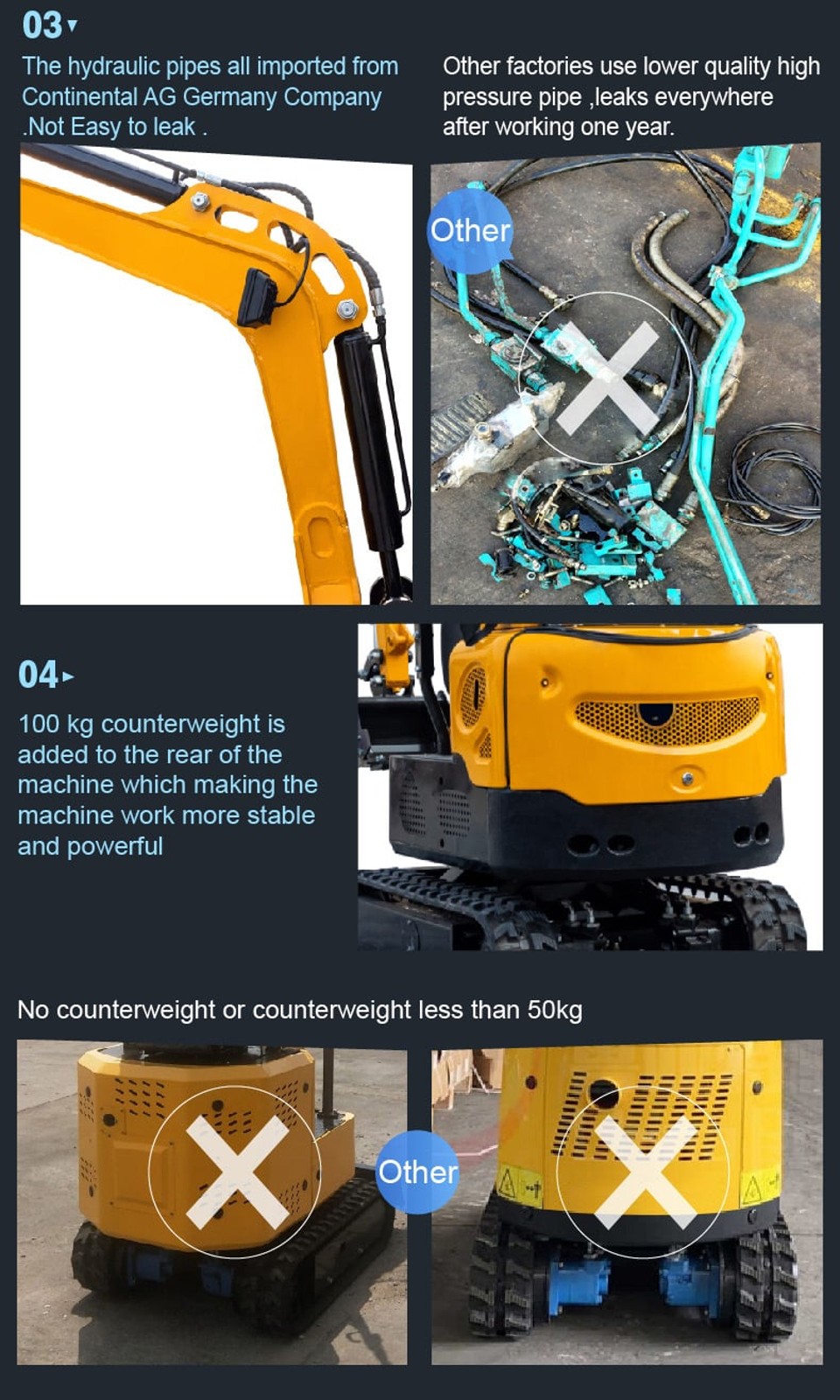

1. The hydraulic pipes all imported from Continental AG Germany Company .Not Easy to leak .
Other factories use lower quality high pressure pipe ,leaks everywhere after working one year.
2. 100 kg counterweight is added to the rear of the machine which making the machine work more stable and powerful.
No counterweight or counterweight less than 50kg .

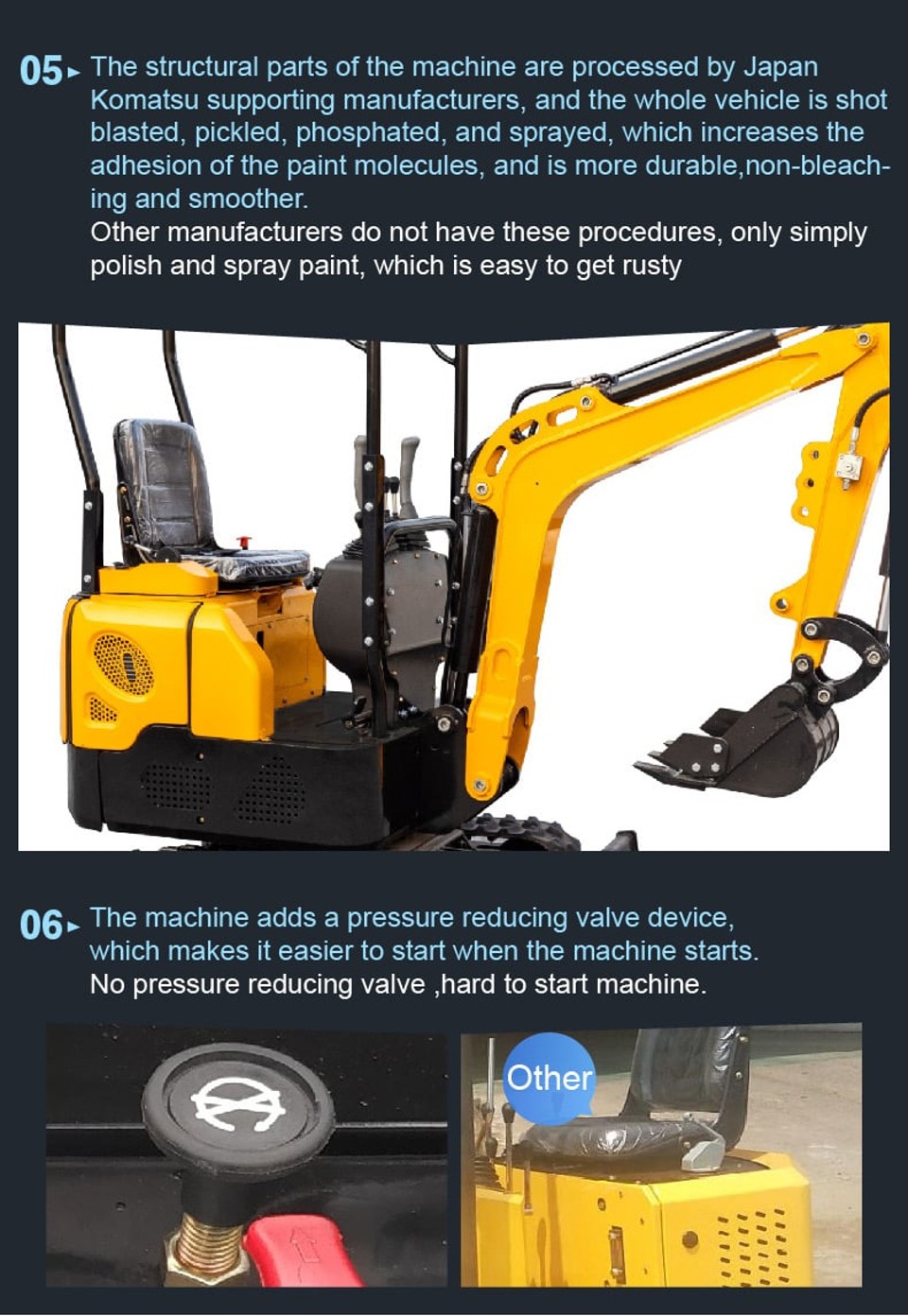

3. The structural parts of the machine are processed by Japan Komatsu supporting manufacturers, and the whole vehicle is shot blasted, pickled, phosphated, and sprayed, which increases the
adhesion of the paint molecules, and is more durable,non-bleaching and smoother.
Other manufacturers do not have these procedures, only simply polish and spray paint, which is easy to get rusty
4. The machine adds a pressure reducing valve device, which makes it easier to start when the machine starts.No pressure reducing valve ,hard to start machine.
5. Optional Function

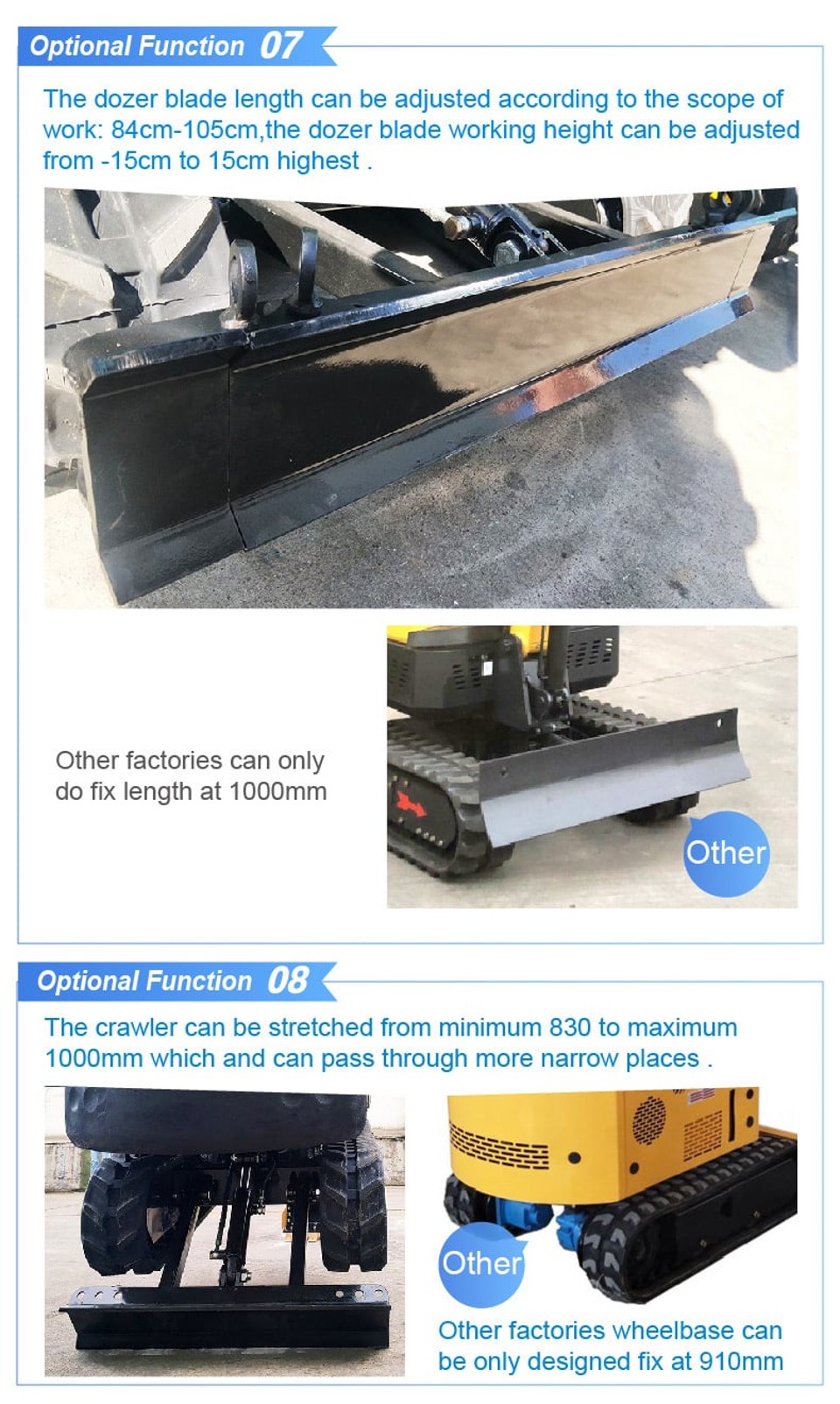

The dozer blade length can be adjusted according to the scope of work: 84cm-105cm,the dozer blade working height can be adjusted from -15cm to 15cm highest .
Other factories can only do fix length at 1000mm
6. Optional Function
The crawler can be stretched from minimum 830 to maximum 1000mm which and can pass through more narrow places .
7. Optional Function

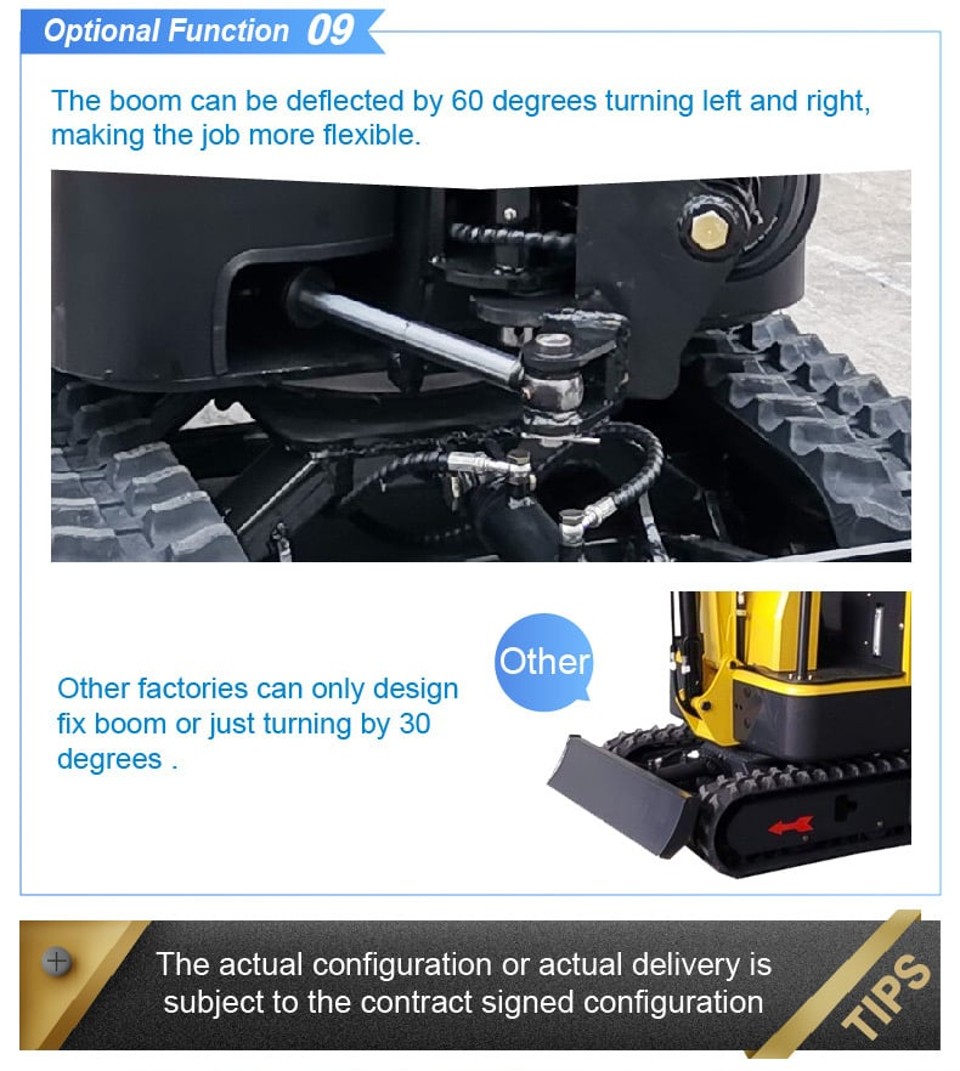

The boom can be deflected by 60 degrees turning left and right, making the job more flexible.
Other factories can only design fix boom or just turning by 30 degrees

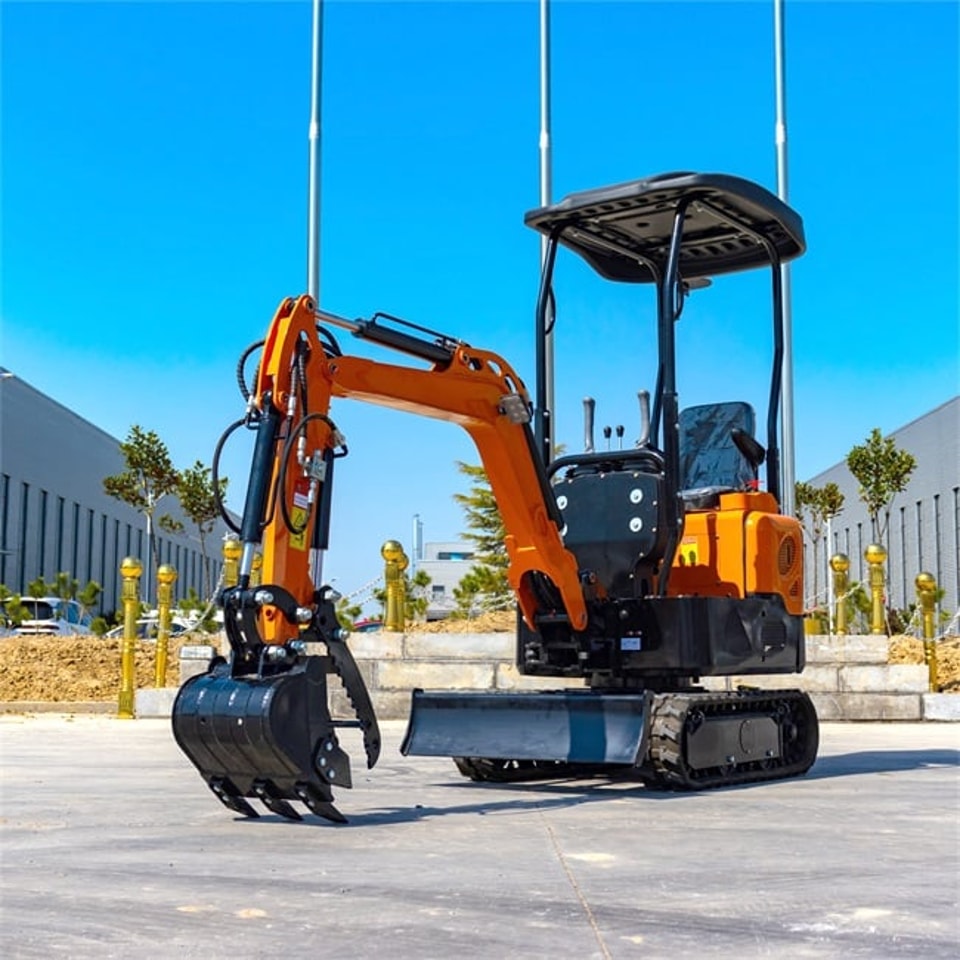

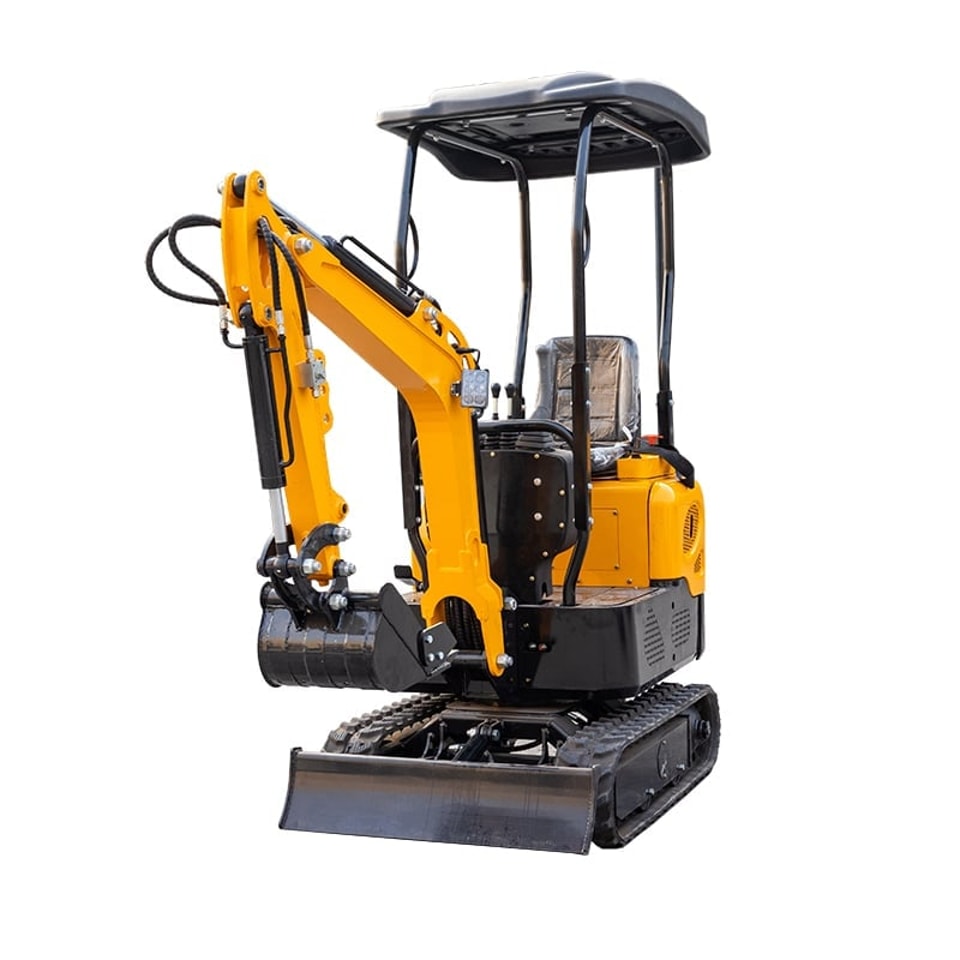

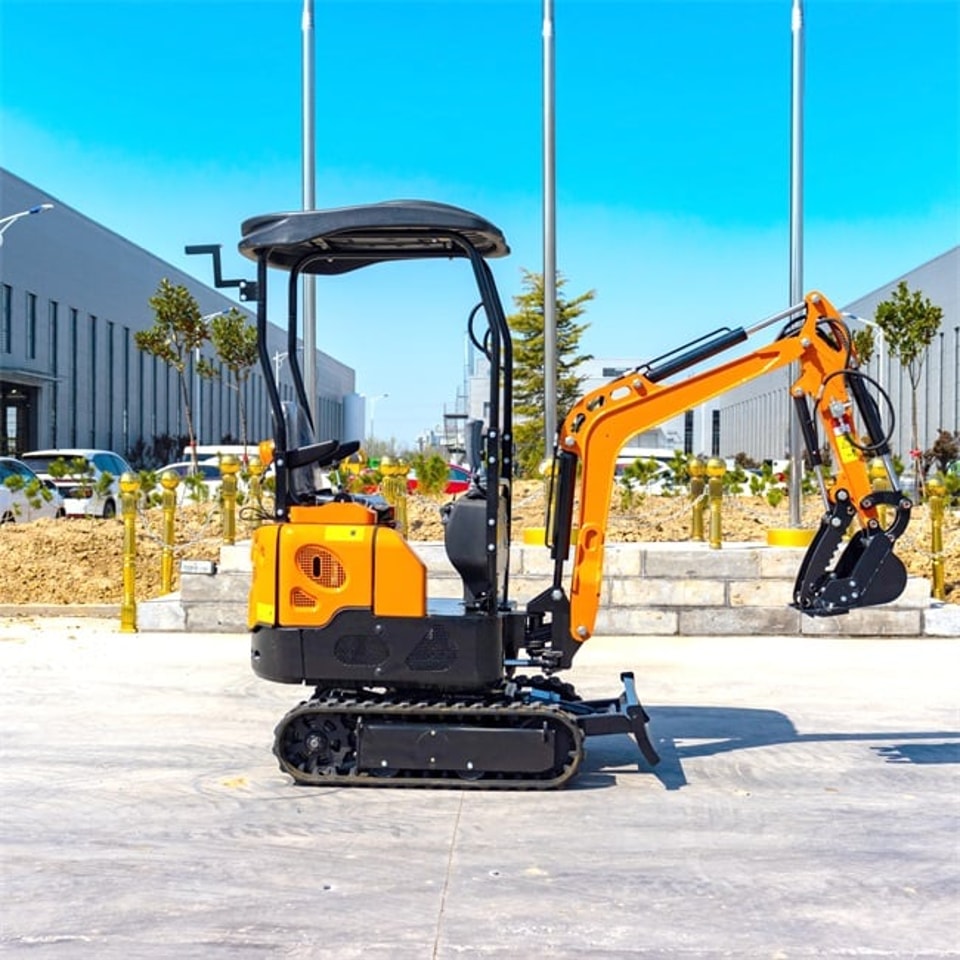

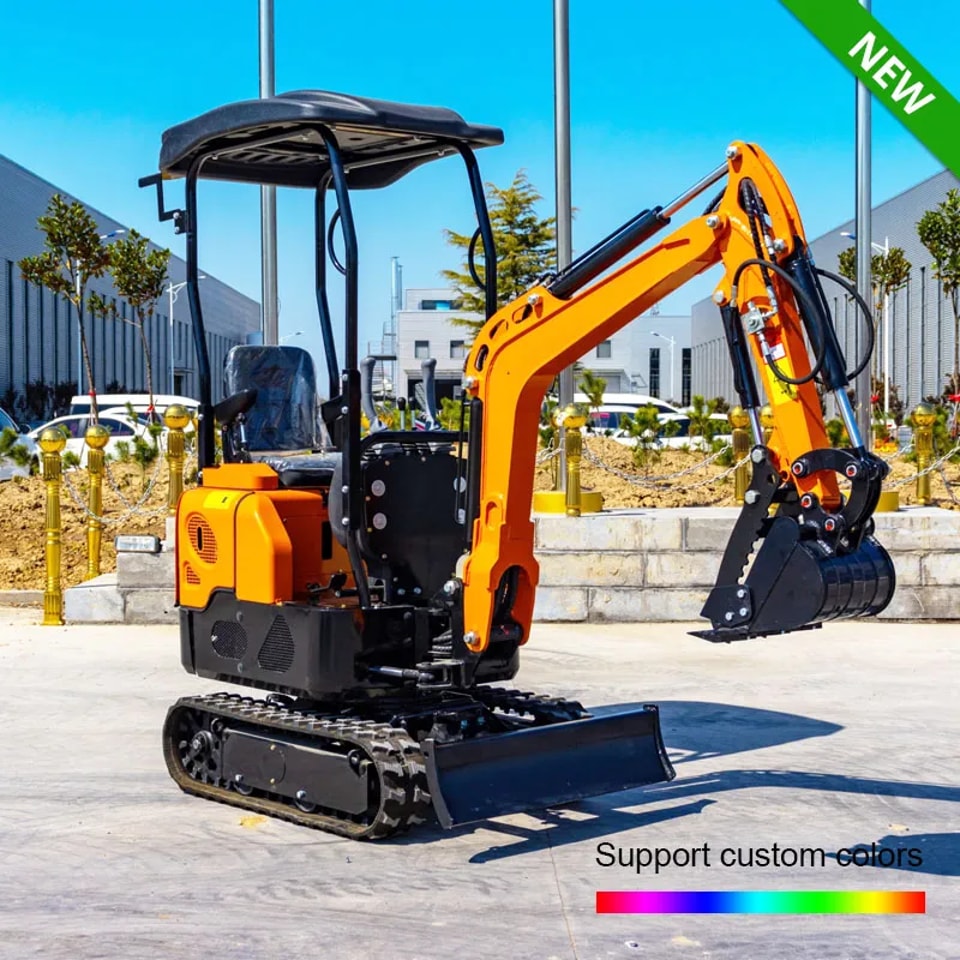

HT10G Mini Excavator Images

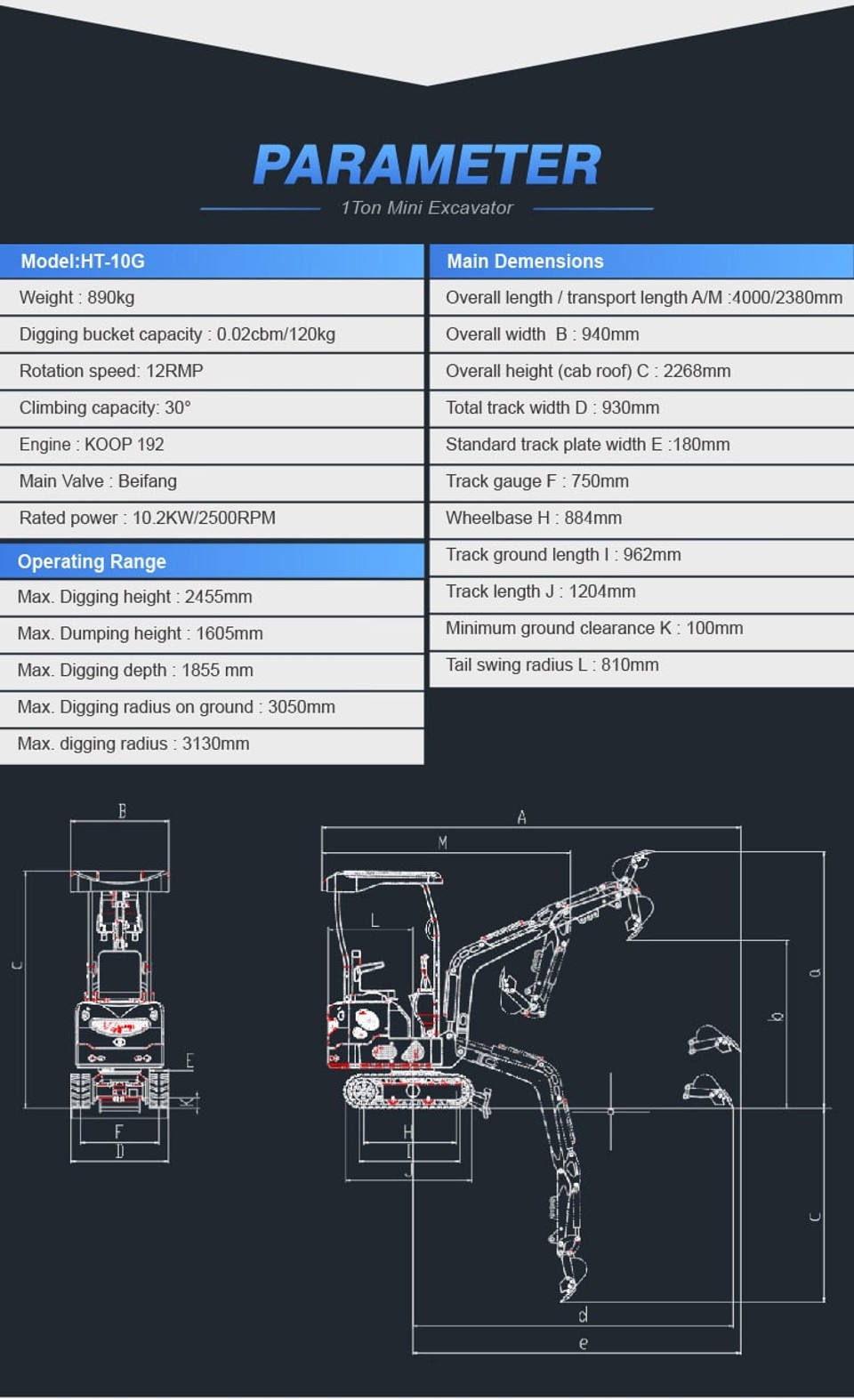

| HT-10G Mini Excavator — Parameter Table | |
|---|---|
| Basic Parameters | |
| Model | HT-10G |
| Weight | 890kg |
| Digging bucket capacity | 0.02cbm / 120kg |
| Rotation speed | 12 RMP |
| Climbing capacity | 30° |
| Engine | KOOP 192 |
| Main Valve | Beifang |
| Rated power | 10.2KW / 2500RPM |
| Main Dimensions (Unit: mm) | |
| Overall length / transport length (A / M) | 4000 / 2380mm |
| Overall width (B) | 940mm |
| Overall height (cab roof) (C) | 2268mm |
| Total track width (D) | 930mm |
| Standard track plate width (E) | 180mm |
| Track gauge (F) | 750mm |
| Wheelbase (H) | 884mm |
| Track ground length (I) | 1204mm |
| Track length (J) | 1204mm |
| Minimum ground clearance (K) | 100mm |
| Tail swing radius (L) | 810mm |
| Operating Range (Unit: mm) | |
| Max. Digging height | 2455mm |
| Max. Dumping height | 1605mm |
| Max. Digging depth | 1855 mm |
| Max. Digging radius on ground | 3050mm |
| Max. digging radius | 3130mm |
