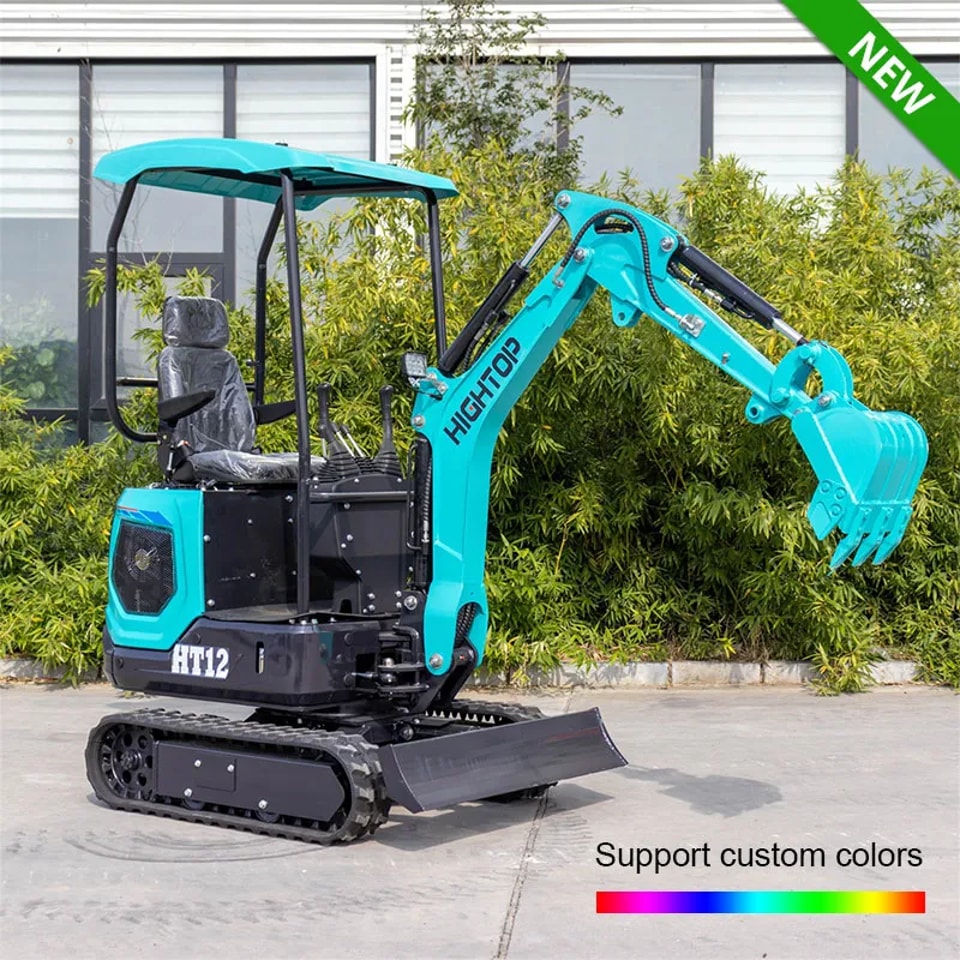

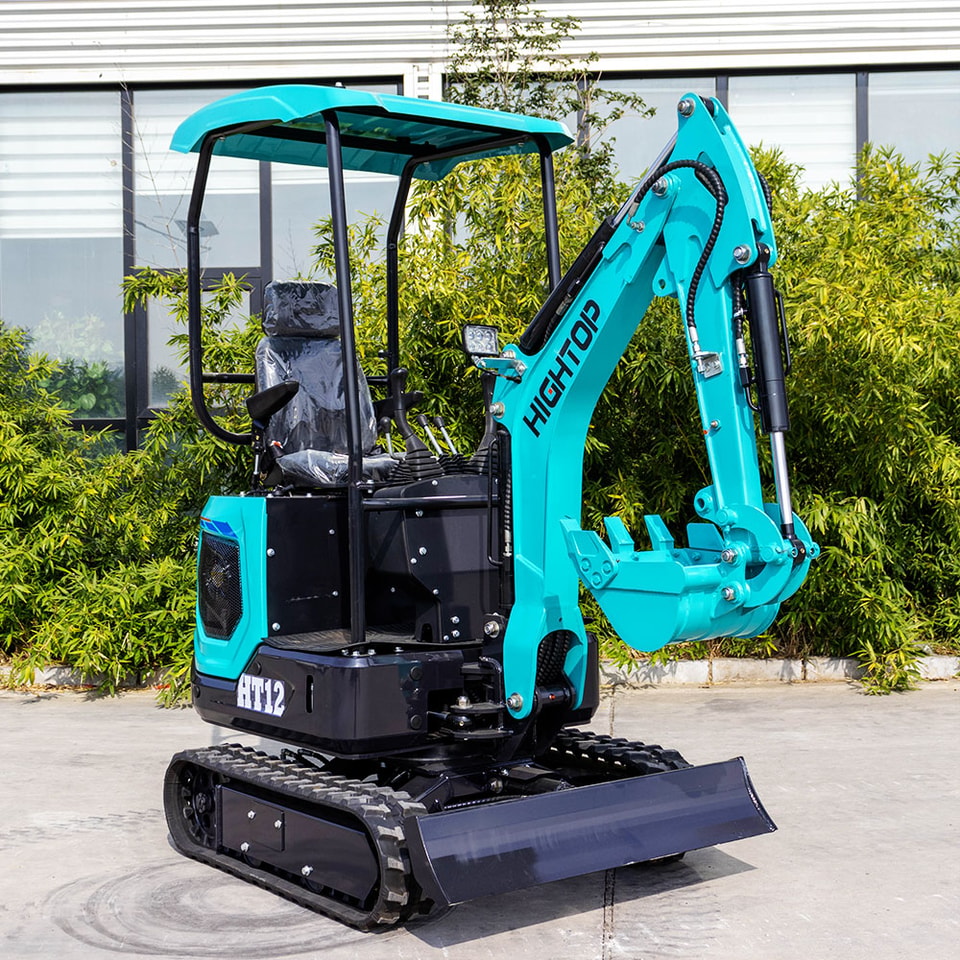

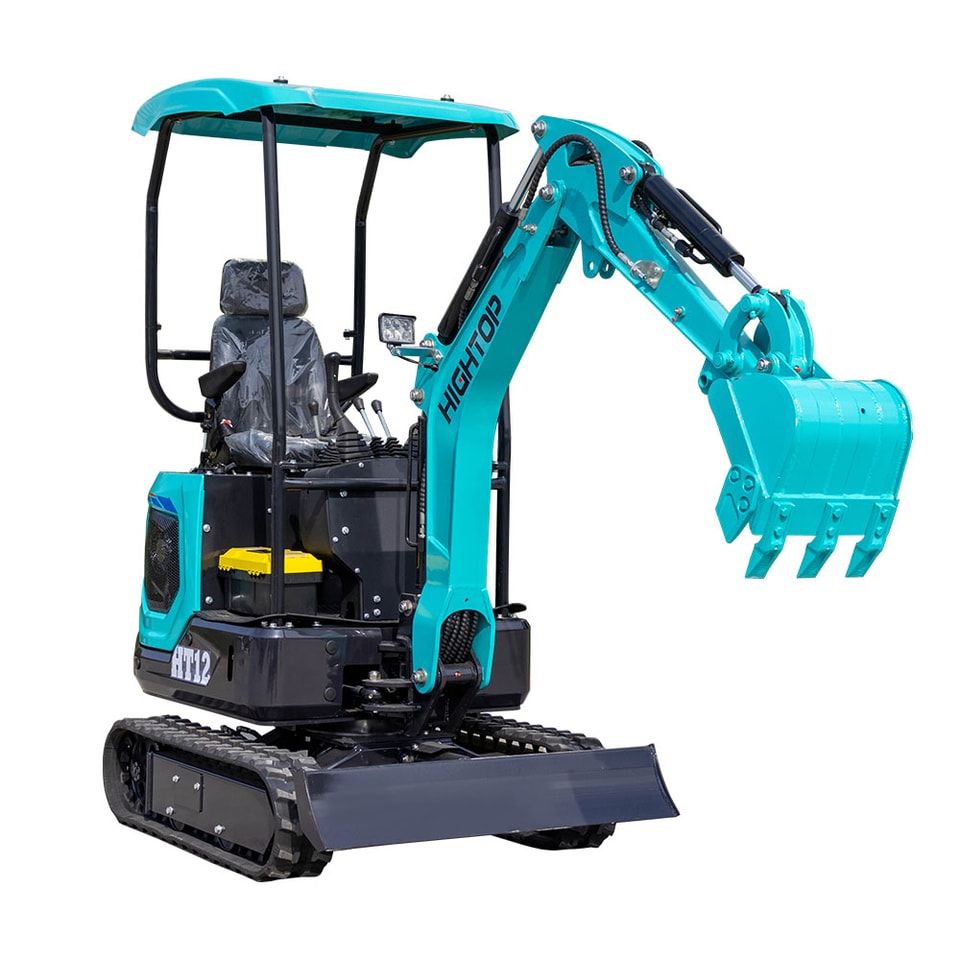

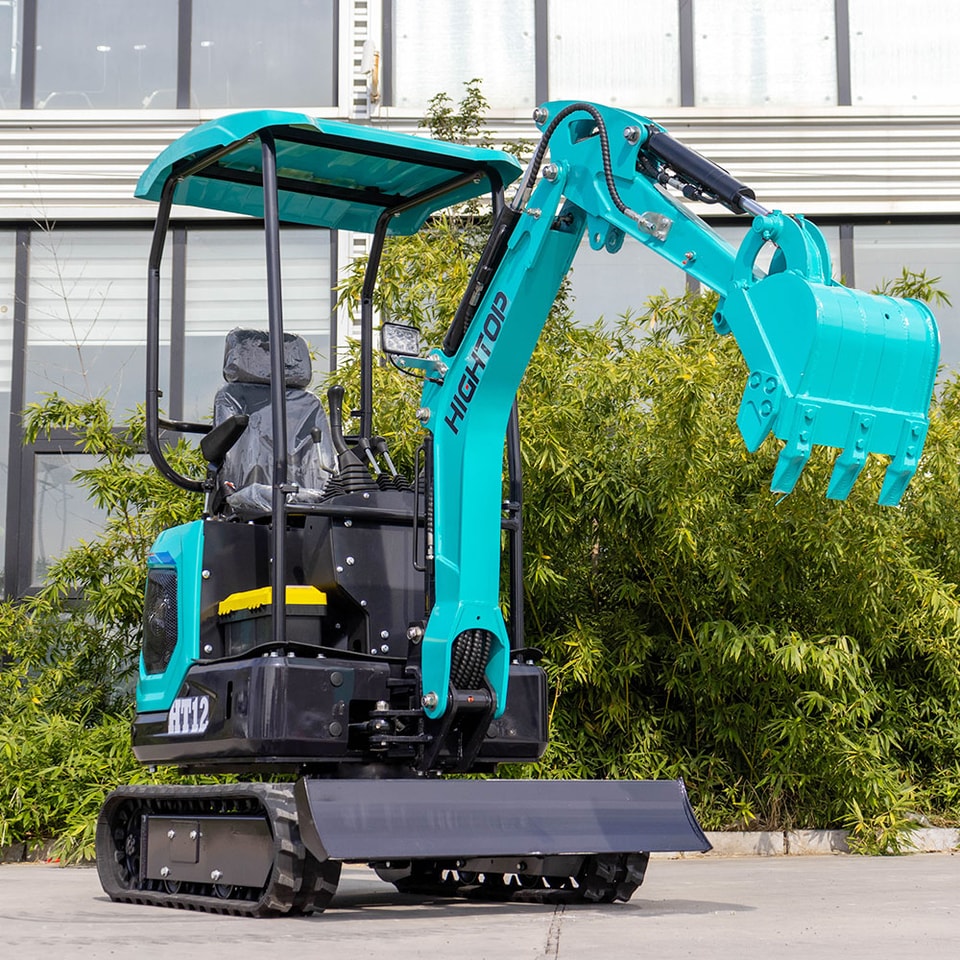

HT12 Mini Excavator
The HT12 mini excavator for sale is a high-efficiency 1.2-ton compact digger engineered for narrow access excavation in landscaping and residential construction. Featuring a durable hydraulic system and a small footprint, this small crawler excavator ensures maximum maneuverability and a superior ROI for rental fleets. Inquire today for factory-direct wholesale pricing and CE-certified support on our versatile range of compact digging solutions.
Email:info009@hightopgroup.com
Phone:+86 181 6205 2962

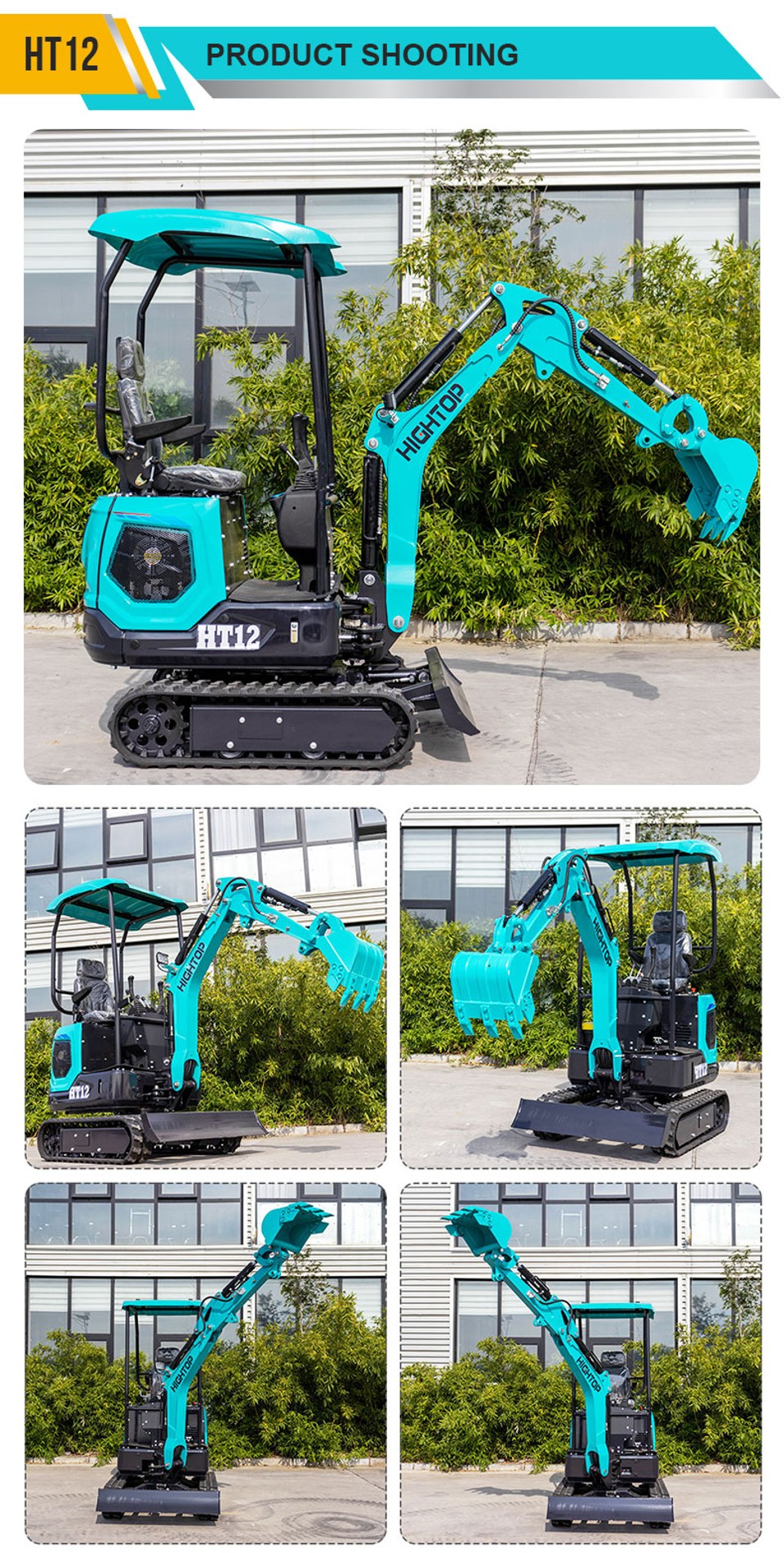

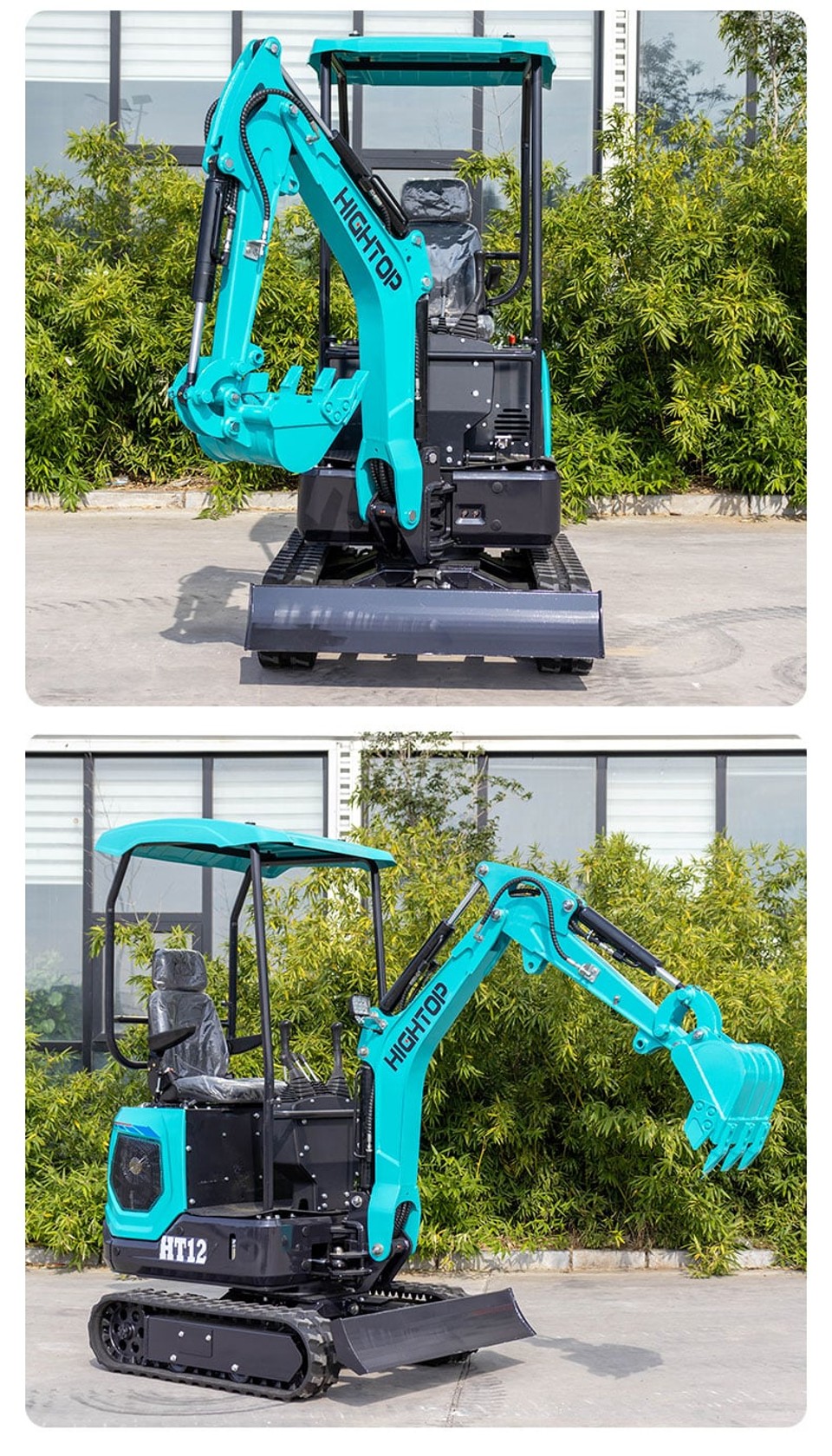

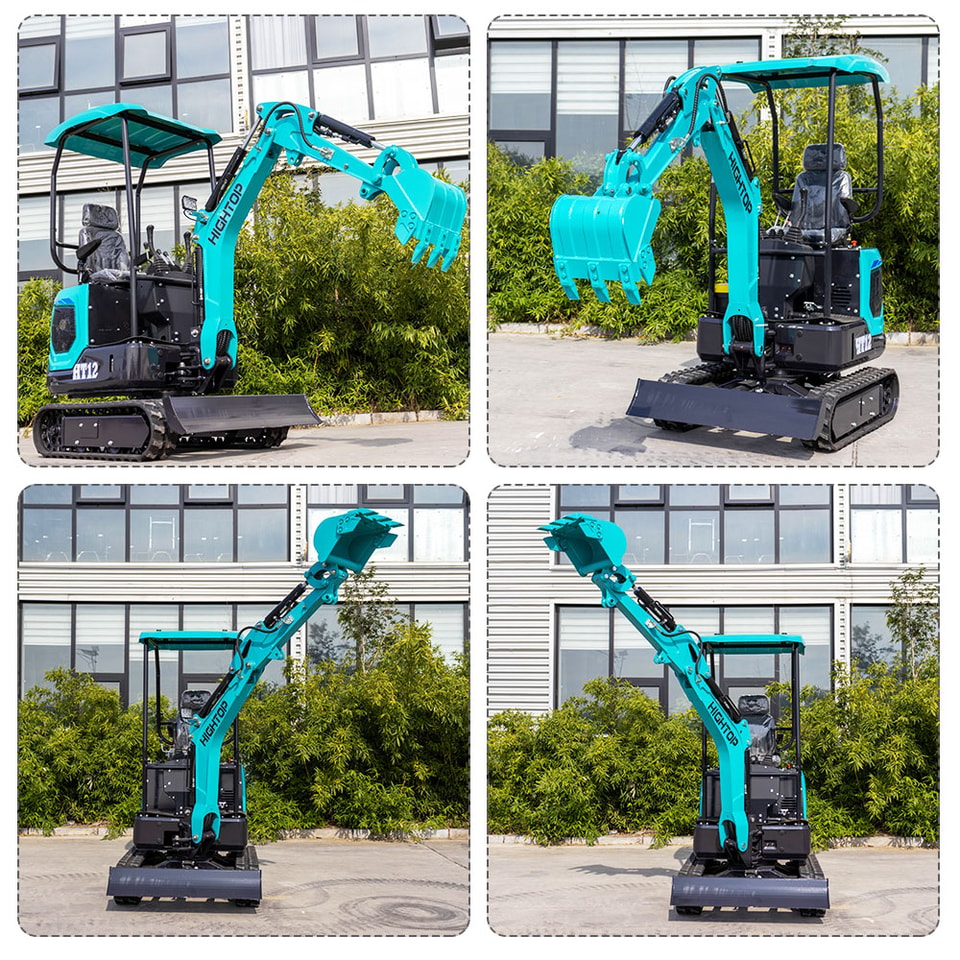

Product Picture
Product Introduction
Technical Parameter
Product Picture
Product Introduction

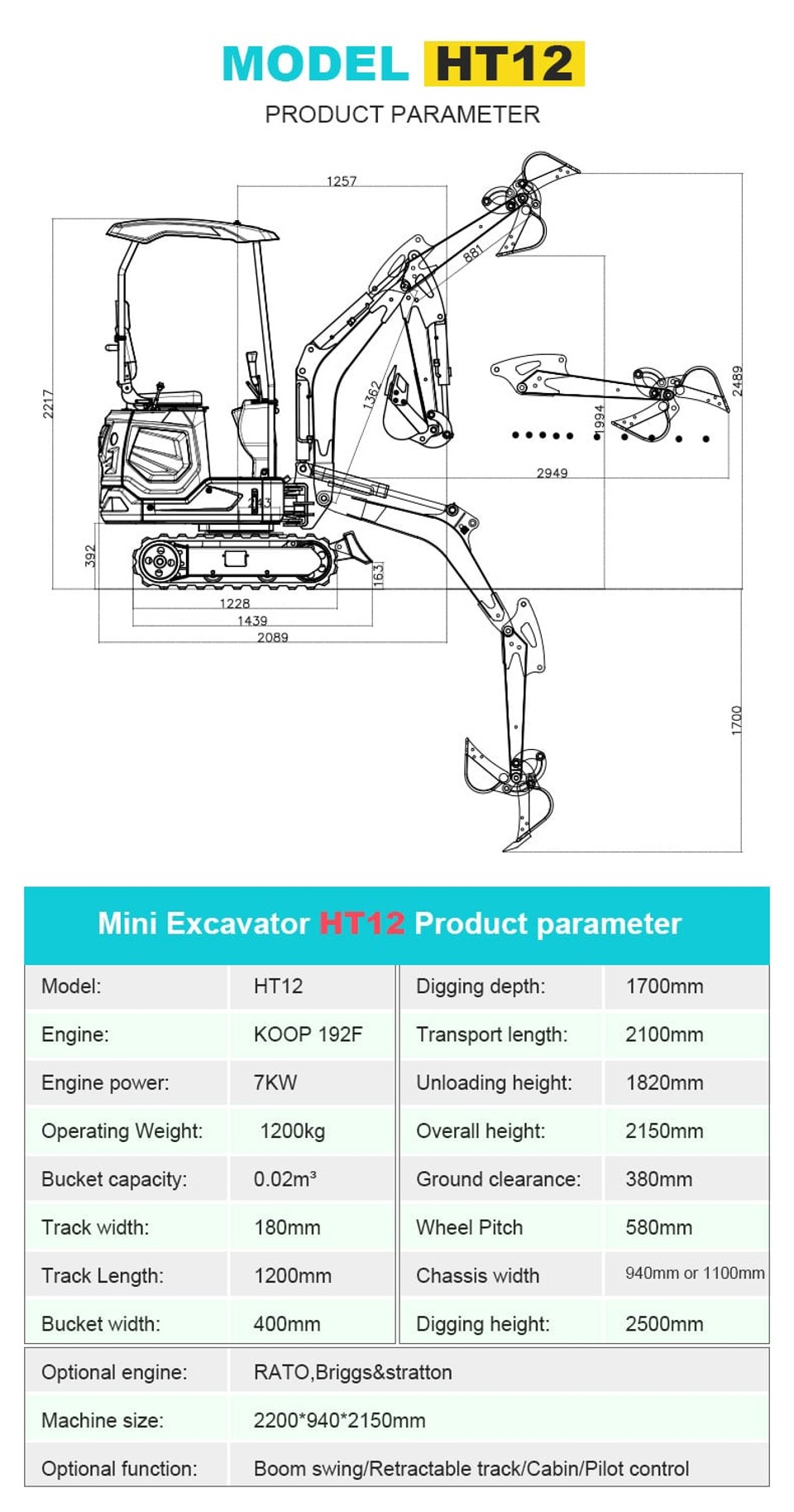

| HT12 Mini Excavator — Parameter Table | |
|---|---|
| Basic Parameters | |
| Model: | HT12 |
| Engine: | KOOP 192F |
| Optional engine: | RATO, Briggs & Stratton |
| Engine power: | 7KW |
| Operating Weight | 1200kg |
| Bucket capacity: | 0.02m³ |
| Bucket width: | 400mm |
| Dimensions (Unit: mm) | |
| Track width: | 180mm |
| Track Length: | 1200mm |
| Transport length: | 2100mm |
| Overall height: | 2150mm |
| Ground clearance: | 380mm |
| Wheel Pitch | 580mm |
| Chassis width | 940mm or 1100mm |
| Machine size: | 2200*940*2150mm |
| Working Range (Unit: mm) | |
| Digging height: | 2500mm |
| Digging depth: | 1700mm |
| Unloading height: | 1820mm |

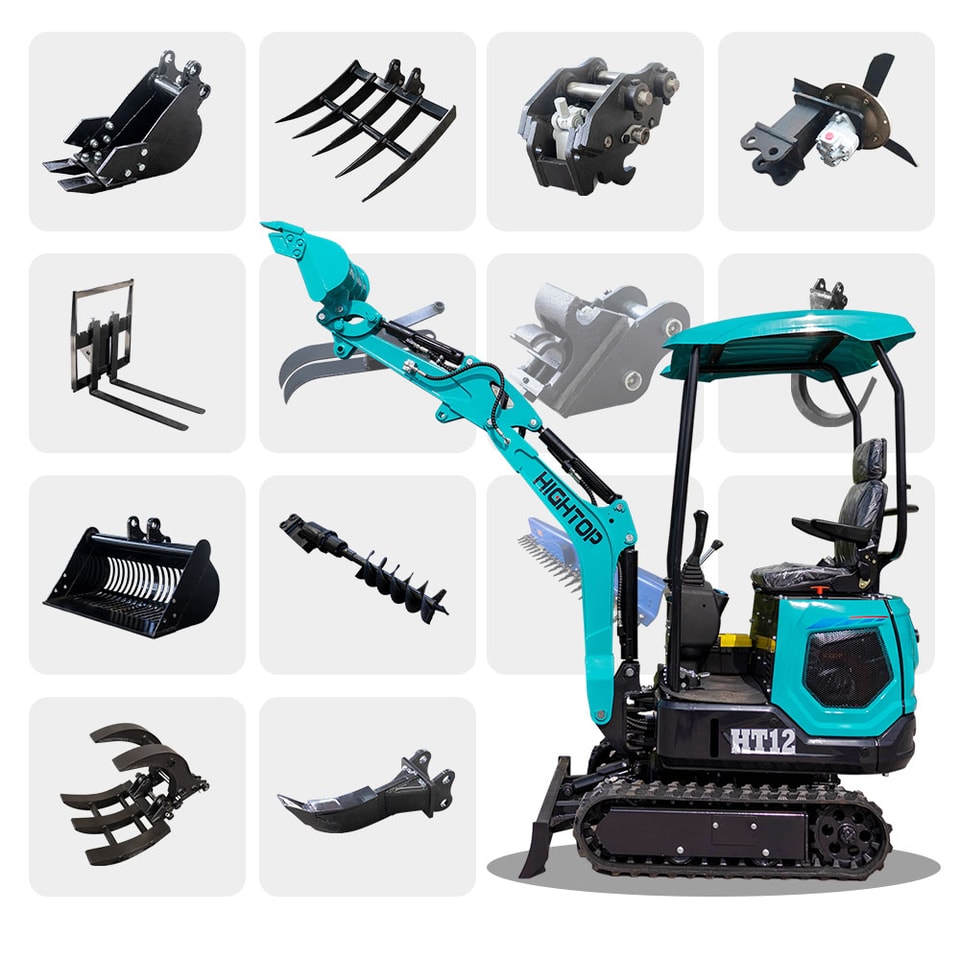

| Optional Functions | |
| Optional function: | Boom swing |
| Retractable track | |
| Cabin | |
| Pilot control | |
Technical Parameter
| Model: | HT12 |
| Engine: | KOOP 192F |
| Optional engine: | RATO,Briggs&stratton |
| Engine power: | 7KW |
| Operating Weight | 1200kg |
| Bucket capacity: | 0.02m³ |
| Track width: | 180mm |
| Track Length: | 1200mm |
| Bucket width: | 400mm |
| Digging height: | 2500mm |
| Digging depth: | 1700mm |
| Transport length: | 2100mm |
| Unloading height: | 1820mm |
| Overall height: | 2150mm |
| Ground clearance: | 380mm |
| Wheel Pitch | 580mm |
| Chassis width | 940mm or 1100mm |
| Machine size: | 2200*940*2150mm |
| Optional function: | Boom swing |
| Retractable track | |
| Cabin | |
| Pilot control |
