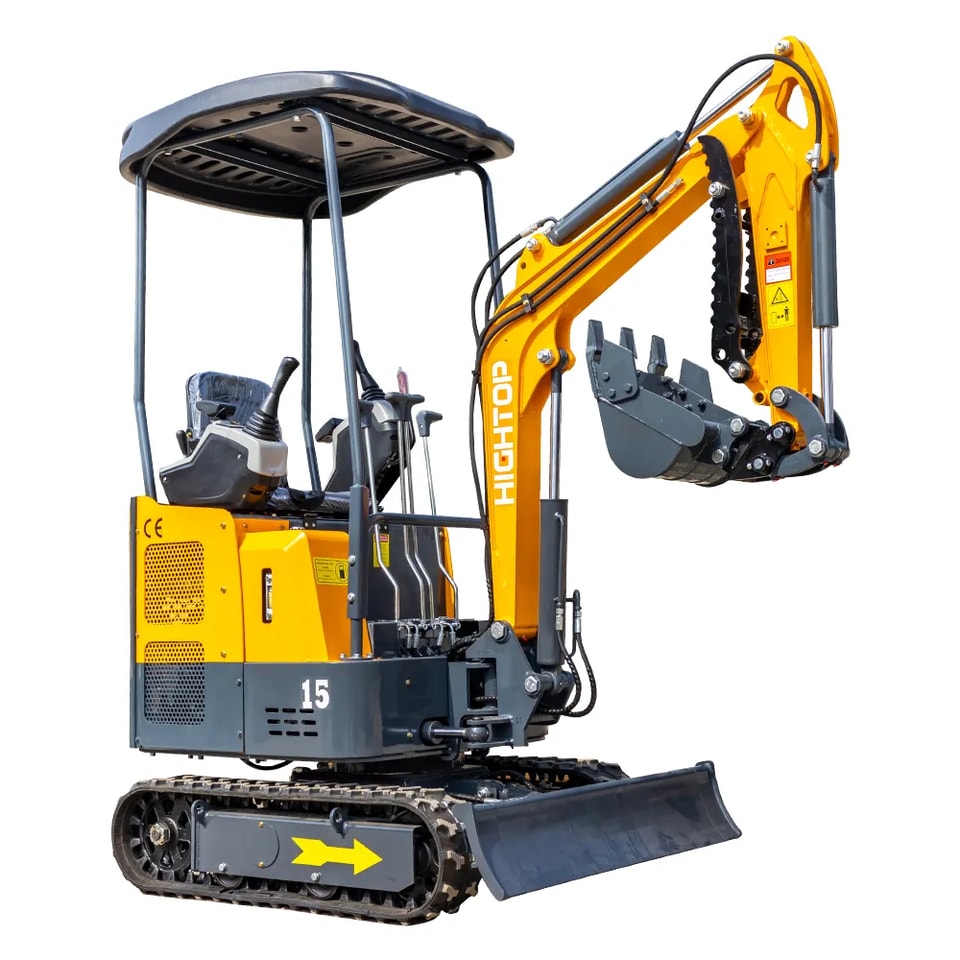

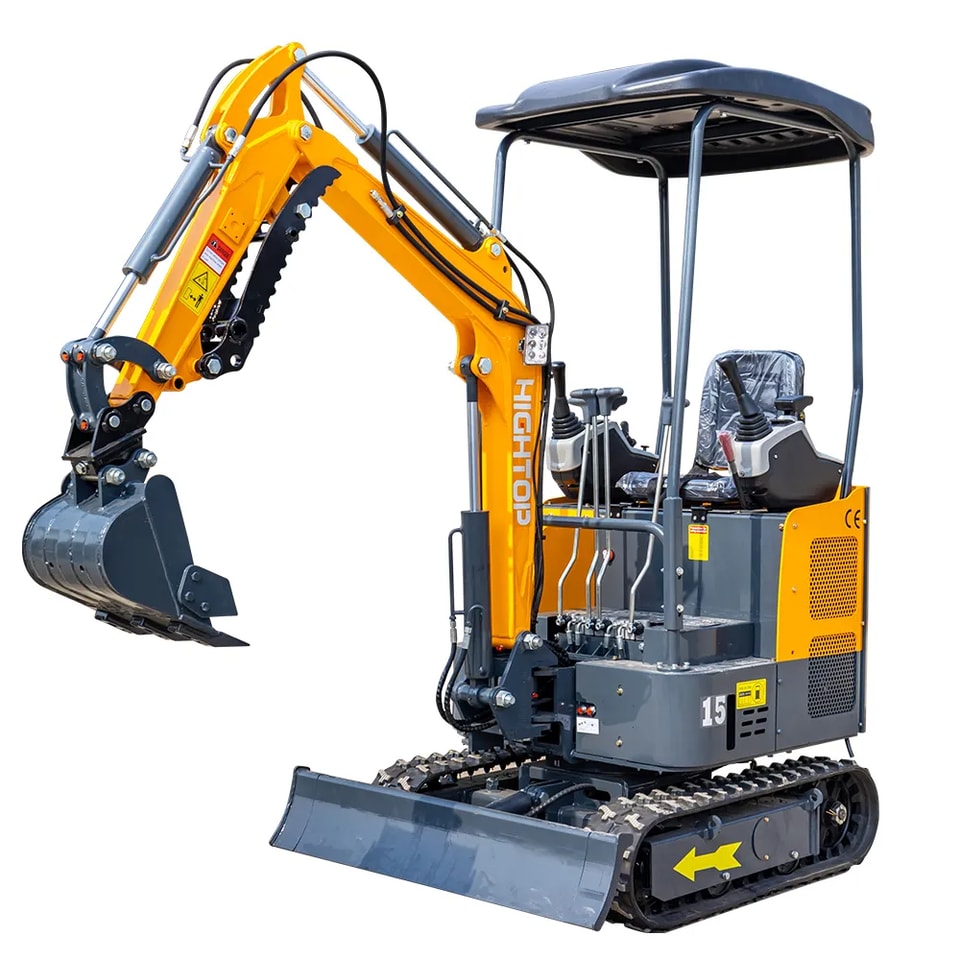

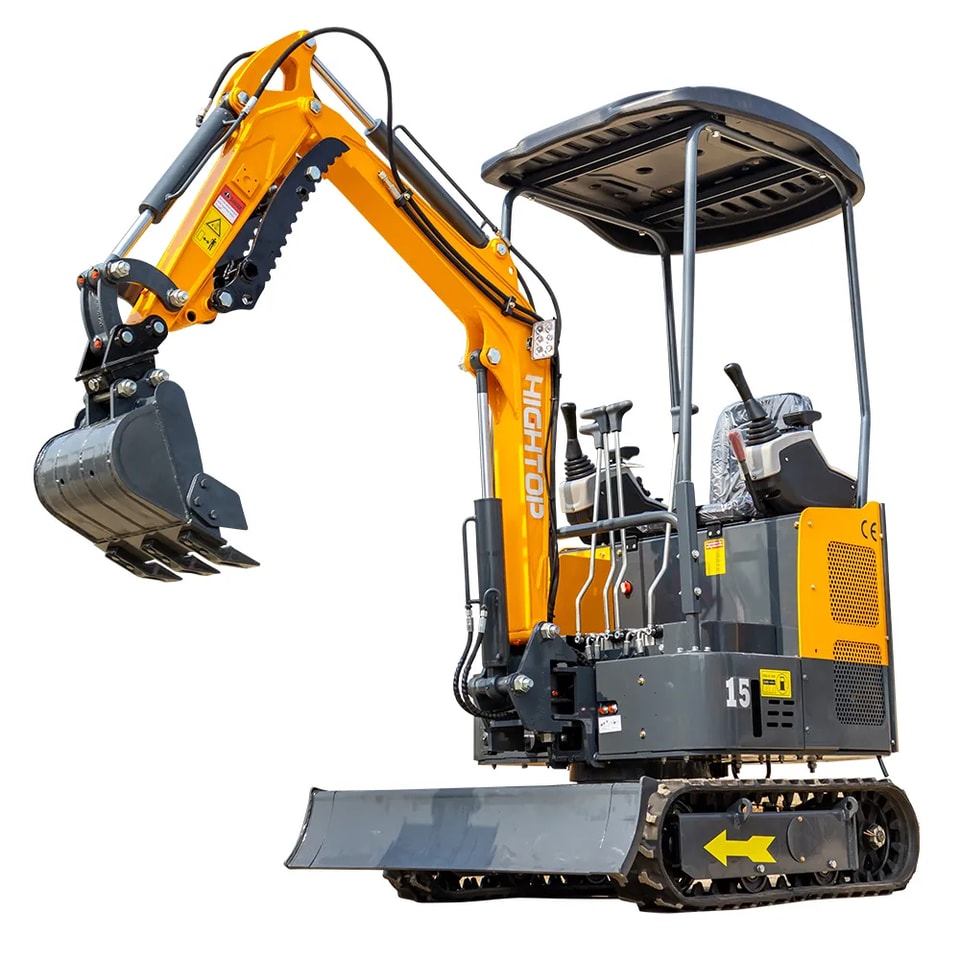

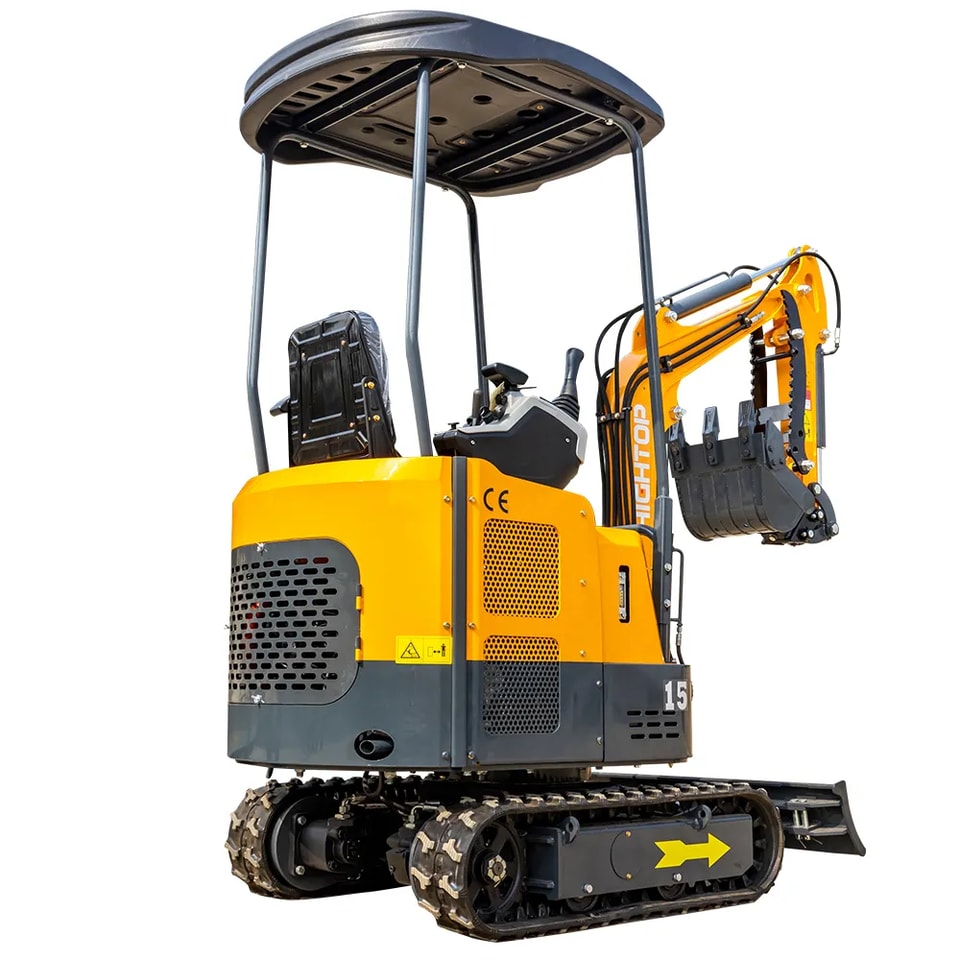

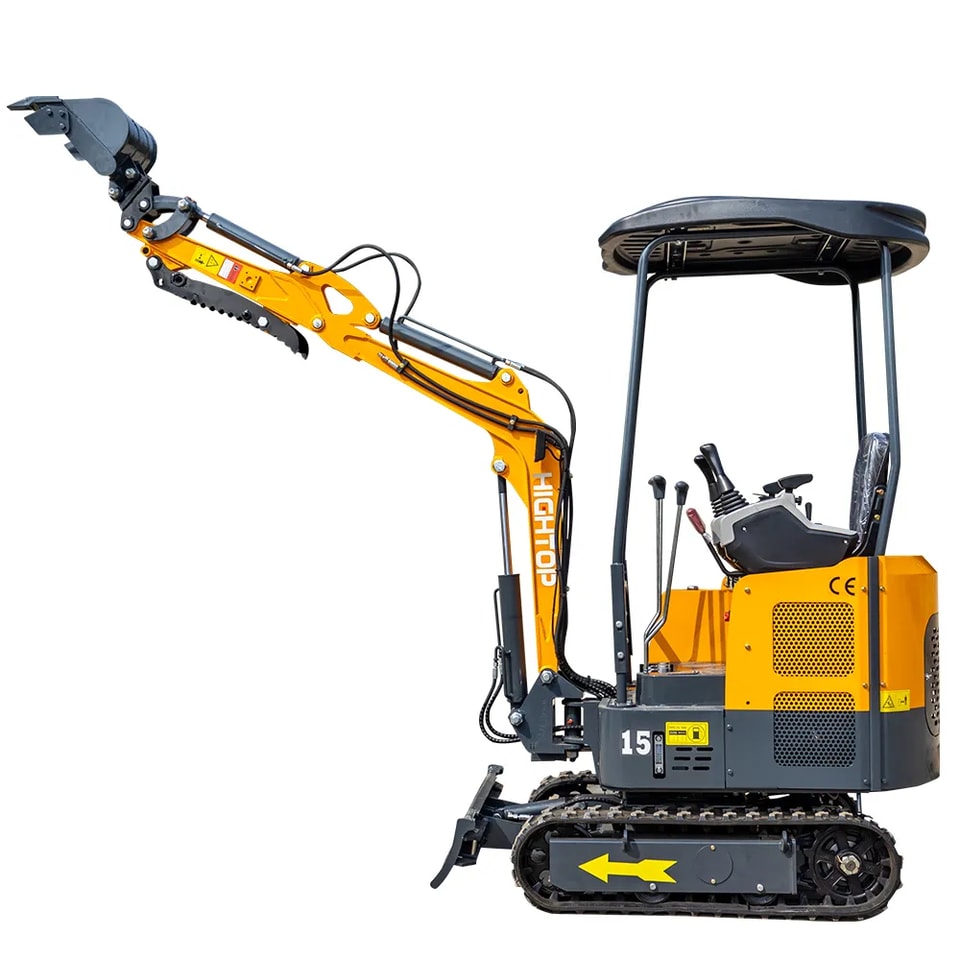

HT15Mini Crawler Excavator
HT15Mini Crawler Excavator Instruction

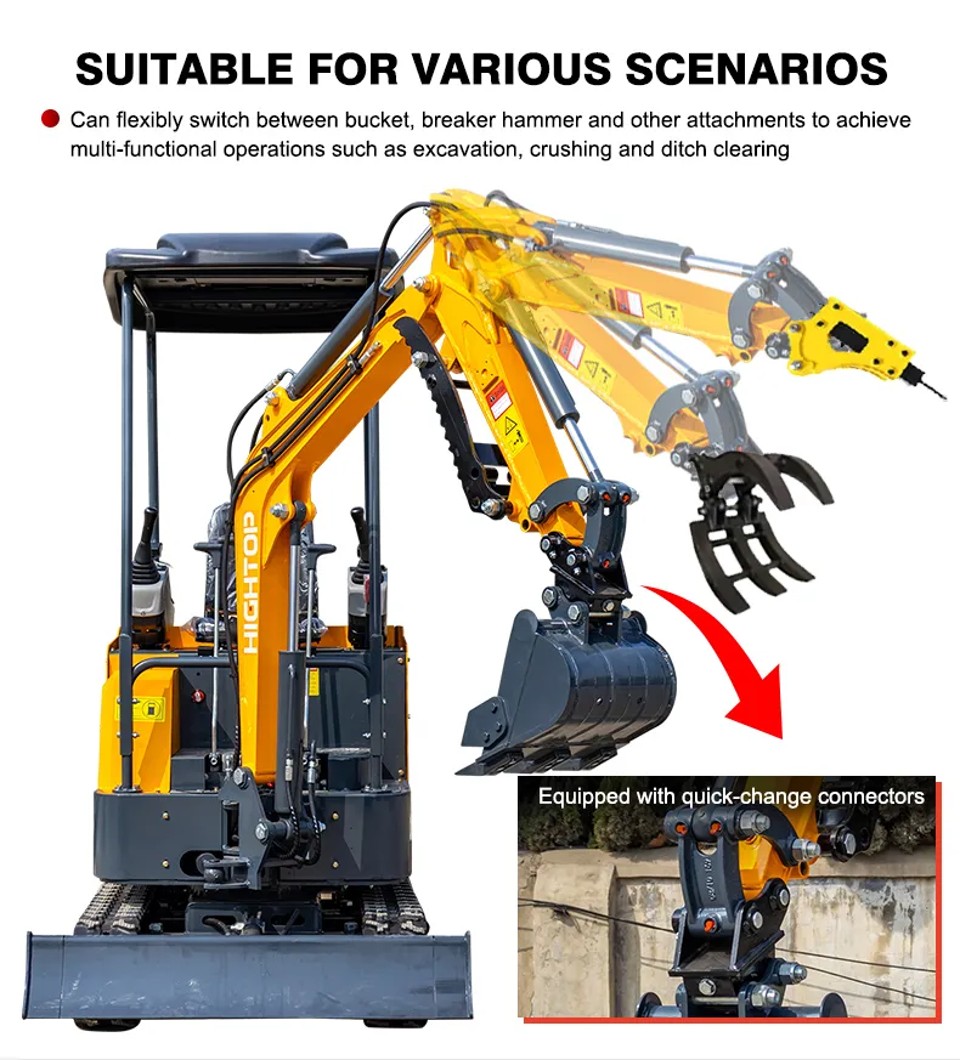

1.Suitable for various scenarios

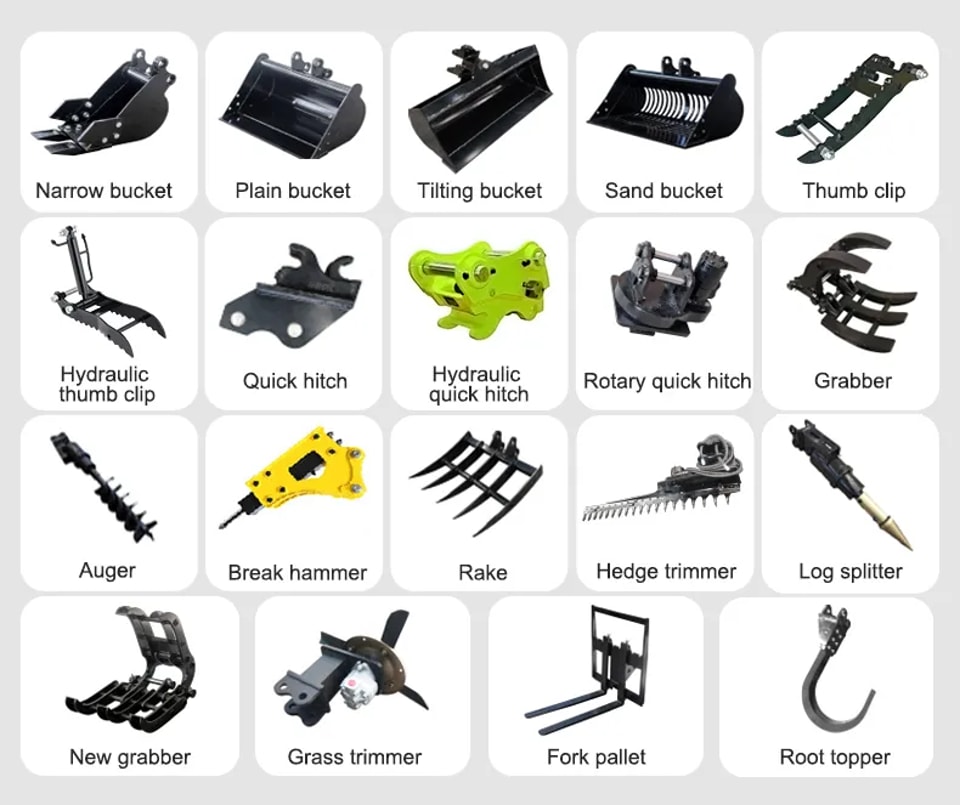

Can flexibly switch between bucket, breaker hammer and other attachments to achieve multi-functional operations such as excavation, crushing and ditch clearing
2.Compact design / Flexible maneuverability
Effortlessly navigates narrow alleys, indoor spaces, courtyards, and stairwells
Overall width: 1000mm Tail turning radius: 890mm

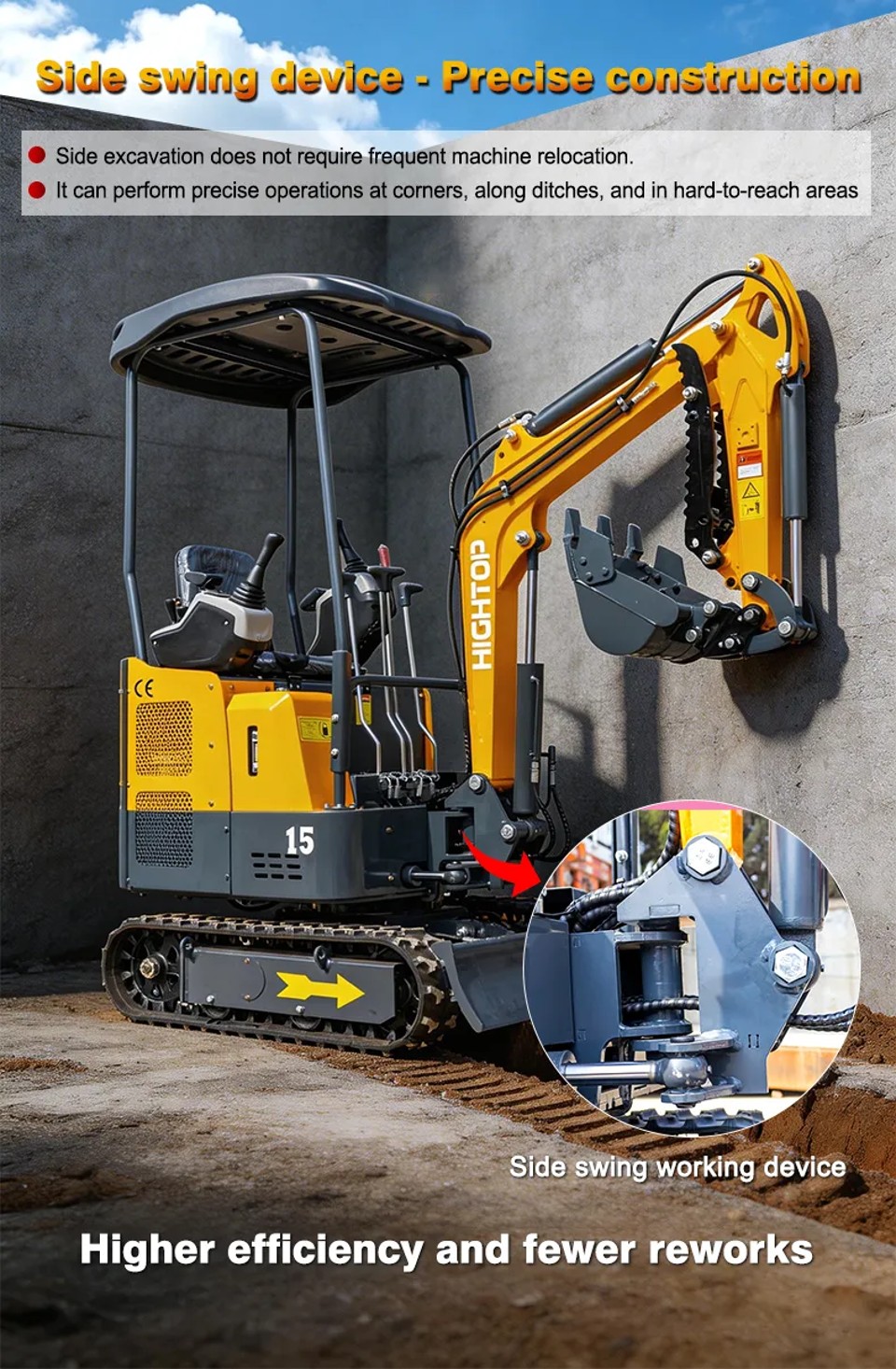

3.Side swing device - Precise construction
Side excavation does not require frequent machine relocation.
It can perform precise operations at corners, along ditches, and in hard-to-reach areas

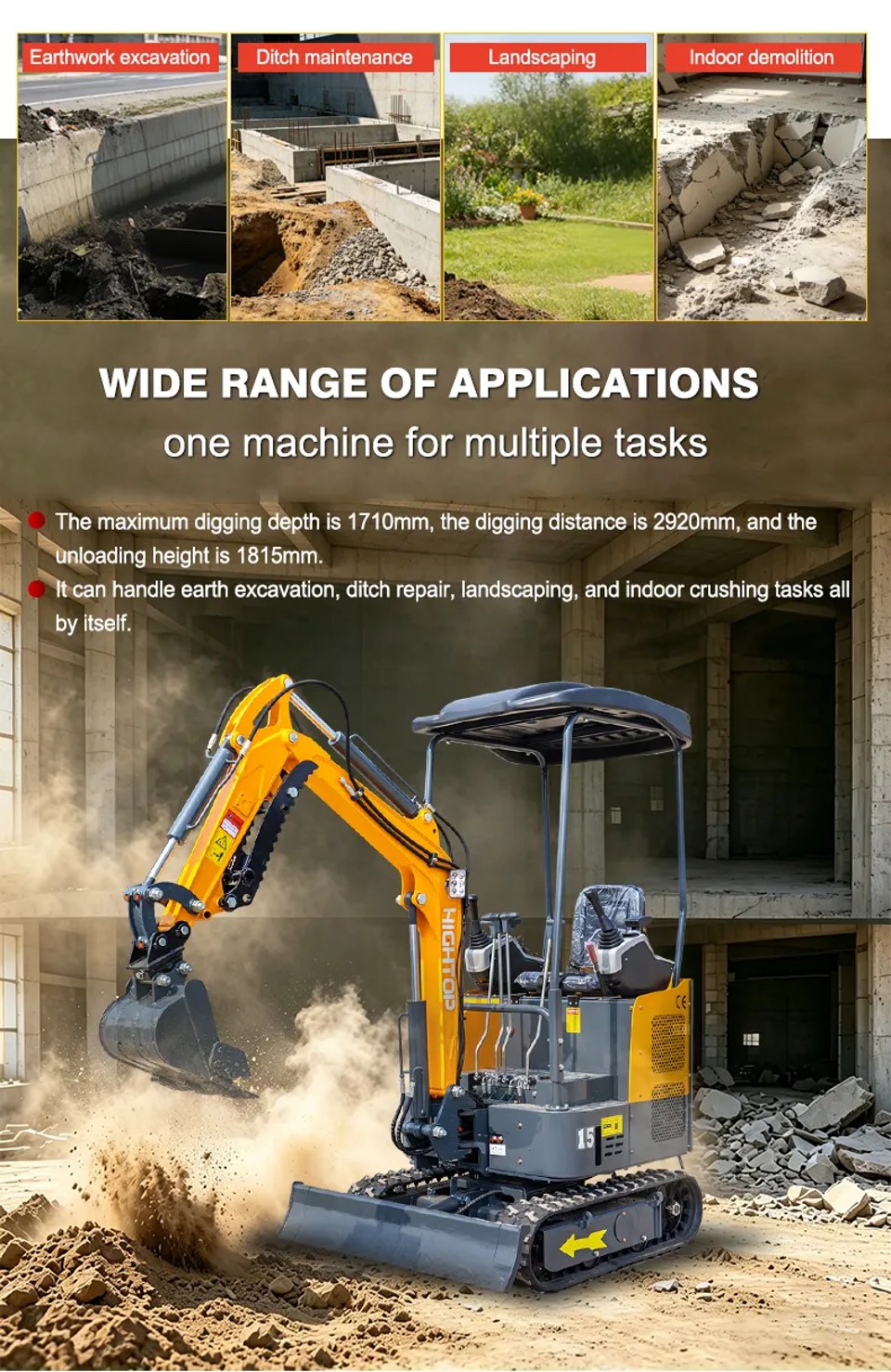

4.Wide range of applications
The maximum digging depth is 1710mm, the digging distance is 2920mm, and the unloading height is 1815mm.
It can handle earth excavation, ditch repair, landscaping, and indoor crushing tasks all by itself.

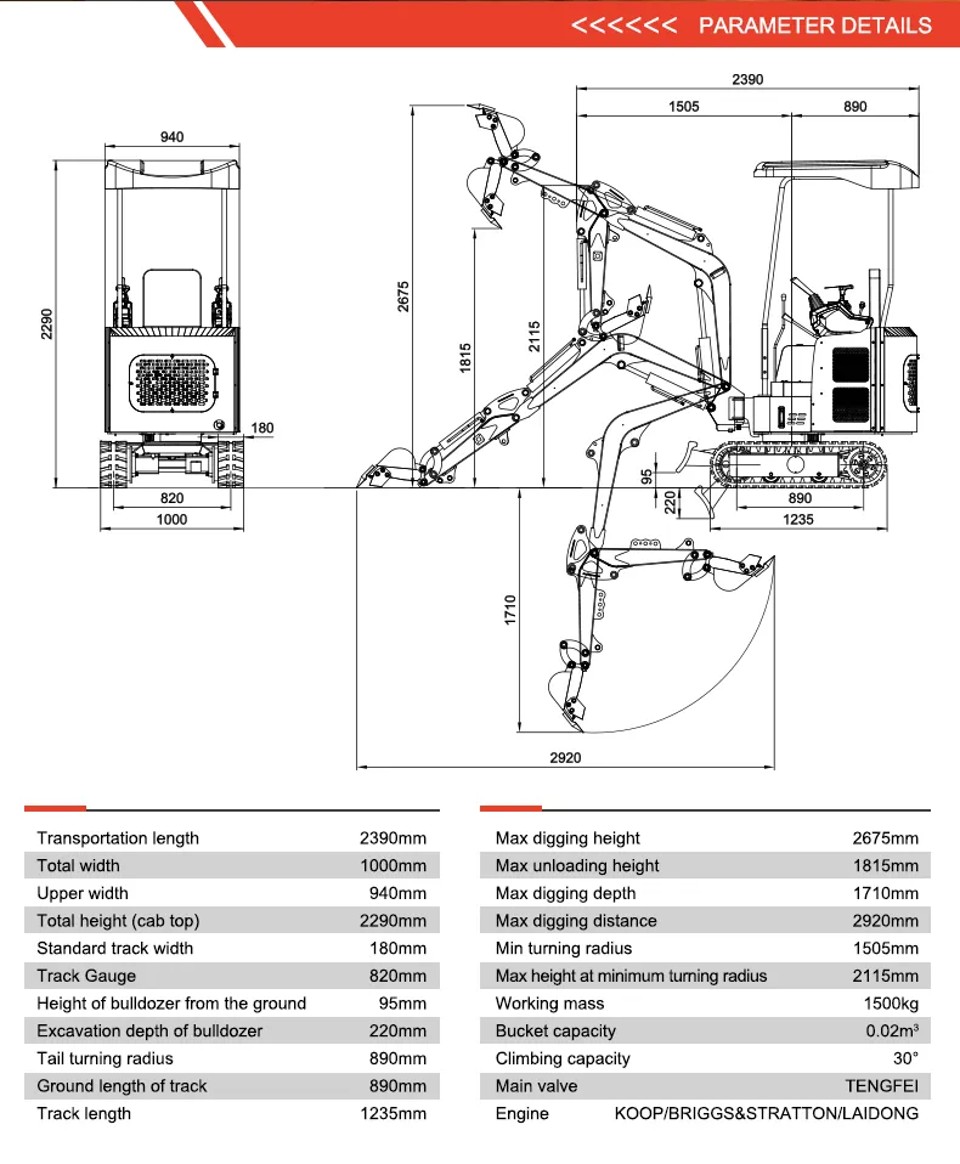

HT15Mini Crawler Excavator Parameter
| HT15 Side Swing + New Armrest Console — Parameter Table | |
|---|---|
| Overall Dimensions (Unit: mm) | |
| Transport Length A | 2390 |
| Total Width B | 1000 |
| Upper Width D | 940 |
| Total Height (Cab Top) C | 2290 |
| Standard Track Shoe Width F | 180 |
| Track Gauge E | 820 |
| Blade Ground Clearance G | 95 |
| Blade Digging Depth H | 220 |
| Tail Swing Radius I | 890 |
| Track Ground Contact Length J | 890 |
| Track Length K | 1235 |
| Working Range (Unit: mm) | |
| Maximum Digging Height a | 2675 |
| Maximum Dumping Height b | 1815 |
| Maximum Digging Depth c | 1710 |
| Maximum Digging Distance d | 2920 |
| Minimum Swing Radius e | 1505 |
| Maximum Height at Minimum Swing Radius f | 2115 |
| Performance Parameters | |
| Operating Weight (KG) | 1500 kg |
| Bucket Capacity | 0.02 m³ |
| Working Equipment Type | Backhoe |

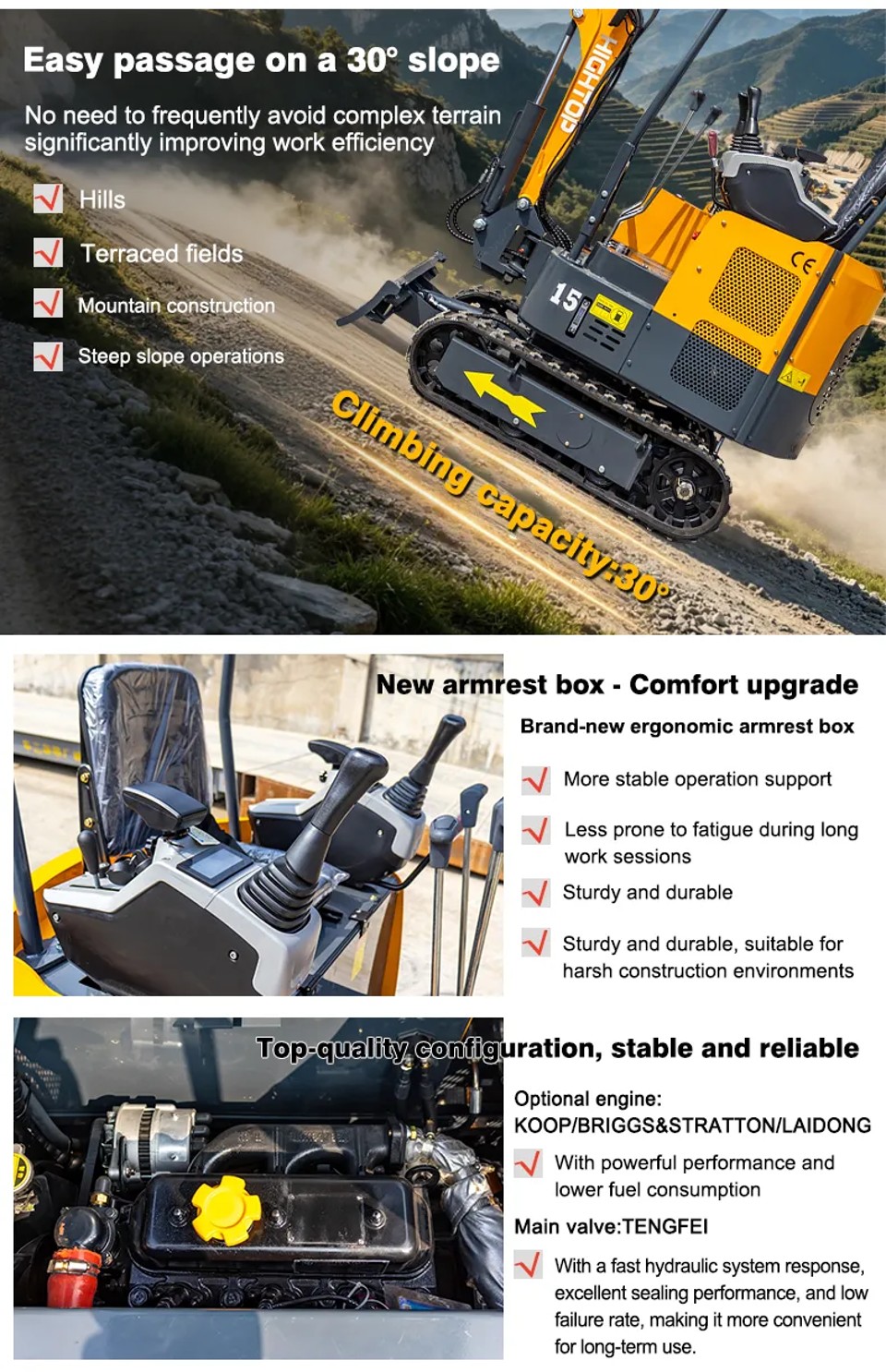

| Gradeability | 30 degrees |
| Main Components | |
| Engine Options | Kipor / Briggs & Stratton / Laidong |
| Main Valve | Tengfei |
