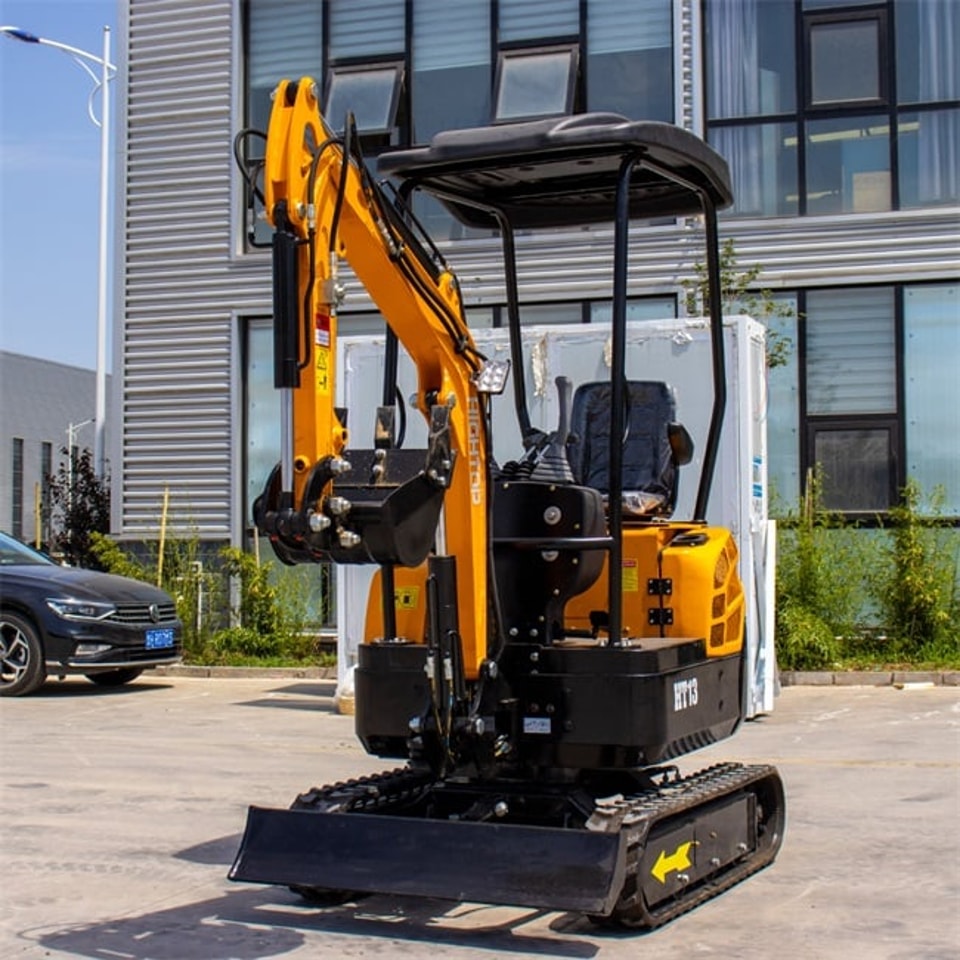

HT13 1.3 tons Mini Excavator
HT13 1.3T Mini Excavator for sale – a fuel-efficient 1300kg compact digger with 0.025m³ bucket, 1710mm digging depth, and 30° climbing ability. Features boom swing and telescopic track options. Ideal for small farms, orchards, and greenhouse work. Get factory price ！
Email:info009@hightopgroup.com
Phone:+86 181 6205 2962
Product Introduction
Technical Parameter
Product Picture
Product Introduction

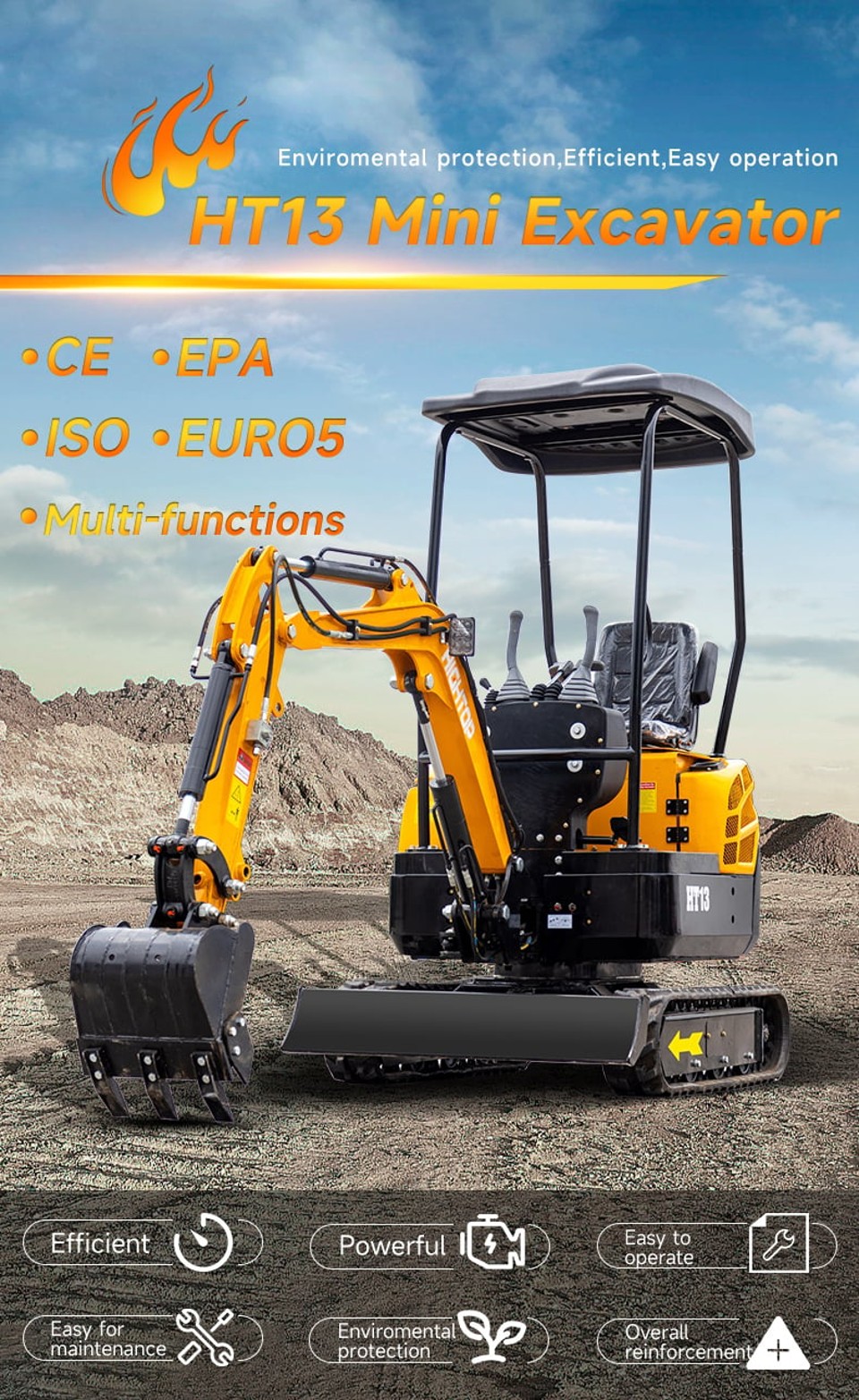

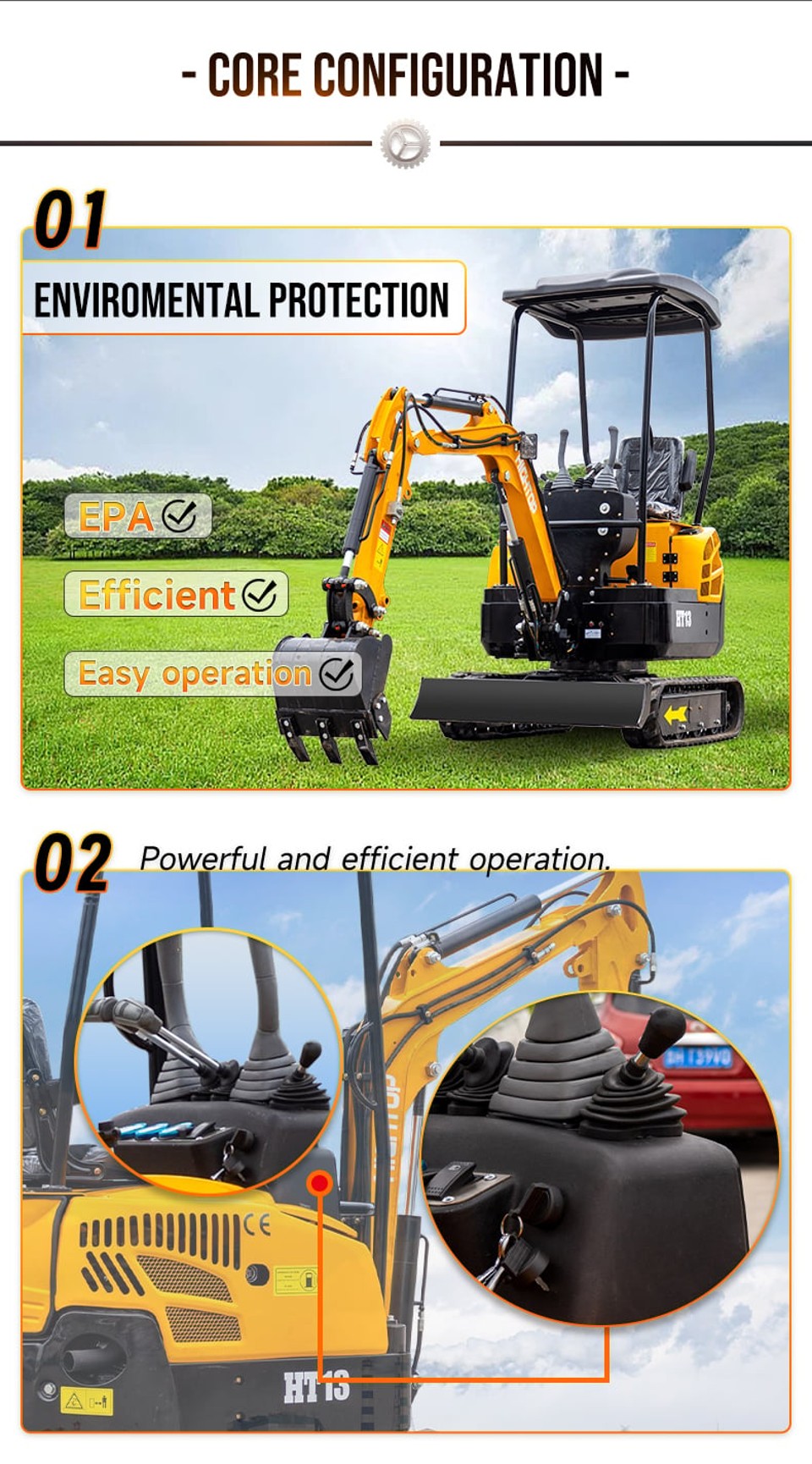

Enviromental protection,Efficient,Easy operation
ENVIROMENTAL PROTECTION
Powerful and efficient operation.

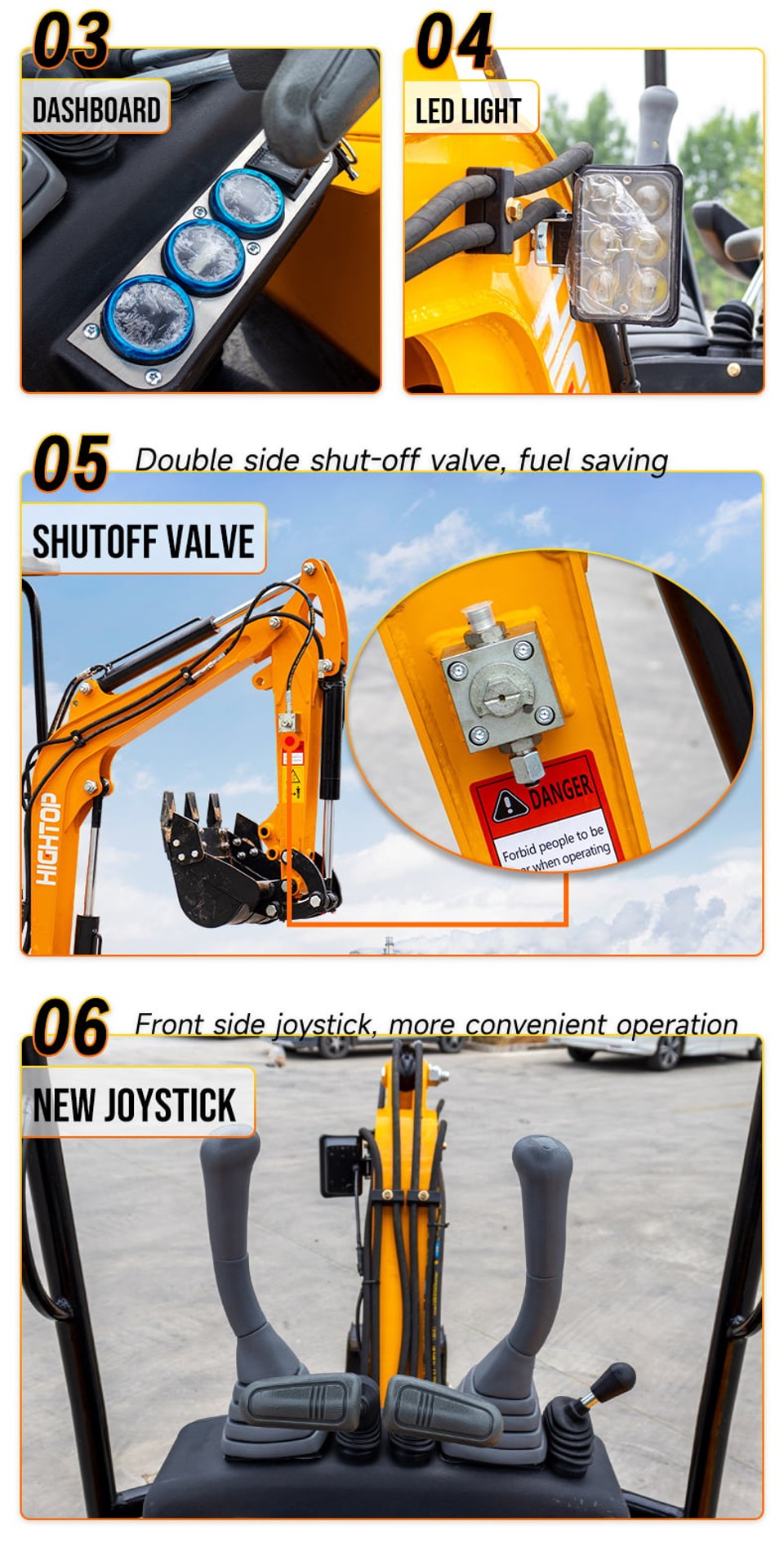

DASHBOARD,LED LIGHT
Double side shut off valve, fuel saving,SHUTOFF VALVE.
Front side joystick, more convenient operation.

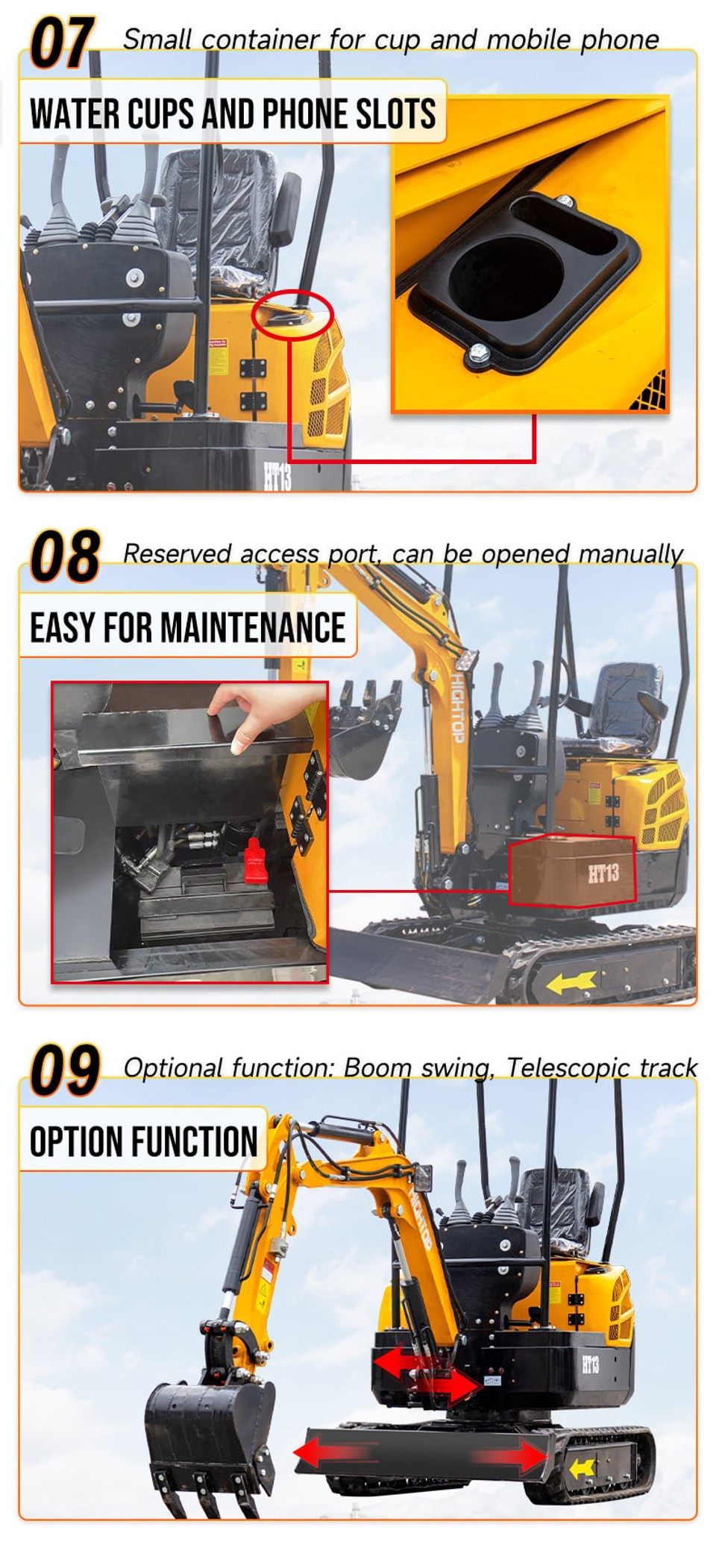

Small container for cup and mobile phone
Reserved access port, can be opened manually
Optional function: Boom swing, Telescopic track
Technical Parameter
| HT13 1.3T Mini Excavator — Parameter Table | |
|---|---|
| Dimensions (Unit: mm) | |
| Transport length (A) | 2325mm |
| Total width (B) | 1100mm |
| Upper width (D) | 990mm |
| Total height with roof top (C) | 2270mm |
| Track width (F) | 180mm |
| Track gauge (E) | 920mm |
| Bulldozer height ground clearance (G) | 105mm |
| Bulldozer digging depth (H) | 270mm |
| Tail turning radius (I) | 795mm |
| Track grounding length (J) | 1050mm |
| Track length (K) | 1545mm |
| Working Range (Unit: mm) | |
| Maximum digging height (a) | 2700mm |
| Maximum dumping height (b) | 1840mm |
| Maximum digging depth (c) | 1710mm |
| Maximum digging distance (d) | 2910mm |
| Minimum radius (e) | 1530mm |
| Maximum height at minimum turning radius (f) | 2100mm |
| Performance Parameters | |
| Operating weight | 1300kg |
| Bucket capacity | 0.025m³ |
| Working device form | Backhoe |
| Climbing capability | 30° |
| Main Components | |
| Engine | KOOP192 |
| Optional Engine | B&S, Changchai, Kubota |
| Main valve | BEIFANG |
