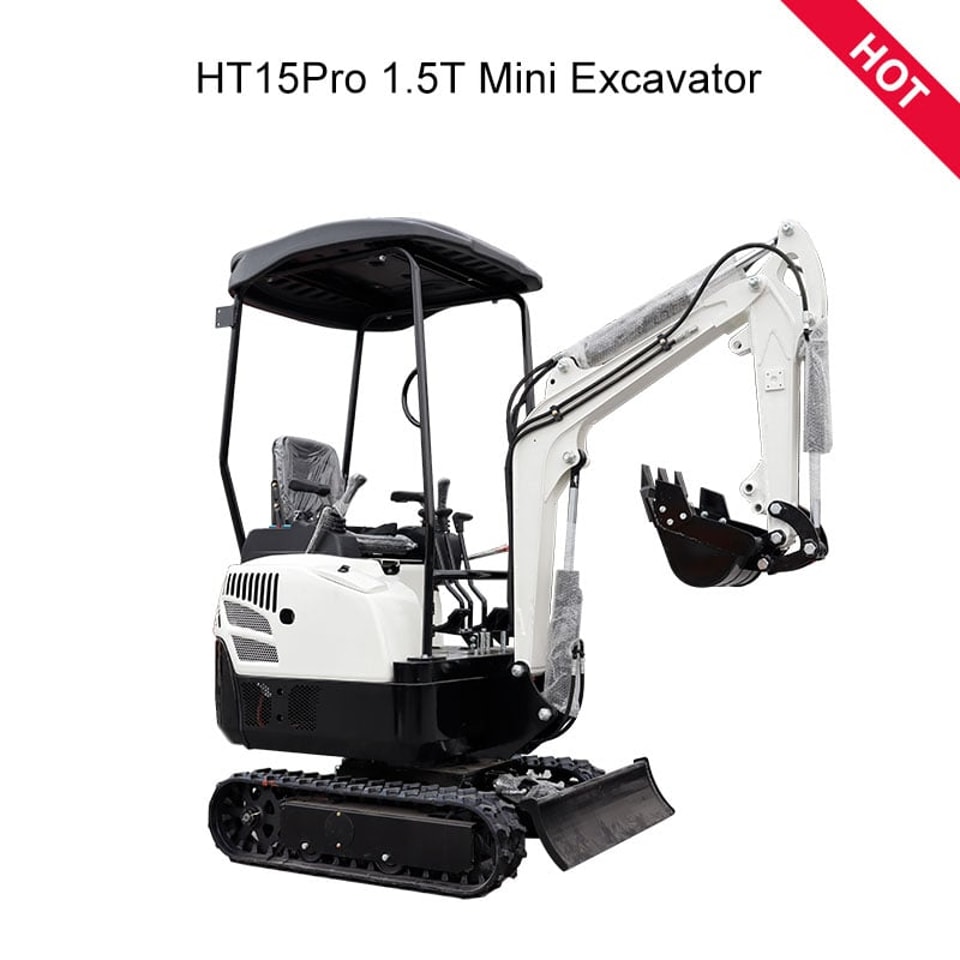

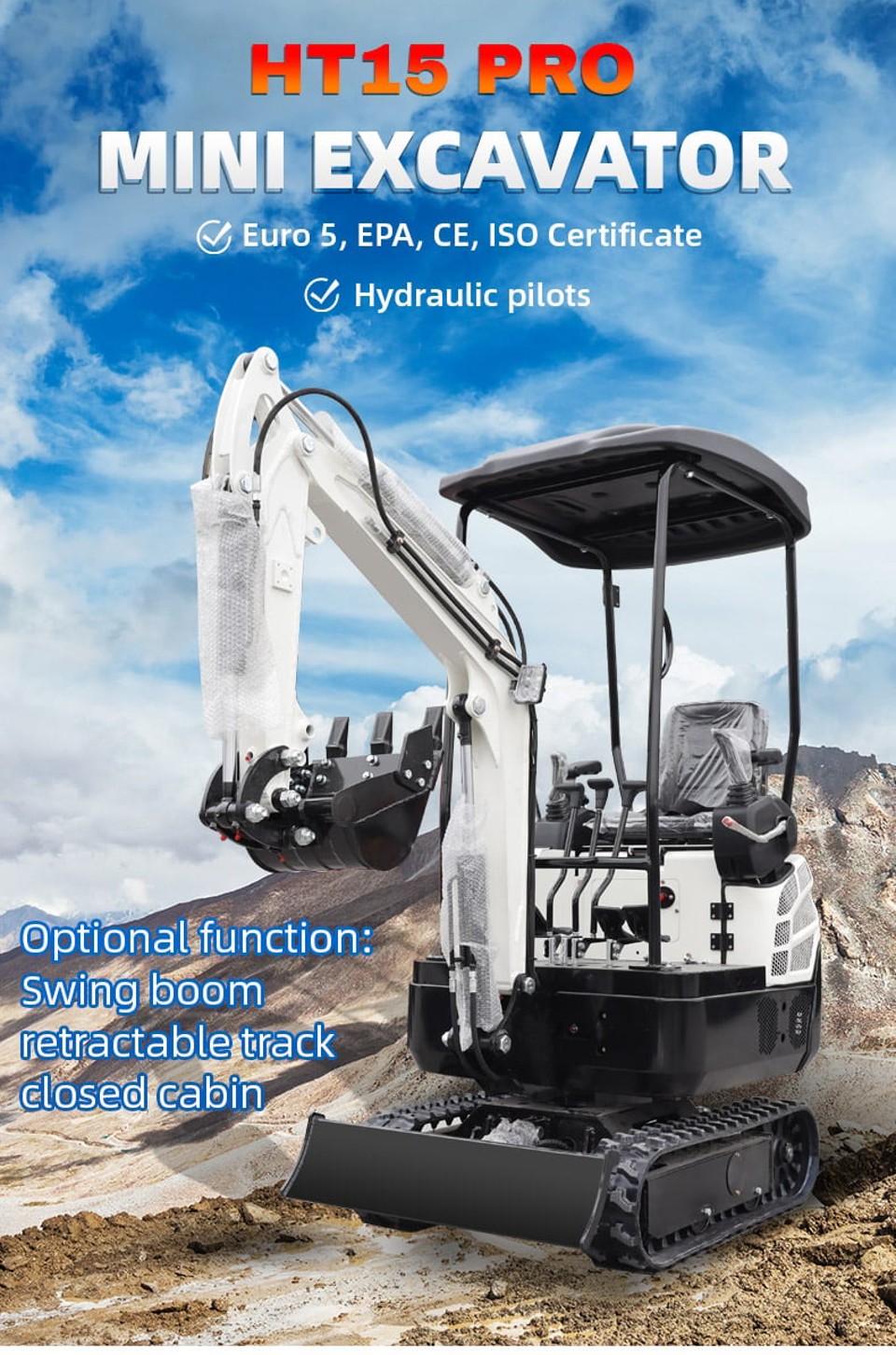

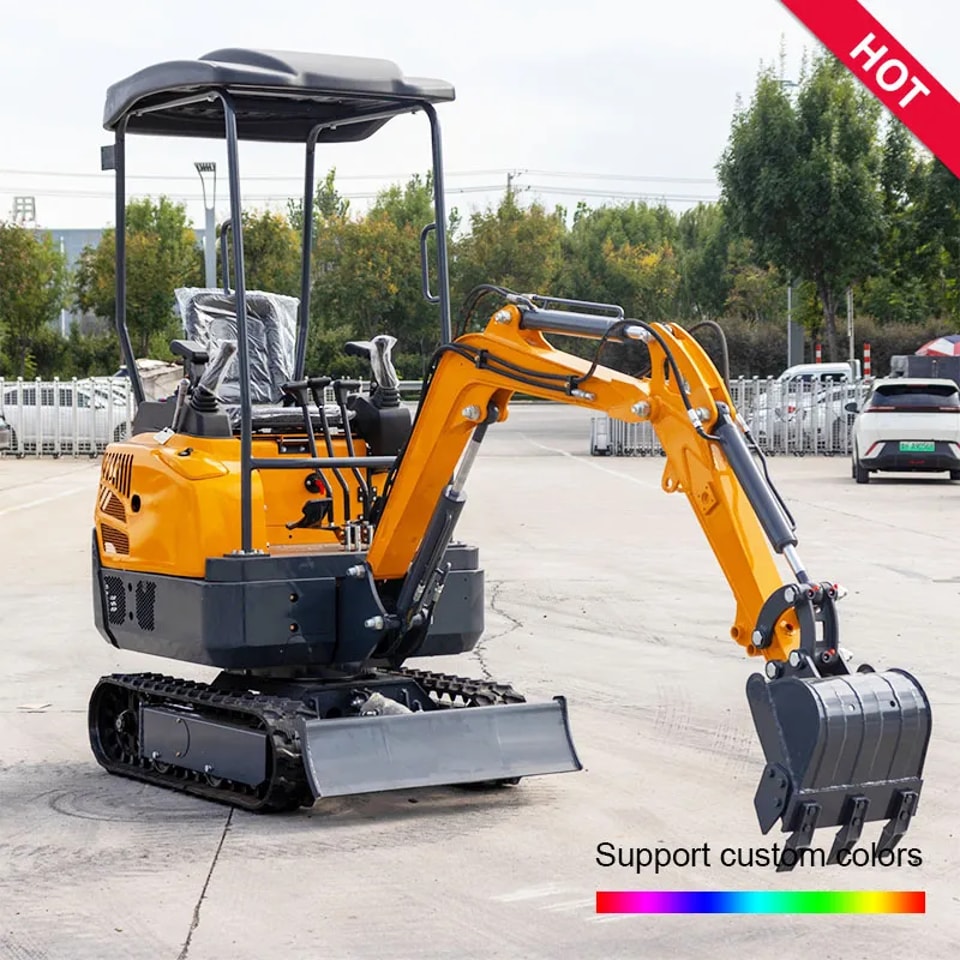

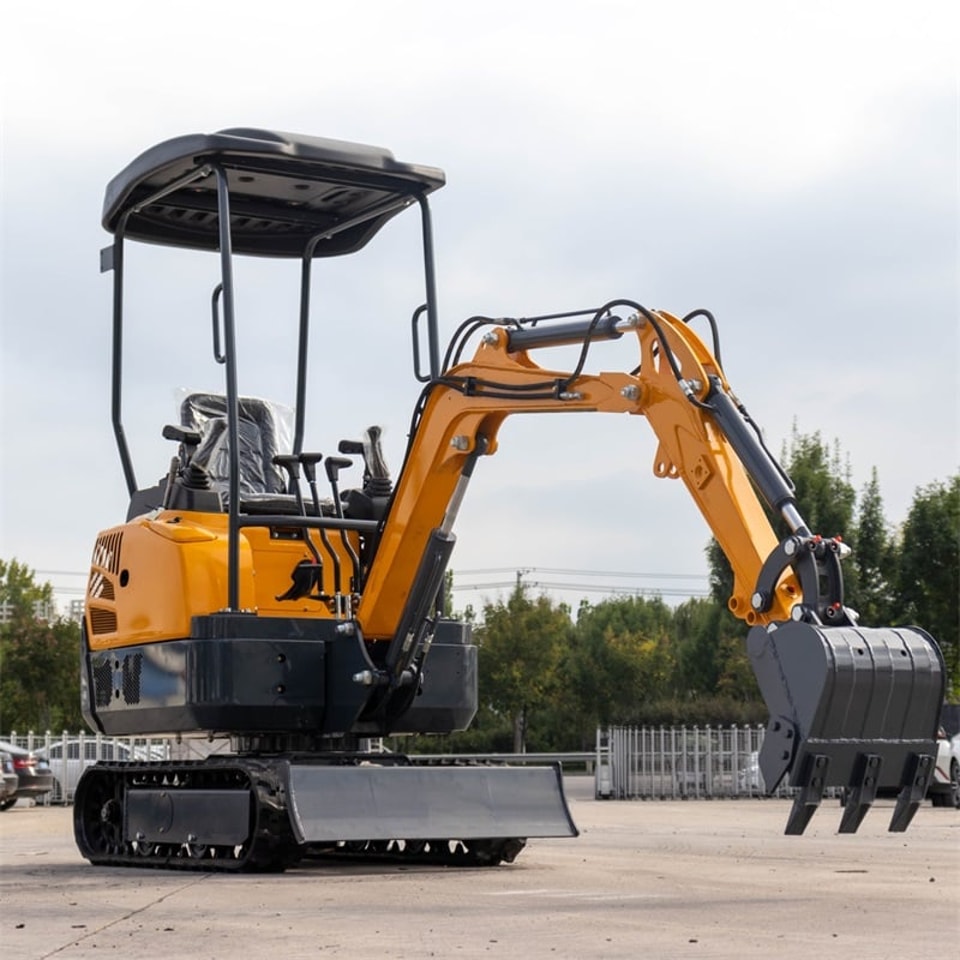

HT15Pro 1.5T Mini Excavator
The HT15Pro 1.5 ton mini excavator for sale is a premium zero-emission solution designed for precision landscaping and agricultural projects in noise-sensitive environments. Featuring hydraulic pilot operation and a reinforced canopy, this 1500kg electric mini excavator ensures superior operator comfort and a high ROI for rental fleets. Inquire today for factory-direct wholesale pricing and professional B2B support on our durable, compact digging machinery.
Email:info009@hightopgroup.com
Phone:+86 181 6205 2962
Technical Parameter
Product Introduction
Technical Parameter
| HT15Pro 1.5T Mini Excavator — Parameter Table | |
|---|---|
| Basic Parameters | |
| Model: | HT15Pro 1.5T Mini Excavator |
| Engine: | Koop/Briggs & Stratton |
| Rated power: | 10.2KW |
| Operating Weight: | 1500kg |
| Bucket capacity: | 0.02m³ |
| Working device form: | backhoe |
| Climbing capacity: | 30° |
| Dimensions (Unit: mm) | |
| Transportation length: | 2300mm |
| Total width: | 930mm |
| Upper width: | 990mm |
| Overall height (cab roof): | 2270mm |
| Standard track plate width: | 180mm |
| Track gauge: | 750mm |
| Shovel height above ground: | 110mm |
| Depth of excavation of bulldozer: | 200mm |
| Tail turning radius: | 800mm |
| Track ground length: | 890mm |
| Track length: | 1235mm |
| Working Range (Unit: mm) | |
| Maximum digging height: | 2690mm |
| Maximum unloading height: | 1825mm |
| Maximum digging depth: | 1710mm |
| Maximum digging distance: | 2920mm |
| Minimum turning radius: | 1500mm |
| Maximum height at minimum turning radius: | 2110mm |

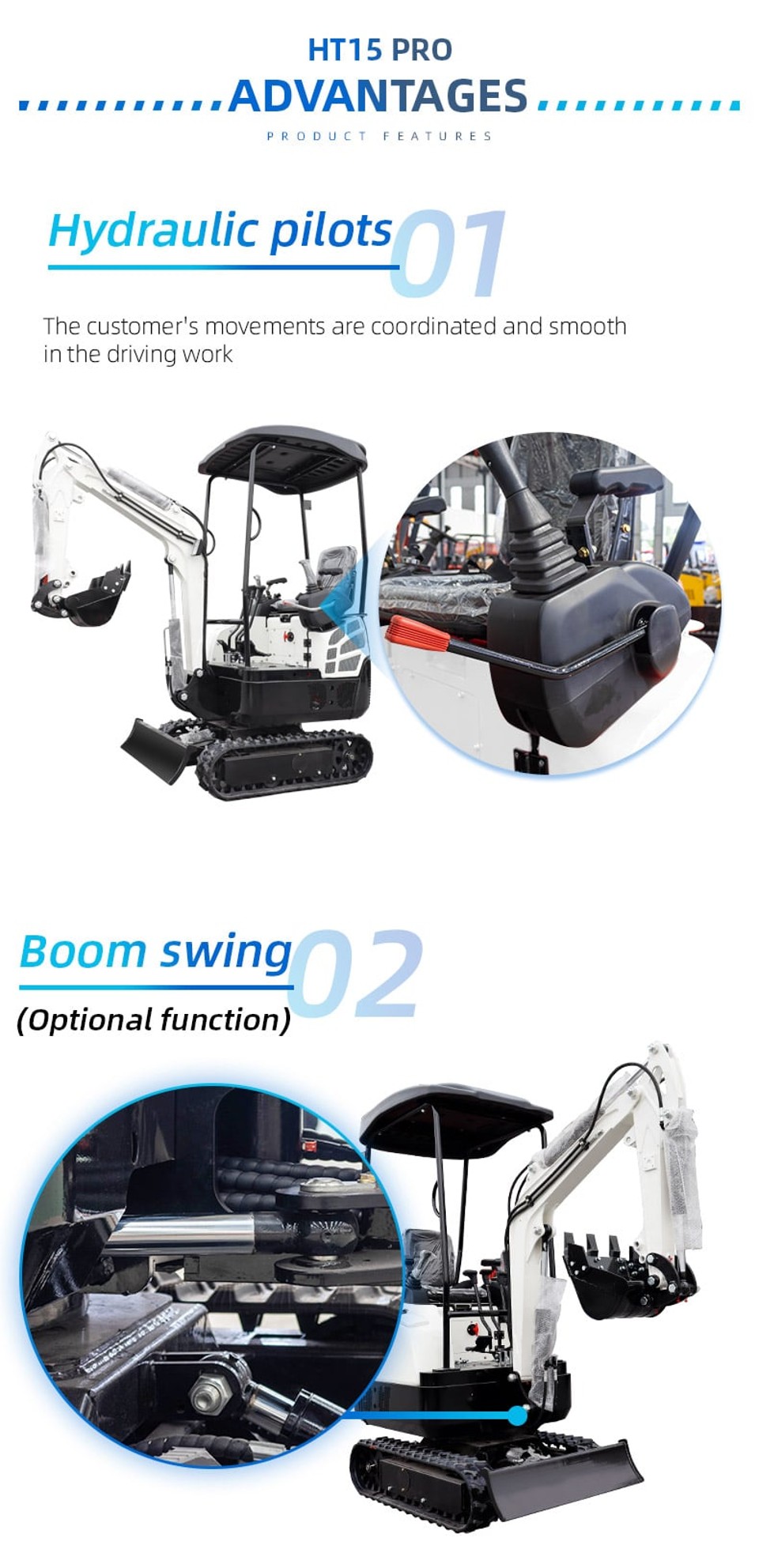

Product Introduction
