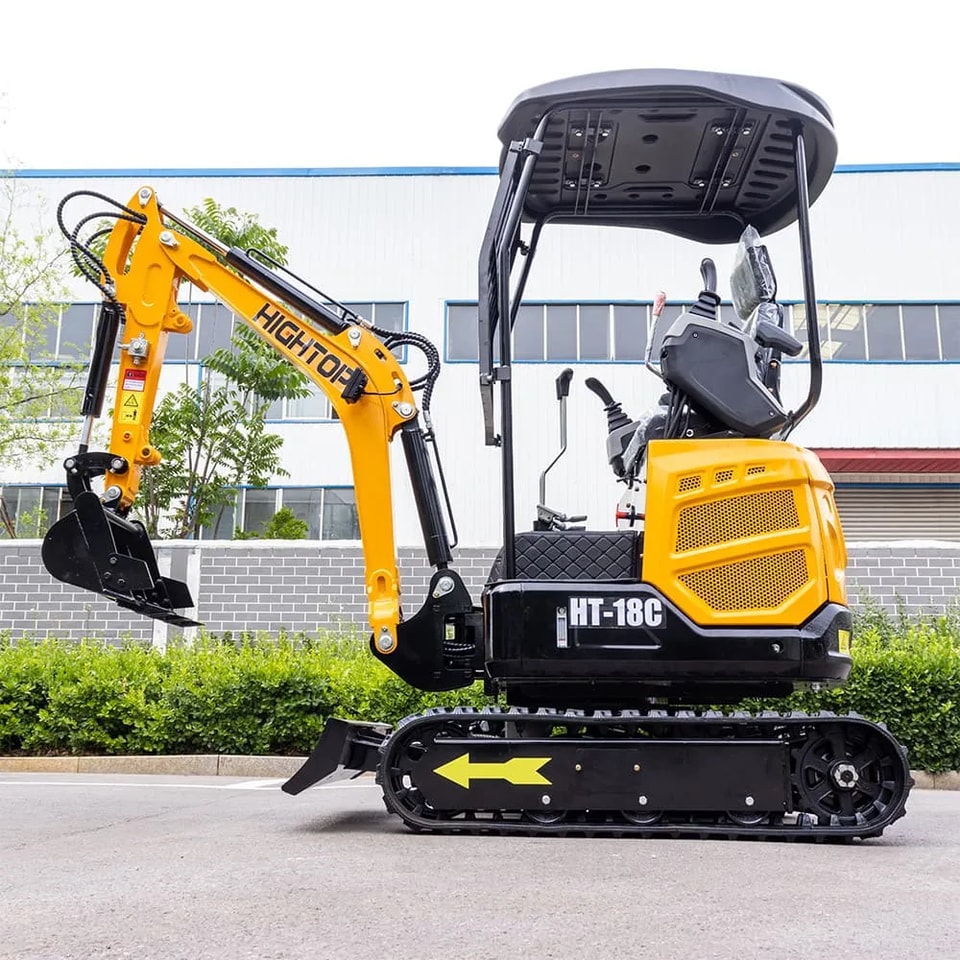

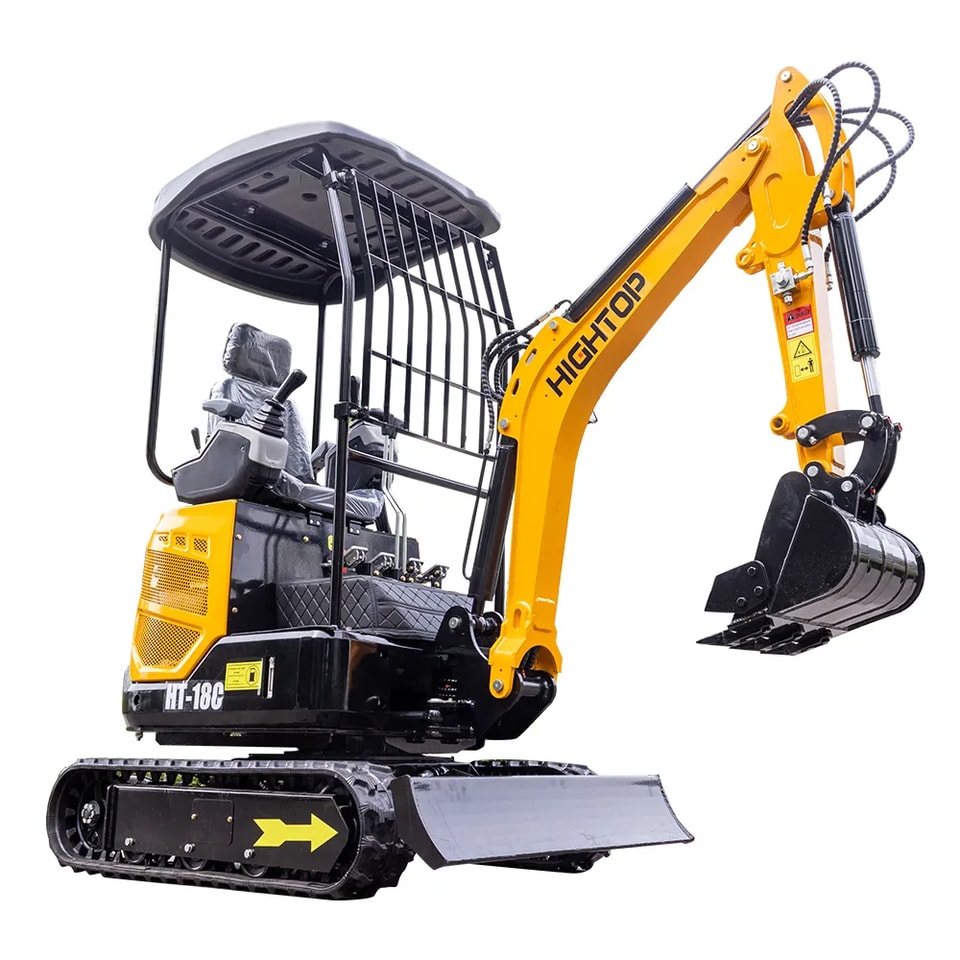

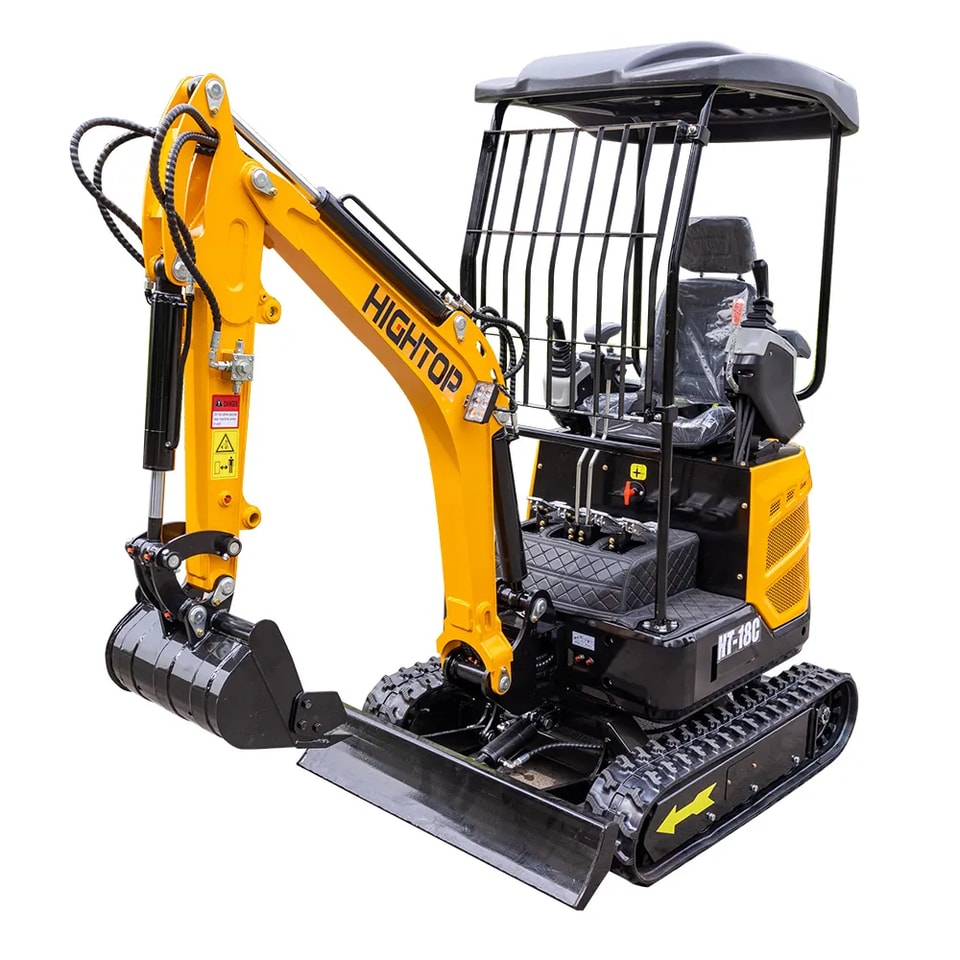

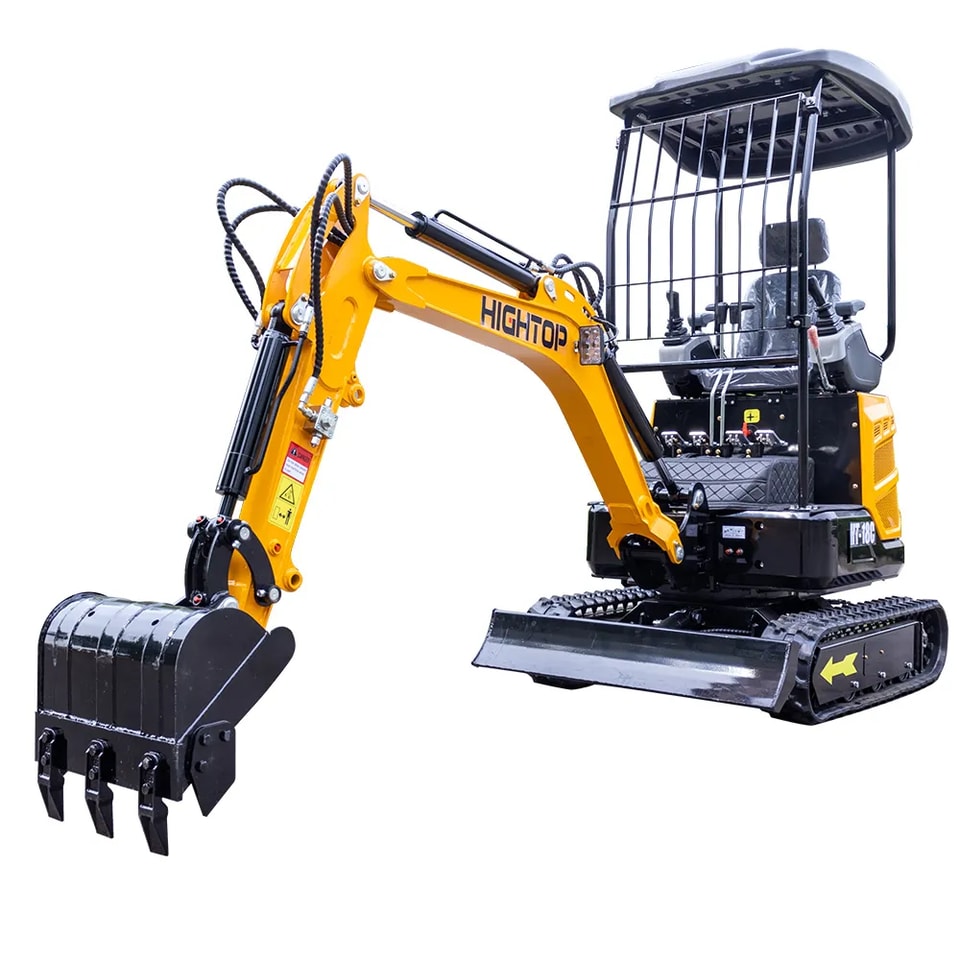

HT18C Mini Excavator for Export, Landscaping and Compact Jobs
A compact specification for small-site equipment sourcing
The HT18C is intended for buyers who need a compact excavator without moving into a larger machine class. Its overall width is 1,100 mm, upper frame width is 960 mm and operating weight is 1,400 kg. These dimensions are relevant when planning container loading, site access and transportation for overseas projects.
The machine has a 760 mm tail swing radius and a minimum turning radius of 1,580 mm. Buyers should compare these measurements with their target working environment, particularly when the machine will be supplied to landscaping companies, property contractors, farms or small construction projects.
Working specifications buyers can compare

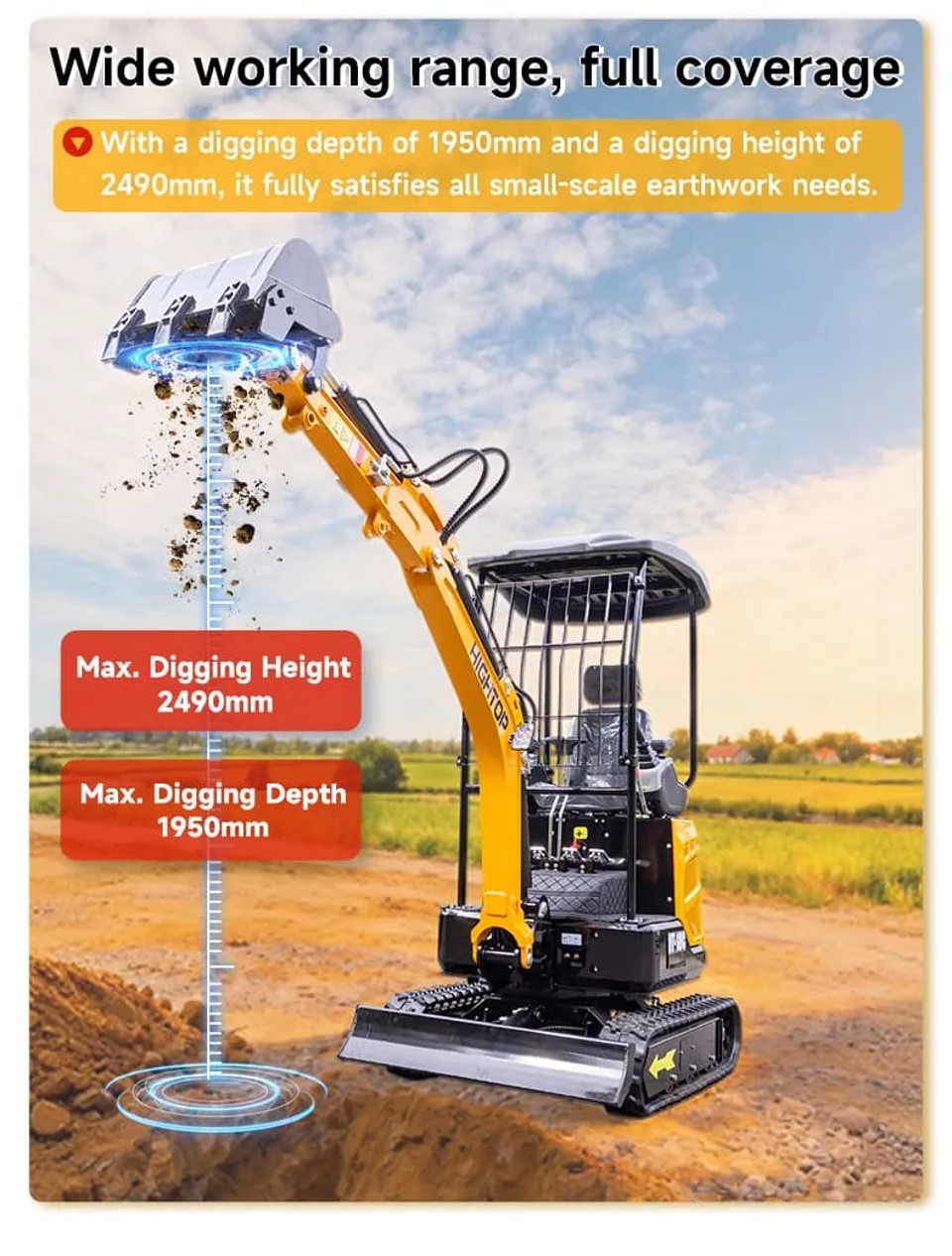

HT18C provides a maximum digging depth of 1,950 mm and a horizontal digging reach of 2,880 mm. Maximum digging height is 2,490 mm and maximum dumping height is 1,635 mm. The standard bucket capacity is 0.02 m³.
For equipment sourcing, these figures help define whether the machine matches the required excavation range before a quotation is prepared. They also provide a practical basis for comparing the HT18C with other compact excavator models.
Engine and configuration details

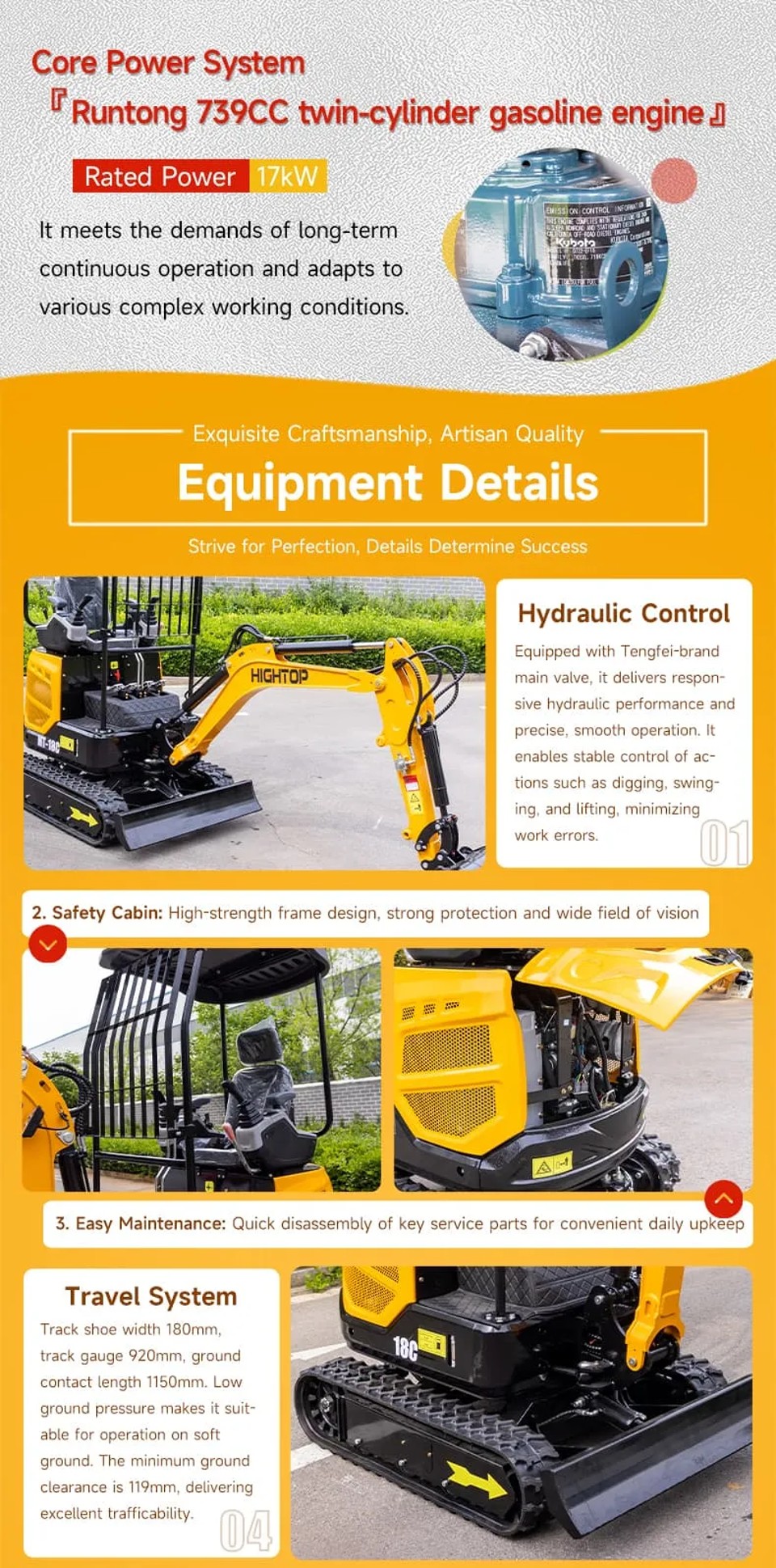

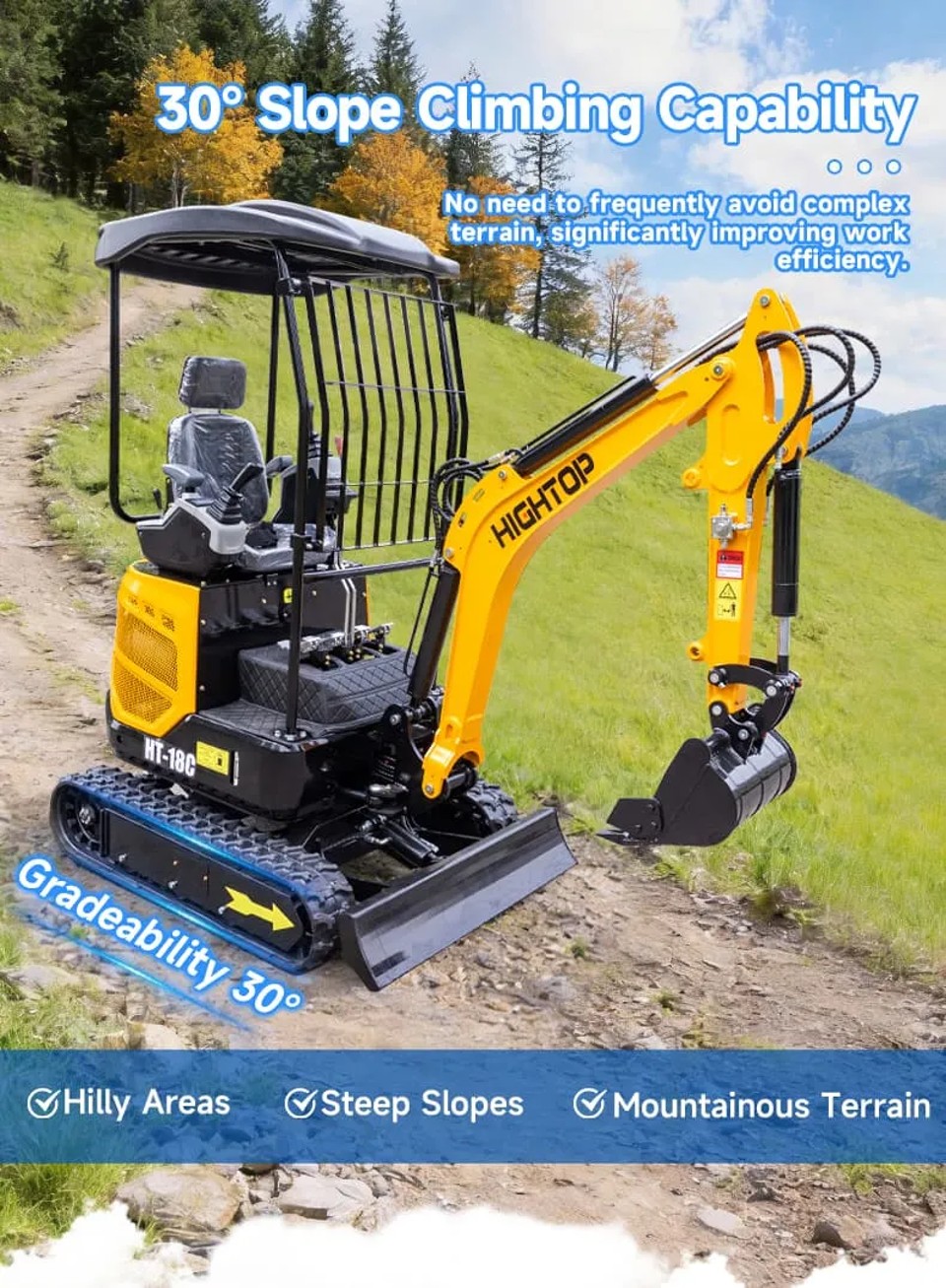

The HT18C uses a Rato 739CC twin-cylinder gasoline engine with a rated output of 17 kW. A Tengfei main valve is specified, while swing rotation speed is 12 RPM and maximum climbing gradient is listed at 30°.

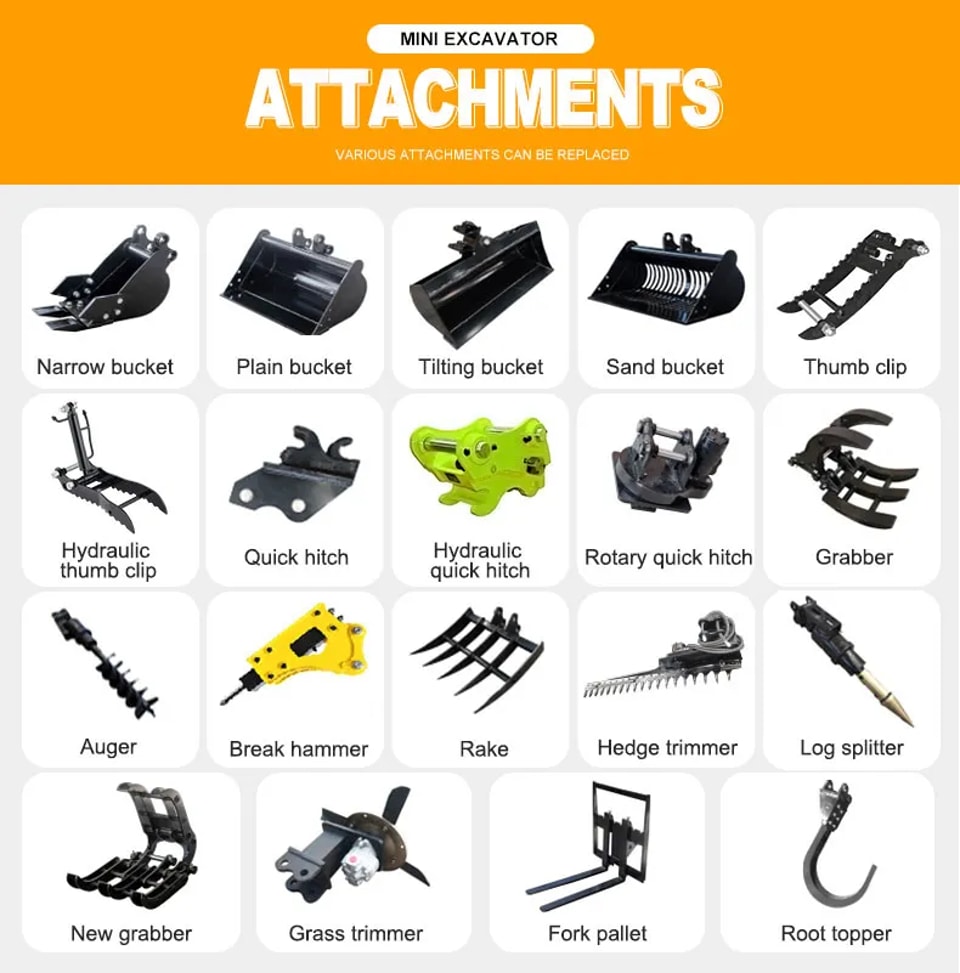

The machine can also be supplied with interchangeable attachments. More than 20 attachment options are listed for the product, covering applications such as digging, breaking, drilling and material handling.
Prepare the machine configuration before ordering
For an export inquiry, the useful information is more than just the model number. Include the destination market, quantity, intended application and required attachments. If the equipment is being purchased for resale or dealer distribution, provide the expected configuration and branding requirements so the quotation can be prepared around the actual order.
Export and sourcing information

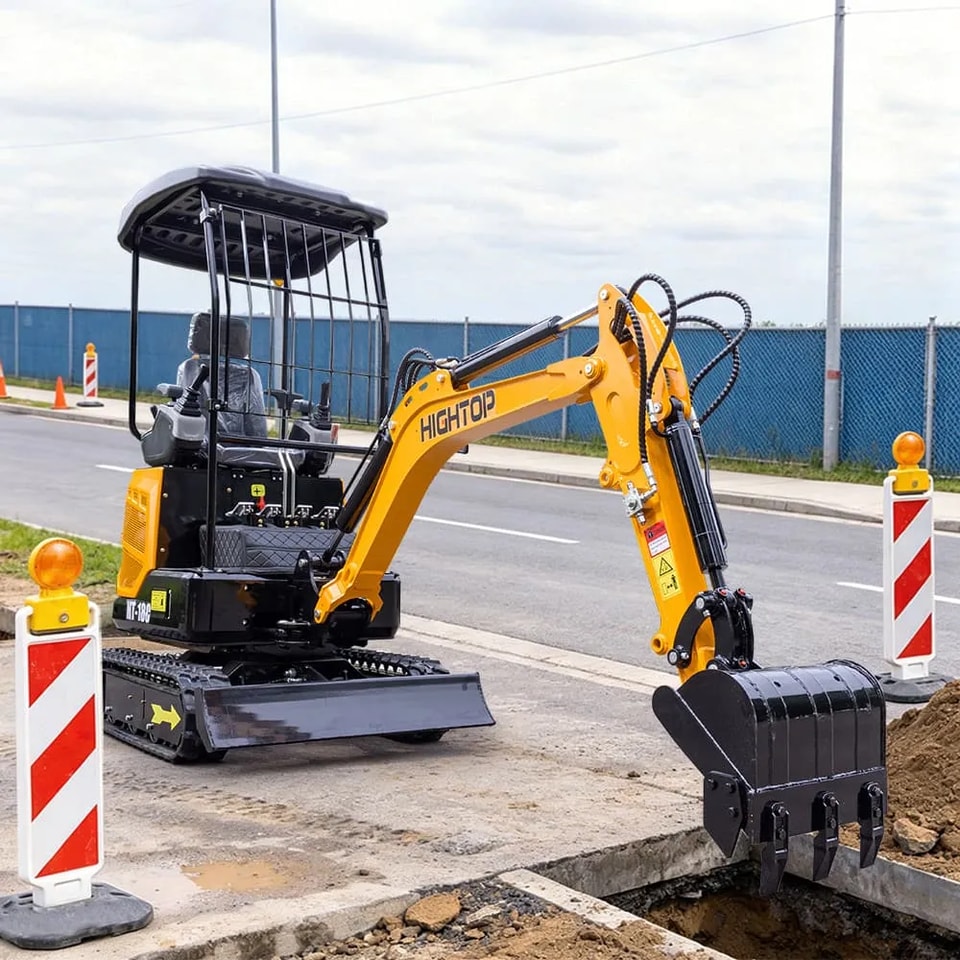

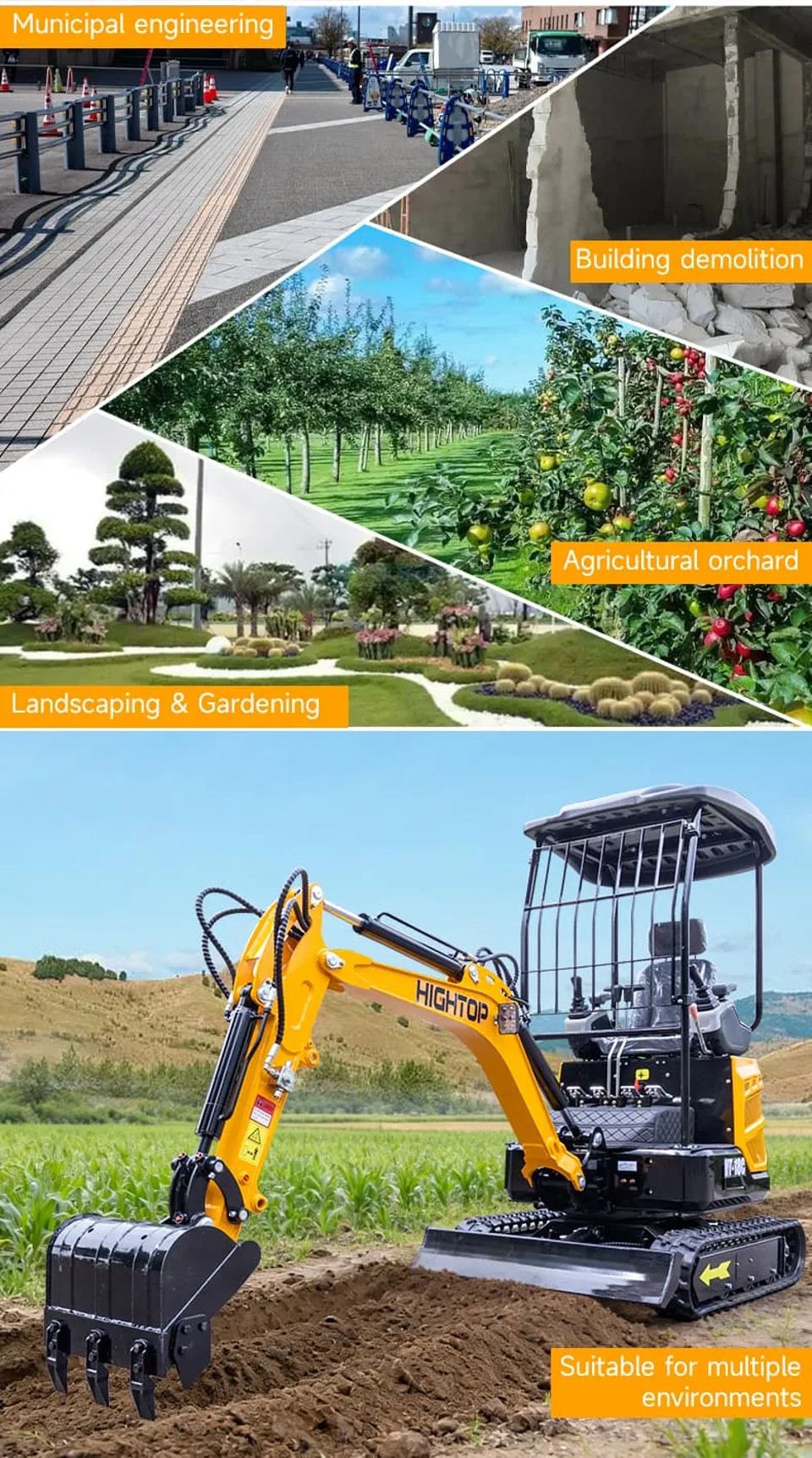

HT18C can be considered for landscaping, orchard work, property maintenance, trenching and other compact excavation applications. Buyers can discuss machine configuration, attachment requirements, spare parts and shipping arrangements as part of the sourcing process.

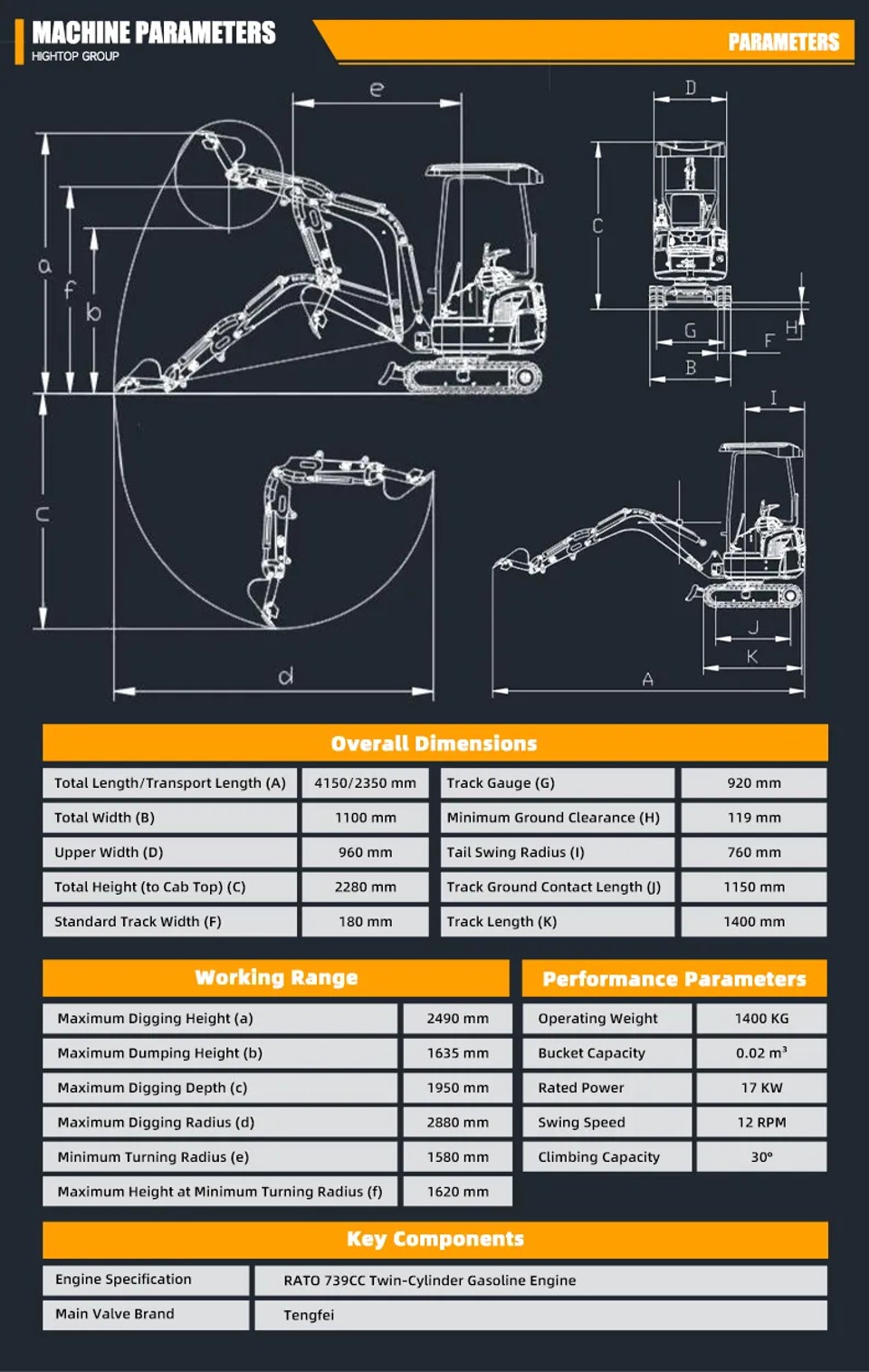

| Item | HT18C Specification |
|---|---|
| Model | HT18C |
| Operating Weight | 1400 kg |
| Full Machine Length | 4150 mm |

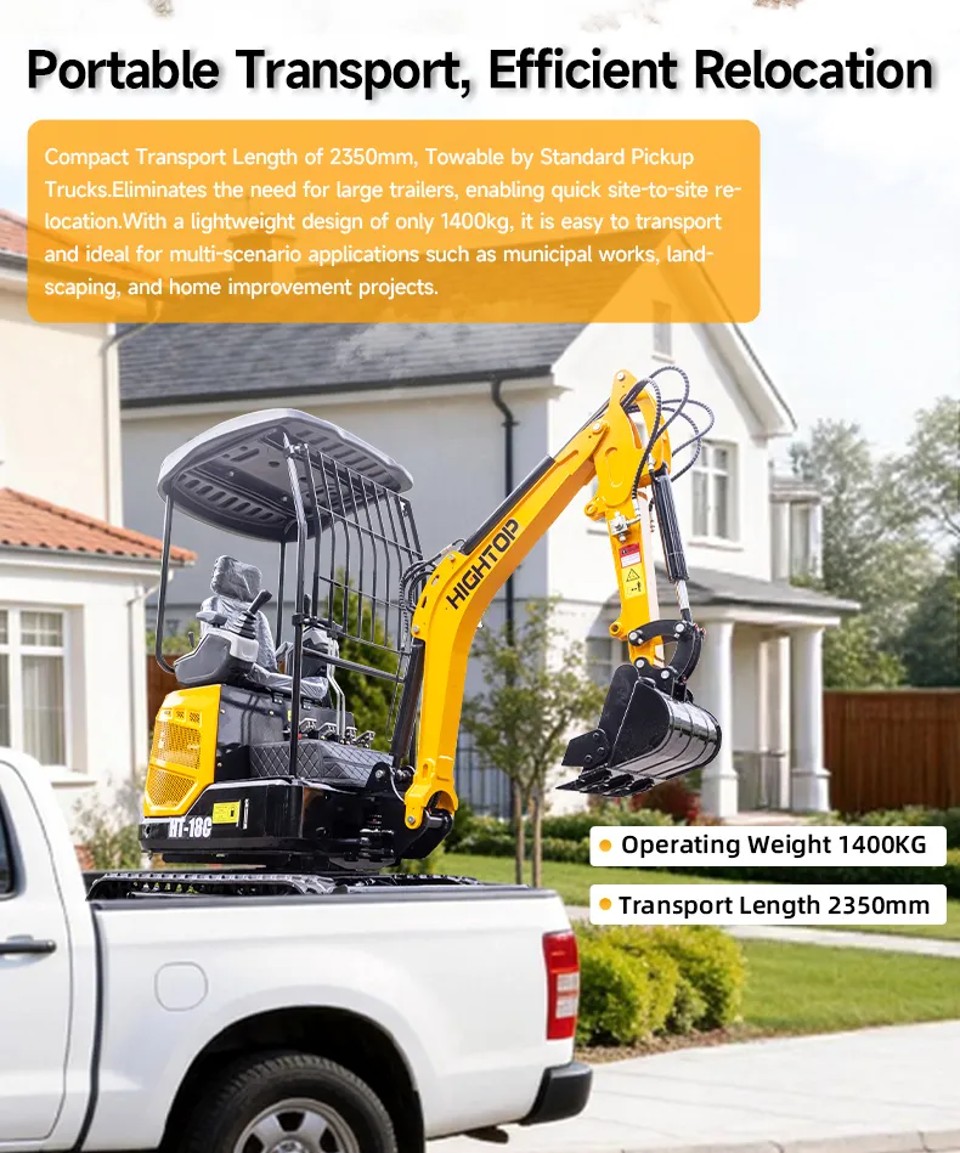

| Transport Length | 2350 mm |
| Overall Width | 1100 mm |
| Upper Frame Width | 960 mm |
| Total Height to Canopy Top | 2280 mm |
| Standard Track Width | 180 mm |
| Track Gauge | 920 mm |
| Minimum Ground Clearance | 119 mm |
| Track Contact Length | 1150 mm |
| Total Track Length | 1400 mm |
| Standard Bucket Capacity | 0.02 m³ |
| Rated Engine Power | 17 kW |
| Swing Rotation Speed | 12 RPM |
| Maximum Climbing Gradient | 30° |
| Maximum Digging Height | 2490 mm |
| Maximum Dumping Height | 1635 mm |
| Maximum Digging Depth | 1950 mm |
| Maximum Horizontal Digging Reach | 2880 mm |
| Minimum Turning Radius | 1580 mm |
| Tail Swing Radius | 760 mm |
| Maximum Height at Minimum Turning Radius | 1620 mm |
| Engine | Rato 739CC Twin-Cylinder Gasoline Engine |
| Main Valve | Tengfei |
What are the main specifications of the HT18C mini excavator?
The HT18C has an operating weight of 1,400 kg, an overall width of 1,100 mm, a maximum digging depth of 1,950 mm and a horizontal digging reach of 2,880 mm.
What engine is used in the HT18C?
The HT18C is equipped with a Rato 739CC twin-cylinder gasoline engine rated at 17 kW.
Is the HT18C suitable for export orders?
The machine can be considered for overseas landscaping, property maintenance, orchard, trenching and compact construction applications. Buyers should provide the destination country and required configuration when requesting a quotation.
What attachments are available for the HT18C?
More than 20 interchangeable attachment options are listed for the product. The required attachment should be specified during the inquiry so the configuration can be confirmed.
What information should I provide when requesting an HT18C quotation?
Provide the required quantity, destination country, intended application and attachment requirements. For resale or dealer orders, include any branding or configuration requirements that need to be considered.
What is the transport length of the HT18C?
The published transport length is 2,350 mm, while the full machine length is 4,150 mm.
What is the width of the HT18C?
The overall machine width is 1,100 mm, with an upper frame width of 960 mm. Buyers should check the actual access route and allow operating clearance.
Can spare parts and shipping arrangements be discussed with the order?
Yes. Spare-parts requirements and shipping arrangements can be discussed together with the machine configuration and quotation.
