HT20U Excavator
HT20U compact crawler excavator – 1011mm ultra-narrow width fits standard doors. 662mm tail swing enables 360° operation in tight spaces. Kubota engine, 16KN bucket digging force, 2042mm max digging depth. Ideal for municipal, landscaping, and indoor demolition.
Email:info009@hightopgroup.com
Phone:+86 181 6205 2962
Instruction
Parameter
Details
Instruction
HT20U Excavator Instruction
1.Applicable fields
- Municipal engineering field
- Landscape gardening field
- Agriculture and rural areas
- The building and fit-out sector
2.Compact Body, Flexible Operation
- Narrow body design: Only 1011mm wide, easily passing through standard doors and narrow lanes.
- Micro turning radius: Tail turning radius of just 662mm, enabling 360° operation, ideal for tight indoor/outdoor spaces.
- Lightweight body: 2000kg working mass, exerting only 30kPa ground pressure, preventing damage.
- Tail turning radius: 662mmOverall width: 1011mm
3.Lightweight Body
- With a working mass of 2000kg, the pressure on the ground is only 30kPa, protecting the ground from damage.
- SCOPE OF EXCELLENT HOMEWORK
- With a maximum excavation height of 3276mm and a maximum excavation depth of 2042mm, it meets the needs of multiple scenarios.
4.High Quality Core Components
- Key hydraulic components are sourced from renowned brands to ensure long-term stable operation.Strong power, efficient operation

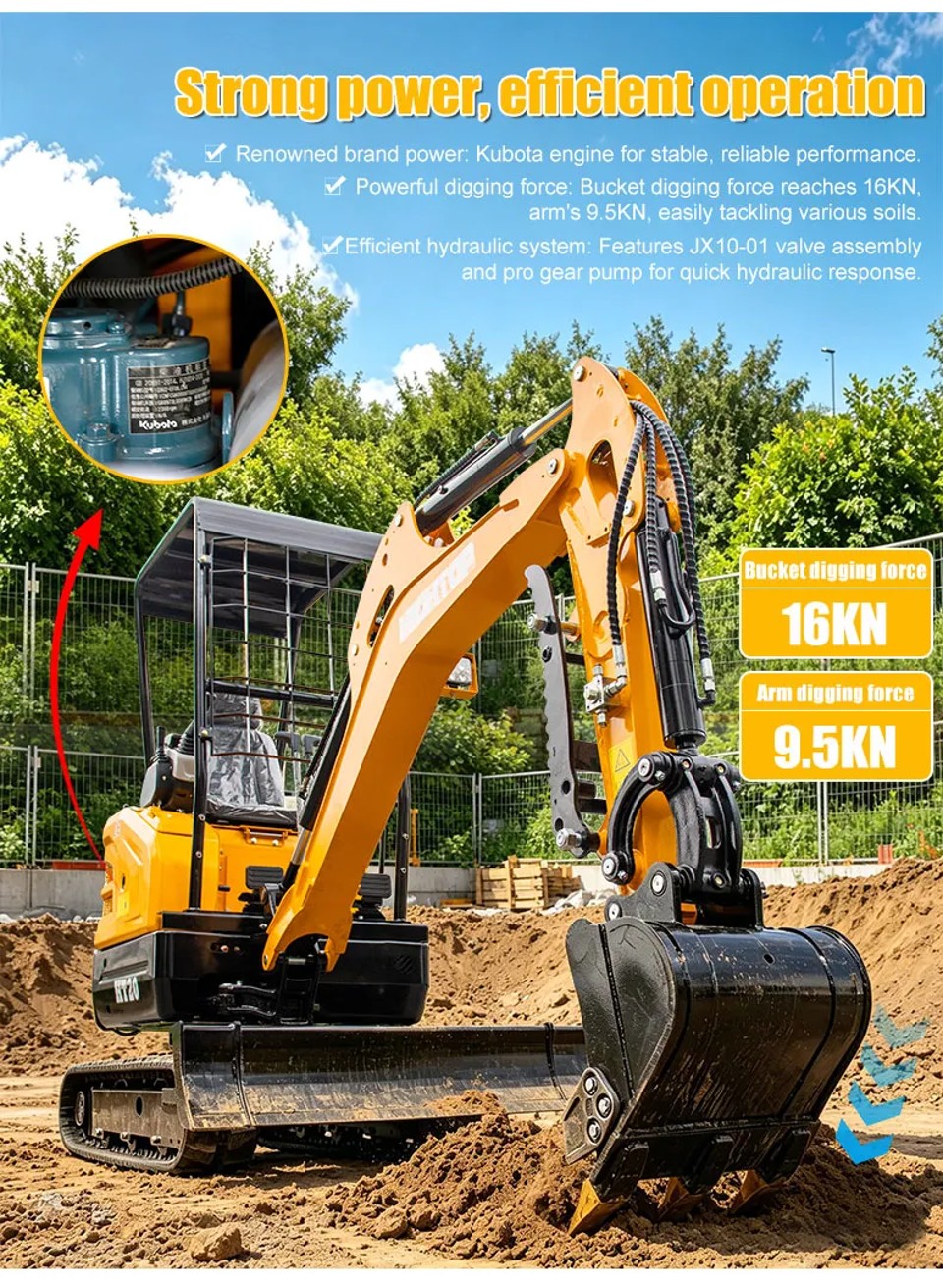

5.Core Strengths
- Renowned brand power: Kubota engine for stable, reliable performance.
- Powerful digging force: Bucket digging force reaches 16KN, arm's 9.5KN, easily tackling various soils.
- Efficient hydraulic system: Features JX10-01 valve assembly and pro gear pump for quick hydraulic response.
Parameter

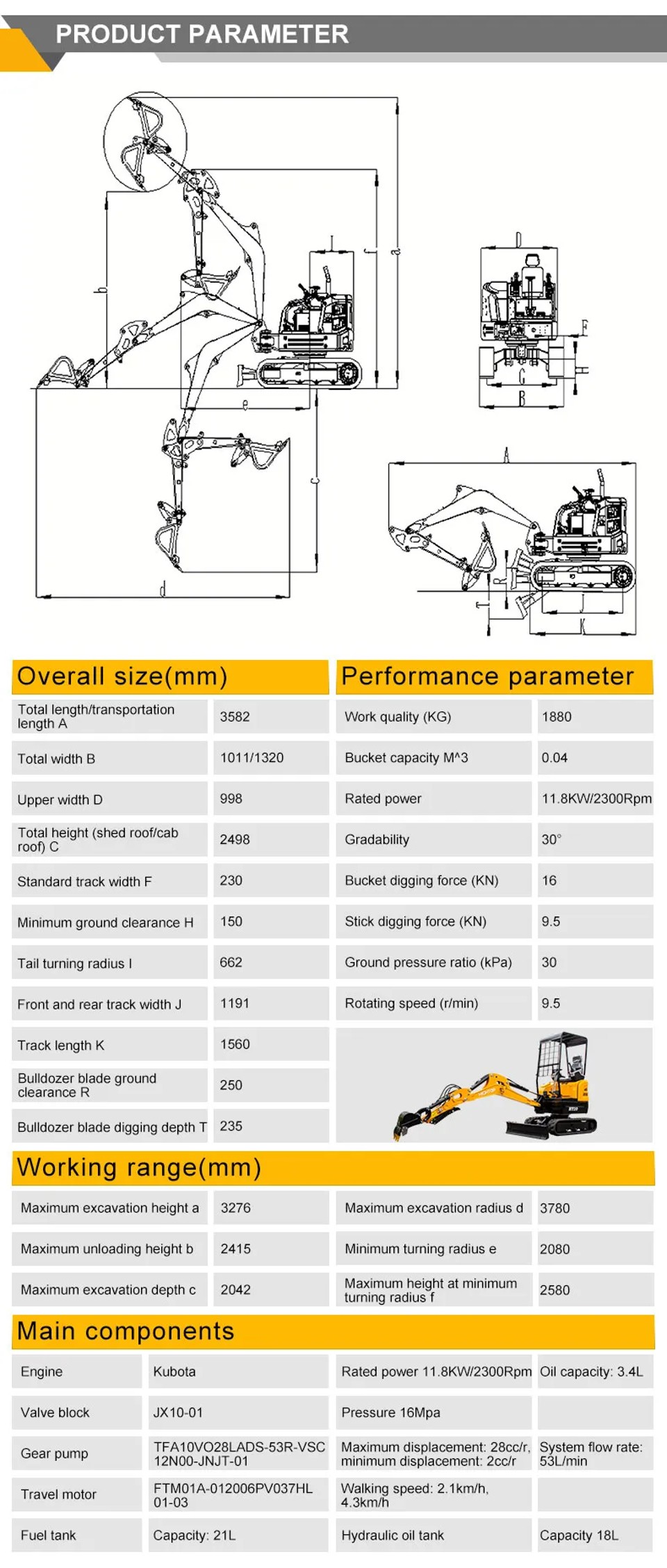

HT20U Excavator Parameter
| HT20U Mini Excavator — Parameter Table | |
|---|---|
| Performance Parameters | |
| Overall Size (mm) | 3582 |
| Work Quality (KG) | 1880 |
| Total Length / Transportation Length A | 1011 / 1320 |
| Bucket Capacity (m³) | 0.04 |
| Upper Width D (mm) | 998 |
| Rated Power | 11.8KW / 2300 rpm |
| Total Height (Shed Roof / Cab Roof) C (mm) | 2498 |
| Gradeability | 30° |
| Standard Track Width F (mm) | 230 |
| Bucket Digging Force (KN) | 16 |
| Minimum Ground Clearance H (mm) | 150 |
| Stick Digging Force (KN) | 9.5 |
| Tail Swing Radius I (mm) | 662 |
| Ground Pressure Ratio (kPa) | 30 |
| Front and Rear Track Width J (mm) | 1191 |
| Swing Speed (r/min) | 9.5 |
| Track Length K (mm) | 1560 |
| Bulldozer Blade Ground Clearance R (mm) | 250 |
| Bulldozer Blade Digging Depth T (mm) | 235 |
| Working Range (Unit: mm) | |
| Maximum Digging Height a | 3276 |
| Maximum Dumping Height b | 2415 |
| Maximum Digging Depth c | 2042 |
| Maximum Digging Radius d | 3780 |
| Minimum Swing Radius e | 2080 |
| Maximum Height at Minimum Swing Radius f | 2580 |
| Main Components | |
| Engine | Kubota |
| Valve Block | JX10-01 |
| Gear Pump | TFA10VO28LADS-53R-VSC12N00-JNJT-01 |
| Travel Motor | FTM01A-012006PV037HL01-03 |
| Fuel Tank Capacity | 21L |
| Rated Power | 11.8KW / 2300 rpm |
| Pressure | 16 Mpa |
| Max Displacement | 28 cc/r (min: 2 cc/r) |
| Travel Speed | 2.1 km/h / 4.3 km/h |
| Hydraulic Oil Tank Capacity | 18L |
Details
