HT22-1 2.2T Mini Excavator with Kubota Engine for Versatile Construction Applications

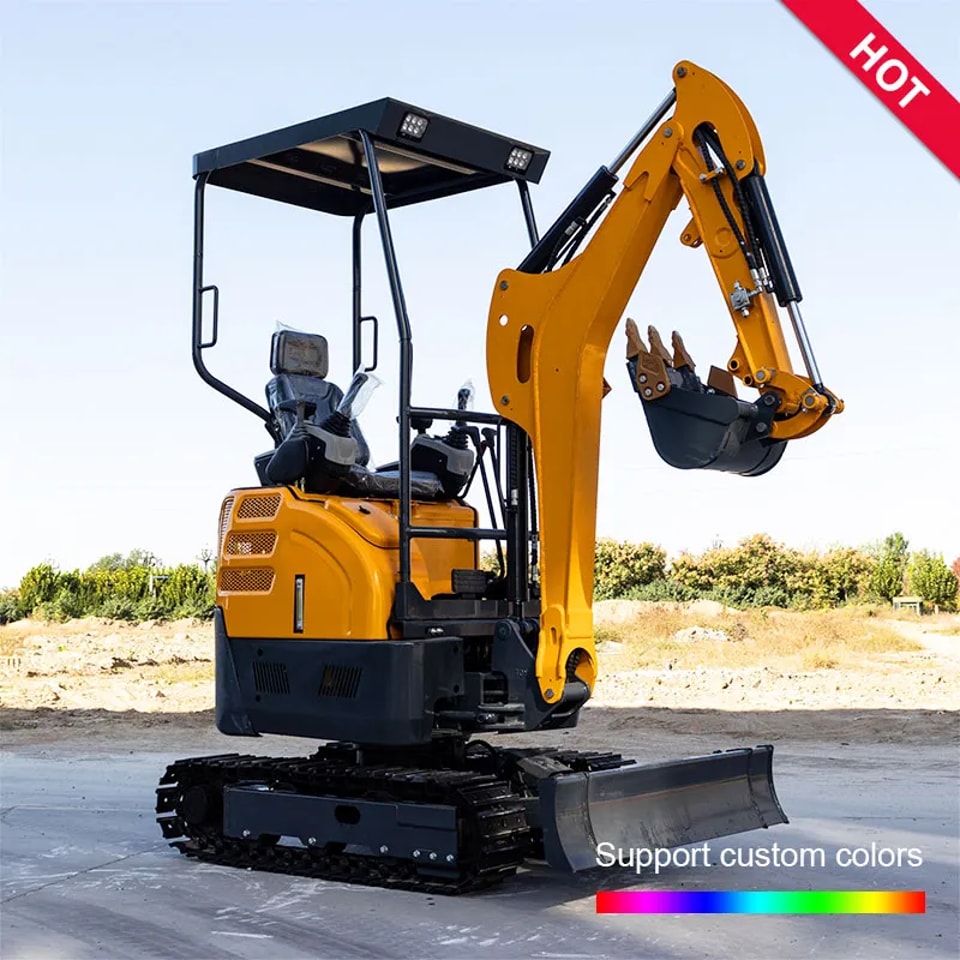

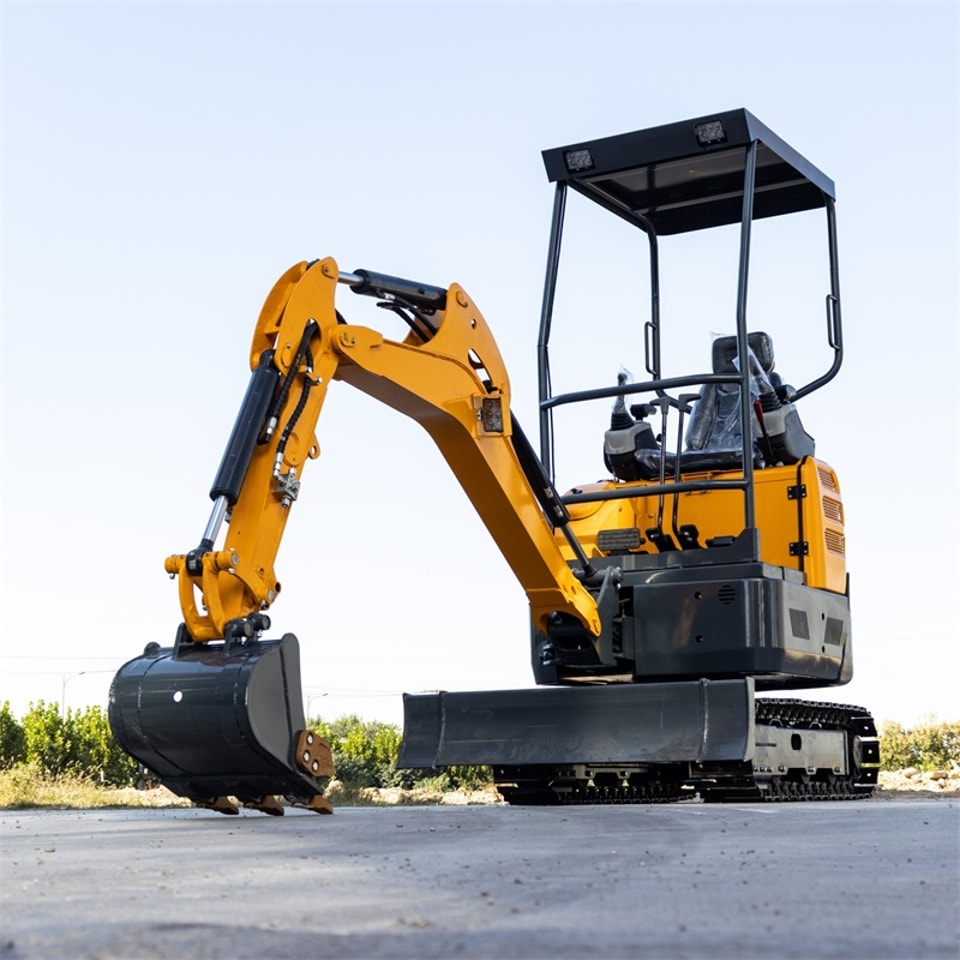

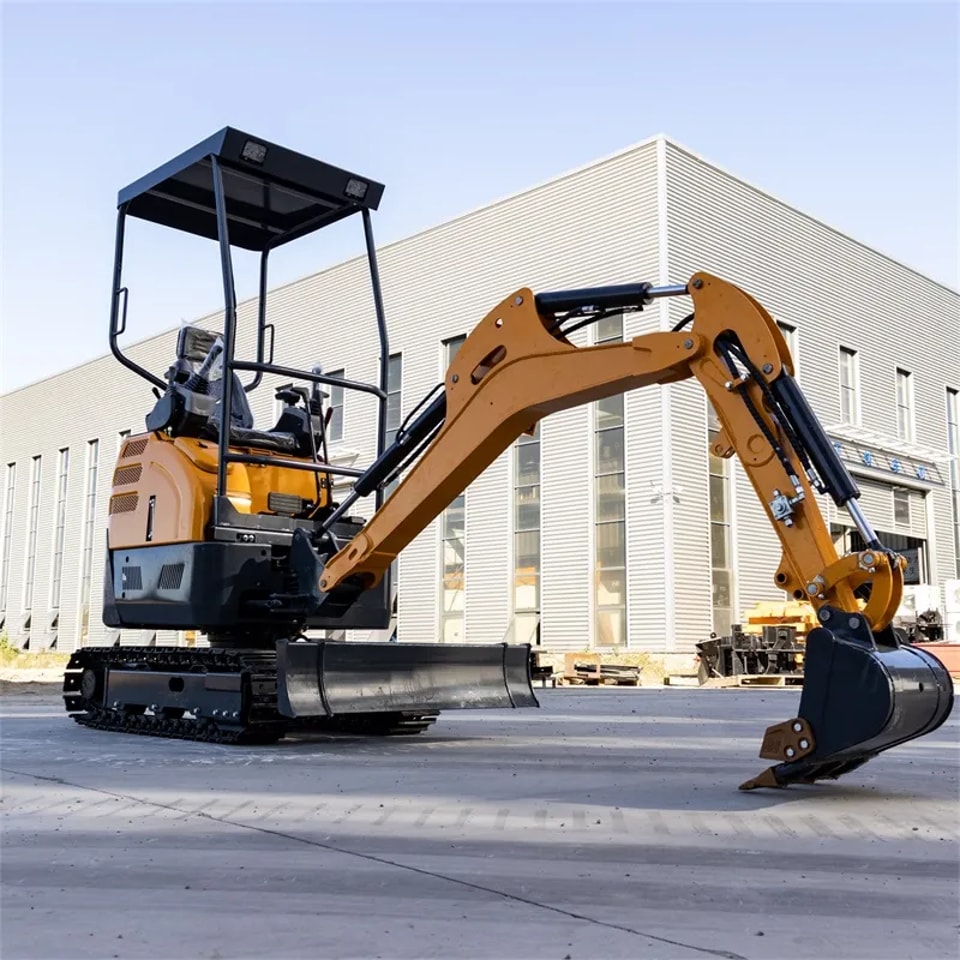

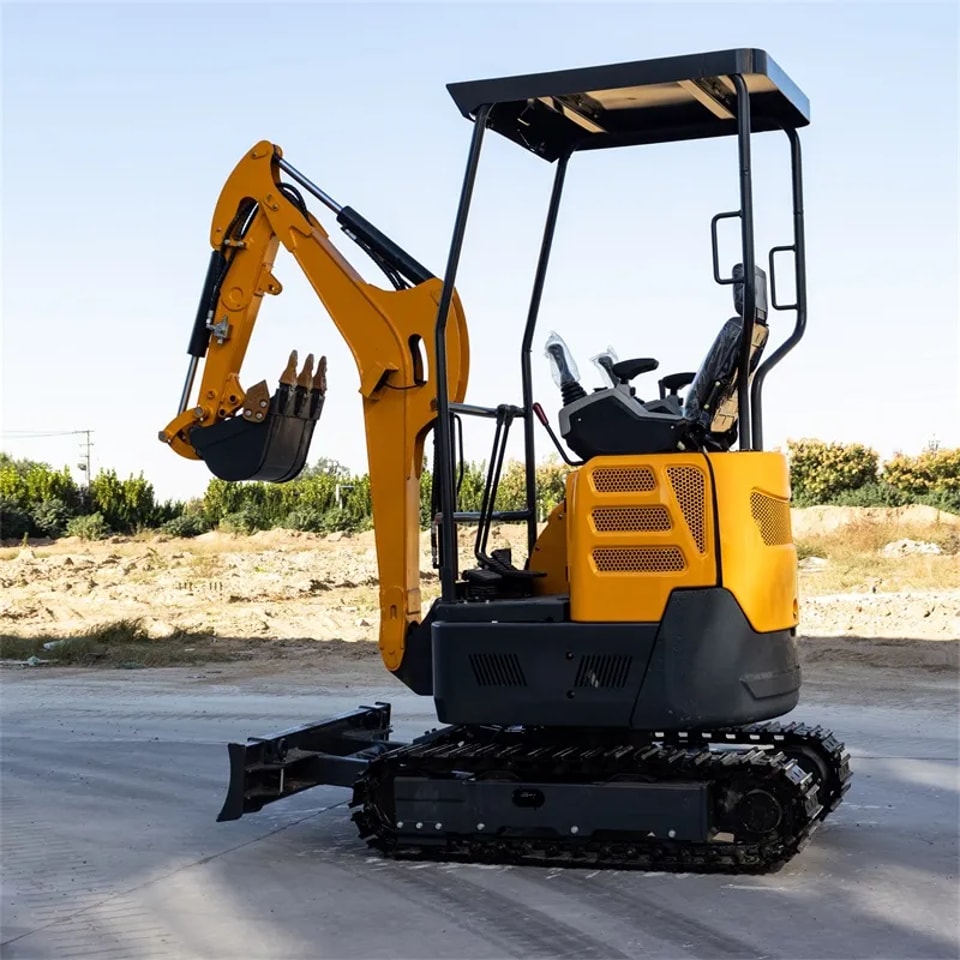

HT22-1 2.2T Mini Excavator Overview
The HT22-1 2.2T mini excavator is designed for customers who need a compact but powerful machine for small construction projects, landscaping, farming and municipal applications.
Equipped with a Kubota D1105 engine, steel track system and full hydraulic pilot operation, the HT22-1 provides stable performance, precise control and excellent adaptability in different working environments.
Key Features of HT22-1 Mini Excavator
Kubota D1105 Engine
The HT22-1 mini excavator uses a Kubota D1105 engine, providing reliable power output and efficient fuel consumption for daily excavation work.
Full Hydraulic Pilot Operation
The full hydraulic pilot control system provides smooth operation through pilot handles, travel controls, bulldozer blade operation, hydraulic hammer functions and side swing operation.
The safety lock system helps prevent unintended machine movement and improves operator protection during operation.

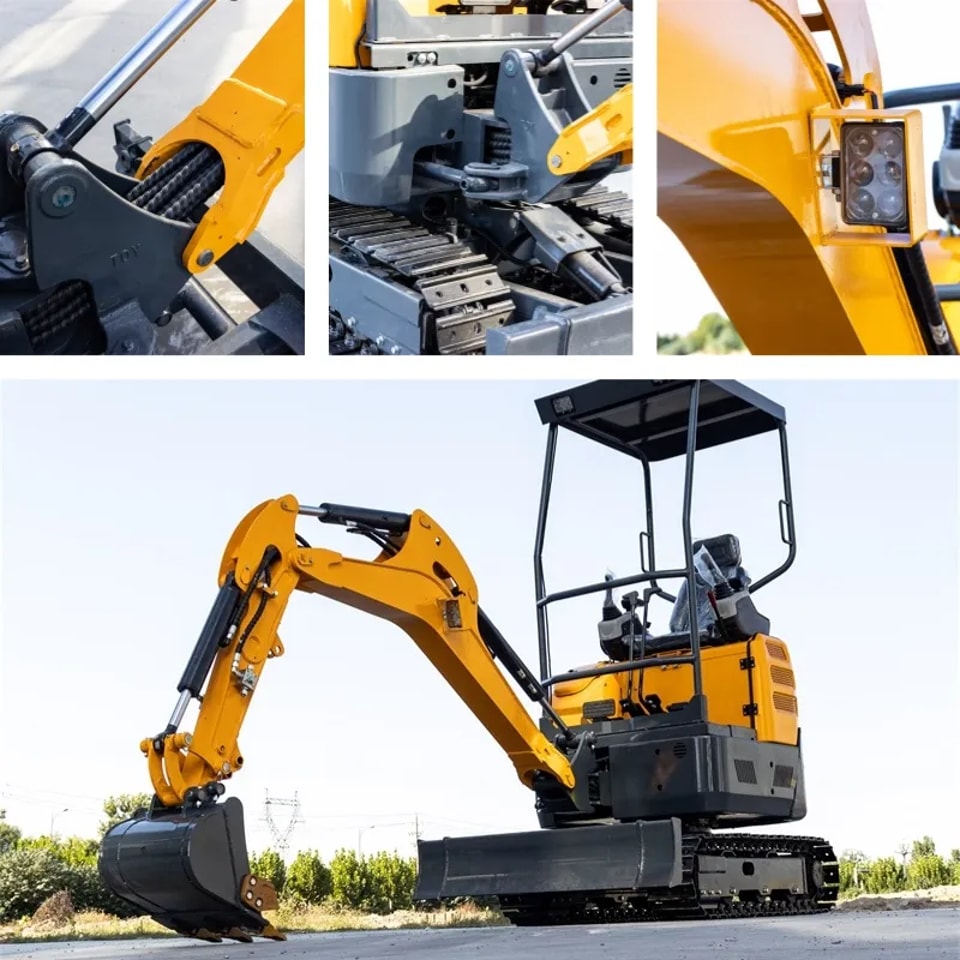

Steel Track with High and Low Speed Function
The HT22-1 is equipped with steel tracks that provide excellent durability and stability. The track system supports high and low speed travel modes and can also be replaced with rubber tracks according to working requirements.
Compact Design with Strong Digging Capability
With a compact structure, 2370mm digging depth and 58% gradeability, the HT22-1 can work efficiently in narrow areas and challenging job sites.
Applications of HT22-1 2.2T Mini Excavator
The HT22-1 mini excavator is suitable for:
- Farm and agricultural work
- Landscaping projects
- Municipal construction
- Utility trenching
- Greenhouse construction
- Small earthmoving projects
Compatible Attachments
The HT22-1 supports various attachments to expand working capability, including:
- Auger
- Hydraulic breaker
- Gripper
- Rake
- Ripper
- Narrow bucket
- Grab bucket
- Flat bucket
Why Choose HT22-1 Mini Excavator
- Kubota D1105 engine
- Full hydraulic pilot operation
- Durable steel track system
- Compact size for narrow spaces
- Low fuel consumption design
- Multiple attachment options
| HT22 2.2T Mini Excavator — Parameter Table | |
|---|---|
| Dimensions (Unit: mm) | |
| Total length / transport length (A) | 4750mm |
| Total width (B) | 990mm / 1300mm |
| Top width (D) | 1050mm |
| Total height (C) | 2470mm |
| Track width (F) | 230mm |
| Track gauge (G) | 780mm / 1090mm |
| Min. ground clearance (H) | 150mm |
| Tail turning radius (I) | 780mm |
| Track ground length (J) | 1200mm |
| Track length (K) | 1500mm |
| Performance Parameters | |
| Operating weight | 2172kg |
| Bucket capacity | 0.056m³ |
| Rated power | 14.2KW / 2200rpm |
| Rated speed | 9.5r/min |
| Gradeability | 58% |
| Working Range (Unit: mm) | |
| Maximum digging height (a) | 3500mm |
| Maximum unloading height (b) | 2560mm |
| Maximum digging depth (c) | 2370mm |
| Maximum digging distance (d) | 3030mm |
| Minimum turning radius (e) | 1750mm |
| Maximum height at minimum turning radius (f) | 2600mm |
| Engine | |
| Engine | KUBOTA D1105 3-cylinder direct injection |
| Rated power | 14.2KW / 2200rpm |
| Hydraulic System | |
| Main valve | TRM10-BX-09-JNJT-01 |
| Main valve pressure | 20.5MP |
| Main pump | TFA10VO28/53R |
| Displacement | 28ml/r |
| Traveling System | |
| Traveling motor | KTD-490 |
| Traveling speed | 2.2 / 4.3 km/h |
| Traction | 18KN |
| Tank Capacity | |
| Fuel tank capacity | 21L |
| Cooling system capacity | 5.05L |
| Hydraulic oil tank capacity | 21.4L |
Frequently Asked Questions About HT22-1 Mini Excavator
What engine does the HT22-1 mini excavator use?
The HT22-1 mini excavator is equipped with a Kubota D1105 engine.
What is a 2.2 ton mini excavator used for?
A 2.2 ton mini excavator is commonly used for landscaping, farming, trenching, municipal projects and small construction applications.
Can HT22-1 use different attachments?
Yes. The HT22-1 supports attachments such as hydraulic breakers, augers, grabs, rippers and different buckets.
Does HT22-1 have steel tracks?
Yes. The HT22-1 uses steel tracks with high and low speed travel functions for improved durability and working flexibility.
